GNEA100
Marine Grade LED
Key Features
- Pixel Pitch: 10 mm
- Brightness: 6,000 nit
- IP Rating: IP67
- Durability for Rough Environment
- Safe Installation and Maintenance
- High Refresh Rate
Contact us
GGEAR Commercial

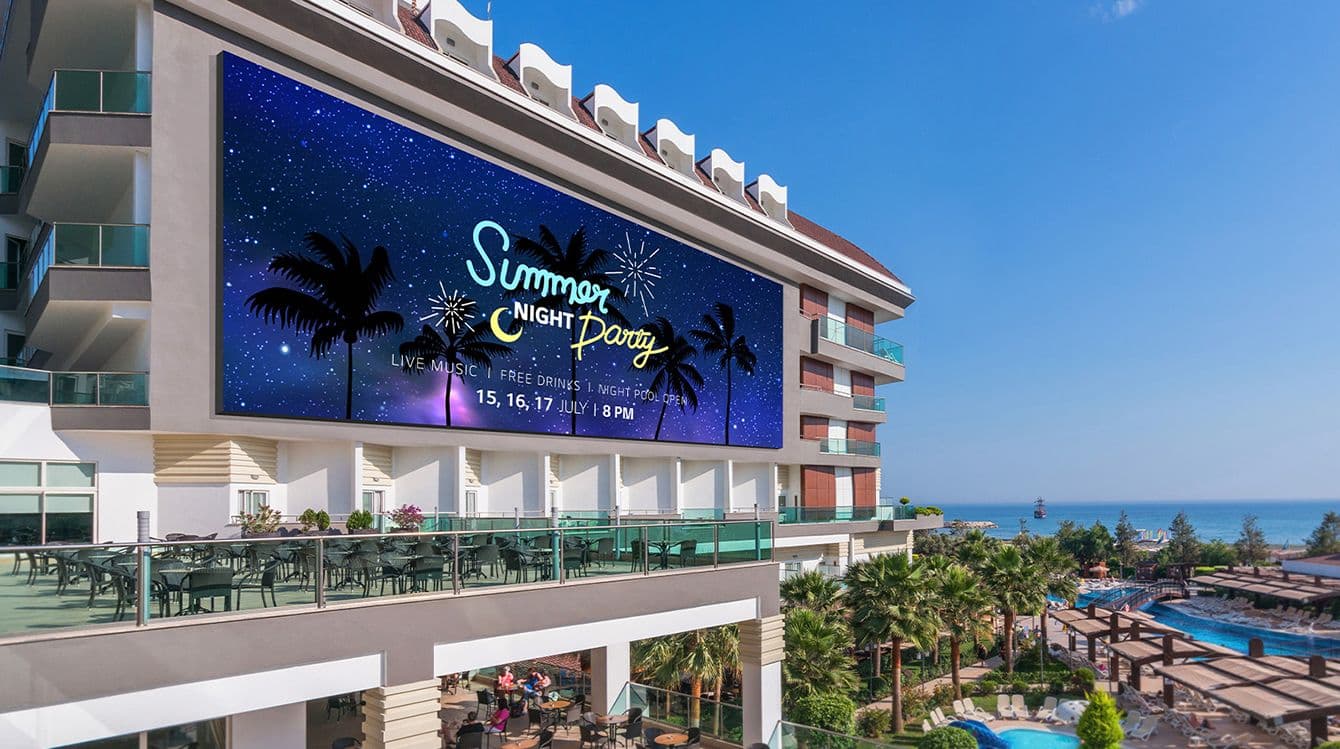

Outdoor LED Display for Seaside Environments
Durability for Rough Environment
GNEA series provides durability with marine-grade powder coating and conformal coating to protect against salinity and corrosion in marine environments and weather conditions. Both the front and rear of the cabinet are IP67-certified and offer reliable designs for seaside, allowing stable power and data connections protected by outdoor environmental factors such as wet weather and the salinity.
Safe Installation and Maintenance
GNEA series offers safe and hassle free installation and maintenance with a powerful screw mounting bracket. Applying SUS 316 screws further protects against salt corrosion, leading to increased durability.
High Refresh Rate
A high refresh rate of 7,680 Hz assures the smooth playback of content. The flicker-free image prevents the black bars that typically occur during video playback, and reduces eye strain and blurred images for viewers.
Compatibility with LG Software Solutions
When connected with LG's CVEA system controller, the GSEH series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
Pixel Pitch (mm)
10.00
Pixel Configuration
Single SMD
Module Resolution (W x H)
40 × 40
Module Dimensions (W x H, mm)
400 × 400
Weight per Module (kg)
2.45
Cabinet Resolution (W × H)
80 × 160
Cabinet Dimensions (W × H × D, mm)
800 × 1,600 × 143.5
No. of Modules per Cabinet (W × H)
2 × 4
Cabinet Surface Area (m²)
1.280
Weight per Cabinet (kg/cabinet)
40.0
Weight per Square Meter (kg/m²)
31.3
Physical Pixel Density (pixels/m²)
10,000
Flatness of Cabinet
±1.0 mm
Cabinet Material
AI
Service Access
Rear
Max. Brightness (After Calibration)
6,000
Color Temperature (K)
3,500 - 8,500
Visual Viewing Angle (Horizontal/Vertical)
160 × 115
Brightness Uniformity
97%
Color Uniformity
±0.05 Cx, Cy
Contrast Ratio
6,000 : 1
HDR Compatibility
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
920
Power Consumption (W/Cabinet, Avg.)
368
Power Consumption (W/m², Max.)
719
Heat Dissipation (BTU/h/Cabinet, Max.)
3,140
Heat Dissipation (BTU/h/Cabinet, Avg.)
1,256
Heat Dissipation (BTU/h/㎡, Max.)
2,453
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
7,680
LED Lifetime (Half Brightness)
100,000
Operating Temperature (°C)
-30 to +50
Operating Humidity
0-90% RH
IP rating Front / Rear
IP67 / IP67
