GSEH100
Outdoor LED
Key Features
- Pixel Pitch: 16.00 mm
- Brightness: 8,500 nit
- Quick Installation
- Easy Maintenance
- Front and Rear Serviceability
- Compatibility with LG Software Solutions
Contact us
GGEAR Commercial
Ultra High Brightness
With a great brightness of 8,500 nits, it clearly delivers content and attracts public attention, which is the suitable display for outdoor visibility.

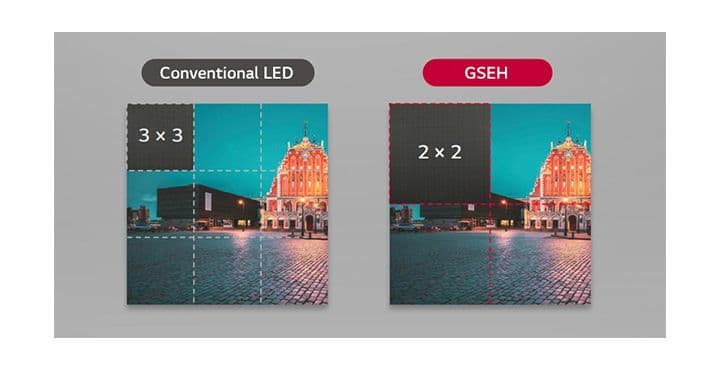

Quick Installation
The GSEH series is 1.5 times larger than a conventional LED cabinet, making it much easier to fit a screen of the same size.

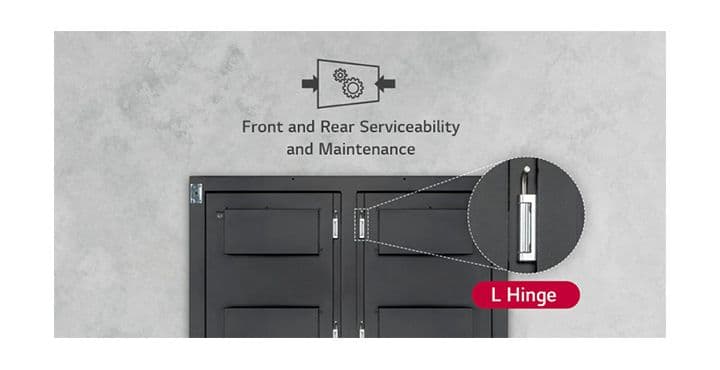

Easy Maintenance
Both front and rear are supported. When rear service is required, the door itself can be removed as it is with an L-shaped hinge, which allows maintenance to be performed in a narrower space.
Compatibility with LG Software Solutions
When connected with LG's CVEA system controller, the GSEH series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
Pixel Pitch (mm)
10.67
Pixel Configuration
Single SMD
Module Resolution (W x H)
18 × 18
Module Dimensions (W x H, mm)
192 × 192
Weight per Module (kg)
0.56
Cabinet Resolution (W × H)
144 × 144
Cabinet Dimensions (W × H × D, mm)
1,536 × 1,536 × 222
No. of Modules per Cabinet (W × H)
8 × 8
Cabinet Surface Area (m²)
2.359
Weight per Cabinet (kg/cabinet)
104.0
Weight per Square Meter (kg/m²)
44.1
Physical Pixel Density (pixels/m²)
8,789
Flatness of Cabinet
±1.0 mm
Cabinet Material
AI
Service Access
Front and Rear
Max. Brightness (After Calibration)
8,500 nit
Color Temperature (K)
3,500 - 8,500
Visual Viewing Angle (Horizontal/Vertical)
160 × 105
Brightness Uniformity
97%
Color Uniformity
±0.05 Cx, Cy
Contrast Ratio
10,000 : 1
HDR Compatibility
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
1,690
Power Consumption (W/Cabinet, Avg.)
676
Power Consumption (W/m², Max.)
716
Heat Dissipation (BTU/h/Cabinet, Max.)
5,767
Heat Dissipation (BTU/h/Cabinet, Avg.)
2,307
Heat Dissipation (BTU/h/㎡, Max.)
2,445
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half Brightness)
100,000
Operating Temperature (°C)
-30 to +50
Operating Humidity
0-90% RH
IP rating Front / Rear
IP65 / IP54
