LSGA039
LG Indoor LED
Key Features
- Pixel Pitch : 3.91 mm
- Brightness : 800 nit
- Fast Installation
- Easy Maintenance
- Front and Rear Serviceability
- IP Rating : IP40 / IP20 (Front / Rear)
Contact us
GGEAR Commercial
LSGA Indoor LED Series

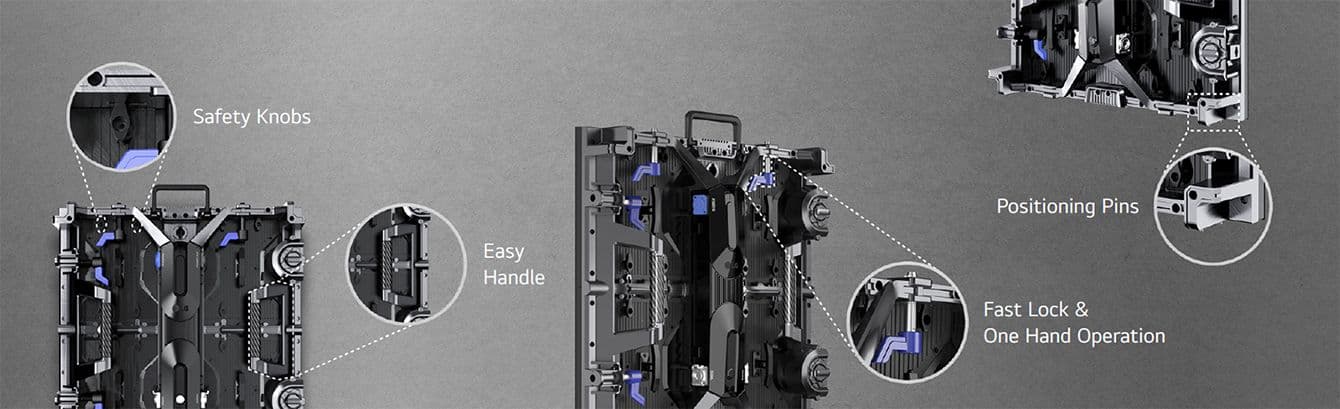

Fast Installation
Various factors such as safety knobs, fast locks, handles, and positioning pins facilitate the installer in smoothly setting up and dismantling LED screens without the requirement of extra tools.

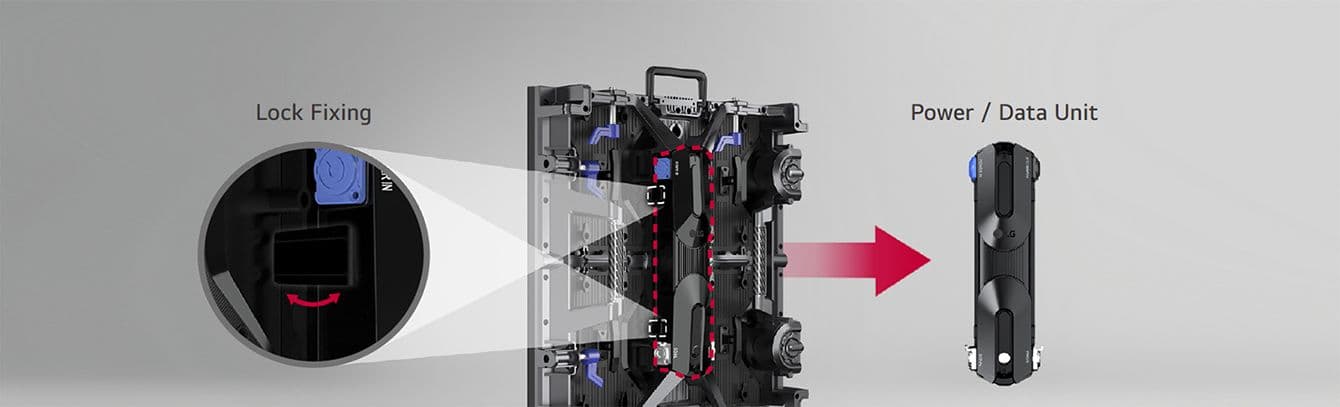

Easy Maintenance
The LSGA series features a lock fixing method that requires no additional tools, simplifying the process of replacing LED modules or power/data units and resulting in time and cost savings for maintenance.

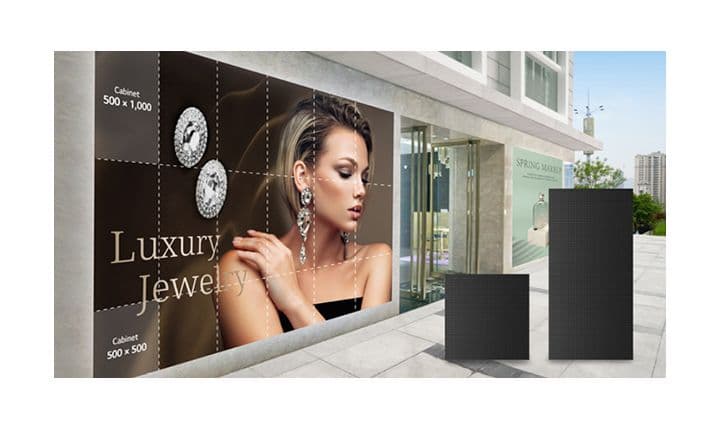

Two Cabinet Options
The LSGA series offers two cabinet sizes to accommodate customer demands for various screen sizes.

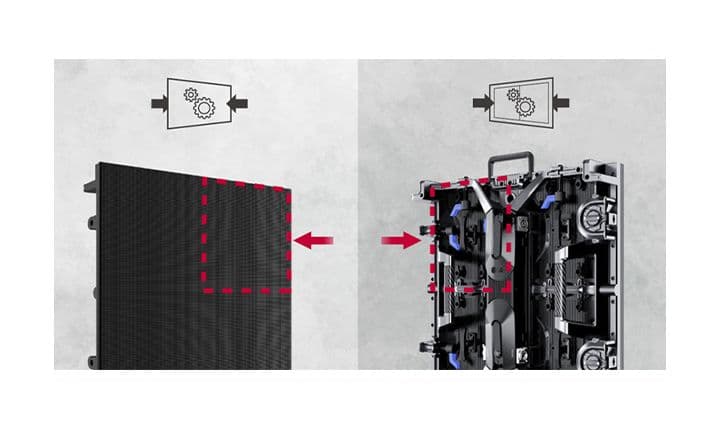

Front and Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.
Pitch Name
P3.9
Pixel Pitch (mm)
3.91
Pixel Configuration
Single SMD
Module Resolution (W x H)
64 × 64
Module Dimensions (W x H, mm)
250 × 250
Weight per Module (kg)
0.55
Cabinet Resolution (W × H)
128x128 (-CK) / 128x256 (-GK)
Cabinet Dimensions (W × H × D, mm)
500x500x90 (-CK) / 500x1,000x90 (-GK)
No. of Modules per Cabinet (W × H)
2x2 (-CK) / 2x4 (-GK)
Cabinet Surface Area (m²)
0.25 (-CK) / 0.5 (-GK)
Weight per Cabinet (kg / unit)
6 (-CK) / 10 (-GK)
Weight per Square Meter (kg/m²)
24 (-CK) / 20 (-GK)
Physical Pixel Density (pixels/m²)
65,536
Flatness of Cabinet
± 0.1 mm
Cabinet Material
Magnalium
Service Access
Front & Rear
Max. Brightness (After Calibration)
800 nit
Color Temperature
3,200-9,300 (K)
Visual Viewing Angle (Horizontal/Vertical)
160 × 140
Brightness Uniformity
98%
Color Uniformity
Color Uniformity
Contrast Ratio
6,500:1
Processing Depth (bit)
14
Power Consumption (W/Cabinet, Max.)
93 (-CK) / 186 (-GK)
Power Consumption (W/Cabinet, Avg.)
31 (-CK) / 62 (-GK)
Power Consumption (W/m², Max.)
372
Heat Dissipation (BTU/h/Cabinet, Max.)
253 (-CK) / 508 (-GK)
Heat Dissipation (BTU/h/Cabinet, Avg.)
84 (-CK) / 169 (-GK)
Heat Dissipation (BTU/h/㎡, Max.)
1,010 (-CK) / 1,015 (-GK)
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-10℃ to +40℃
Operating Humidity
10~80%RH
IP rating Front / Rear
IP40 / IP20
