43SE3KE

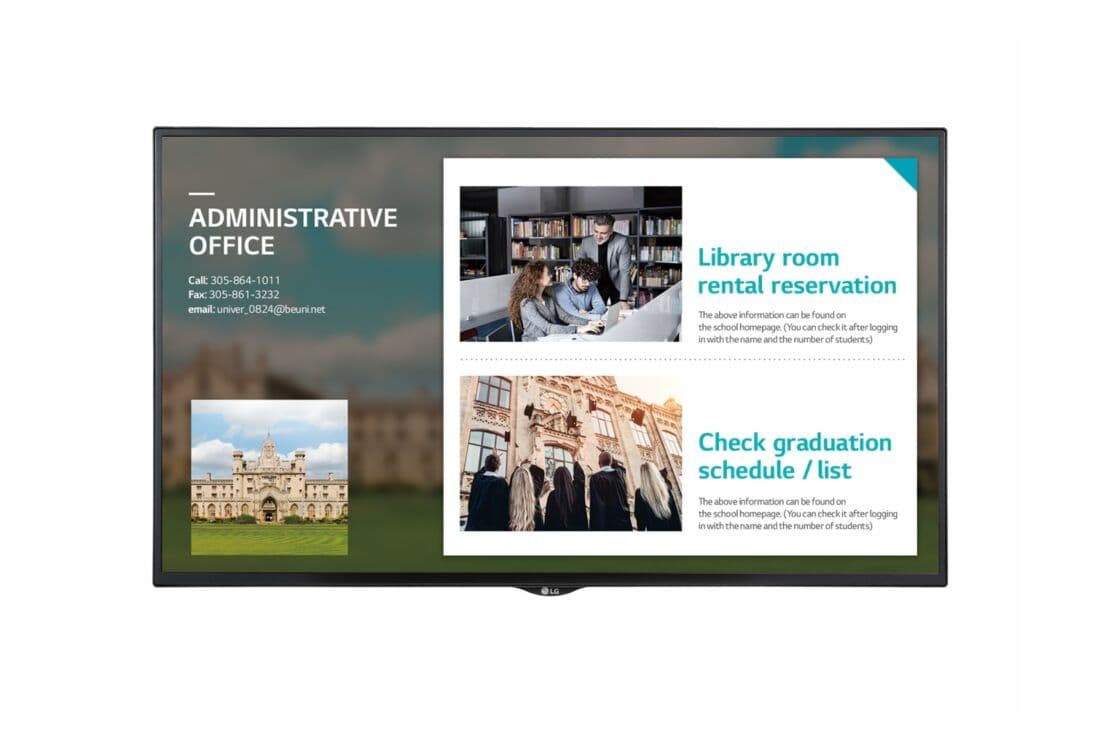

55″ FHD Standard Signage SE3KE Series
Key Features
- Brightness(Typ.) : 350 cd/m²
- Bezel : 11.9 mm(T/R/L), 18 mm(B)
- Depth : 54 mm
- Interface : HDMI(2)/ DVI-D/ RGB/ USB/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker(10W×2)
Contact us
GGEAR Commercial
An Essential Way of Delivering Dynamic Content
An Essential Way of Delivering Dynamic Content

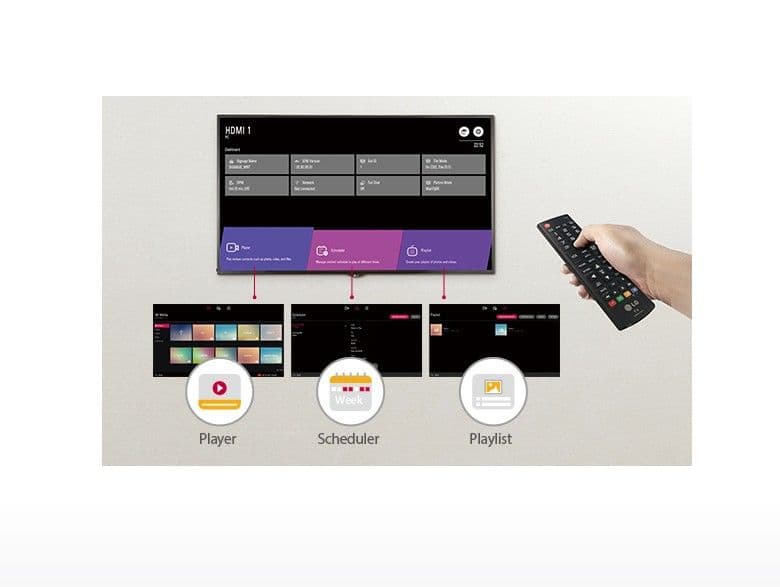

User-Friendly Menu for Digital Signage
With the signage dedicated home menu, users can check key information related to displays at a glance. On the bottom, the content management menu is provided, letting you explore and play available content and set playlists with desired schedules using a remote controller.

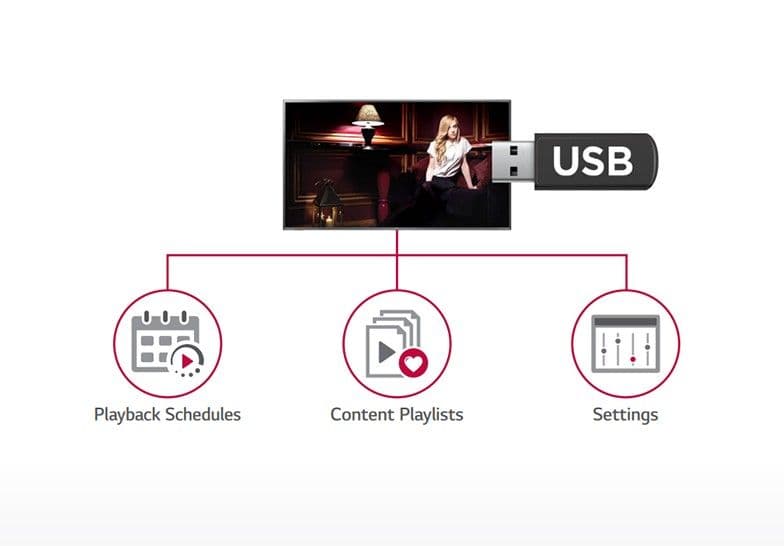

USB Content Scheduling & Data Cloning
USB content scheduling and cloning makes managing multiple displays more efficient for optimal content playback and operation, since users don't have to set up each display one by one. Once users copy data to a USB in one display, it will be easily distributed to others
Efficient Operation
The SE3KE series partially keeps power-on status controllable by network while the screen is turned off, enabling efficient power management.
Scheduled Screen Wash
ISM (Image Sticking Minimization) mode supports users in setting up periods and times to refresh the screen to prevent the occurrence of image sticking.
18/7 Operation
The SE3KE series can be operated for 18 hours a day, which provides users with the flexibility to allocate and operate it in places that are open for long periods of time.

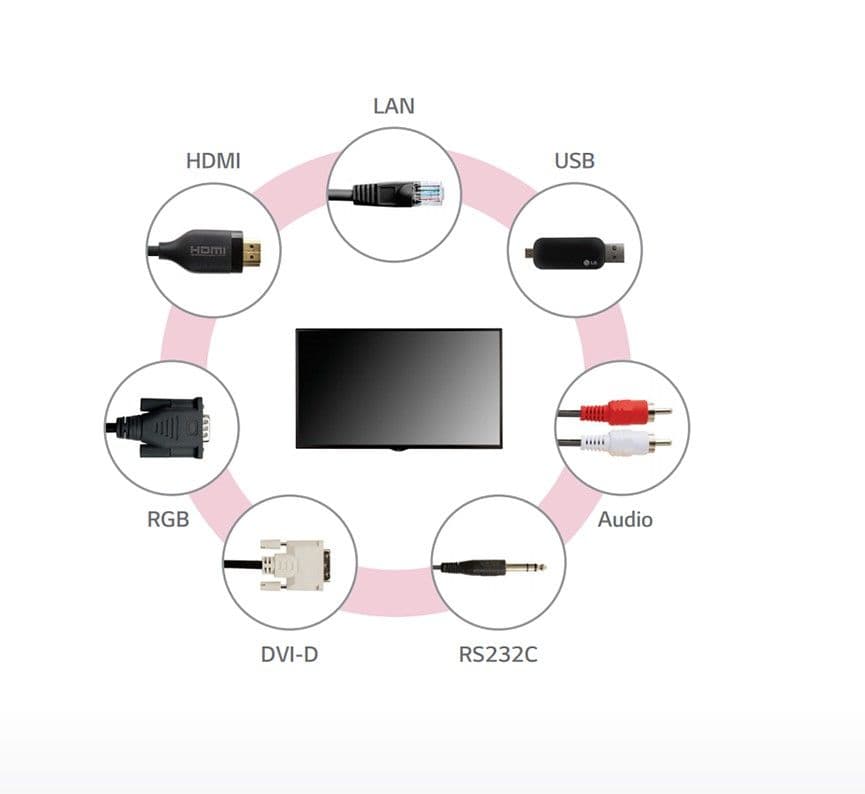

A Wide Range of Interfaces
Thanks to its high compatibility with diverse interfaces, users can select among various input/output sources for optimal content playback and control.
* Soft AP should be set in the installation menu after the TV is turned on.
* Smart Mirroring may not be operated at the same time.
Compatibility with AV Control Systems
The SE3KE series has been certified Crestron ConnectedⓇ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1, boosting business management efficiency.
Detachable Logo & Built-in Speaker
The detachable logo makes it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, offering viewers various multi-media experiences.
Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on power board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.
Screen Size
43"
Native Resolution
1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)
350
Input
HDMI (2), DVI-D, RGB, Audio, USB
External Control
RS232C in/out, RJ45 in, IR in
Output
Audio (Off/Fixed/Variable)
Bezel Width
11.9 mm (T/R/L), 18 mm (B)
Weight (Head)
10.0 kg
Weight (Head+Stand)
12.5 kg
Packed Weight
12.6 kg
Monitor Dimension (W × H × D)
969.6 x 563.9 x 54 mm
Monitor with Optional Stand Dimensions (W x H x D)
969.6 x 622.2 x 193 mm
Carton Dimensions (W × H × D)
1,052 x 650 x 123 mm
VESA™ Standard Mount Interface
200 x 200 mm
Operation Temperature
0°C to 40°C
Operation Humidity
10 % to 80 %
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Typ. / Max.
55 W / 90 W
Smart Energy Saving
38.5 W
Speaker
20 W (10 W x 2)
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
ErP / Energy Star
Yes (EU Only) / Yes (Energy Star 8.0)
EMC
FCC Class "A" / CE / KC
OPS type compatible
Yes
OPS type compatible Yes External Media player Attatchable
Yes (MP500 / MP700)
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control / Control+
Basic
Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
Optional
Stand (ST-432T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T43E)
