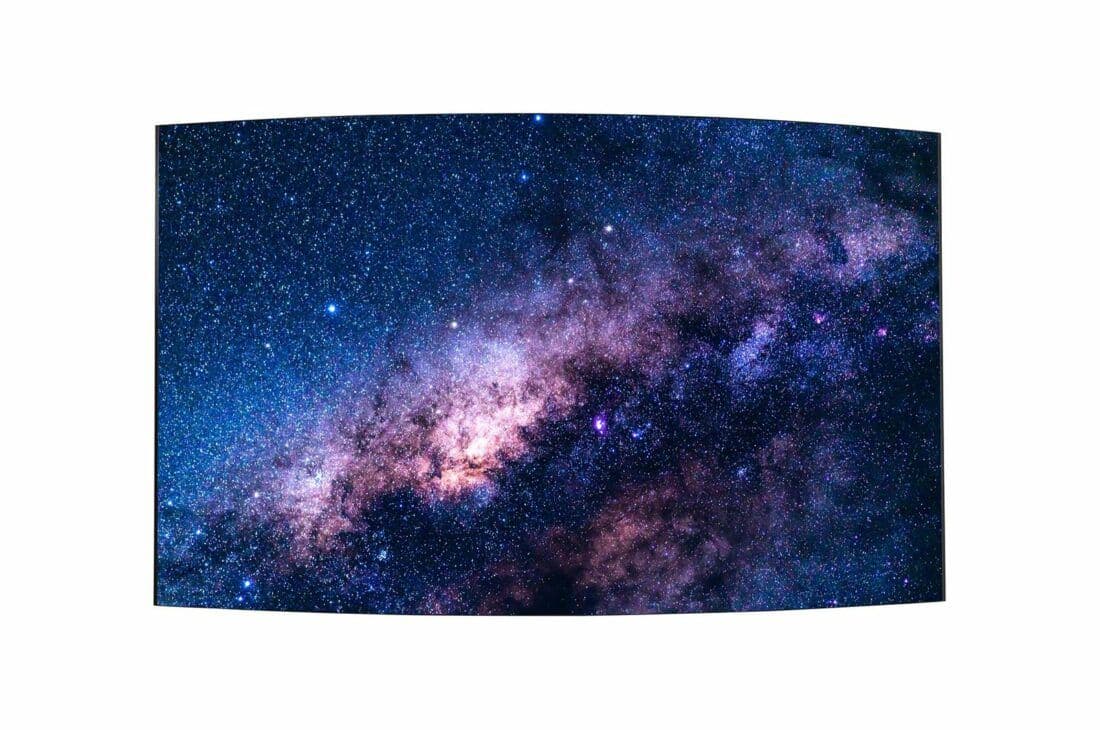

55EF5K-L
Flexible Curved Open Frame OLED Signage
Key Features
- Brightness: 150/400nit (APL 100%/25%)
- Depth: 12.4 mm (Head Only)
- Curvature: ~1,000R(Concave/Convex)
- Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
Contact us
GGEAR Commercial
Artistic Space beyond Display LG OLED Signage
Blending in with the space while captivating everyone’s mind. LG OLED signage offers flexible design. Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.
Expandable Screen Size
The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.
Splendid Design
LG OLED technology doesn’t require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.
Absolute Black
Absolute Black
Rich Color
Rich Color

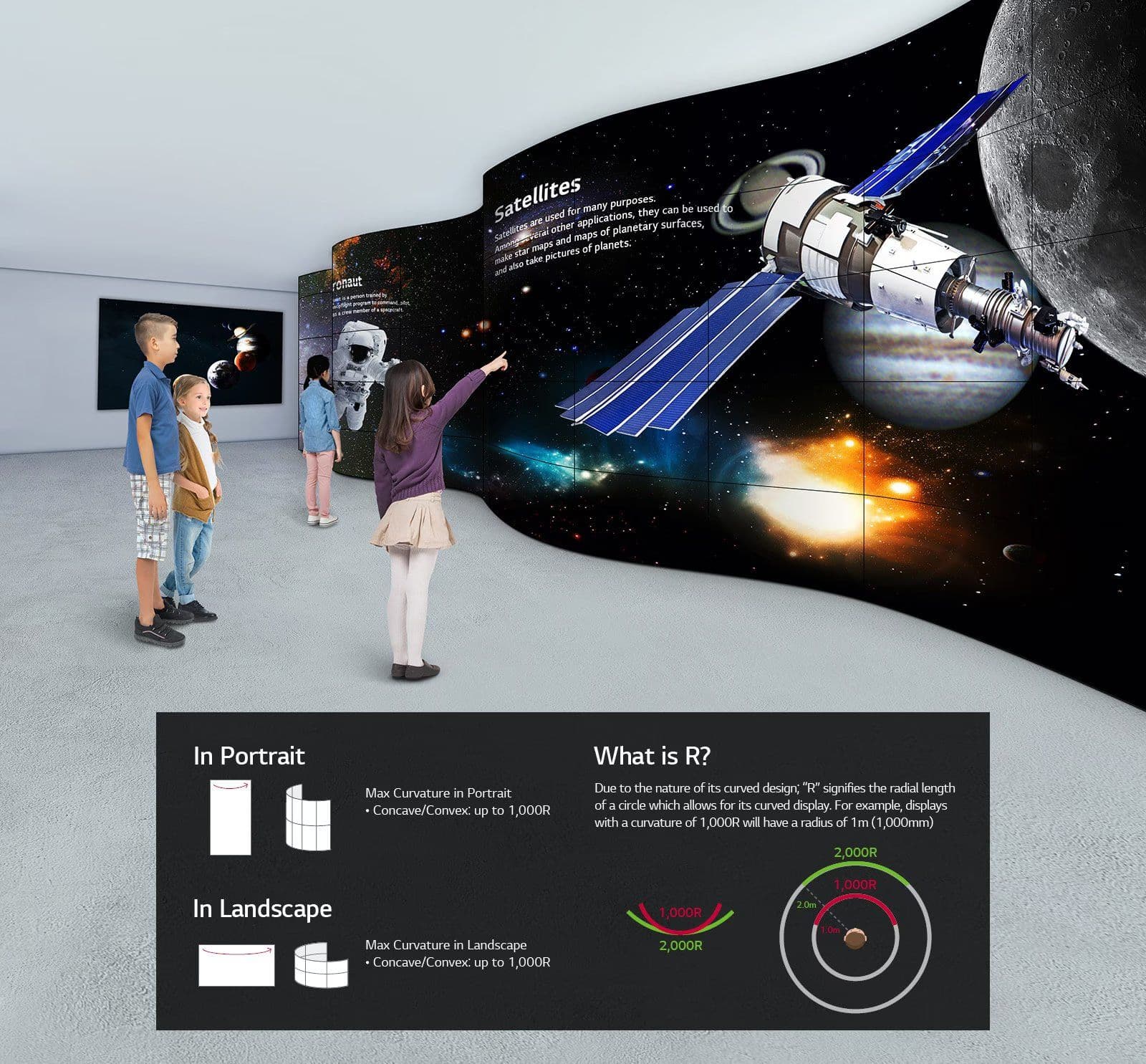

Variety of Curvature for Landmarks
The EF5K series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.

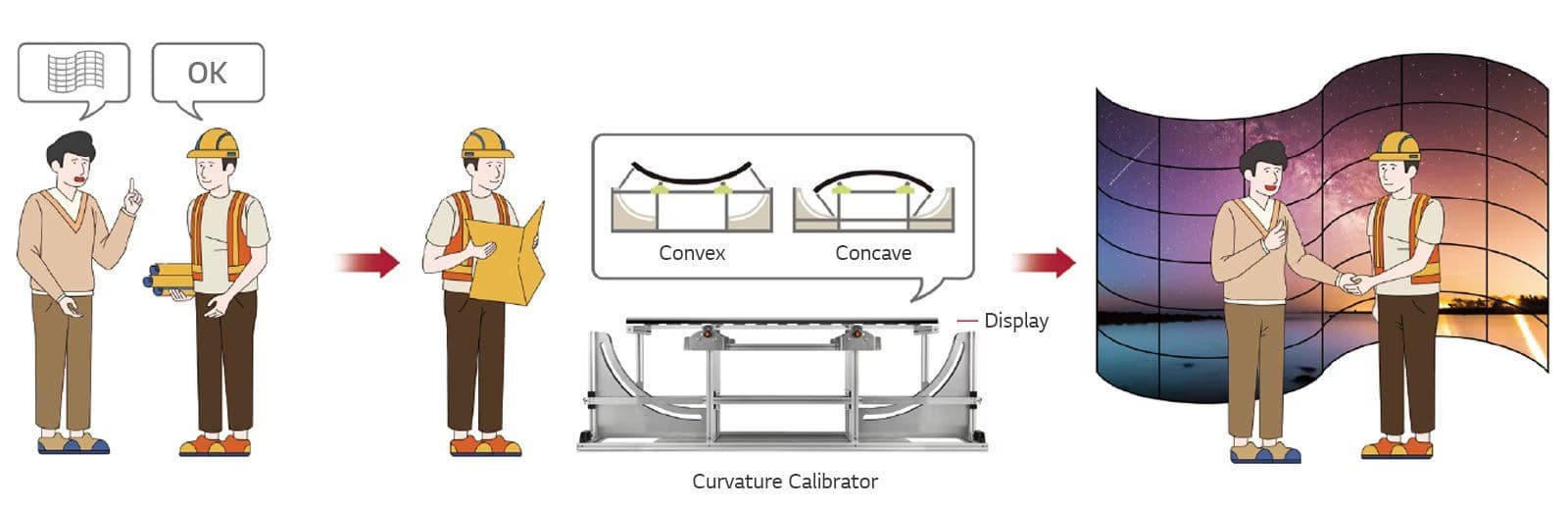

On-site Customization
The EF5K series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eye-catching landmark.
LAN Daisy Chain Management
LAN Daisy Chain Management
Videowall Playlist & Sync Playback
Videowall Playlist & Sync Playback
Screen Size
55"
Panel Technology
OLED
Back Light Type
OLED
Aspect Ratio
16:9
Native Resolution
1920x1080 (FHD)
Refresh Rate
120Hz
Brightness
150/400nit (APL 100%/25%)
Contrast Ratio
150,000 : 1
Color gamut
BT709 120%
Viewing Angle(H x V)
178 X 178
Color Depth
10bit(R), 1.07Bilion colors
Response Time
1ms (G to G), 8ms (MPRT)
Surface Treatment(Haze)
Hard coating (2H) Reflectance Typ. 1.2%
Life time
30,000 Hrs (Typ.)
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Portrait / Landscape
Yes
Input
HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45 (LAN), IR IN (1, External IR Receiver), USB2.0 Type A (2)
Output
DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45 (LAN)
Bezel Color
Black
Bezel Width
T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel)
Bezel Width
T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel)
Bezel Width
T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel)
Bezel Width
T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)
Weight(Head)
5.8Kg (LandScape, Head) 7.0Kg (Portrait, Head) 3.5Kg (Signage Box)
Packed Weight
17.0Kg (LandScape) 17.6Kg (Portrait)
Monitor Dimension(W x H x D)
1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut) 701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut) 1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut) 701.4 x 1219.7 x 12.4mm (Portrait, Head, w/o Pemnut) 413 x 353 x 57.3mm (Signage Box)
Carton Dimensions(W x H x D) (Box outer size)
1360 x 842 x 252mm
HW
Internal Memory 16GB, Temperature Sensor, FAN
SW
webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over,Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom, Scan Inversion
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
116W
Max.
318W
BTU (British Thermal Unit)
1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
DPM
0.5W
Power off
0.5W
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes / No
SuperSign CMS
Yes (v3.0)
SuperSign Control / Control+
Yes (v1.7 / v1.9)
SuperSign WB
Yes (v3.7.15)
SuperSign Media Editor
Yes (v3.7)
Signage 365 Care
Yes (v2.9)
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for connection between panel and Sinage box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Tape(4EA for Cabling), Screw(M3xL4.5,30EA / M3xL5.5,50EA / M3x3.5, 10EA), Shield Cover Assy', Tiling Set Fixer 6EA, Flex Bar 2EA
Tilt (Facedown)
Yes
