55VSH7J

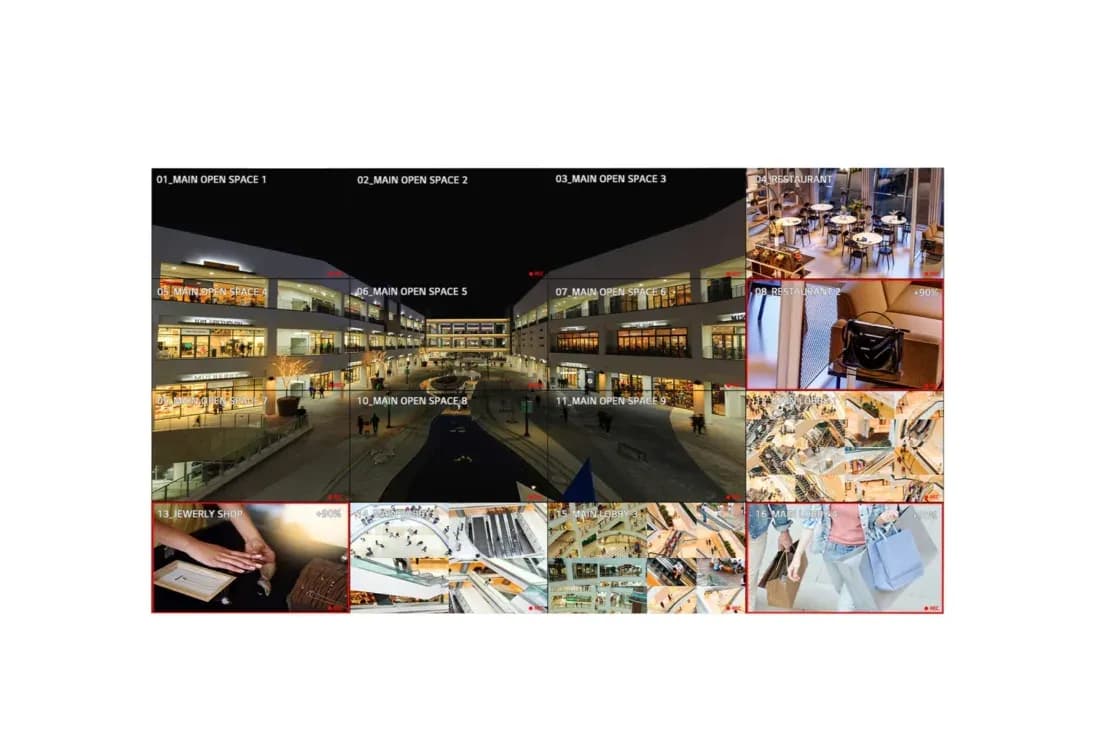

55” 700 nits FHD 0.44mm Even Bezel Video Wall
Key Features
- Brightness(Typ.) : 700 cd/m²
- Bezel : 0.44 mm (Even)
- Depth : 86.5 mm
- Interface : HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
- Smart Calibration
Contact us
GGEAR Commercial
0.44mm Even Bezel Video Wall
Groundbreaking 0.44mm Even Bezel
The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSH7J series will provide an even more immersive experience to viewers.

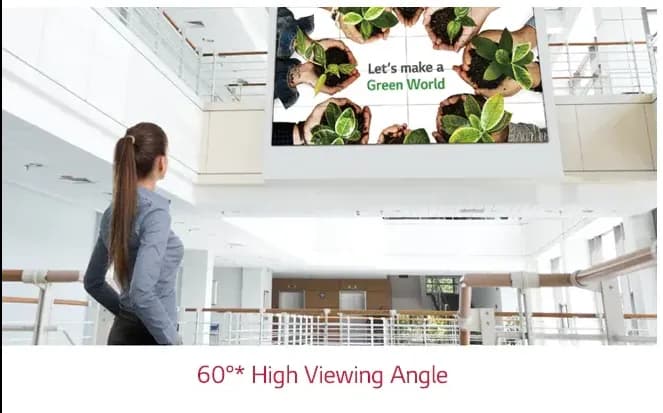

Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VSH7J series is high enough to display vivid colors throughout the screen with no distortion.
Uniform Color Expression
Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn’t look good on a large screen. However, the VSH7J series has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.
Smart Calibration
Smart Calibration is a solution that enables the reduction of time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the differences between connected displays. With just few simple clicks of a remote control, this calibration process can be done in a matter of minutes. In addition, calibration can be set to automatically occur at regular intervals to always deliver optimum image quality.

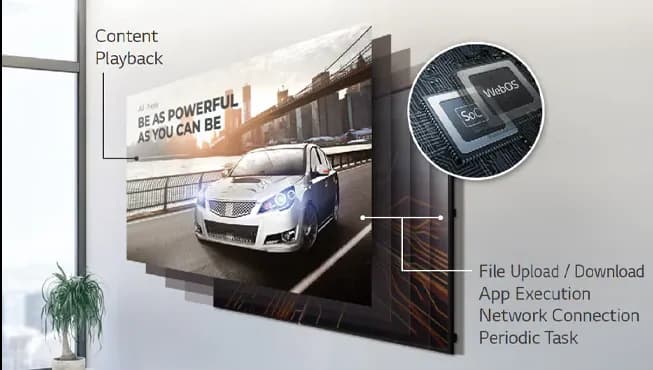

High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VSH7J series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
Flexible Content Creation
Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming* is also available, providing the flexibility to organize and diversify content free from capacity limits.

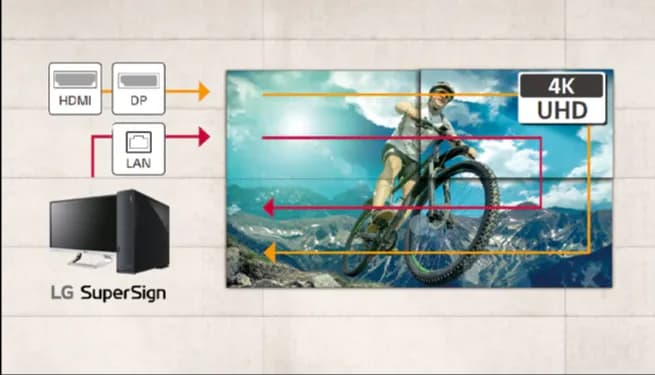

Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.
Screen Size
55"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
1,920 x 1,080 (FHD)
Refresh Rate
60Hz
Brightness
700nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
500,000 : 1
Color gamut
NTSC 72%
Viewing Angle (H x V)
178 x 178
Color Depth
10bit, 1.07Billion colors
Response Time
8 ms (G to G)

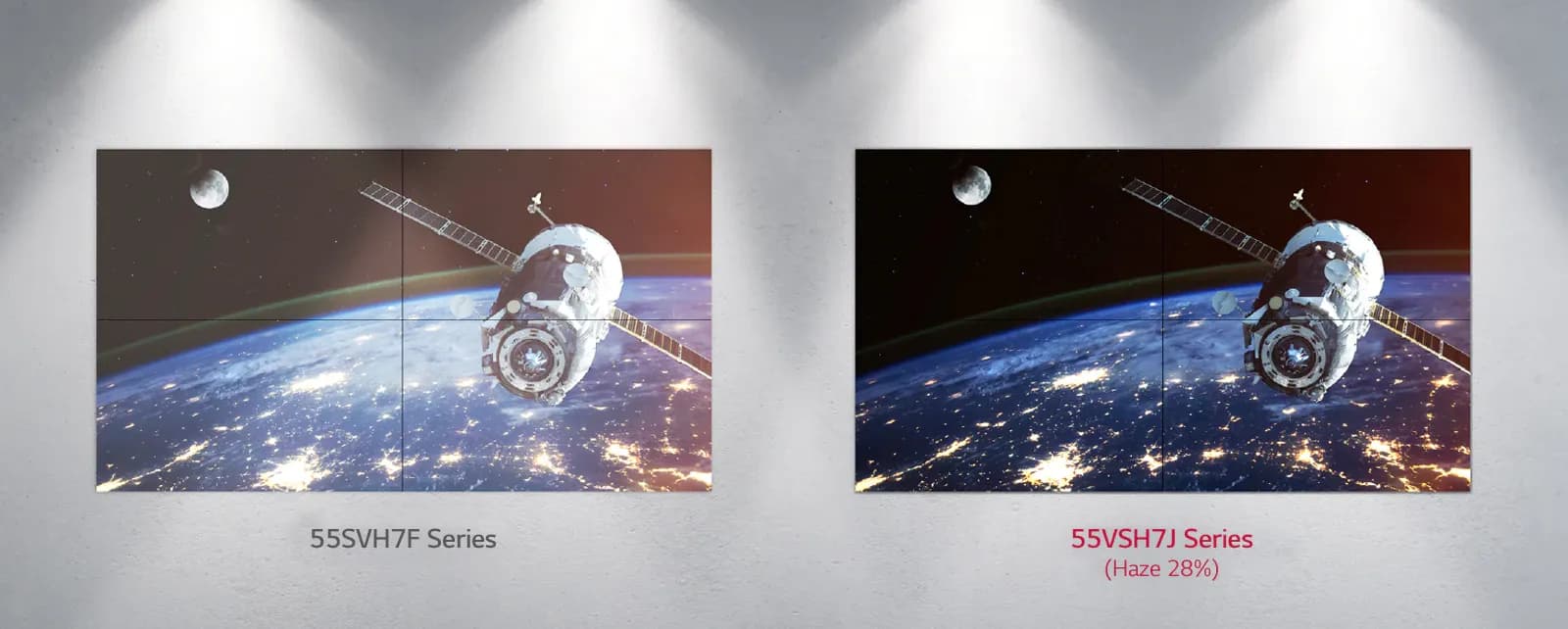

Surface Treatment(Haze)
28%
Life Time
60,000Hrs (Typ.) / 50,000Hrs (Min.)
Operation Hours (Hours / Day)
24/7
Portrait & Landscape
Yes / Yes
Input
Digital-HDMI(2, HDCP2.2), Digital-DP(1, HDCP2.2), Digital-DVI-D(1, HDCP1.4), Audio In, RS232C IN, RJ45(LAN), IR IN, USB(USB2.0 Type A(1))
Output
DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)
Bezel Color
Black
Bezel Width
Even bezel : 0.44mm
Weight (Head)
16.8Kg
Packed Weight
23.6Kg
Monitor Dimension (W × H × D)
1210.51 x 681.22 x 86.5mm
Carton Dimensions(W x H x D) (Box outer size)
1353 x 855 x 263mm
Handle
Yes
VESA™ Standard Mount Interface
600 x 400 mm
HW
Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation
SW
webOS ver. (webOS 4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240 V~, 50 / 60 Hz
Power Type
Built-In Power
Typ.
220W
Max.
260W
BTU (British Thermal Unit)
751BTU(Typ), 887BTU(MAX)
Smart Enegy Saving
110W
DPM
0.5W
Power off
0.5W
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ErP / Energy Star
Yes (EU Only) / Energy Star 8.0
OPS Type Compatible
Yes (Piggyback)
SuperSign CMS
Yes
SuperSign Control/ Control+
Yes / Yes
SuperSign WB
Yes
SuperSign Media Editor
Yes
LG Connected Care
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek,Turkish, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
OPS Kit (KT-OPSF)
Smart Calibration
Yes
