AN960H Series

Share:

65AN960H

AN960H Series

Key Features

  • 4K UHD OLED
  • Pro:Centric Cloud
  • Pro:Centric Solutions
  • webOS22

Contact us

GGEAR Commercial

Banner Image

4K UHD OLED Hotel Smart TV with Pro:Centric Hotel Management Solutions

* All images in this web page are for illustrative purposes only.


Banner Image

LG OLED Self-lit

LG Hospitality TV is unique thanks to its self-lit technology. Millions of OLED pixels come together to deliver the next level of TV. Enjoy the deep black, the rich colors and the vivid picture quality.

Banner Image

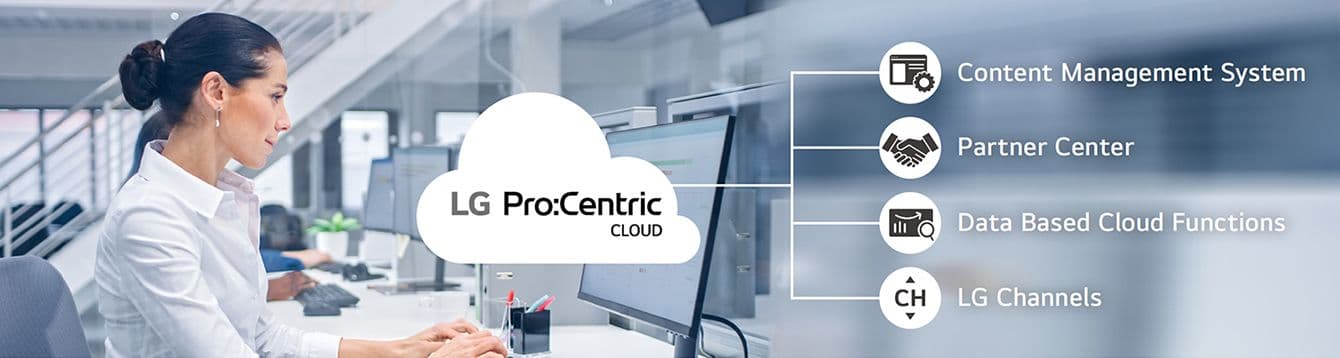

Pro:Centric Cloud

Pro:Centric Cloud improves the usability of enterprise's CMS solution and cloudification of system, reinforcing the service of 3rd party solution. It also offers various design templates, improving data collection and analytics platform with an eye-catching dashboard. In addition with new features; Mobile Application Creator lets you simplifies the process of setting up concierge services on mobile device for guests. Through this function, the guest' request will be satisfied with immediate response.

Banner Image

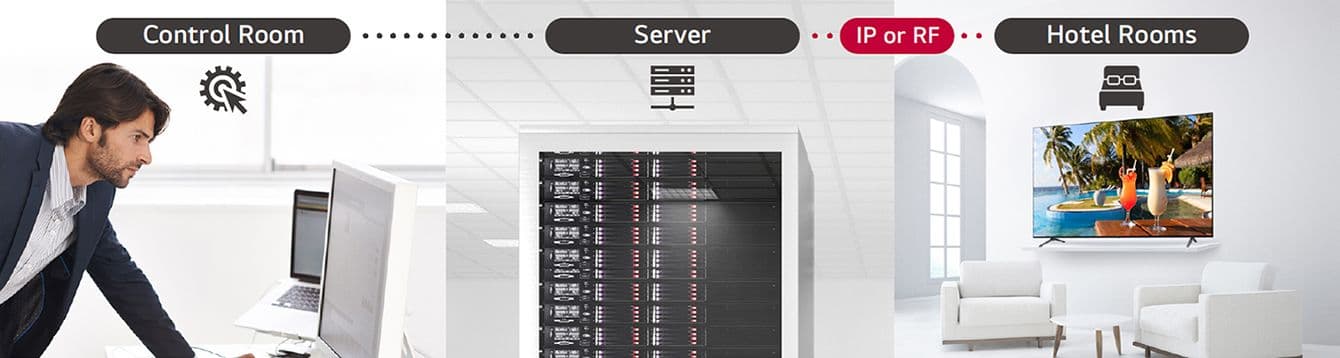

Pro:Centric Direct

The hotel content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management with a single click. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the room. The latest PCD version provides IoT-based in-room control that will be your starting point to prepare for the hotel rooms of next generation through artificial intelligence.

Banner Image

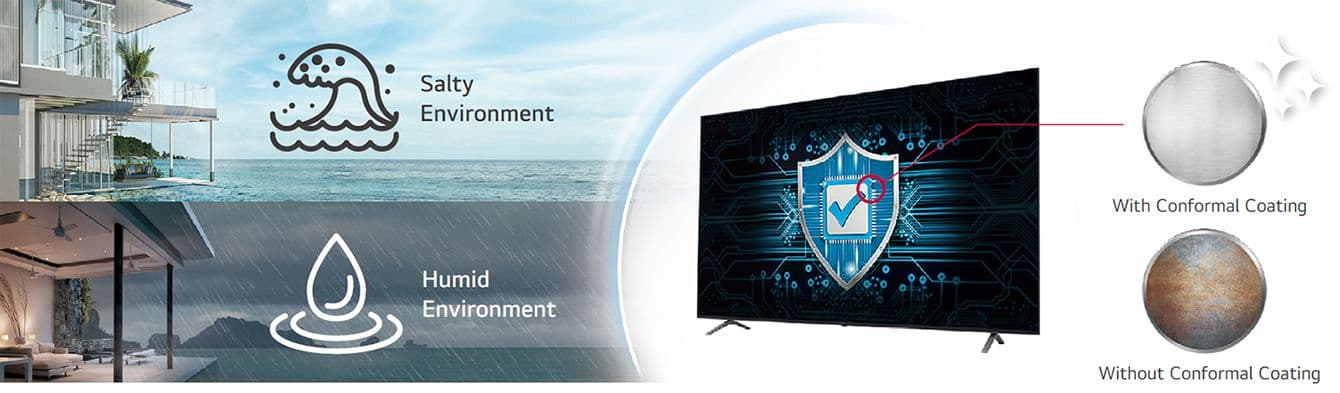

Conformal Coating

TVs in hotels or resorts can't avoid exposure to environments with salt, dust, iron powder, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting TVs from salt, dust, iron powder, humidity, etc.

Game Optimizer

Game Optimizer

LG Game Optimizer will get you and keep you in the action through selection of game mode, picture adjustment and etc.

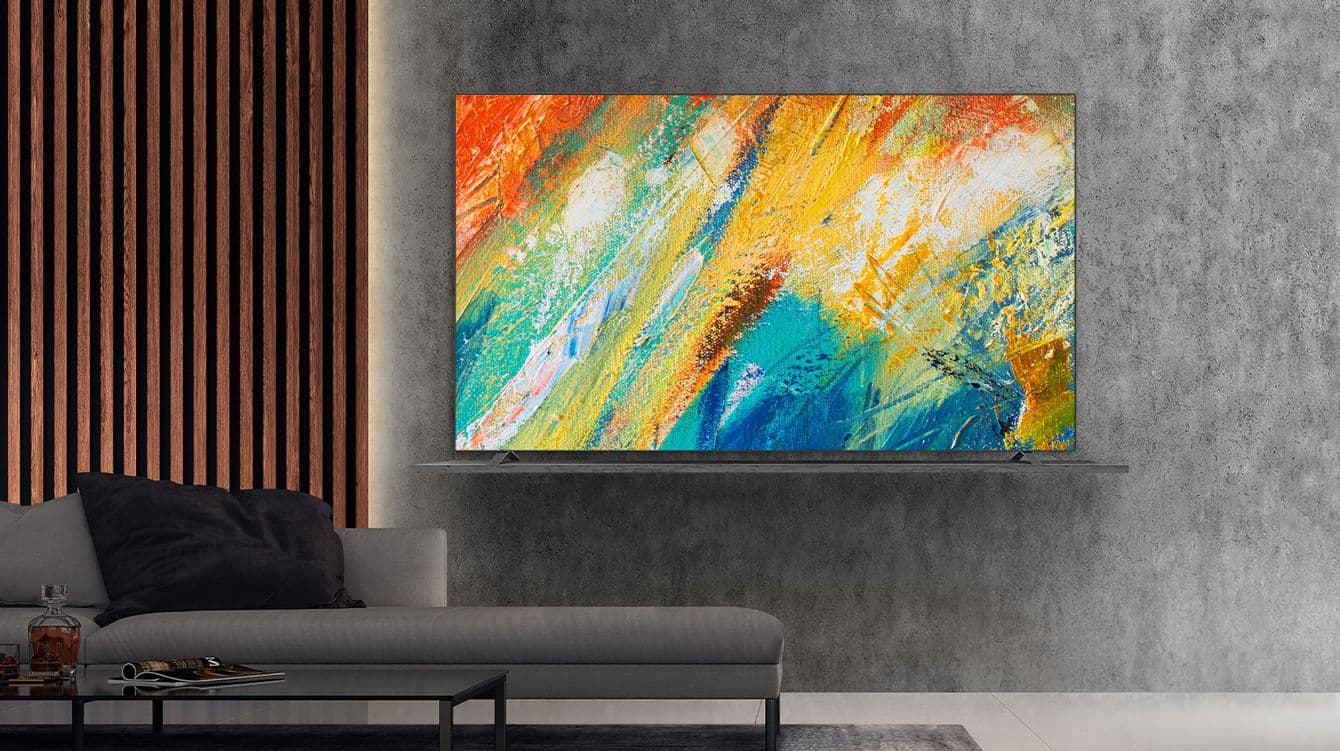

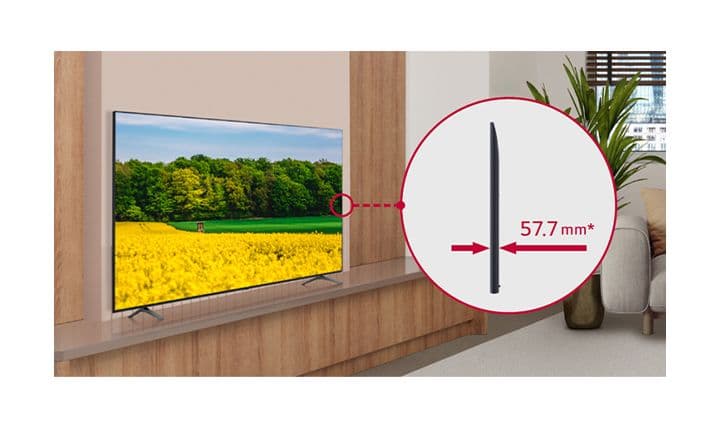

Slim Depth for a Sleek Look

With a slim design, the UM660H / UM662H series integrates smoothly into the interiors, delivering a modern impression to guest.



Slim Depth for a Sleek Look

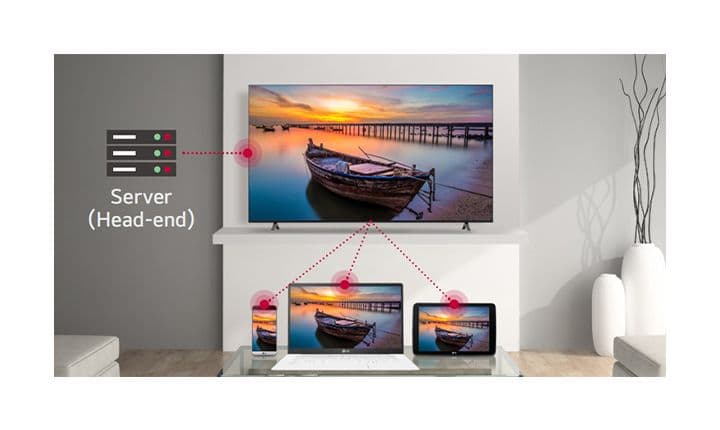

SoftAP

SoftAP

Software-enabled Access Point (SoftAP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling guests to connect their own devices to the SoftAP. It supports Bridge Mode, allowing administrators to manage in-room SoftAP information such as signal level, SoftAP passwords, etc.



Voice Recognition

For seamless interaction and user satisfaction, LG has applied voice recognition function to the LG UM662H TV. This feature makes it easy to control the TV without pressing the button of remote controls.



Voice Recognition

Category

Pro:Centric Smart

Tool Name

A2

Front Color

OLED (4 Side Cinema Screen)

Stand Type

2 pole

Inch

65"

Resolution

3,840 x 2,160 (4K UHD)

Backlight Unit Type

OLED

Brightness

500 Typ (APL 25%)

Dynamic Contrast Ratio (Dynamic MCI (Hz))

1,500,000 : 1

Static (Panel) Contrast Ratio

200,000 : 1

Response Time(G to G, ms)

3 ms max

Refresh Rate

60 (50) Hz

Life span (hrs)

30,000

SoC

K8Hp

SoC (Marketing Name)

Quad

AI Picture Pro

Yes

Dynamic Vivid

Yes

HDR 10 Pro / HDR HLG

Yes / Yes

Game Optimizer

Yes

Speaker System

2.0 ch

Speaker (Sound Output)

10 W + 10 W

AI Sound

Yes

AI Acoustic Tuning

Yes

LG Sound Sync

Yes (Required Bluetooth)

Digital (Terrestrial, Cable, Satellite)

DVB-T2 / C

Analog (NTSC / SECAM / PAL)

PAL

Global IPTV Support

Yes

Solution Type

Pro:Centric (Smart, Cloud, Direct), Quick Menu

DRM

Pro:Idiom (S/W Type, Mobile Lite)

Set Side

HDMI In 2 (2.0), USB (2.0), RF In, CI Slot (CI+ 1.4)

Set Rear / Bottom

HDMI In (HDMI Ver.) (2.1), USB (2.0), Digital Audio Out (Optical), RS-232C (D-Sub 9 Pin / Phone-jack) (Phone Jack, 4 Pin), External Speaker Out (3.5mm Phone jack) Audio Line Out (3.5 mm Phone Jack) 2 (Line-Out (Stereo, 0.4 Vrms), Vol. Control), LG SVC Only (Phone-jack Type), RJ45 (Usage Purpose) 2 (Ethernet, Aux)

VESA Compatible

300 × 200 mm

W × H × D / Weight (without Stand)

1,449 mm × 832 mm × 45.9 mm / 17.1 kg

W × H × D / Weight (with Stand)

1,449 mm × 896 mm × 235 mm / 17.3 kg

W × H × D / Size (in Shipping)

1,600 mm × 950 mm × 172 mm / 24.4 kg

On Bezel Width (L/R/U/B)

10.1 / 10.1 / 9.9 / 12.8

Off Bezel Width (L/R/U/B)

3.2 / 3.2 / 3.2 / 3.2

Power Supply (Voltage, Hz)

AC 100-240 V, 50/60 Hz

Power Consumption (Typ. / Max.)

260 W / 283 W

Standby Power Consumption

0.5 W

Smart Features

webOS22, Smart Home (Launcher Bar), Gallery Mode, Quick Access, Web Browser, Pre-loaded App, SDP Server Compatibility, Magic Remote Compatibility (MR18HA), SW Clock (World Clock / Alarm), AoD, SoftAP, Wi-Fi, Screen Share (Miracast), Smart Share, LG ThinQ App Compatibility, DIAL, Bluetooth Audio Playback, Mobile Connection Overlay, HDMI-ARC (HDMI 2), Voice Recognition (Standalone / Solution), IoT, EzManager, USB Cloning, Wake On RF, WOL, SNMP, Diagnostics (IP Remote), SI Compatible Protocol (TV Link Tuner, RS-232C), HTNG-CEC (1.4), Simplink (HDMI-CEC) (1.4), IR Out (RS-232C, HDMI), Multi IR Code

Hospitality Feature

Hotel Mode, Lock Mode (Limited), Port Block, Welcome Video, One Channel Map, IP Channel Manager, External Speaker Out (Line Out), Instant On, V-Lan Tag, RJP (Remote Jack Pack) Compatibility (LG/Teleadapt (RS-232C), Teleadapt/Guestlink (HDMI-CEC)), Mobile Remote, Moving Picture Playback (SD/HD/Plus HD), Auto Off / Sleep Timer, Energy Saving Mode, Motion Eye Care, Hybrid Caption (Closed Caption - Digital Only), BEACON, Video Tag (2 Supported)

Accessory

Remote Type (MMR), Power Cable (1.5 M / Attached Angle)
