55″ Ultra Narrow Bezel Video Wall LV75D Series

Share:

55LV75D

55″ Ultra Narrow Bezel Video Wall LV75D Series

Key Features



  • Brightness(Typ.): 500 cd/m²
  • Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
  • Depth: 88.5mm
  • Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB/IR Receiver/Audio

Contact us

GGEAR Commercial

Ultra Narrow Bezel

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

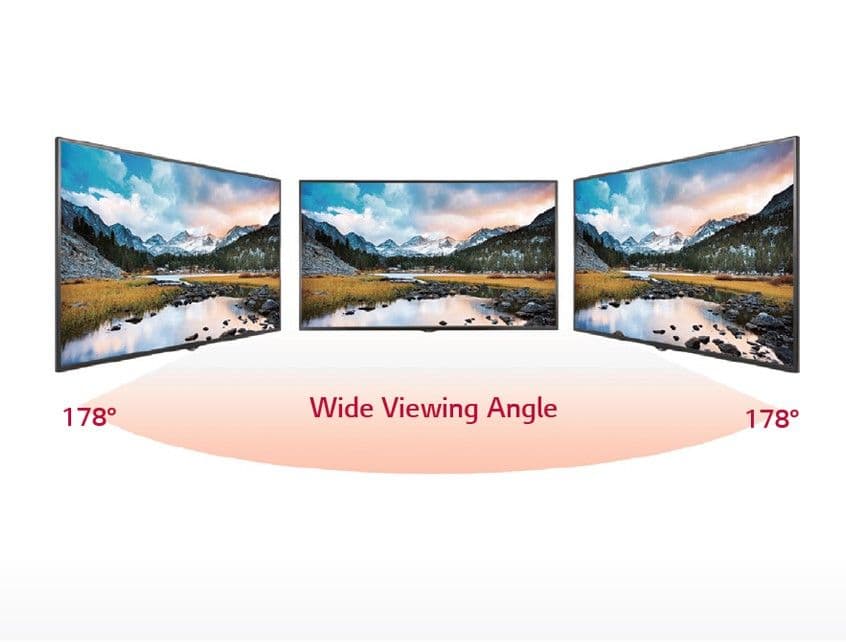

Wide Viewing Angle

IPS panel technology means a more advanced control of the loqiud crystal display. As a result, it has a wide viewing angle that delivers clear content, no matter where a passerby views. Every pixel in the IPS panel truly reproduces the image colors without distorting them.

Wide Viewing Angle
Uniform Brightness

Uniform Brightness

LG's LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new LV77D/75D generates high visibility and a consistent brightness across the whole screen.

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

Consistent White Balance
Vivid Imagery Viewing

Vivid Imagery Viewing

TruMotion™ 60Hz Refresh Rate drastically reduces motion blur and judder ensuring vivid image playback

with fine details.

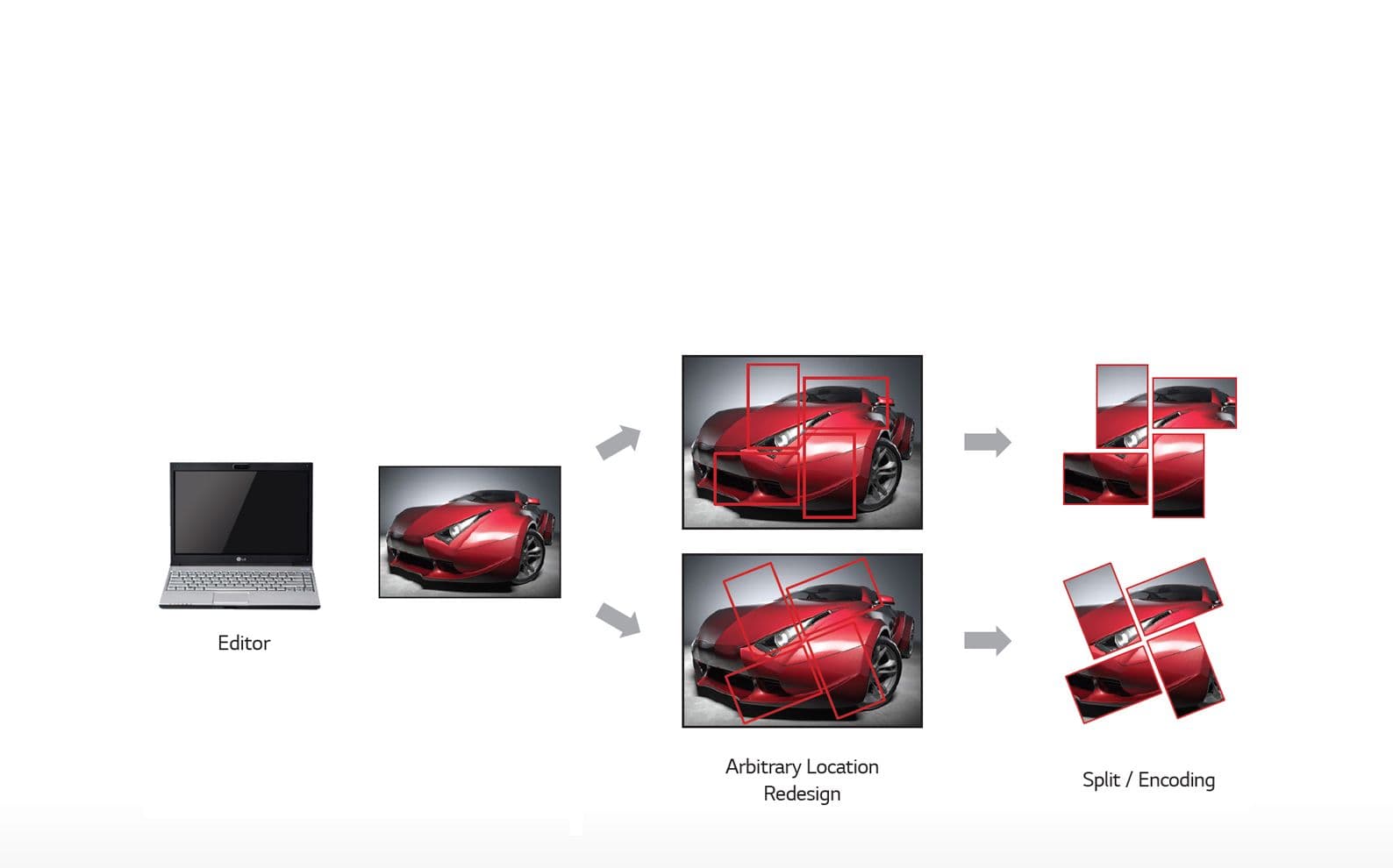

SuperSign W Content Management

Flexible content editing in various layouts including regular matrix and non-formal irregular video-wall is possible to your preference in a timely and cost effective manner without unnecessary expensive video wall console.
SuperSign W Content Management

SuperSign W Content Management

Flexible content editing in various layouts including regular matrix and non-formal irregular video-wall is possible to your preference in a timely and cost effective manner without unnecessary expensive video wall console.

Screen Size

55"

Brightness(Typ.,cd/m²)

500

Native Resolution

1,920 x 1,080 (FHD)

Orientation

Landscape & Portrait

Input

HDMI, DP, DVI, RGB, Audio, USB

External Control

RS232C In/Out, RJ45 In, IR Reciever

Output

DP, Audio

Bezel Width

2.25 mm (L/T) / 1.25 mm (R/B

Weight (Head)

23 kg

Packed Weight

30.5 kg

Monitor Dimension (W × H × D)

1,213.4 x 684.2 x 88.5 mm

Carton Dimensions (W × H × D)

1,337 x 828 x 239 mm

Handle

Yes

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Typ.

160 W

Smart Energy Saving

130 W

Max.

230 W

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC

ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 7.0)

OPS type compatible

No

External Media player Attatchable

Yes

Content Management Software

SuperSign W

Control and Monitoring Software

SuperSign C

Basic

Remote controller, Power cable, DP cable, IR receiver, RS-232C cable, Tiling guide, Screw

Optional

WM-L640V (Landscape), WM-P640V (Portrait), Frame kit (Horizontal: FK-55V10 / Vertical: FK-55V20)
