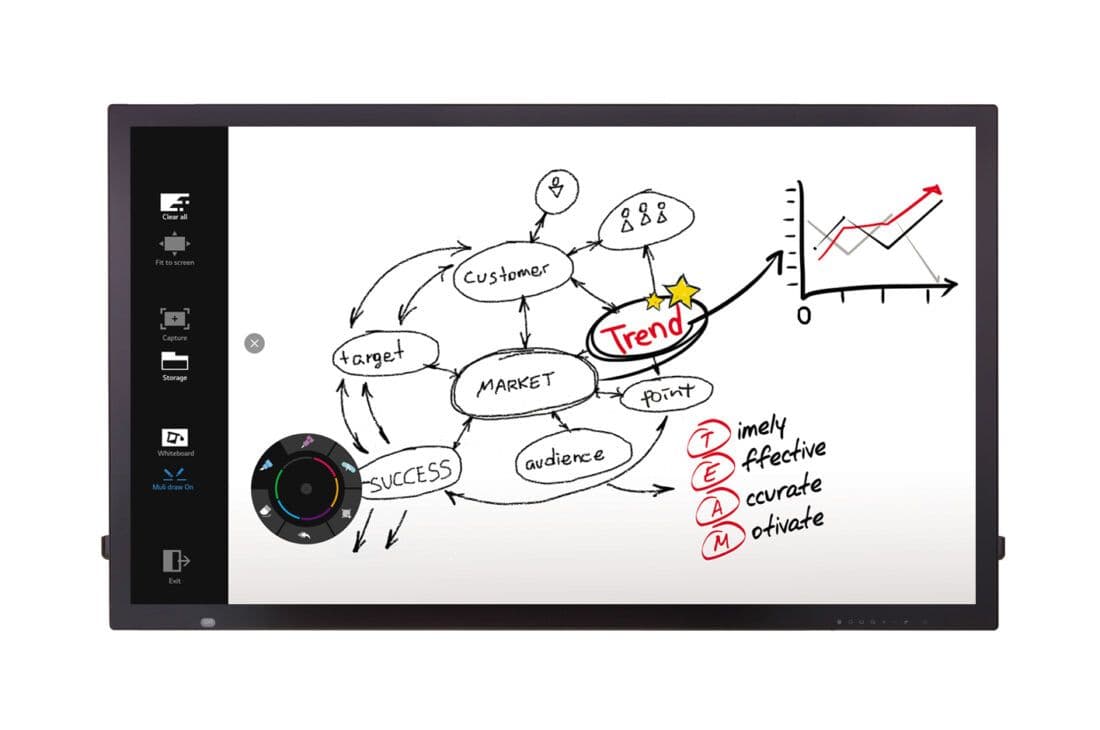

55″ Interactive Digital Board TC3D Series

Share:

55TC3D

55″ Interactive Digital Board TC3D Series

Key Features



  • Brightness(Typ.): 450 cd/m²
  • Touch Type: P-Cap(Ag Metal Mesh)
  • Touch Point: Max. 40 points
  • Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

Contact us

GGEAR Commercial


Be Smarter and Simpler with LG IDB

IDB app makes it possible to write and collaborate on Interactive Digital Board(IDB) without the need for a PC or additional licenses for writing/collaboration solutions based on the webOS smart platform.
Be Smarter and Simpler with LG IDB

Be Smarter and Simpler with LG IDB

IDB app makes it possible to write and collaborate on Interactive Digital Board(IDB) without the need for a PC or additional licenses for writing/collaboration solutions based on the webOS smart platform.

Intuitive Touch and Writing

The most advanced touch technology, InGlass™, enables precise touch responses and detailed writing like a realistic handwriting. The thickness of the pen is adapted to the writing speed, and max. 20 point multi-touch is supported. All notes on IDB are simply erased with user's palm.
Intuitive Touch and Writing

Intuitive Touch and Writing

The most advanced touch technology, InGlass™, enables precise touch responses and detailed writing like a realistic handwriting. The thickness of the pen is adapted to the writing speed, and max. 20 point multi-touch is supported. All notes on IDB are simply erased with user's palm.

All-in-One Meeting Experience

For the effective collaboration, LG IDB combines whole processes which includes sharing screens of participants' laptops via wired/wireless* connection simultaneously, writing on the shared screen, and saving annotation.
All-in-One Meeting Experience

All-in-One Meeting Experience

For the effective collaboration, LG IDB combines whole processes which includes sharing screens of participants' laptops via wired/wireless* connection simultaneously, writing on the shared screen, and saving annotation.

True Colors and Wider View

The LG IPS panel has a wide viewing angle to deliver clear content regardless of the positions of meeting attendees. Moreover, each pixel of the IPS panel truly reproduces the image colors without distortion.
True Colors and Wider View

True Colors and Wider View

The LG IPS panel has a wide viewing angle to deliver clear content regardless of the positions of meeting attendees. Moreover, each pixel of the IPS panel truly reproduces the image colors without distortion.
Quick and Easy to Share a Screen

Quick and Easy to Share a Screen

Depending on the content, the color temperature of the screen can be easily adjusted by users with a remote control. Also, the settings for tile mode and white balance become more convenient because the dedicated menu is specialized based on the visual guide.

Easy to Call and Control the Menu

For improving user-friendliness, LG IDB users can run the desired function or change the setting from anywhere by softly pressing the screen to call up the Touch Menu.

* The menu design(GUI) is subject to change without notice

Easy to Call and Control the Menu
Enjoy Multi Screens

Enjoy Multi Screens

PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub screen modes. This gives great flexibility to users to allocate space for each content source.PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub screen modes. This gives great flexibility to users to allocate space for each content source.

Screen Size

55”

Brightness(Typ.,cd/m²)

450

Native Resolution

1,920 x 1,080 (FHD)

Bezel Width

32.7mm (T), 33.4(L/R), 38.8 mm(B)

Weight (Head)

30.1 kg

Packed Weight

36.1 kg

Monitor Dimension (W × H × D)

1,276.4 x 751.9 x 63.9 mm

VESA™ Standard Mount Interface

300 x 300 mm

Carton Dimensions (W x H x D)

1,369 x 890 x 210 mm

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Input

HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0

External Control

RS232C in/out, RJ45 in

Output

Touch USB 2.0 (2)

Typ.

≤ 100 W

Smart Energy Saving

≤ 70 W

Safety

UL / cUL / CB / TUV / KC

EMC

Yes (EU Only) / No

ErP / Energy Star

FCC Class “A” / CE / KCC

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign Link

OS (Windows 32bit or 64bit)

Windows 7, Windows 10

CPU (Windows)

2.7GHz+ Dual Core Broadwell or higher

Memory

4GB RAM

Graphics Hardware (Windows)

Intel Iris or higher, Nvidia, ATI

OS (macOS)

macOS 10.12 Sierra, MacOS 10.13 High Sierra

CPU (macOS)

Any CPU which supports Sierra or High Sierra

Hard Drive

1GB of free space

Graphics Hardware (macOS)

Any GPU which supports Sierra or High Sierra

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea)

Optional

OPS Kit (KT-OPSA), Wall Mount(LSW350A/B)

Touch type

P-Cap(Ag Metal Mesh)

Accuracy

2 mm

Protection Glass Thickness

3.2T (Anti-Glare)

Available object size for touch

more than Ø 6 mm

Interface

USB 2.0

Multi touch point

Max. 40 Points
