Fine-pitch Essential Series

Share:

LSBB009

Fine-pitch Essential Series

Key Features

  • Pixel Pitch: 0.94 mm
  • Brightness: 600 nit
  • Status Indicator of Signal Detection
  • Front Serviceability
  • Easy-handling Lightweight Cabinet
  • Compatibility with LG Software Solutions

Contact us

GGEAR Commercial


Fine-pitch Essential Series

Banner Image

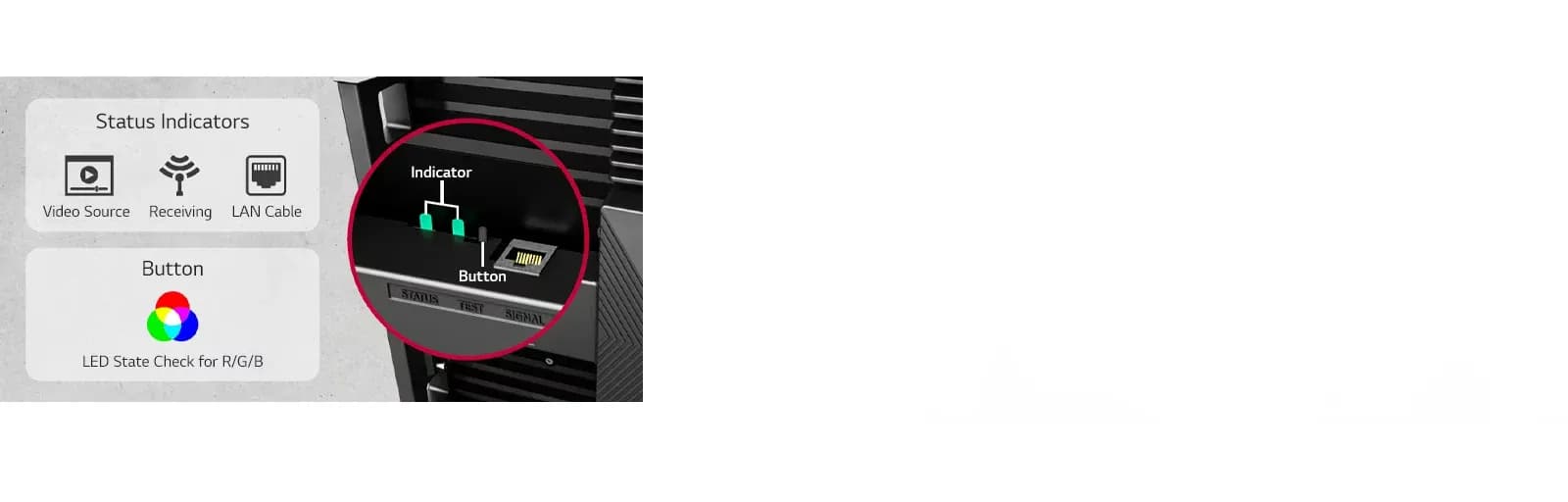

Status Indicator of Signal Detection

Status indicators and button are in the main frame of the cabinet structure, and can be accessed from both front and back.
Status Indicator of Signal Detection

Status Indicator of Signal Detection

Status indicators and button are in the main frame of the cabinet structure, and can be accessed from both front and back.

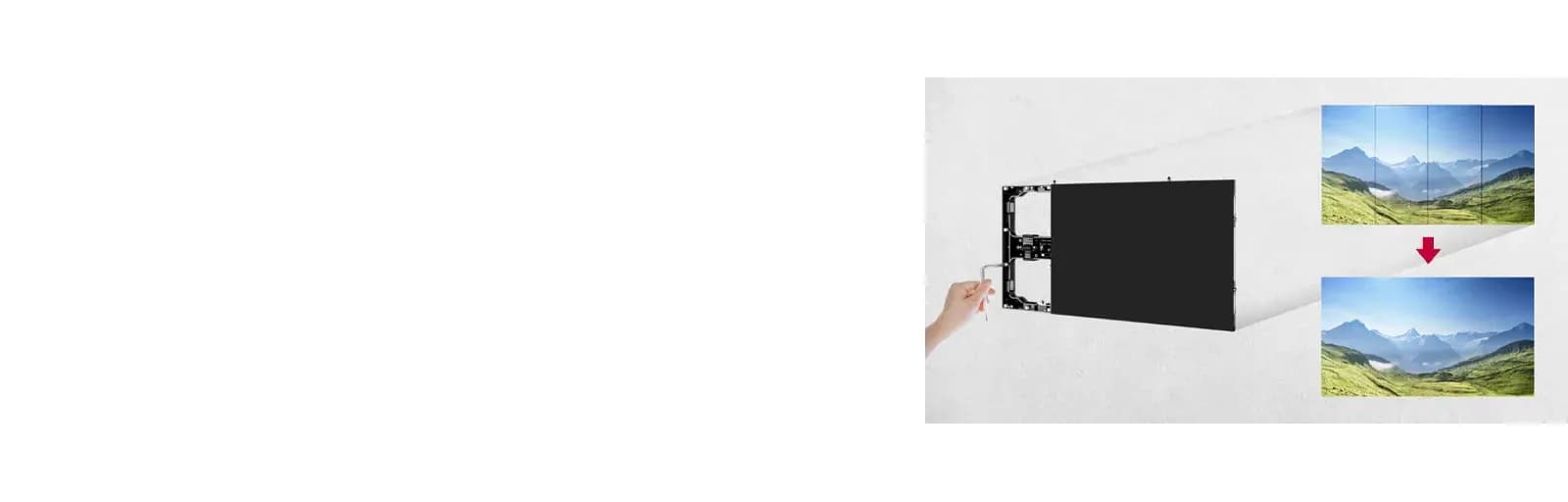

Easy Alignment in Z-direction

A uniform tool can be used for X/Y/Z 6-axis adjustment between panels. Module can be easily adjusted in Z-direction, and flatness can be optimized again.
Easy Alignment in Z-direction

Easy Alignment in Z-direction

A uniform tool can be used for X/Y/Z 6-axis adjustment between panels. Module can be easily adjusted in Z-direction, and flatness can be optimized again.

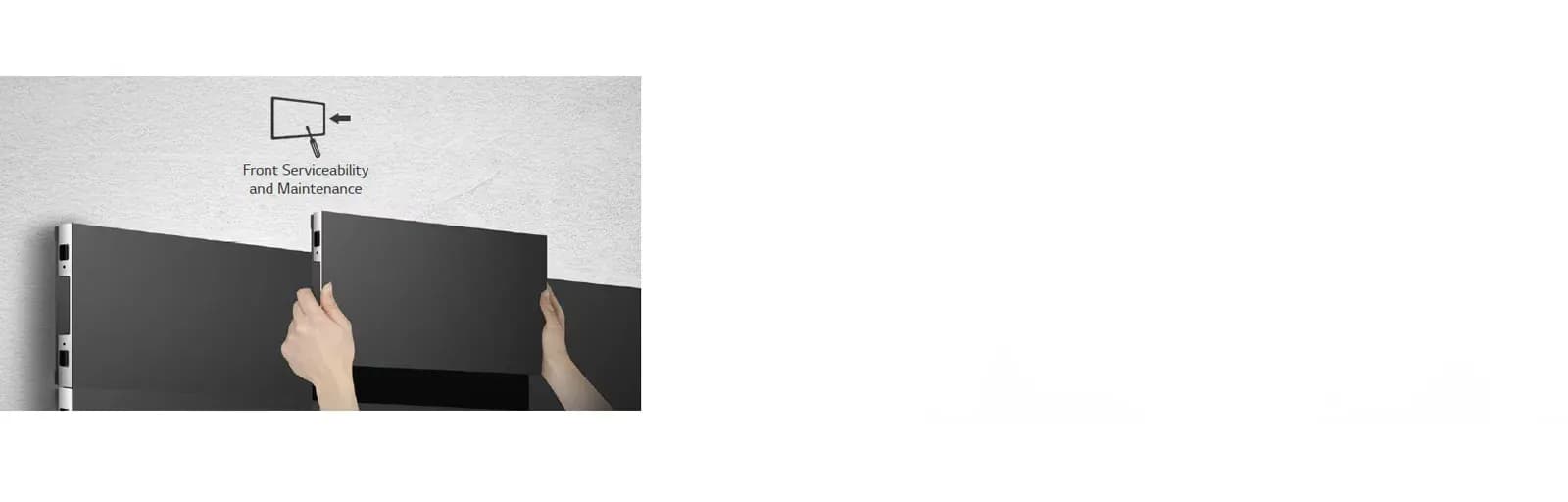

Front Serviceability

The product offers front access, freeing customers from needing rear access space.
Front Serviceability

Front Serviceability

The product offers front access, freeing customers from needing rear access space.

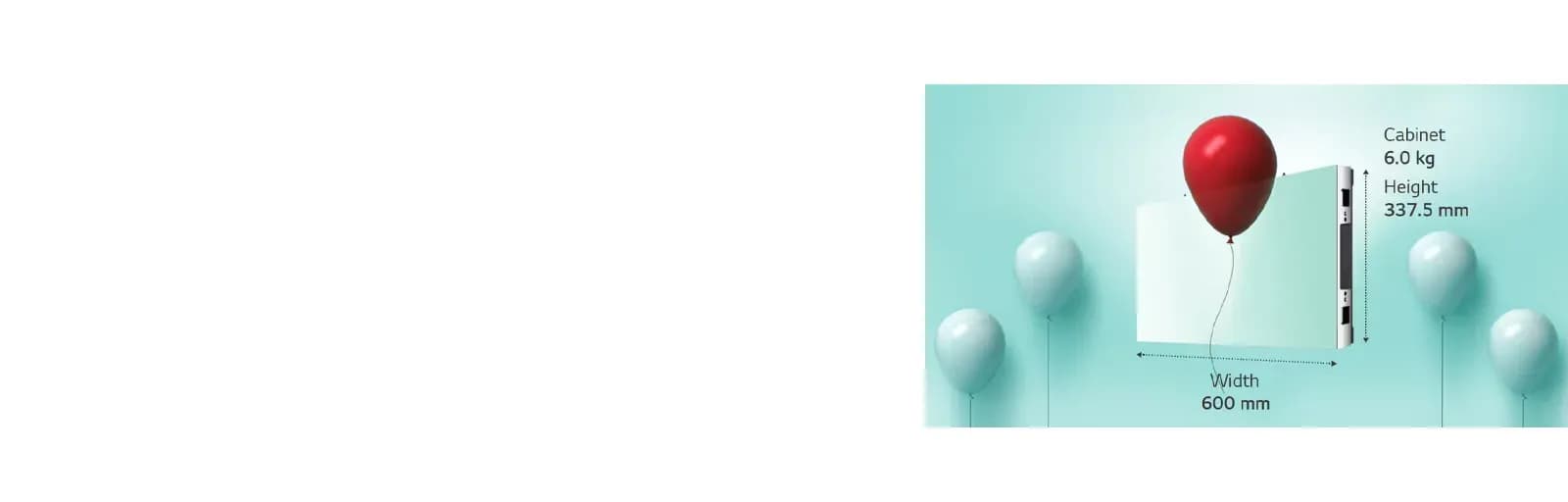

Easy-handling Lightweight Cabinet

It’s lightweight and easy to install, effectively reducing the risk of damage during installation. A full set of LED screens is still light, reducing strain on the structure holding the screens.
Easy-handling Lightweight Cabinet

Easy-handling Lightweight Cabinet

It’s lightweight and easy to install, effectively reducing the risk of damage during installation. A full set of LED screens is still light, reducing strain on the structure holding the screens.

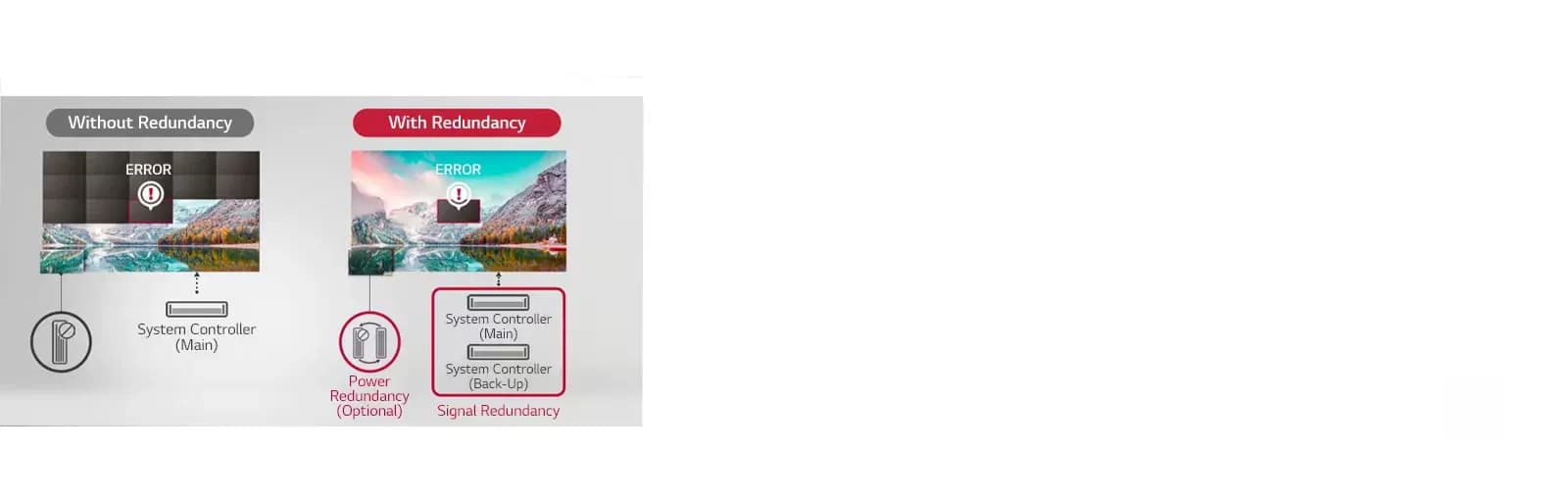

Signal / Power Redundancy

With an additional controller and power unit, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy). The product also offers Power Redundancy as an option.* Two power units are provided in single LED cabinet one activates to provide power when the other fails.
Signal / Power Redundancy

Signal / Power Redundancy

With an additional controller and power unit, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy). The product also offers Power Redundancy as an option.* Two power units are provided in single LED cabinet one activates to provide power when the other fails.

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LSBB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
Compatibility with LG Software Solutions

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LSBB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

Pixel Configuration

3 in 1 SMD

Pixel Pitch (mm)

0.938

Module Resolution (W × H)

160 × 360

Module Dimensions (W × H, mm)

150 × 337.5

Weight per Module (kg)

0.50

No. of Modules per Cabinet (W × H)

4 × 1

Cabinet Resolution (W × H)

640 × 360

Cabinet Dimensions (W × H × D, mm)

600 × 337.5 × 56

Cabinet Surface Area (m²)

0.203

Weight per Cabinet (kg/Cabinet)

6.0

Weight per Square Meter (kg/m²)

30.0

Physical Pixel Density (pixels/m²)

1,137,777

Flatness of Cabinet (mm)

0.5

Cabinet Material

Die Casting Aluminum

Service Access

Front

Max. Brightness (nit, after calibration)

600

Color Temperature (K)

3,200-9,300

Visual Viewing Angle (H × V)

160 × 140

Brightness Uniformity

97%

Color Uniformity

±0.003 Cx,Cy

Contrast Ratio

5,000 : 1

Processing Depth (bit)

16 (HDR10, HDR10 Pro)

Power Consumption (W/screen, Max.)

120

Power Consumption (W/screen, Avg.)

40

Power Consumption (W/m², Max.)

600

Power Consumption (BTU/h/Screen, Max.)

409

Power Consumption (BTU/h/Screen, Avg.)

136

Power Consumption (BTU/h/㎡, Max.)

2,047

Power Supply (V)

AC 100-240 V (50-60 Hz)

Frame Rate (Hz)

50 / 60

Refresh Rate (Hz)

3,840

Lifetime (Hours to Half Brightness)

100,000

Operating Temperature (°C)

-20 to +40

Operating Humidity

10-80% RH

IP Rating (Front / Rear)

IP5X / IP5X

Certification

CE,FCC,ETL,CB

Environment

RoHS, REACH

Controller

Embedded

Datasheet

Leaflet

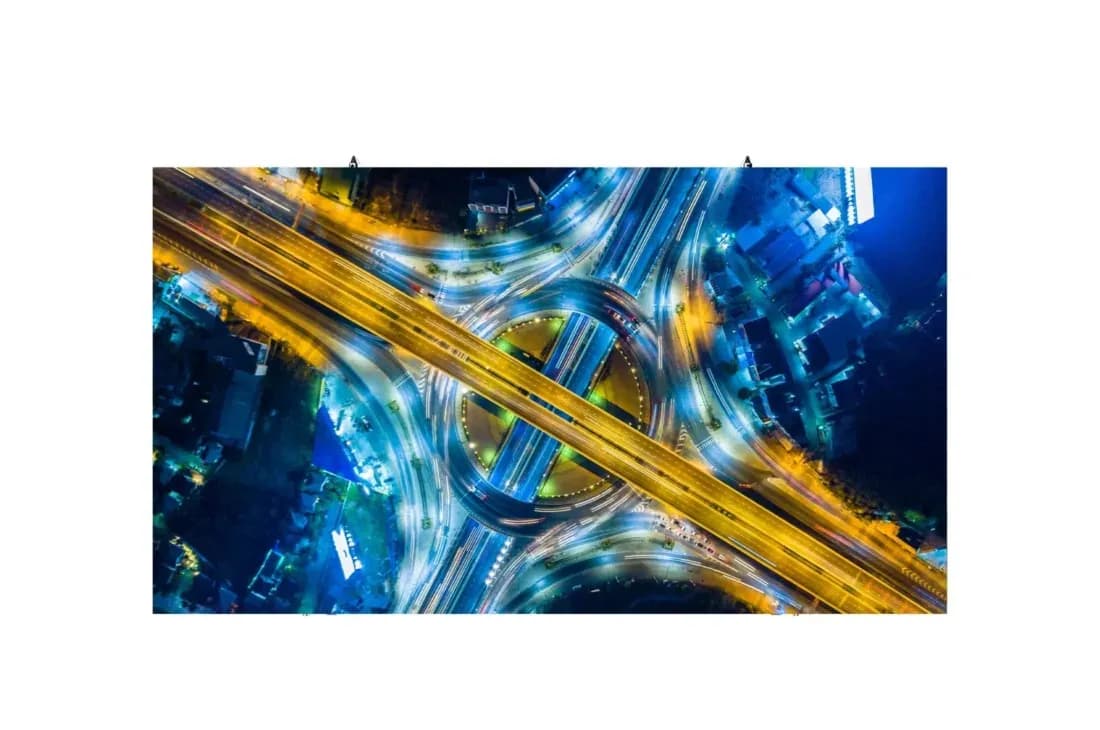

LSBB-Series_Datasheetlow_LG-LED-Signage_210820
