Floor LED Display for Virtual Production

Share:

LFCL039

Floor LED Display for Virtual Production

Key Features

  • Pixel Pitch: 3.91 mm
  • Brightness: 3,000 nit
  • High Durability
  • Excellent Usability
  • Easy Installation and Maintenance
  • Brompton LED Processor & Data Distribution

Contact us

GGEAR Commercial


Floor LED Display for Virtual Production

Banner Image

High Durability

LFCL series is a unique display installed on the floor with high durability designed to load up to 1,500 kg/sqm.
High Durability

High Durability

LFCL series is a unique display installed on the floor with high durability designed to load up to 1,500 kg/sqm.

Excellent Usability

Surface safety when installing the screen on the floor (IP66 protective non-slip mat) and high visual performance (with high contrast LED for uniform visual performance in black) are considered.
Excellent Usability

Excellent Usability

Surface safety when installing the screen on the floor (IP66 protective non-slip mat) and high visual performance (with high contrast LED for uniform visual performance in black) are considered.

Easy Installation and Maintenance

Its simple product structure allows for easy installation and quick maintenance. You can quickly deploy and connect the cabinets with the foot support system without any tools. A simple flush control mechanism design is applied to keep the height level regardless of floor type. In addition, magnets attached to the LED module allow for easy maintenance, and hot-swapping* is able during the display operation.

Banner Image

High Brightness

The LFCL series gives a versatile filming experience in XR Stage and mid-sized VP Studio. Moreover, the rendered content is highly visible with 3,000 nits. Available to shoot dust and water scenes with IP66 rating. The realistic filming of desert, beach, and fire scenes keep DP and camera operators contented.
High Brightness

High Brightness

The LFCL series gives a versatile filming experience in XR Stage and mid-sized VP Studio. Moreover, the rendered content is highly visible with 3,000 nits. Available to shoot dust and water scenes with IP66 rating. The realistic filming of desert, beach, and fire scenes keep DP and camera operators contented.

Brompton LED Processor & Data Distribution

As Brompton controllers are common in the broadcast and virtual production industry, LFCL series offers support for them.
Brompton LED Processor & Data Distribution

Brompton LED Processor & Data Distribution

As Brompton controllers are common in the broadcast and virtual production industry, LFCL series offers support for them.

Pixel Configuration

3 in 1 SMD

Pixel Pitch(mm)

3.9

Module Resolution (WxH)

64x64

Module Dimensions(WxH,mm)

250x250

Weight per Module (kg)

0.90

No. of Modules per Cabinet (WxH)

2 x 2

Cabinet Resolution (WxH)

128 x 128

Cabinet Dimensions (W x H x D, mm)

500x500x84.5

Cabinet Surface Area (㎡)

0.250

Weight per Cabinet (kg/unit)

10.5

Weight per Square Meter (kg/m²)

42.0

Physical Pixel Density (pixels/m²)

65,536

Flatness of Cabinet (mm)

±0.5

Cabinet Material

Die-casting Aluminum

Service Access

Front

Max Brightness (After Calibration, nit)

3,000

Color Temperature (K)

2,000-11,000

Visual Viewing Angle (Horizontal)

120

Visual Viewing Angle (Vertical)

120

Brightness Uniformity

≥97%

Color Uniformity

±0.003Cx,Cy

Contrast Ratio

5,000:1

Processing Depth (bit)

14 (PQ, HLG)

Power Consumption (W/Cabinet, Max.)

240

Power Consumption (W/Cabinet, Avg.)

80

Power Consumption (W/m², Max.)

960

Heat Dissipation (BTU/h/Cabinet, Max.)

819

Heat Dissipation (BTU/h/Cabinet, Avg.)

273

Heat Dissipation (BTU/h/m², Max.)

3,276

Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60

Refresh Rate (Hz)

3,840

LED Lifetime (Half brightness)

100,000

Operating Temperature(℃)

-10℃ to +45℃

Operating Humidity

0-80%RH Non-condensing

IP Rating Front

IP65

IP Rating Rear

IP65

Certification

CE,FCC,ETL

Controller

Brompton SX40

Datasheet

Leaflet

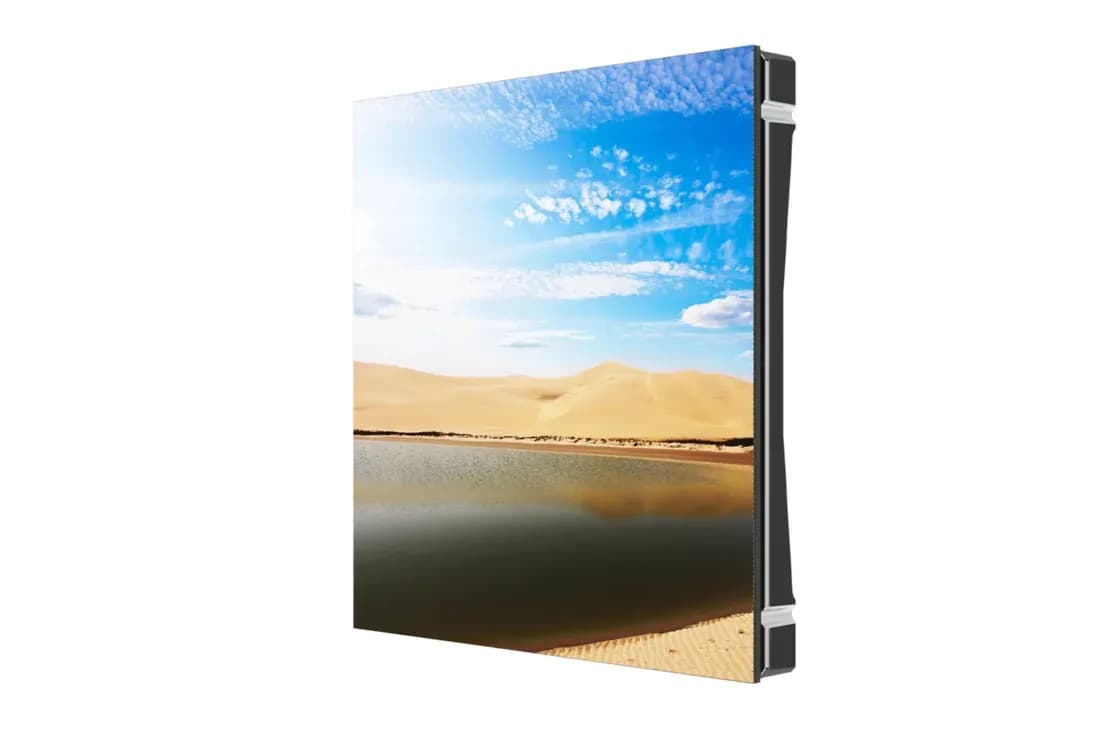

LFCL-Series_Datasheetlow_LG-Indoor-LED_220711
