LED Display for Virtual Production

Share:

LBCJ026

LED Display for Virtual Production

Key Features

  • Pixel Pitch: 2.60 mm
  • Brightness: 1,500 nit
  • Easy Installation and Maintenance
  • Front or Rear Serviceability
  • Curve Effect Available
  • Stacking & Hanging System Available

Contact us

GGEAR Commercial


Floor LED Display for Virtual Production

Banner Image

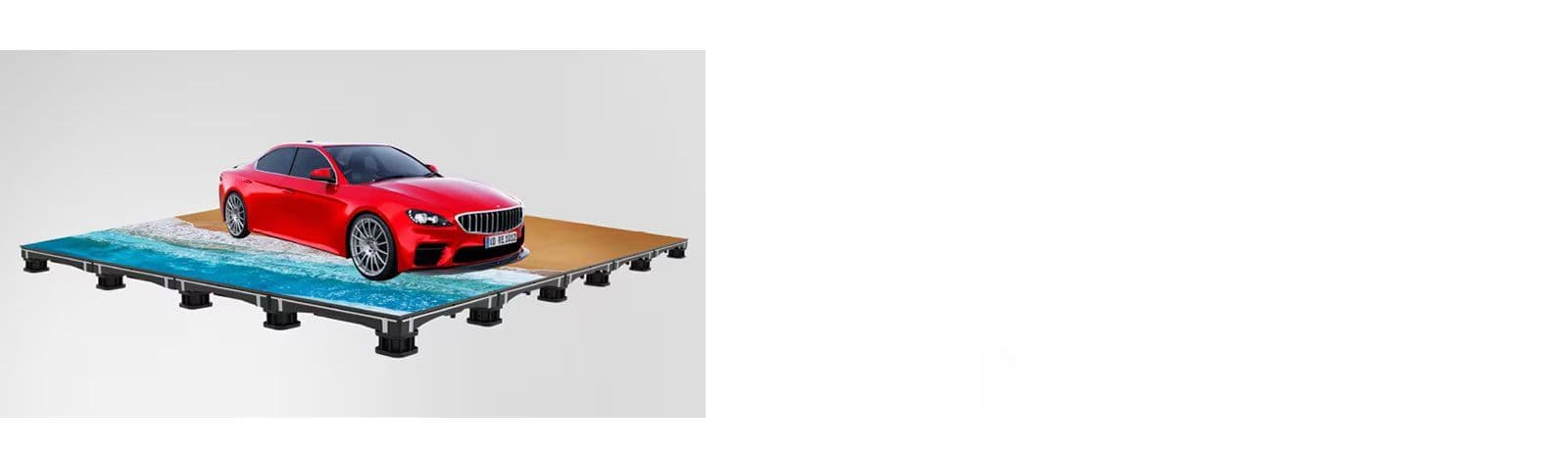

High Durability

LFCL series is a unique display installed on the floor with high durability designed to load up to 1,500 kg/sqm.
High Durability

High Durability

LFCL series is a unique display installed on the floor with high durability designed to load up to 1,500 kg/sqm.

Excellent Usability

Surface safety when installing the screen on the floor (IP66 protective non-slip mat) and high visual performance (with high contrast LED for uniform visual performance in black) are considered.
Excellent Usability

Excellent Usability

Surface safety when installing the screen on the floor (IP66 protective non-slip mat) and high visual performance (with high contrast LED for uniform visual performance in black) are considered.

Easy Installation and Maintenance

Its simple product structure allows for easy installation and quick maintenance. You can quickly deploy and connect the cabinets with the foot support system without any tools. A simple flush control mechanism design is applied to keep the height level regardless of floor type. In addition, magnets attached to the LED module allow for easy maintenance, and hot-swapping* is able during the display operation.

Banner Image

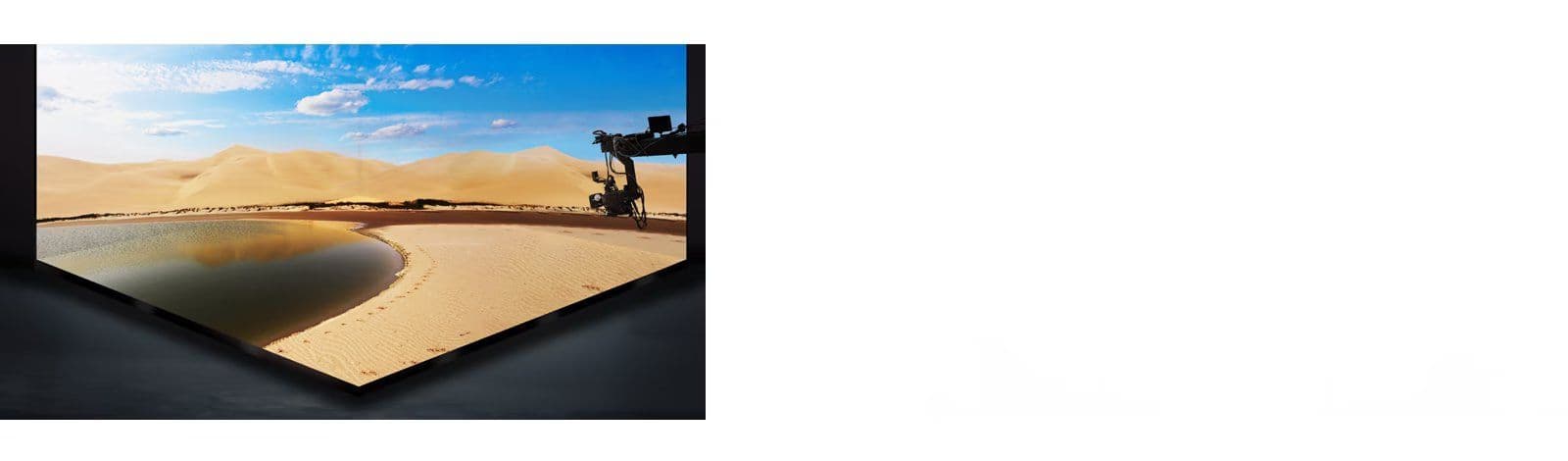

High Brightness

The LFCL series gives a versatile filming experience in XR Stage and mid-sized VP Studio. Moreover, the rendered content is highly visible with 3,000 nits. Available to shoot dust and water scenes with IP66 rating. The realistic filming of desert, beach, and fire scenes keep DP and camera operators contented.
High Brightness

High Brightness

The LFCL series gives a versatile filming experience in XR Stage and mid-sized VP Studio. Moreover, the rendered content is highly visible with 3,000 nits. Available to shoot dust and water scenes with IP66 rating. The realistic filming of desert, beach, and fire scenes keep DP and camera operators contented.

Brompton LED Processor & Data Distribution

As Brompton controllers are common in the broadcast and virtual production industry, LFCL series offers support for them.
Brompton LED Processor & Data Distribution

Brompton LED Processor & Data Distribution

As Brompton controllers are common in the broadcast and virtual production industry, LFCL series offers support for them.

Pixel Configuration

3 in 1

Pixel Pitch(mm)

2.60

Module Resolution (WxH)

96x96

Module Dimensions(WxH,mm)

250x250

Weight per Module (kg)

0.59

No. of Modules per Cabinet (WxH)

2 x 2

Cabinet Resolution (WxH)

192x192

Cabinet Dimensions (W x H x D, mm)

500x500x75.5

Cabinet Surface Area (㎡)

0.250

Weight per Cabinet (kg/unit)

5.9

Weight per Square Meter (kg/m²)

24.0

Physical Pixel Density (pixels/m²)

147,456

Flatness of Cabinet (mm)

±0.15

Cabinet Material

Die casting Magnesium alloy

Service Access

Front or Rear (select one only)

Max Brightness (After Calibration, nit)

1,500

Color Temperature (K)

2,000-11,000

Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

160

Brightness Uniformity

97%

Color Uniformity

±0.003CxCy

Contrast Ratio

5,000:1

Processing Depth (bit)

16 (PQ, HLG)

Power Consumption (W/Cabinet, Max.)

180

Power Consumption (W/Cabinet, Avg.)

60.00

Power Consumption (W/m², Max.)

720

Heat Dissipation (BTU/h/Cabinet, Max.)

614

Heat Dissipation (BTU/h/Cabinet, Avg.)

205

Heat Dissipation (BTU/h/m², Max.)

2,457

Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60

Refresh Rate (Hz)

7,680

LED Lifetime (Half brightness)

100,000

Operating Temperature(℃)

-10℃ to +45℃

Operating Humidity

0~80%RH

Certification

CE,FCC,ETL

Environment

RoHS,REACH

Controller

Brompton SX40
