22SM3G-B

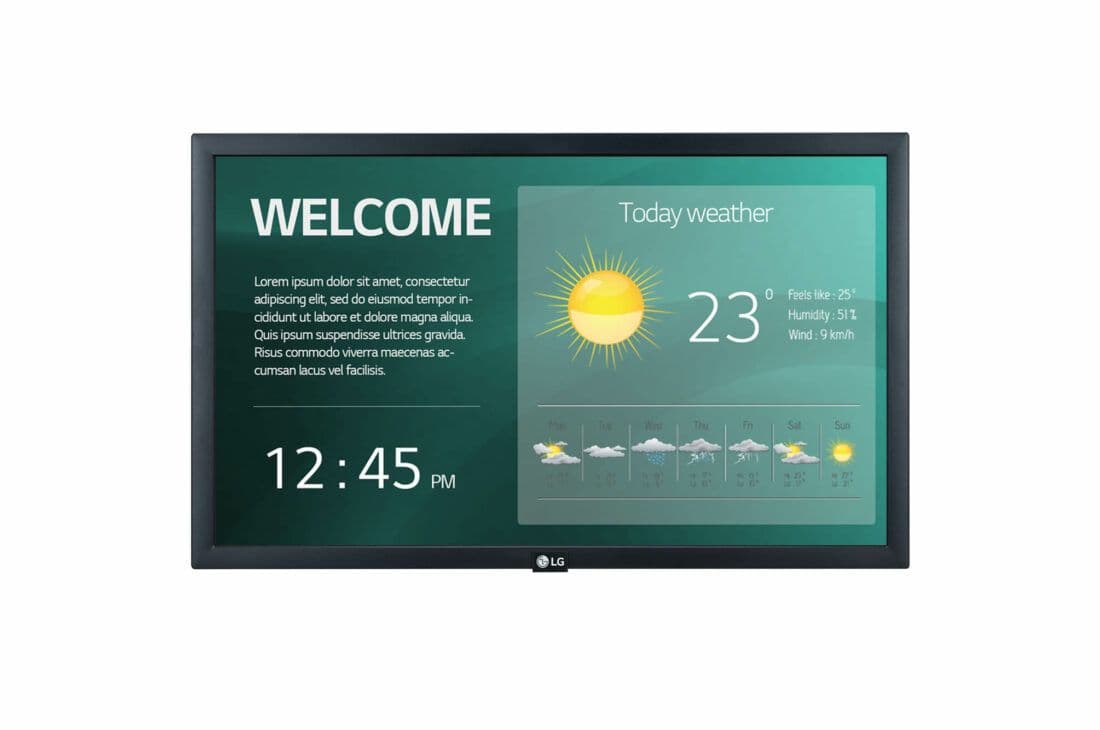

LG 22″ Full HD Digital Signage
Key Features
- Brightness(Typ.) : 250 cd/m²
- Bezel : 16.3mm
- Depth : 53.8mm
- Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
- USB Plug & Play, Built-in Wi-Fi
Contact us
GGEAR Commercial

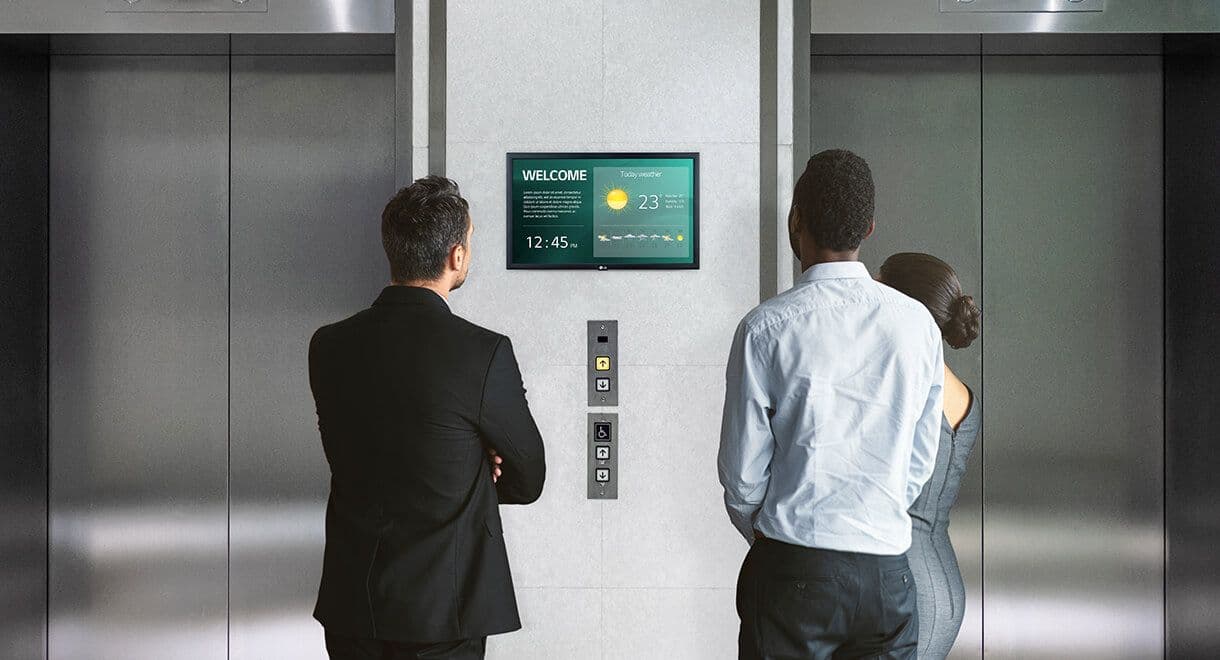

22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.

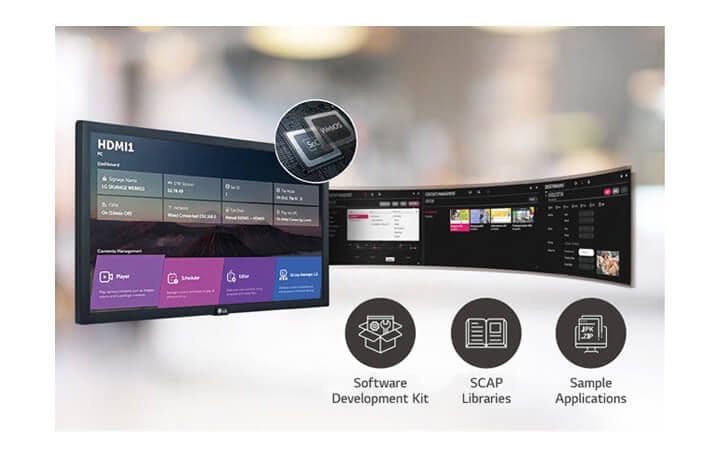

High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

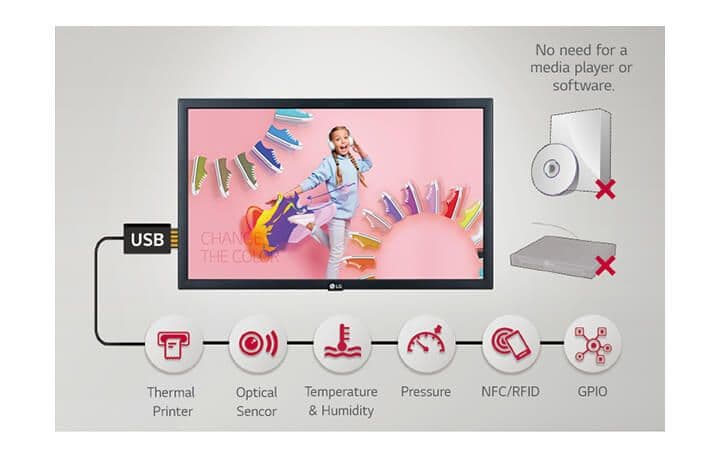

Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

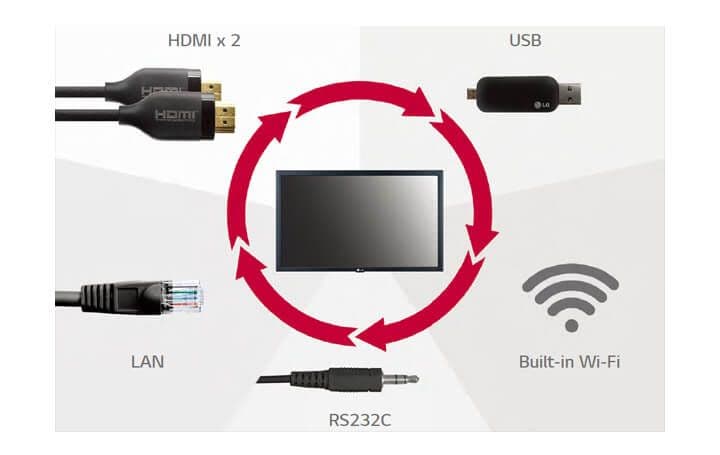

A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

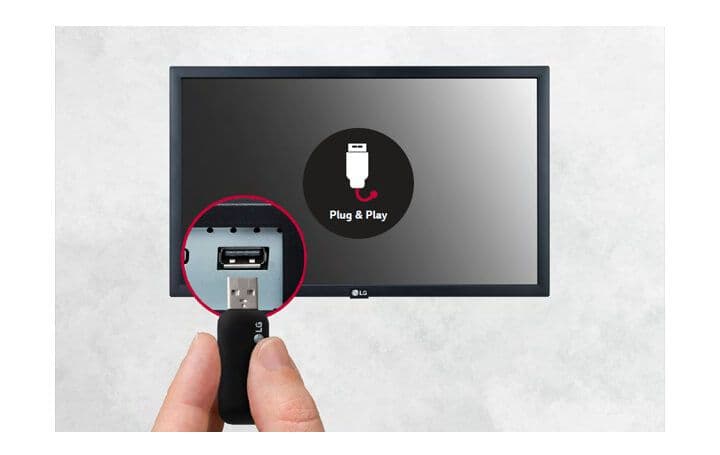

USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

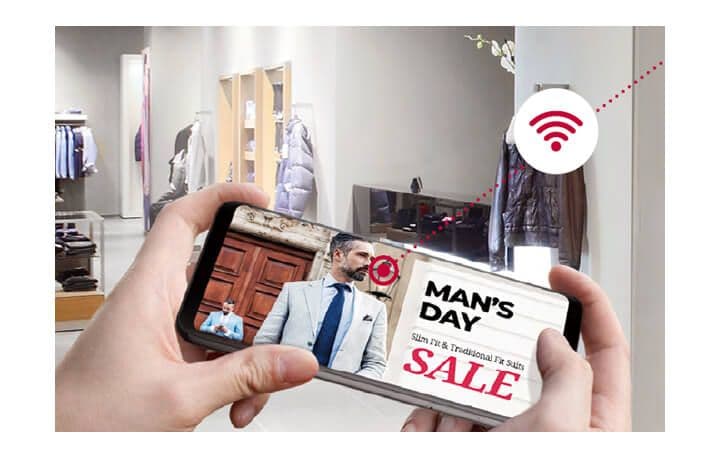

Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.

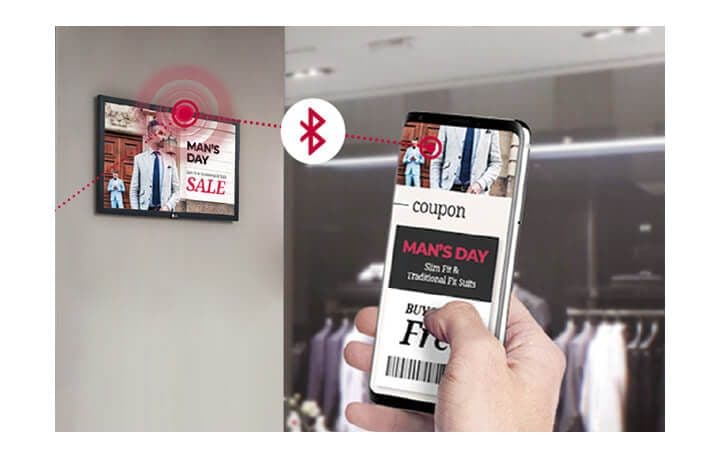

Real-time Promotion
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

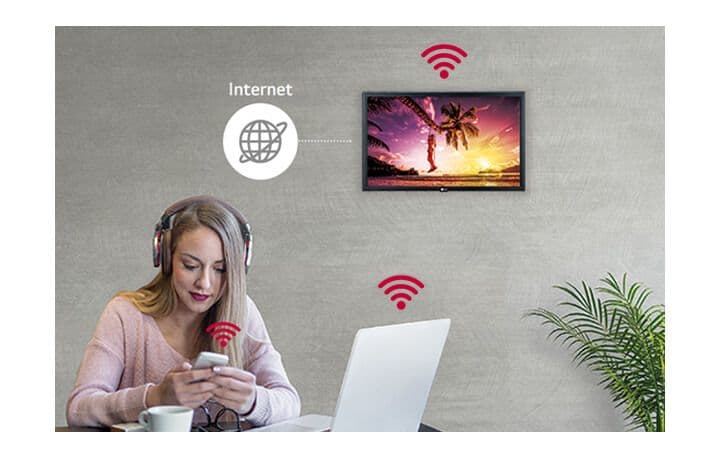

Wireless Solution
22SM3G operates as a virtual router which can be a wireless access point for mobile devices.
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

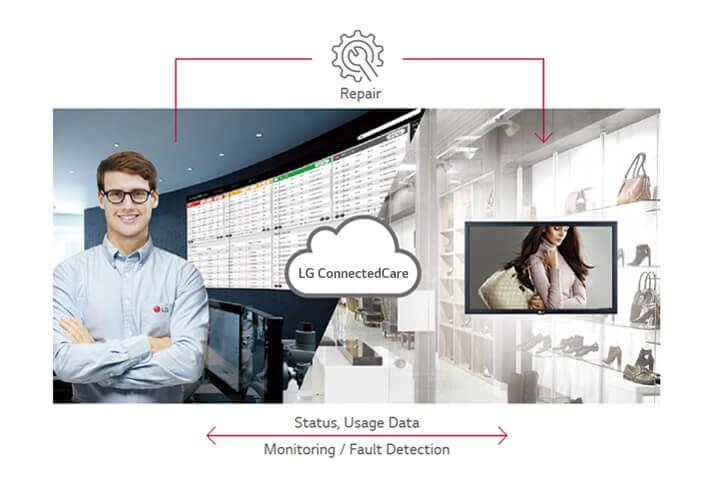

Real-time Care Service with LG ConnectedCare
The maintenance gets easier and faster with the optional service LG ConnectedCare*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
Screen Size
21.5”
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Refresh Rate
60 Hz
Brightness (Typ., cd/m²)
250
Contrast Ratio
1,000 : 1
Viewing Angle (H x V)
178 x 178
Response Time
14ms (G to G)
Surface Treatment (Haze)
25 %
Life Time (Min.)
30,000 Hrs
Operation Hours (Hours / Day)
16 / 7
Portrait / Landscape
Yes / Yes
Input
HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In
External Control
RS232C In (Phone-jack), RJ45 (LAN) In, IR In
Bezel Color
Black
Bezel Width
16.3 mm (Even Bezel)
Weight (Head)
3.34 kg
Packed Weight
4.74 kg
Monitor Dimension (W × H × D)
510.3 x 302.1 x 53.8 mm
Carton Dimensions (W × H × D)
565.0 x 357.0 x 103.0 mm
Handle
No
VESA™ Standard Mount Interface
100 x 100 mm
Key
Internal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning,
Feature
SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN,Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, webRTC, Pro:Idiom
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240 V~, 50 / 60 Hz
Power Type
Built-In Power
Power Consumption (Typ. / Max.)
30 W / 33 W
Power Consumption (Smart Energy Saving)
15 W ± 5 %
Safety
CB / NRTL
EMC
FCC Class “A” / CE
ErP
Yes (EU Only)
ePEAT (US Only)
No
OPS Type Compatible
No
OPS Power Built In
No
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control / Control+
LG ConnectedCare
Yes (The availability of the “LG ConnectedCare” service differs by region.)
Speake
Yes (1 W x 2 ea)
Basic
Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
