55SVM5F
LG 55″ Video Wall Signage with 0.88mm Bezel
Key Features
- Brightness(Typ.) : 500 cd/m²
- Bezel : 0.44 mm (Even)
- Depth : 86.5 mm
- Surface Treatment: Haze 28%
- Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Smart Calibration
Contact us
GGEAR Commercial

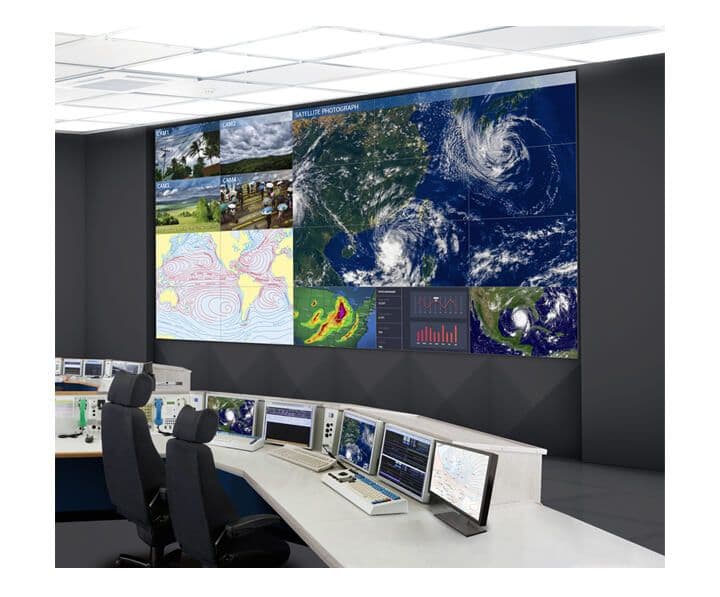

0.44mm Video Wall with Clear & Flawless Vision
The 0.44 mm Even Bezel Video Wall offers seamless view throughout the assembled large screen. Also, it offers clear and vivid picture under any bright circumstances by its non-glare screen.
Groundbreaking 0.44mm Even Bezel
The unprecedented razor-thin bezel – 0.44mm EVEN BEZEL and 0.88mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look more actual by depicting a subject without any distortions. Seamlessly assembled on a large video wall screen, the 55SVM5F-H will provide an even more immersive experience for viewers.
Smart Calibration
Smart Calibration is a solution that enables error-free calibration by dramatically reducing time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences of each individual display but also those of the connected displays, without the need for any additional manual color adjustments.

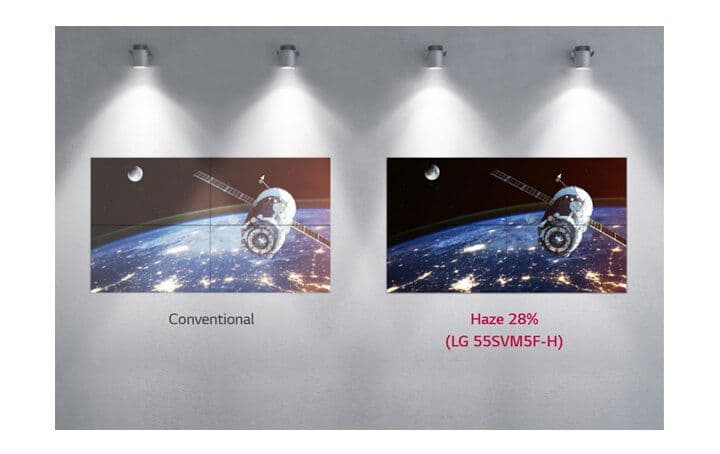

Clear View with Non-glare Panel
Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The 55SVM5F-H series has resolved such inconveniences by increasing the level of haze to 28％, which enhanced visibility and text readability.
Uniform Color Expression
Poor uniformity around bezel boundaries can produce a dark appearance to corners, which doesn’t look good on a large screen. However, the 55SVM5F-H has enhanced uniformity, including the four corners of the display, to deliver vivid and consistent color throughout the screen.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVM5F-H is superior to that of conventional video walls, allowing it to display vivid colors with no distortion – even in areas that are not suitable for large screens.
Wider Viewing Angle
The 55SVM5F-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

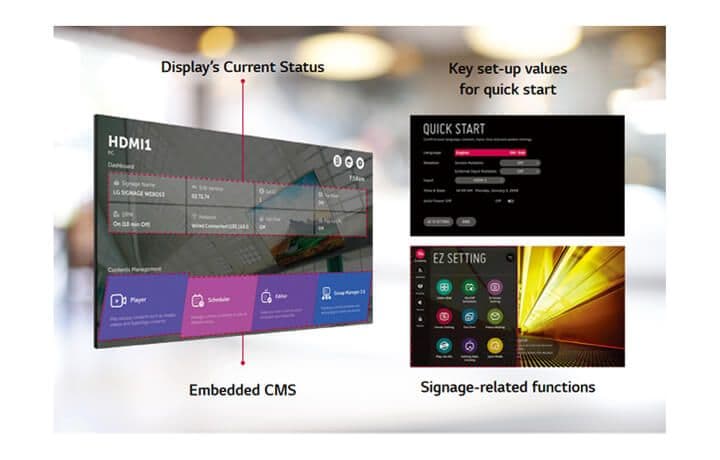

Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies accessibility and groups similar functions together, adopting a more intuitive GUI for ease of use. With this way users can avoid trial-and-error when exploring desired functions and managing displays.

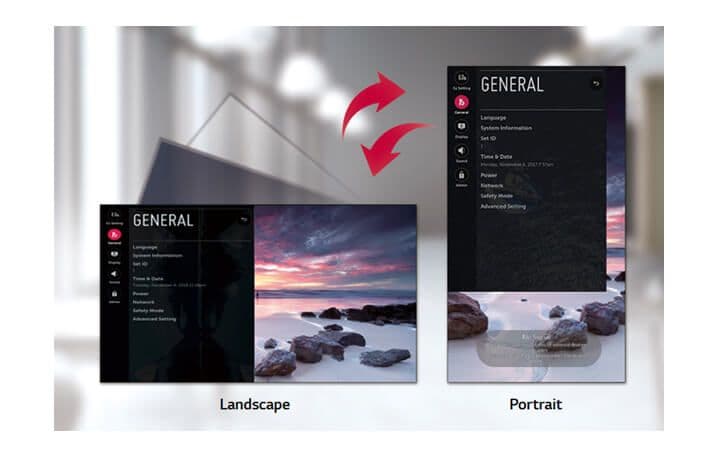

Dedicated GUI for Portrait Orientation
The conventional GUI(Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the 55SVM5F-H, however, consists of a long range menu with bigger font sizes of 9:16 ratio, creating a comfortable and efficient business environment
Real-Time Care Service
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

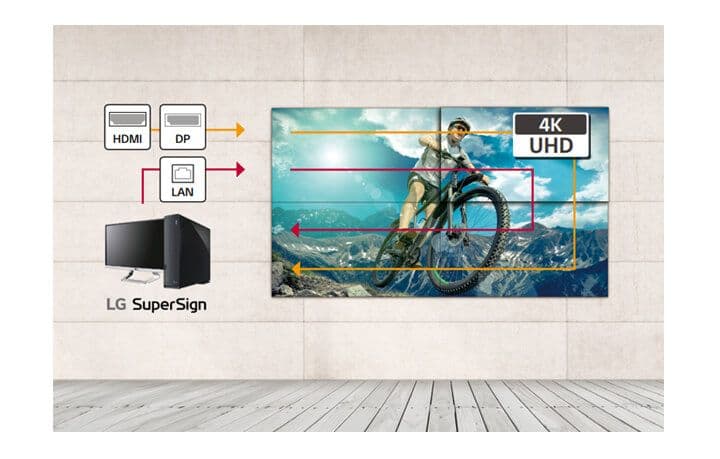

Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.
Screen Size
55"
Panel Technology
IPS
Aspect Ratio
16 : 9
Brightness (Typ., cd/m²)
500
Contrast Ratio
1,100:1
Viewing Angle (H x V)
178 x 178
Response Time
8 ms (G to G)
Surface Treatment (Haze)
Haze 28%
Life Time (Min.)
60,000 Hrs
Operation Hours (Hours / Day)
24 Hrs
Orientation
Portrait & Landscape
Input
HDMI (2), DP, DVI-D, Audio, USB 2.0
External Control
RS232C In/out, RJ45 (LAN) In/out, IR In
Output
DP, Audio
Bezel Color
Black
Bezel Width
0.44 mm (Even)
Weight (Head)
16.8 kg
Packed Weight
23.6 kg
Monitor Dimension (W × H × D)
1,210.51 x 681.22 x 86.5 mm
Carton Dimensions (W × H × D)
1,353 x 855 x 263 mm
Handle
Yes
VESA™ Standard Mount Interface
600 x 400 mm
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240 V~, 50 / 60 Hz
Power Type
Built-In Power
Power Consumption (Typ. / Max.)
200W / 250W
Power Consumption (Smart Energy Saving)
105W
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP
Yes (EU Only)
Basic
Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
OPS type compatible
Yes (Piggyback)
Typ./Max.
165 W / 195 W
Smart Energy Saving
85 W
