55VL7F
LG 55″ Video Wall Signage with 3.5mm Bezel
Key Features
- Brightness(Typ.) : 700 cd/m²
- Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
- Depth : 93.1 mm
- Interface : HDMI (2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Contact us
GGEAR Commercial

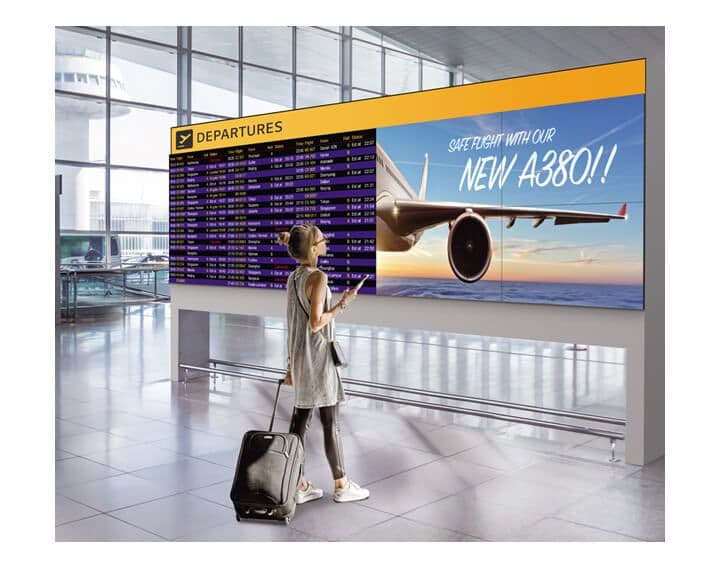

Incredible Immersion with Ultra-Narrow Bezel
The VL7F series provides all-encompassing screen immersion thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its high brightness delivers clear and vivid content even under bright lighting.

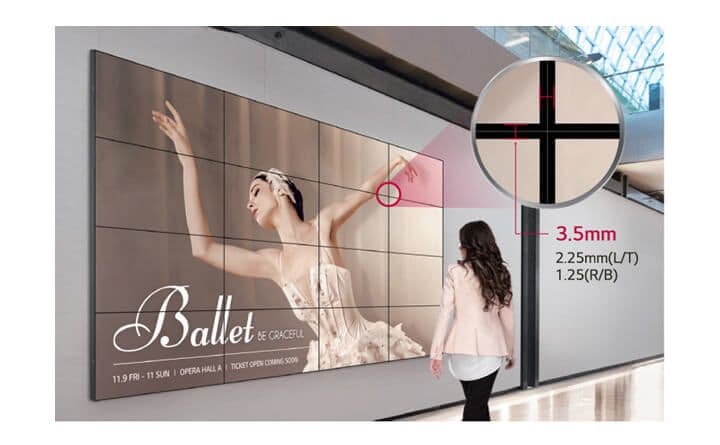

Seamless Large Screens with Ultra-Narrow Bezel
The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.
Image Gap Reduction
The VL7F series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL7F series is high enough to display vivid colors throughout the screen with no distortion.
Wider Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL7F series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL7F series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

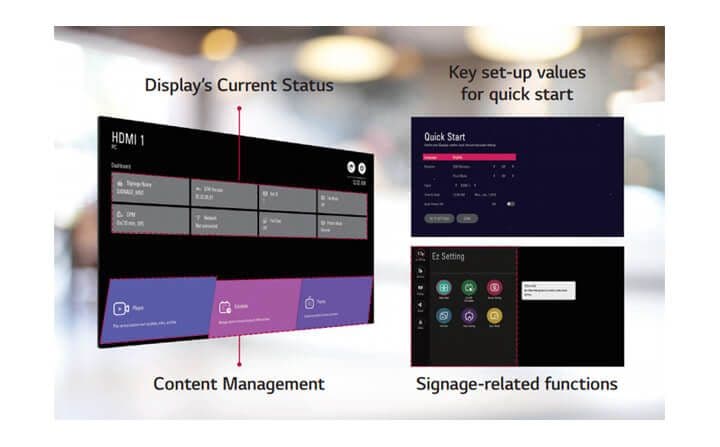

User-Friendly Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.

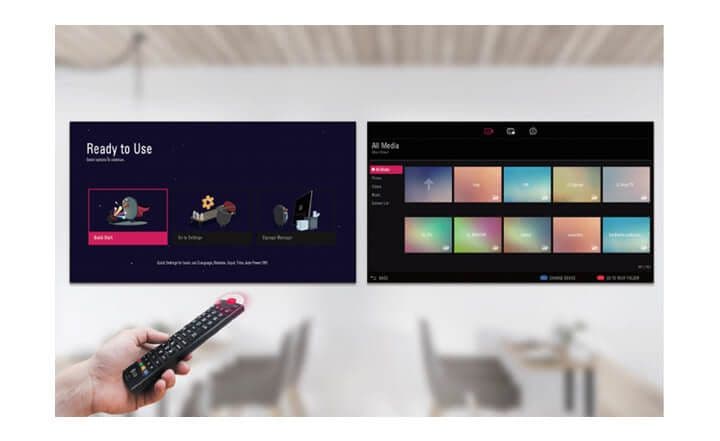

Intuitive GUI
The GUI(Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.
Screen Size
55"
Panel Technology
IPS
Aspect Ratio
16 : 9
Brightness (Typ., cd/m²)
700
Contrast Ratio
1,200:1
Viewing Angle (H x V)
178 x 178
Response Time
8 ms (G to G)
Surface Treatment (Haze)
3%
Life Time (Min.)
60,000 Hrs
Operation Hours (Hours / Day)
24 Hrs
Orientation
Landscape & Portrait
Input
HDMI(2), DP, DVI-D, Audio, USB
External Control
RS232C In/out, RJ45(LAN) In, IR In
Output
DP, Audio
Bezel Color
Black
Bezel Width
2.25 mm (T/L) / 1.25 mm(B/R)
Weight (Head)
20.3 kg
Packed Weight
33 kg
Monitor Dimension (W × H × D)
1,213.4 x 684.2 x 93.1 mm
Carton Dimensions (W × H × D)
1,353 x 980 x 263mm
Handle
Yes
VESA™ Standard Mount Interface
600 x 400 mm
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240 V~, 50 / 60 Hz
Power Type
Built-In Power
Power Consumption (Typ. / Max.)
30 W / 33 W
Power Consumption (Smart Energy Saving)
15 W ± 5 %
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP
Yes (EU Only)
Basic
Remote Controller, Power Cord, RS232C Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
OPS type compatible
No
Typ./Max.
165 W / 195 W
Smart Energy Saving
85 W
