88BH7G
LG 88″ Ultra Stretch Signage
Key Features
- Brightness(Typ.) : 700 cd/m²
- Aspect Ratio: 32:9
- Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
- Depth: 84.8 mm
- Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR
Contact us
GGEAR Commercial
Ultra Stretch Signage, 32:9 Space-Fitting Wide Screen
The 88BH7G is a suitable display for delivering new forms of advertising and multiplexed information in a 32:9 widescreen format that brings you a new experience, captivating customers' attention.

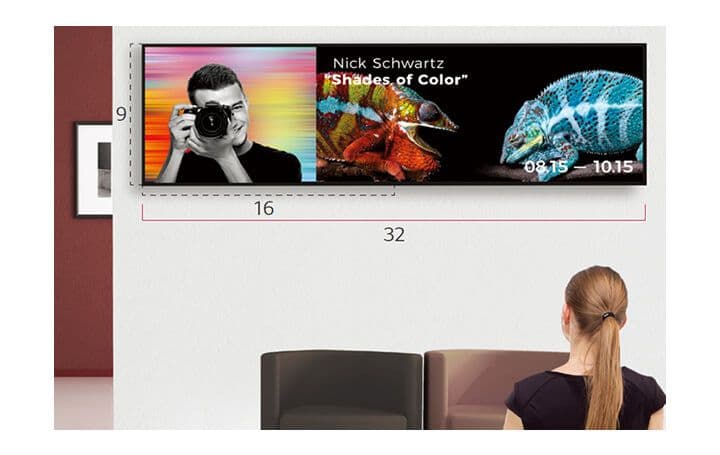

32:9 Extended Wide Format
It is a unique wide screen with 32:9 bar type which is twice as long as the previous 16:9 display, allowing more content and information to be shown on one screen.

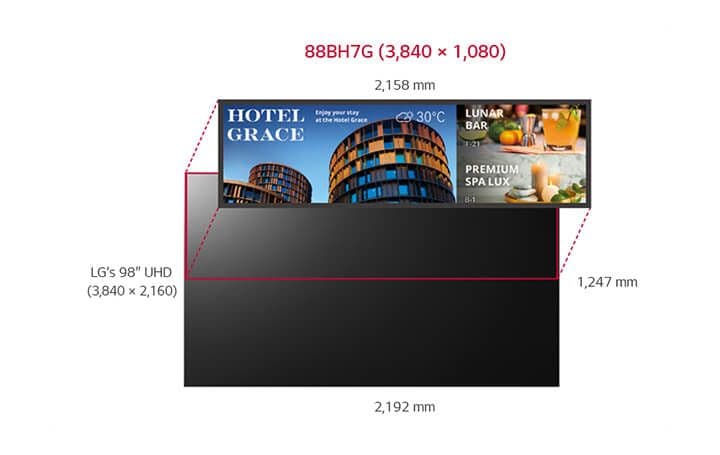

High Picture Quality (3,840 × 1,080)
LG Ultra Stretch display, which is about half the size of a 98-inch UHD display, delivers vivid and clear colors.

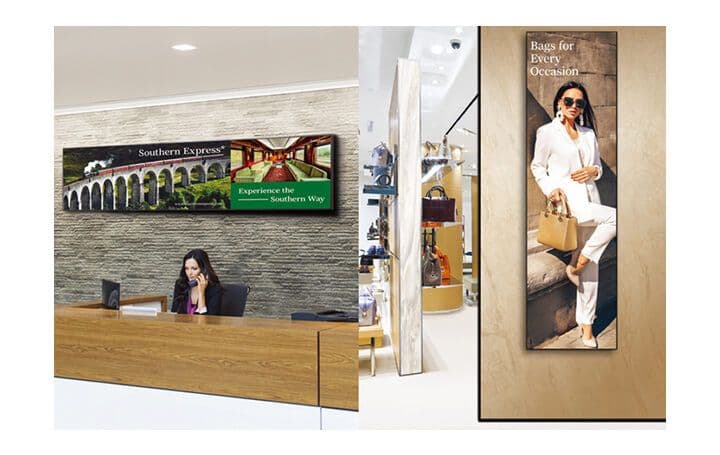

Flexibility for Content Management
Thanks to its bar type format, it is optimized to show a vertical or horizontal object providing a memorable viewing experiences to the viewer.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful to deliver various advertisements or pieces of information at the same time without bezels among them.

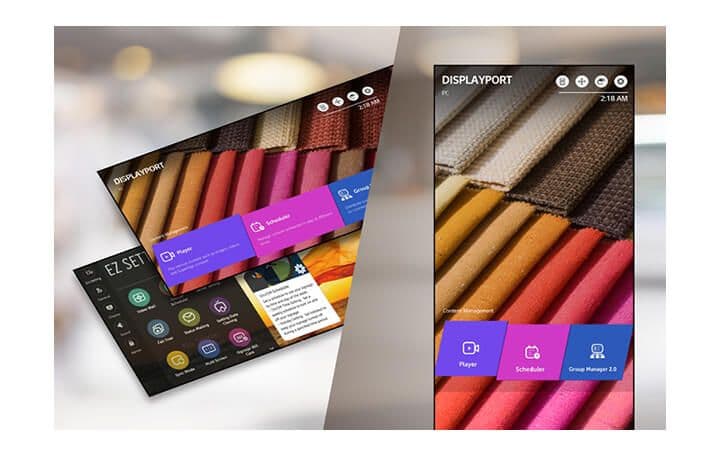

User-friendly Menu
The Ultra Stretch display offers a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, menu can also be adjusted accordingly.

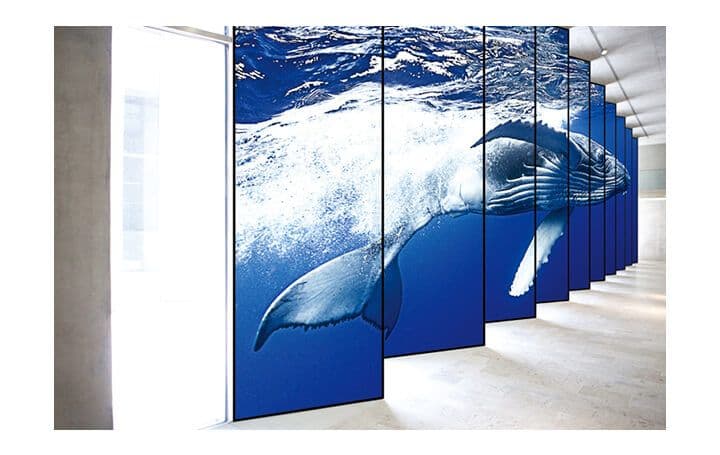

Tiled Scene with Immersive View
he 88BH7G can show a tiled scene by up to 15×15 configuration. It will be a good way to build a large screen or provide visual impacts to customers differently.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware for multiple displays at once.
Real-Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
Screen Size
88"
Panel Technology
IPS
Brightness (Typ., cd/m²)
700
Contrast Ratio
1,100:1
Viewing Angle (H x V)
178 x 178
Response Time
8 ms (G to G)
Surface Treatment (Haze)
Haze 3%
Operation Hours (Hours / Day)
24 Hrs
Orientation
Portrait & Landscape
Dynamic CR
500,000 : 1* The luminosity ratio of Full Black / Full White color on video input condition.
Native Resolution
3,840 × 1,080
Color Depth
1.07 Billion Colors (10 bit)
Input
HDMI (3, HDCP 2.2 / 1.4), DP (HDCP 2.2 / 1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2)
External Control
RS232C In / Out, RJ45 (LAN) In / Out, IR In
Output
DP, Audio
Bezel Color
Black
Bezel Width
4.4 mm (R/L), 5.9 mm (T/B)
Weight (Head)
16.8 kg
Packed Weight
33.9kg
Monitor Dimension (W × H × D)
2,158.3 × 611.2 × 84.8 mm
Handle
Yes
VESA™ Standard Mount Interface
600 × 400 mm
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240 V~, 50 / 60 Hz
Power Type
Built-In Power
Power Consumption (Typ. / Max.)
450 W / 530 W
BTU (British Thermal Unit)
1,535 BTU/Hr (Typ.), 1,808 BTU/Hr (Max.)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
es (EU Only) / Yes (Energy Star 8.0)
Basic
Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR / Light Sensor Receiver, Manual
Optional
OPS Kit (KT-OPSF)
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor
LG ConnectedCare
Yes * The availability can differ by region.
OPS type compatible
Yes (Piggyback)
OPS Power Built In
No
Special Features
Internal Memory (8GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Local Key Operation, webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-Screen (PBP (4)), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility may differ by equipment.), SI Server Setting, webRTC, Pro:Idiom
