86TR3PJ

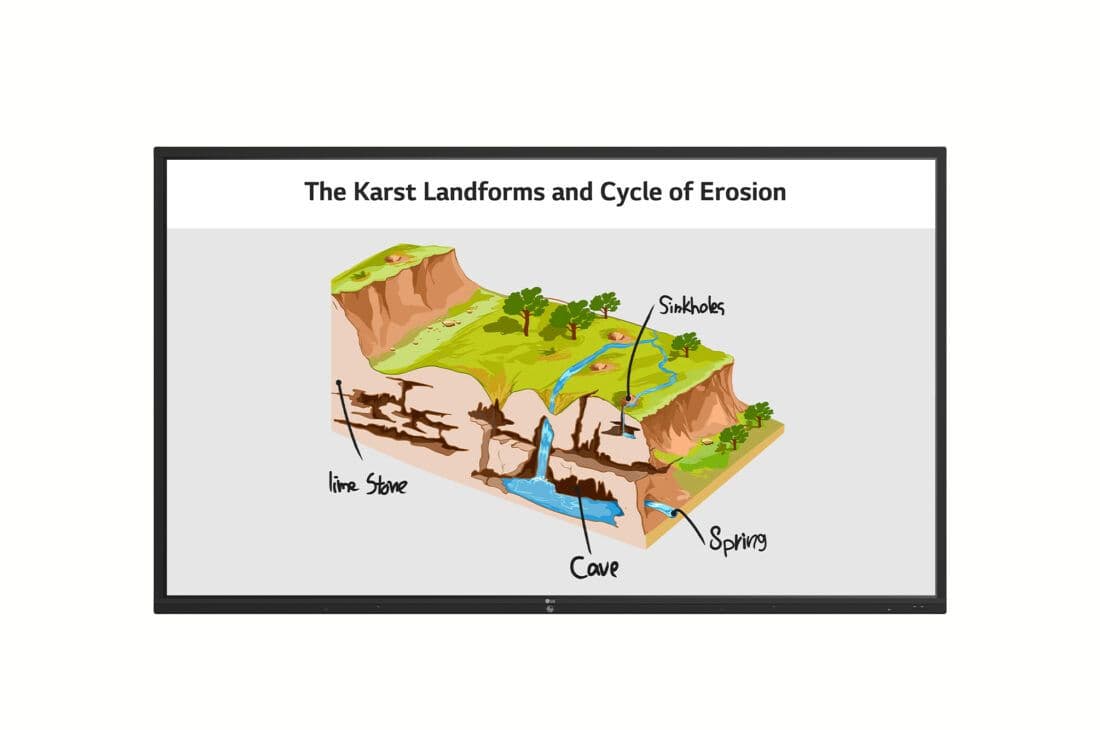

86″ LG CreateBoard
Key Features
- Brightness : 390 nit (w/o Glass, Typ.)
- Multi Touch Point : 20 Points (Max.)
- Interface : HDMI (3, HDCP 2.2 / 1.4), Audio In, RS-232C In, RJ45 (LAN), USB 3.0 Type A (4), USB 2.0 Type A, USB Type C (USB-PD, DP-Alt, Mode)
Contact us
GGEAR Commercial
True Interactivity for Bringing People Together
Multi Touch & Writing
The TR3PJ series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board writing experience and makes collaboration much easier.

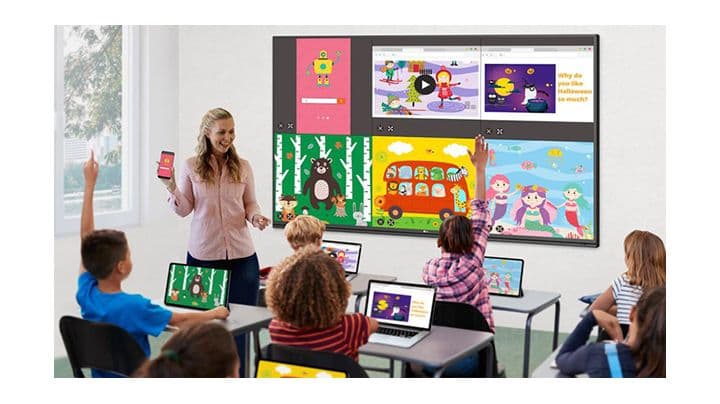

ScreenShare Pro Upgrade
With the newly upgraded ScreenShare Pro, which enables to show a maximum of six shared screens or a file on a screen in real-time, it has enhanced usability by allowing users to share Chromecast, Airplay and Miracast mirroring on the same network.
Air Class
Air Class supports connecting up to 30 students and offers interactive classes by using mobile devices equipped with web browsers, providing a variety of tools such as voting, answering, and sharing project texts.
DPM (Display Power Management)
By activating DPM function, the display can be set to be on only when there is an input signal, which enables more efficient power management.
Annotation Upgrade
At annotation tool mode, ‘Un-do’ and ‘Re-do’ functions provide enhanced use
Web Browser
The TR3PJ series supports the web browser* in the Android OS**, so you can search the web easily and quickly, without connecting to an external desktop.

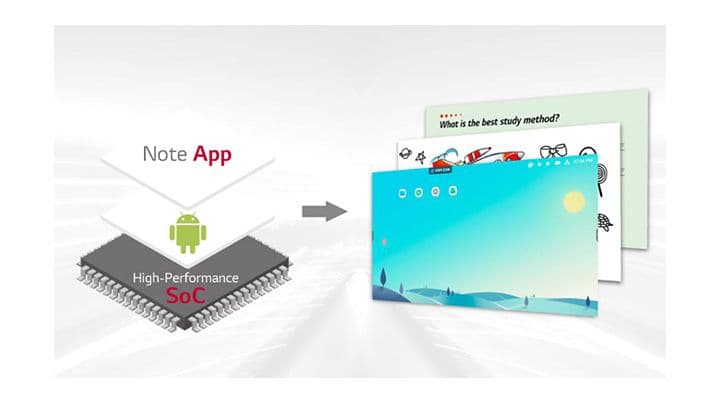

All-in-One
The TR3PJ series integrates both Android OS and Free apps into a high performance SoC, without a PC.

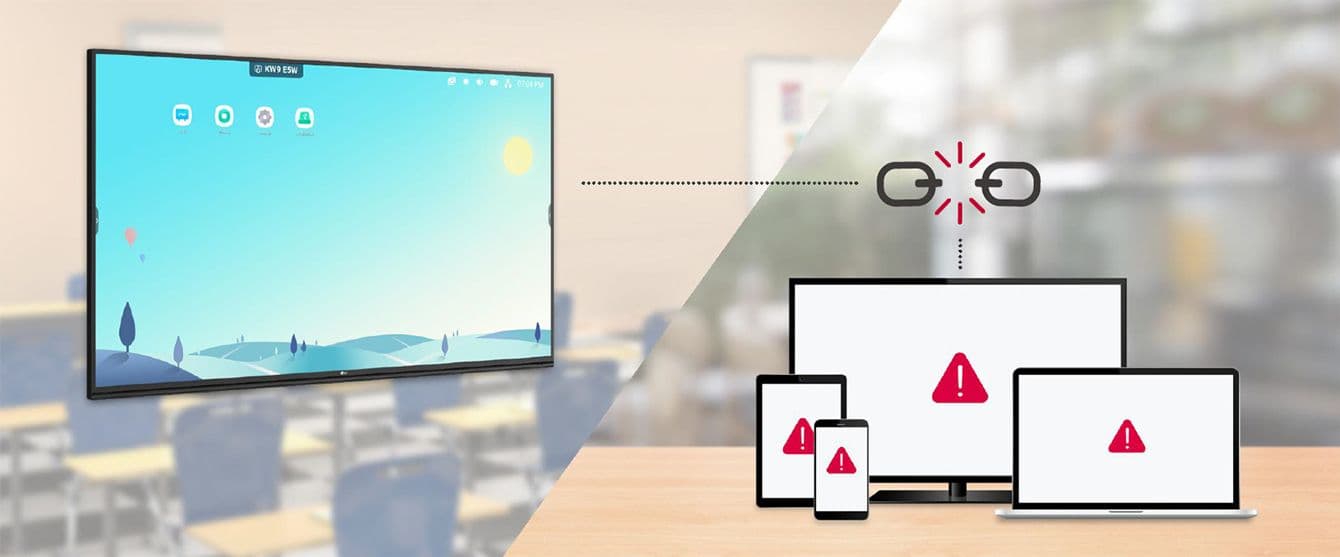

Secure Mode
Secured mode disables screen mirroring options for SSP (Screen Share Pro), which is an application that enables screen sharing between mobile devices and the display, to prevent any unauthorized contents to be shown via screen sharing functions in various devices.

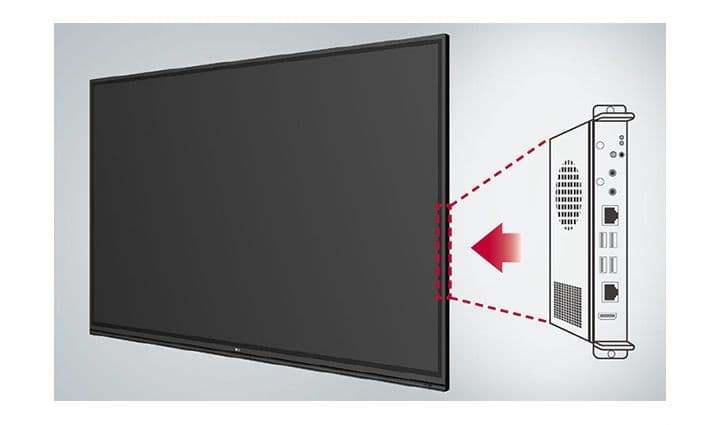

Built-in OPS Slot
The TR3PJ series supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the interactive digital board with internal power delivery.
Partial Capture
Users can select the desired area of the screen to crop the image and store that in internal memory. Also, TR3PJ allows that send cropped images directly to email or note apps.
Bluetooth Connectivity
TR3PJ supports Bluetooth to connect wirelessly to various devices such as speaker, mouse, keyboard, etc. This is optimized for building a hybrid environment so that online and offline meetings and classes can proceed with ease.
Real-time ConnectedCare Service
Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
Screen Size (Inch)
86"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16 : 9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Contrast Ratio
1,200 : 1
Brightness
490 nit (w/o Glass Max.), 390 nit (w/o Glass Typ.), 450 nit (w Glass Max.), 350 nit (w Glass Typ.)
Color gamut
NTSC 68% (Typ.)
Viewing Angle(H x V)
178 X 178
Color Depth
10 bit, 1.07 Billion Colors
Response Time
8 ms (G to G)
Surface Treatment (Haze)
Anti Glare, 7 Mohs, Haze 28%
Life Time (Min.)
30,000 Hrs
Operation Hours (Hours/Day)
16 / 7
Portait / Landscape
No / Yes
Bezel Color
Black
Bezel Width
17.7 / 17.7 / 17.7 / 45.7 mm
Weight (Head)
65.75 kg
Packed Weight
80.7 kg
Monitor Dimensions (W x H x D)
1,957 × 1,160 × 87 mm
Carton Dimensions (W x H x D)
2,110 × 225 × 1,283 mm (Box Outer Size)
Handle
Yes
VESATM Standard Mount Interface
800 × 600
Key Feature
Internal Memory (32 GB), Built-In Wi-Fi (Slot Type), Power Indicator, Local Key Operation, webOS ver. (Android 9.0), Background Image (Booting Logo Image), Screen Share (Screenshare Pro), 3rd Party Compatibility (Crestron Inside), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC
Operation Temperature
0 °C to 40 °C
Operation Humidity
10% to 90% RH
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
320 W
Max.
600 W
DPM
Yes
Power off
0.5 W↓
BTU (British Thermal Unit)
1,092 BTU/Hr (Typ.), 2,047 BTU/Hr (Max.)
Safety
CB / NRTL
EMC
FCC Class "A" / CE
ErP / Energy Star
Yes / No
OPS type compatible
Yes (Slot)
OPS Power Built In
Yes
Connected Care
Yes
Input
HDMI (3, HDCP 2.2 / 1.4), Audio In, RS-232C In, RJ45 (LAN), USB 3.0 Type A (4), USB 2.0 Type A, USB Type C (USB-PD, DP-Alt, Mode)
Output
DP Out (HDMI Out), Audio Out (1, Optical 1 (SPDIF)), Touch USB (2), RJ45 (LAN)
Speaker
Yes (16 W × 2)
Optional
Stand(ST-653T), Wall bracket(LSW240B), OPS Kit(KT-OPSF)
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
Available Object Size for Touch
Ø2 mm↑
Writing Height
≤3 mm
Response Time
≤10 ms
Accuracy
±1 mm
Interface
USB 3.0
Protection Glass Thickness
4 T (Anti-Glare)
Protection Glass Transmission
87%
Operating System Support
Windows 7 / 8 / 10 / Windows XP / Linux / Mac / Android (Supports one point touch on Windows XP / Linux / Mac)
Multi Touch Point
Max. 20 Points
SoC
Quad Core A73
GPU
Mail G52 MultiCore 2
Internal Memory
Storage: 32 GB
RAM
4GB
Wi-Fi
802.11 a/b/g/n/ac/ax
LAN
Gigabit LAN
Bluetooth
Bluetooth 5.0
