LSAB007
LG MAGNIT
Key Features
- Micro LED Technology for Home
- 4K (3,840×2,160) Resolution, 136-inch
- Picture Quality Optimization with a9 AI Processor
- Built-in Access to Various Streaming Services
- Eye Comfort Certified Low-level Blue Light
- Stylish Media Furniture (Optional)
Contact us
GGEAR Commercial
LG MAGNIT Virtual Showroom
LG MAGNIT Virtual Showroom

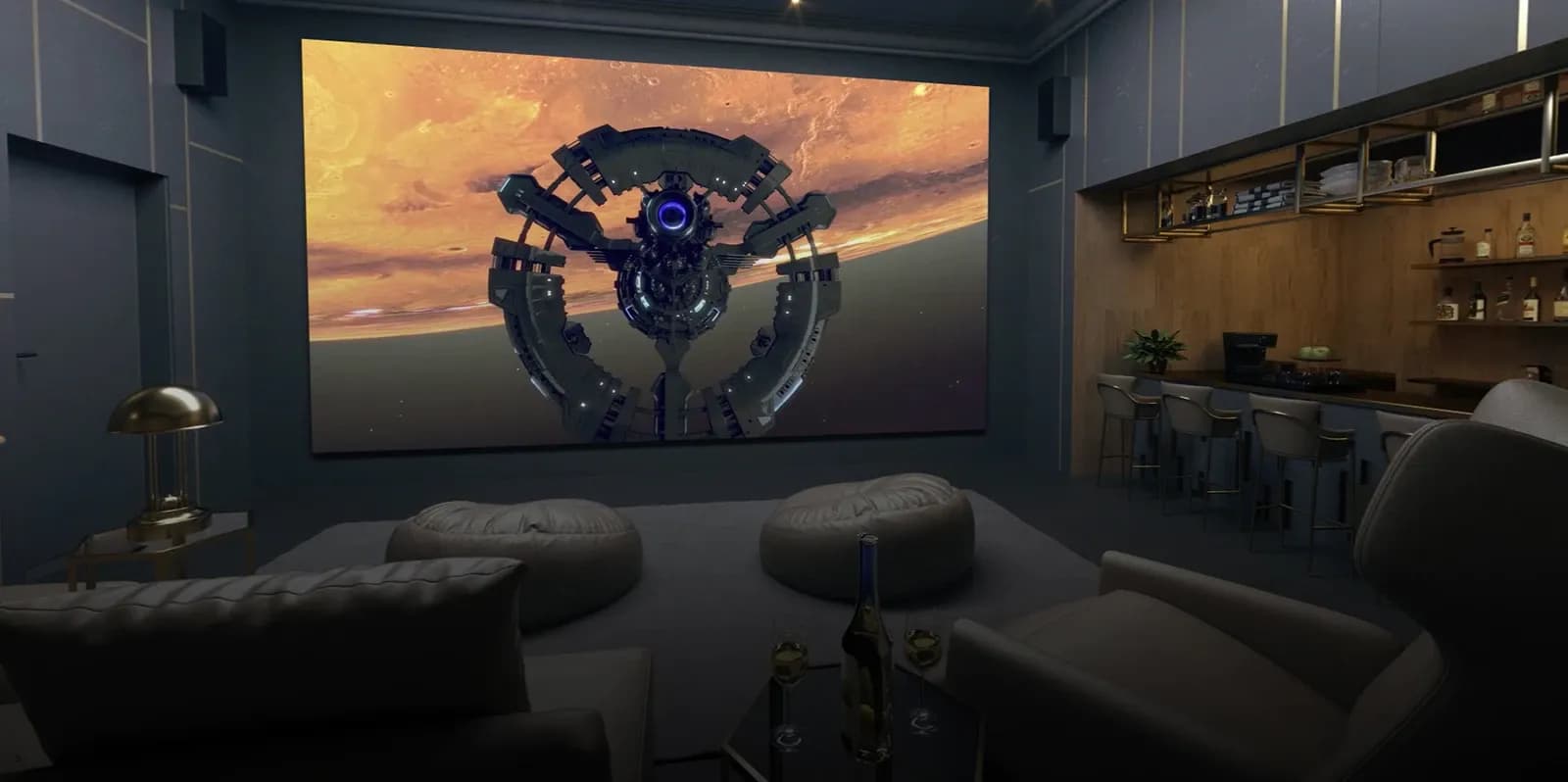

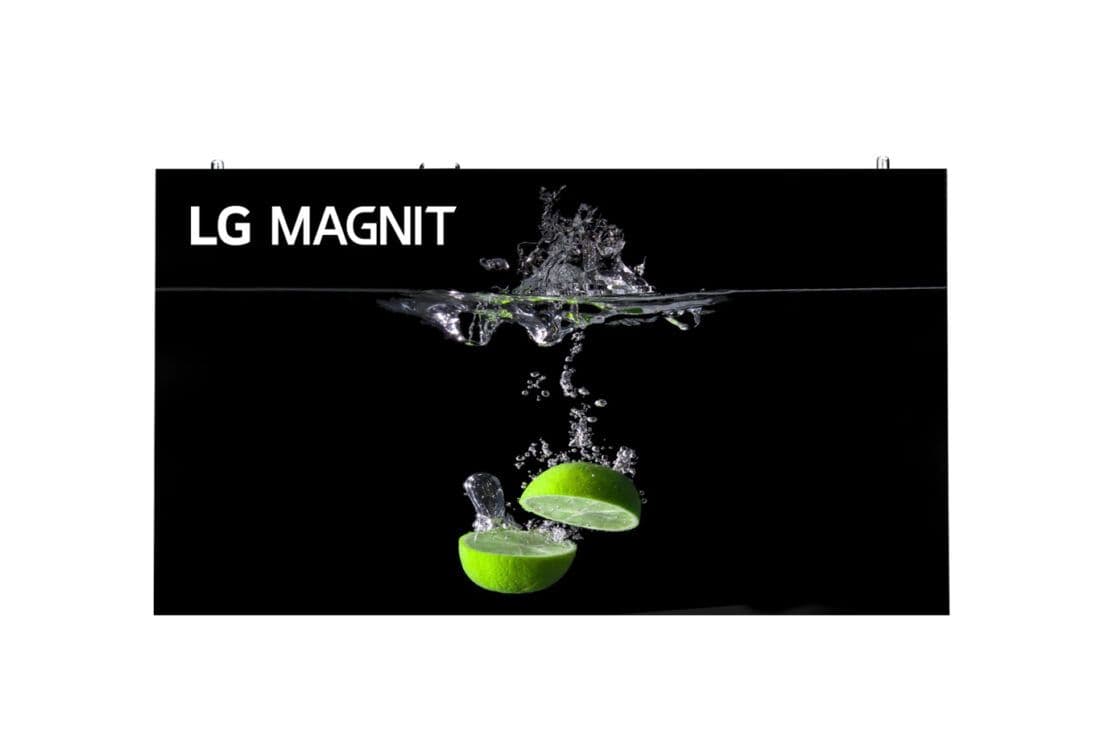

LG MAGNIT, Your First Micro LED Display
See the magnificent success that LG MAGNIT brings to business and recreation.

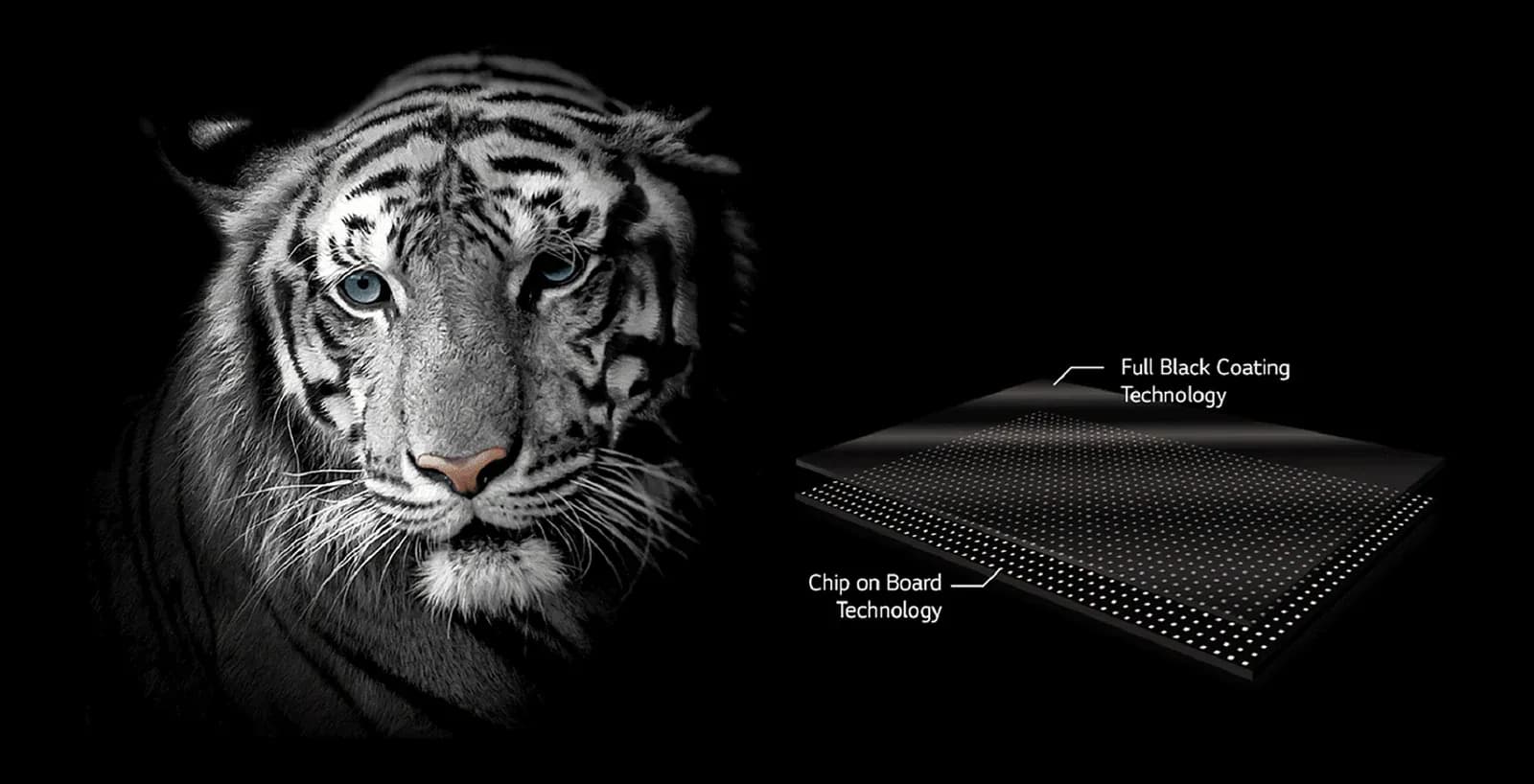

Black Immersion, Enlivened Details
By removing a package surrounding R, G, B LED chips and applying LG’s own Full Black Coating technology, LG MAGNIT surprisingly delivers much deeper black than the conventional package LED signage*. This not only enhances color vividness, but also makes the details which were hidden in the shadows appear, providing audiences a sense of immersion.

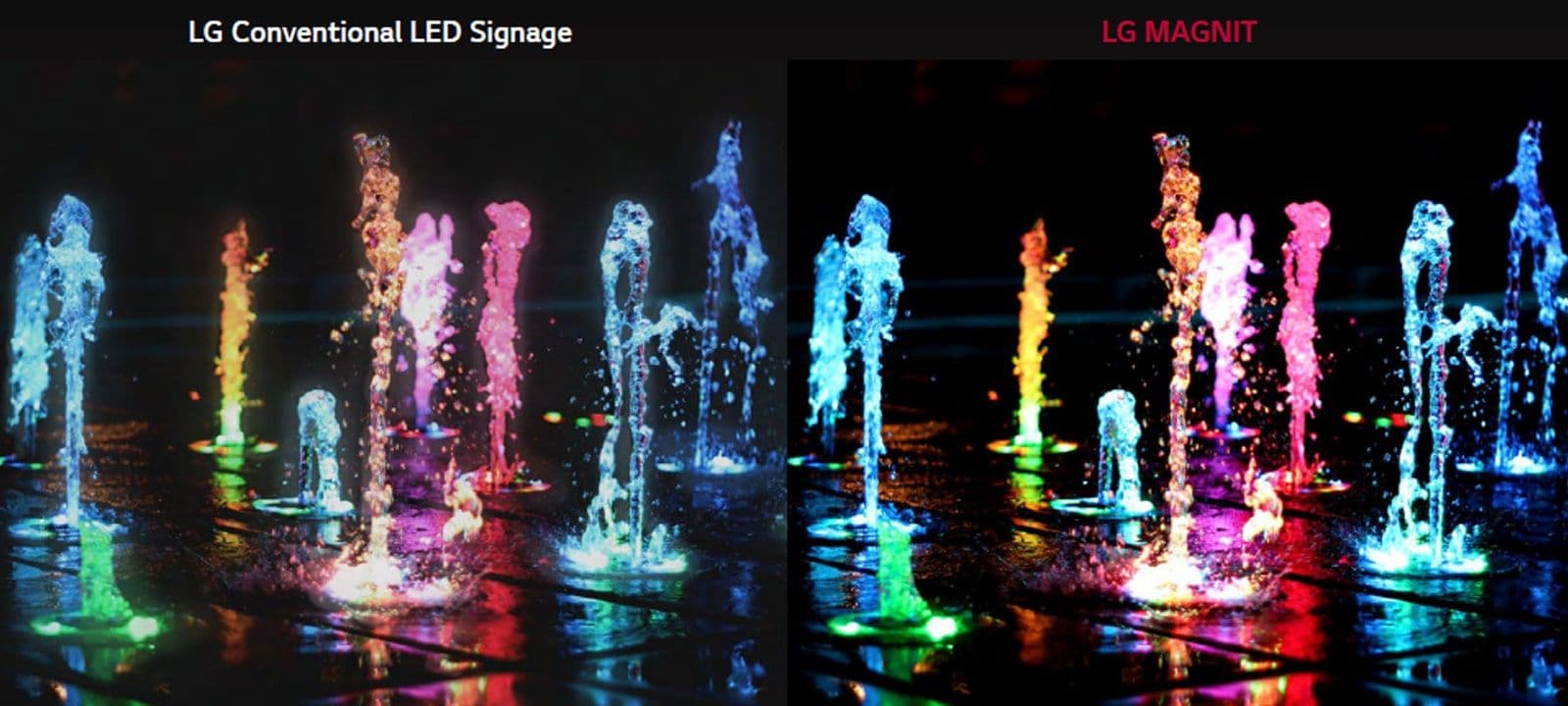

Stronger Light and Shadow
The solid black LG MAGNIT makes also results in superbly high contrast ratio which is a vital part of the picture quality. The difference between the dark parts and the light parts is clearly great, making every part of the content distinctive.
Accurate Colors as Intended
By carefully selecting an LED chip which is a key factor to determine color purity, its narrowed wavelength allows LG MAGNIT to show uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports it to describe colors close to the original color, which is essential for places where exact color representation is demanding.
Intelligent Image Processor
The Alpha 7 Intelligent Processor which is adopted from LG’s TV technology recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.
Vivid Color Expression Powered by HDR
With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.

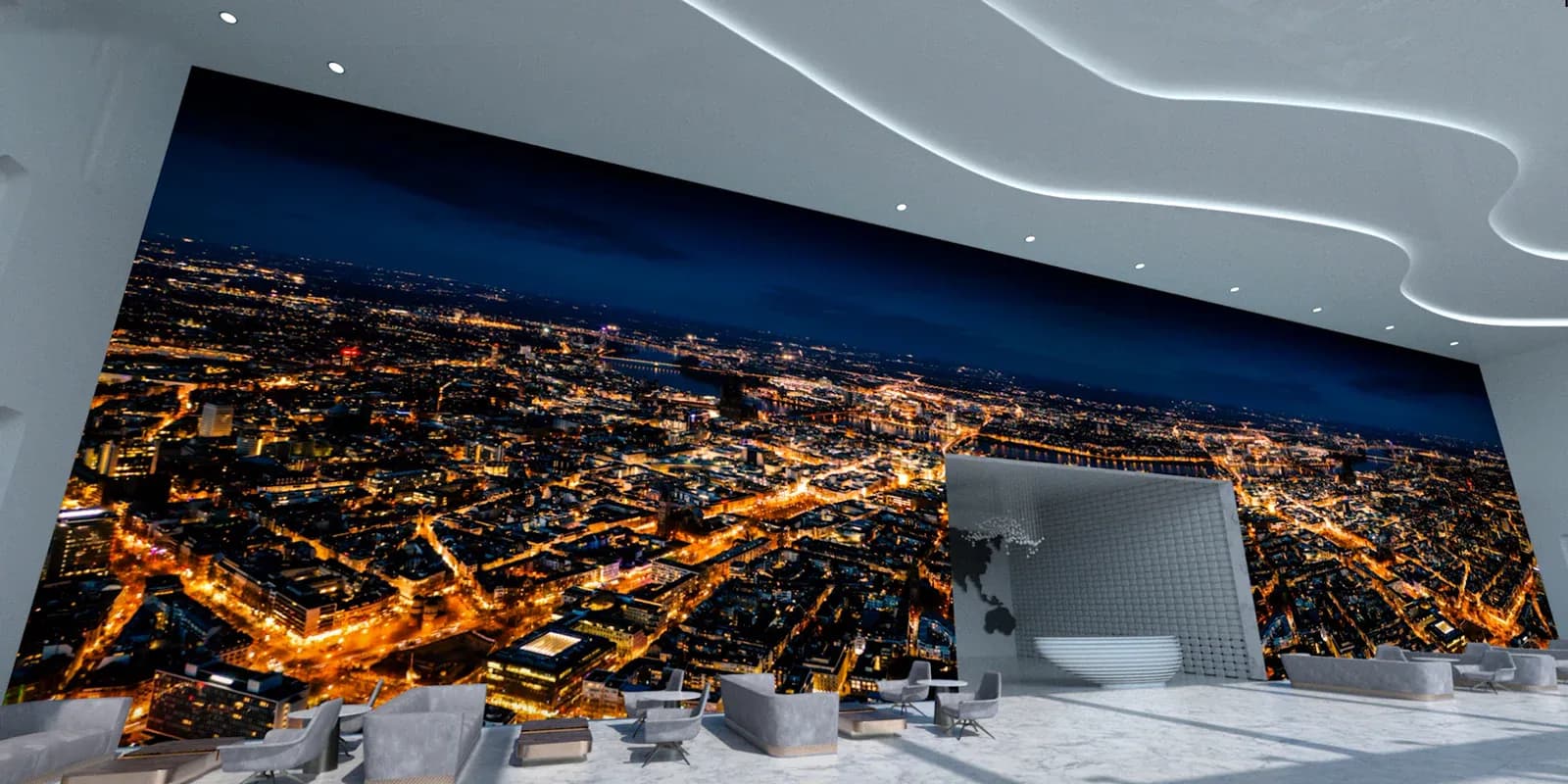

Wide Color Viewing Angle
Thanks to the structure of LG MAGNIT, it minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated even from the side angles, captivating various pedestrians even if it is installed in a large public places.

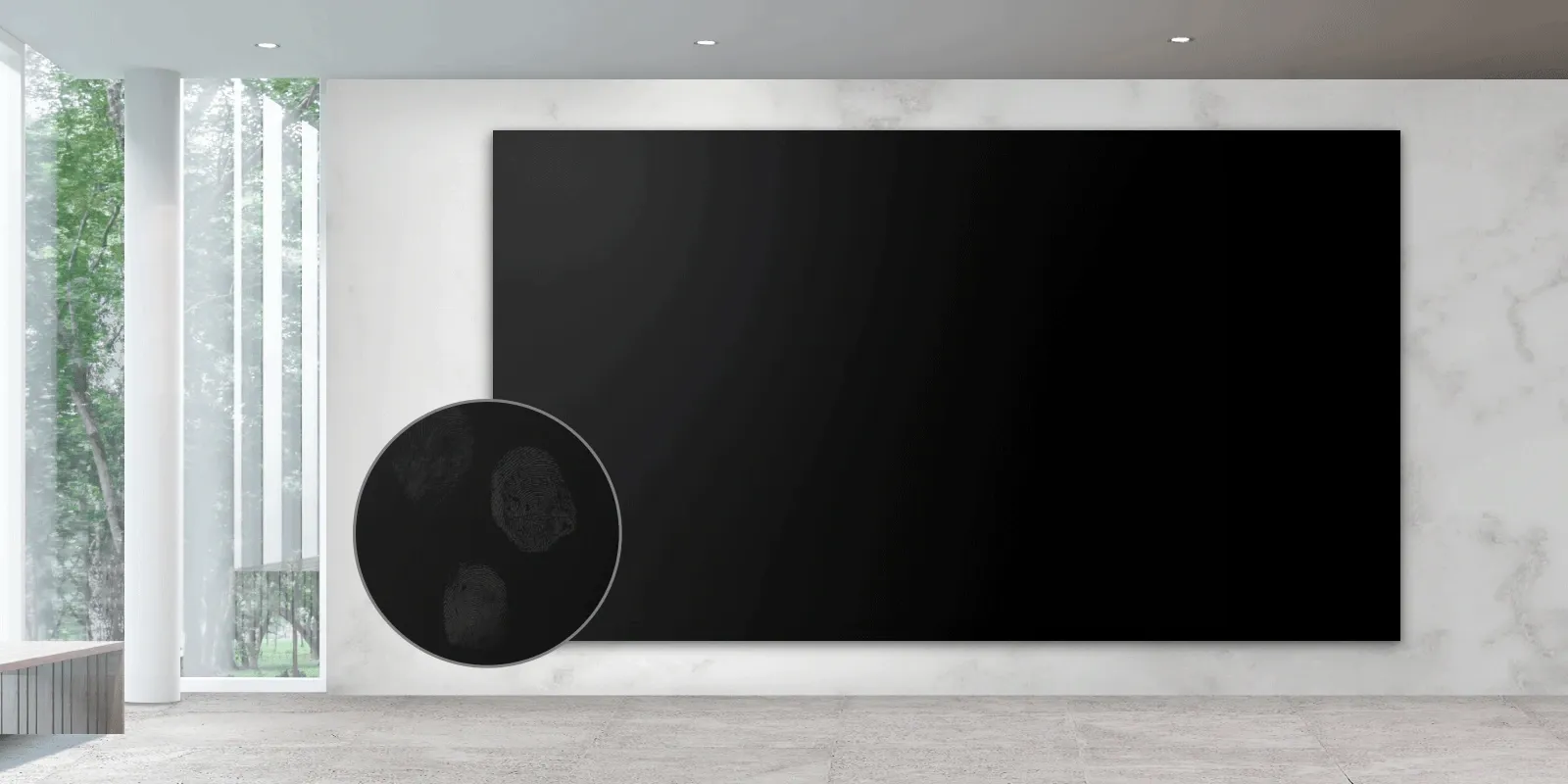

Sleek Look with Smooth Surface
The screen surface of LG MAGNIT is very smooth just as LCD, making it looks nice even when the screen is off. Also, audiences or installers feel soft when touching the screen. If fingerprints are on the surface, they can be simply removed by wiping with a soft cloth without the need for any chemicals.

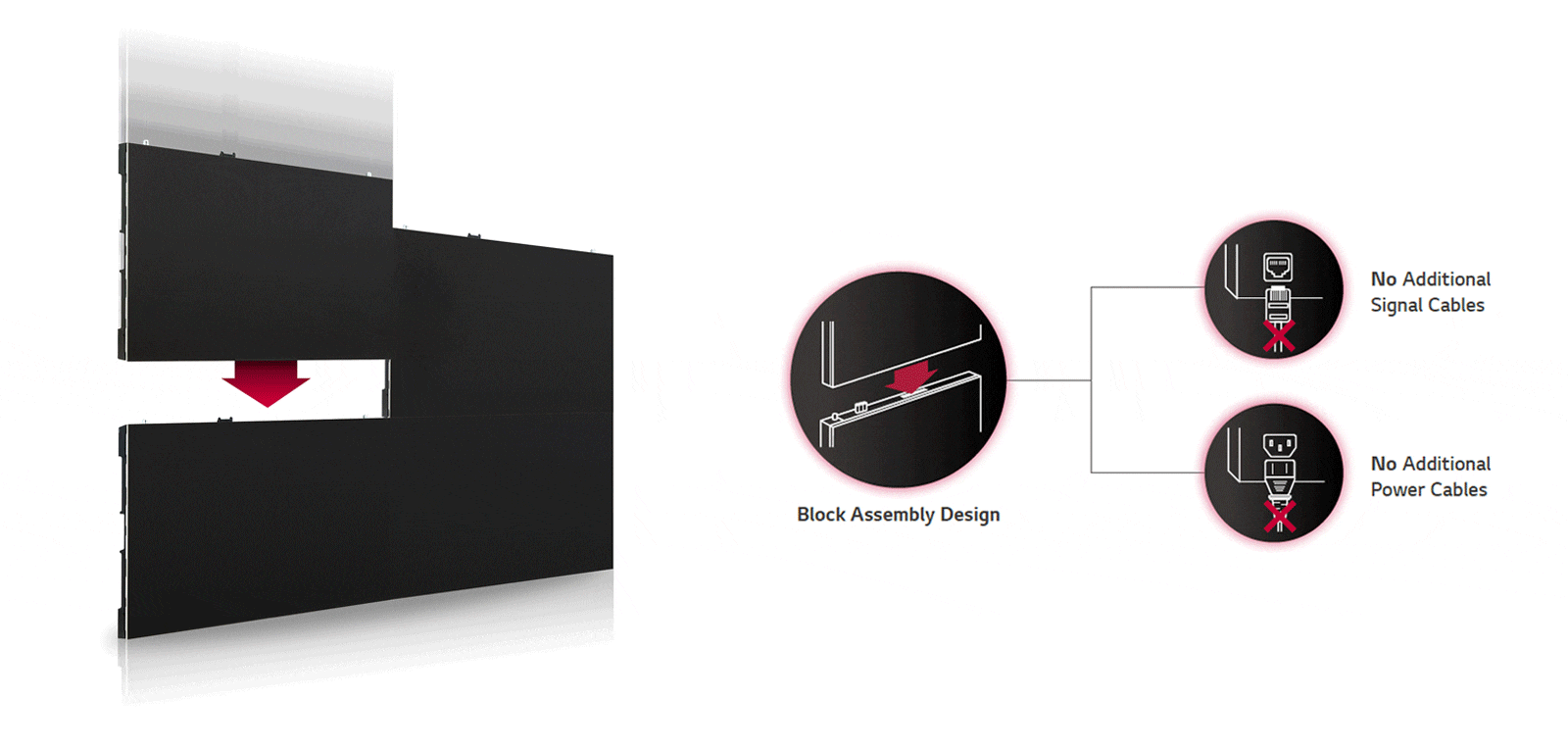

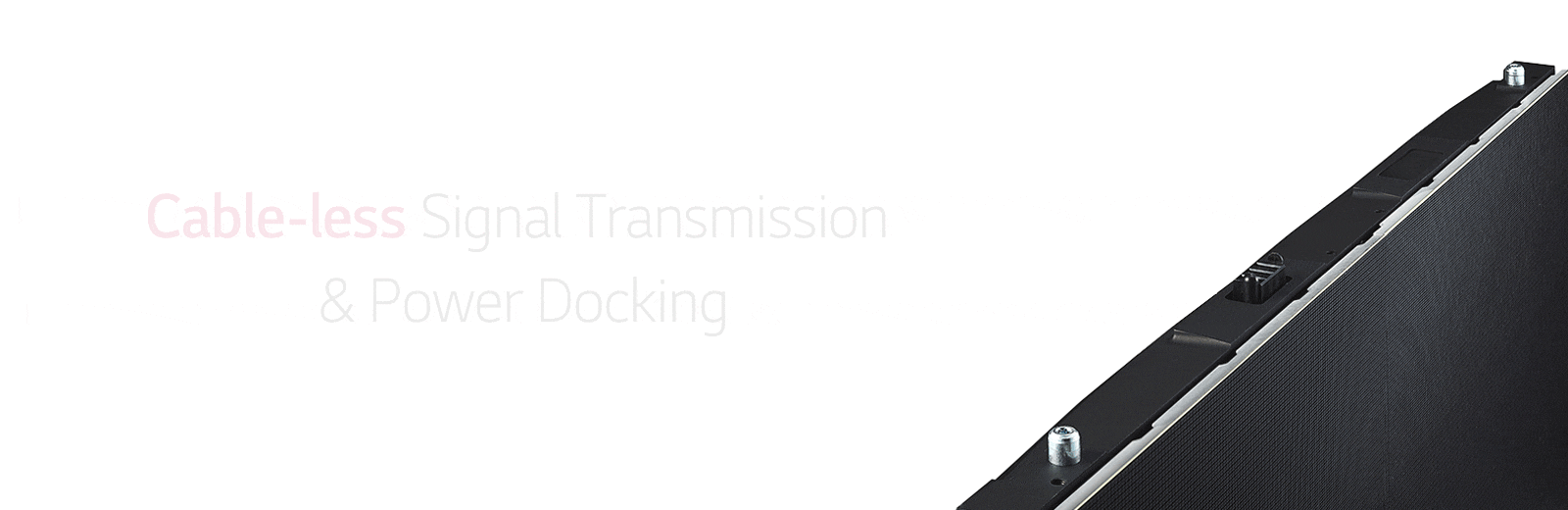

Optimum Cable-less Design for Simple Installation
The Cable-less Signal Transmission technology has been adopted. No signal and power cable connection is required between the cabinets and you don't need cables except for connecting the screen to its system controller and power.

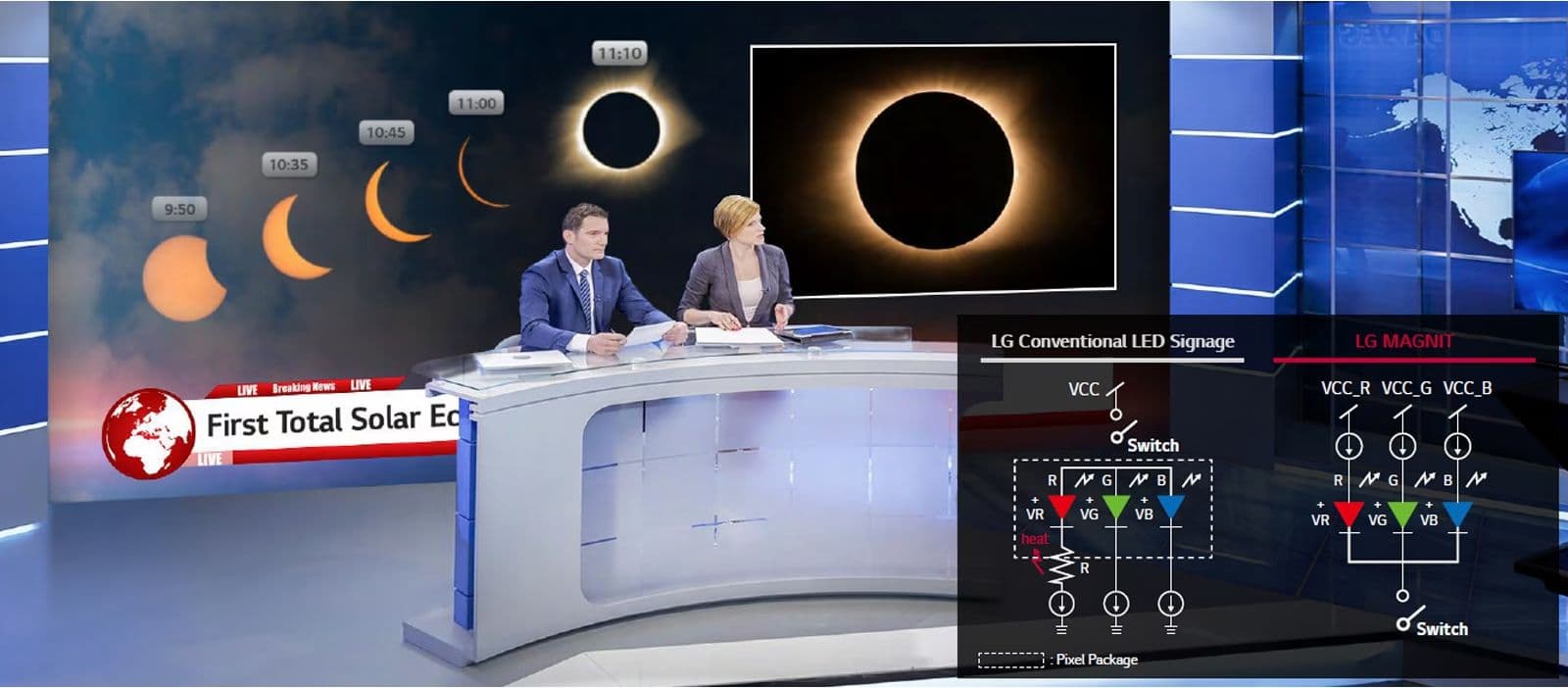

Efficient Power Consumption by Colors
Common Cathode Drive-IC is one of the reasons why LG MAGNIT has low power consumption. It supplies the right necessary voltage to each R, G, B sub-pixel individually to minimize unnecessary power consumption.

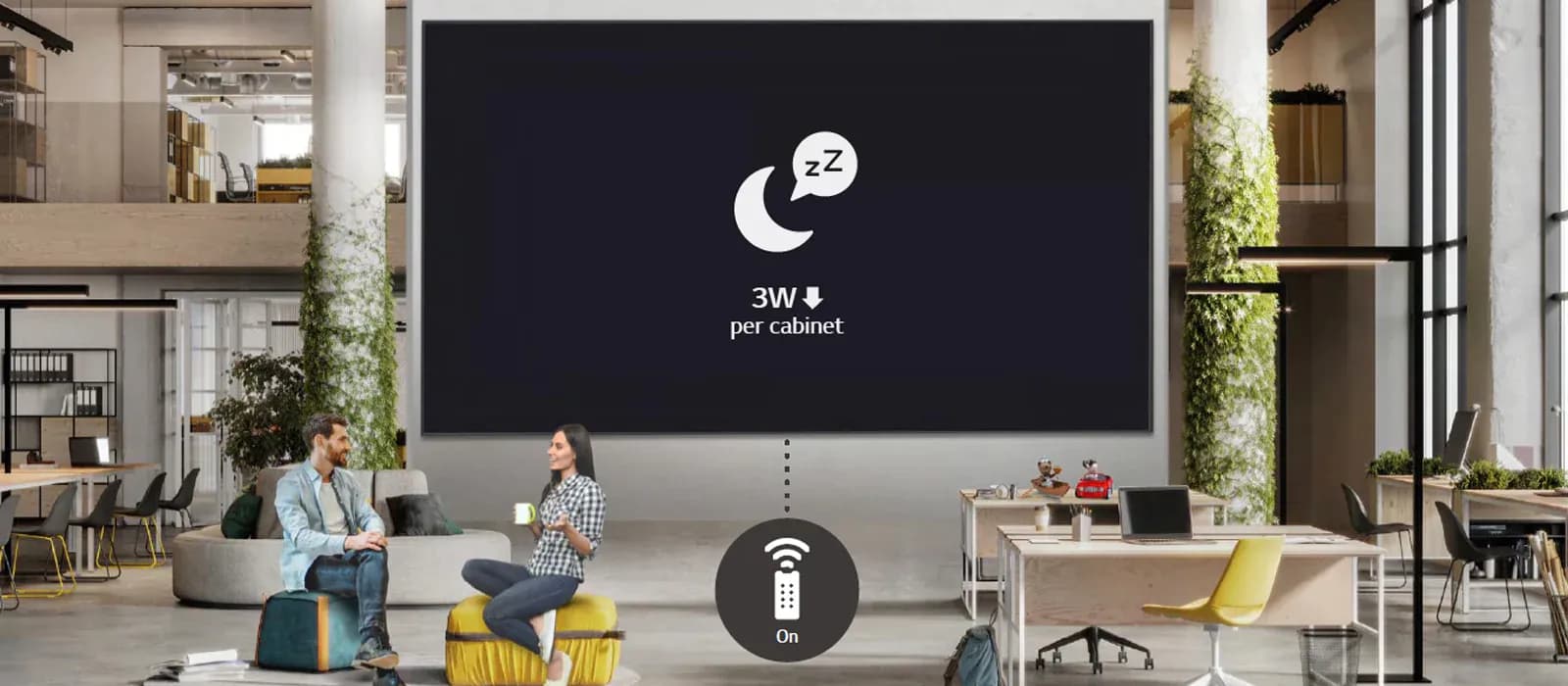

Power Saving Standby Mode
When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.

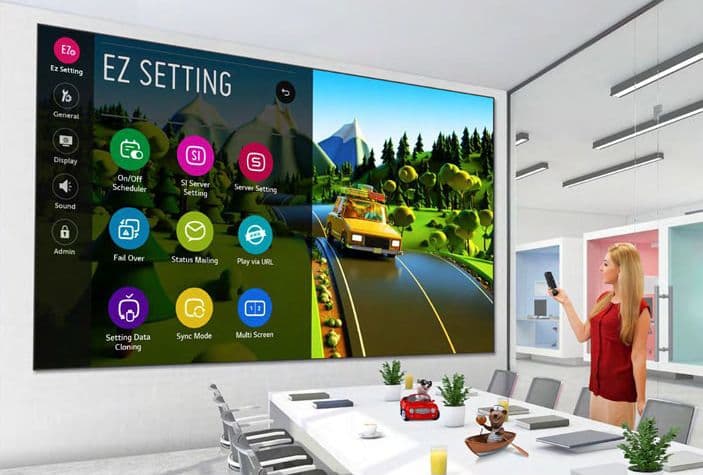

Intuitive UX with Remote Control
By applying the same intuitive UI* as general LG digital signage, the user can easily adapt to it. It also allows users to easily access the settings by using a remote control instead of connecting to a PC.

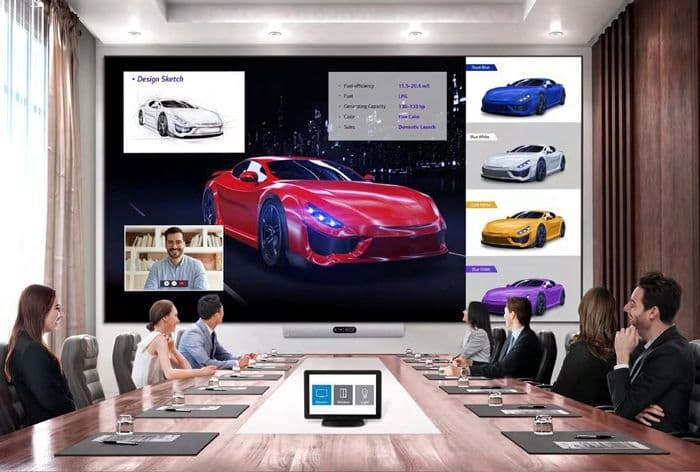

Compatibility with AV Control System
LG MAGNIT has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

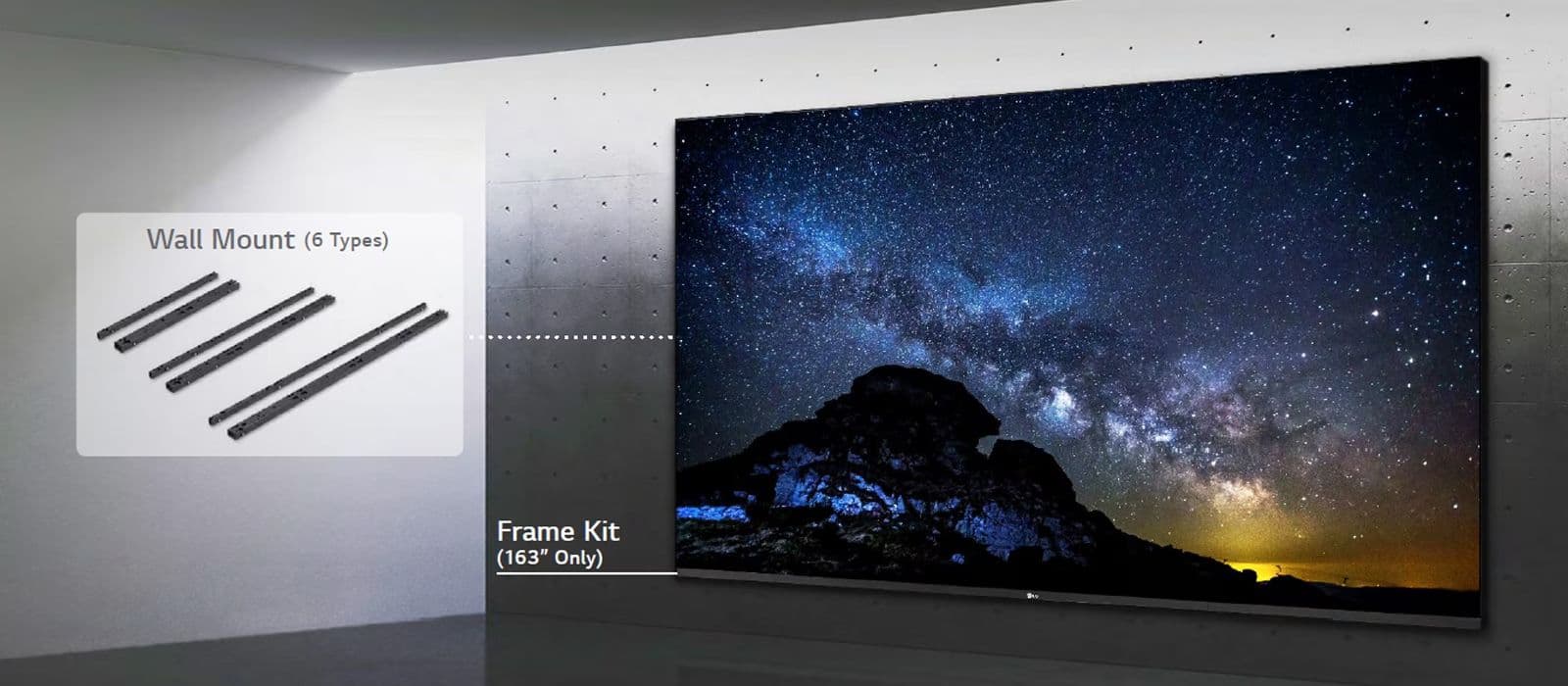

Dedicated Accessories for Tidiness
Three pairs of wall mount accessories and a frame kit are provided as options for LG MAGNIT. The wall mounts can be combined with any screen size to be installed clearly and neatly. Also, when building a screen of 163-inch, Ultra HD resolution, the frame kit will make the display have a smooth edge.
Total Content Management
LG MAGNIT is compatible with LG SuperSign CMS solution which is all-in-one content management solution for content editing, scheduling and distribution. Managers can operate LG’s commercial displays including LG MAGNIT all at once, enabling systematic and efficient management.

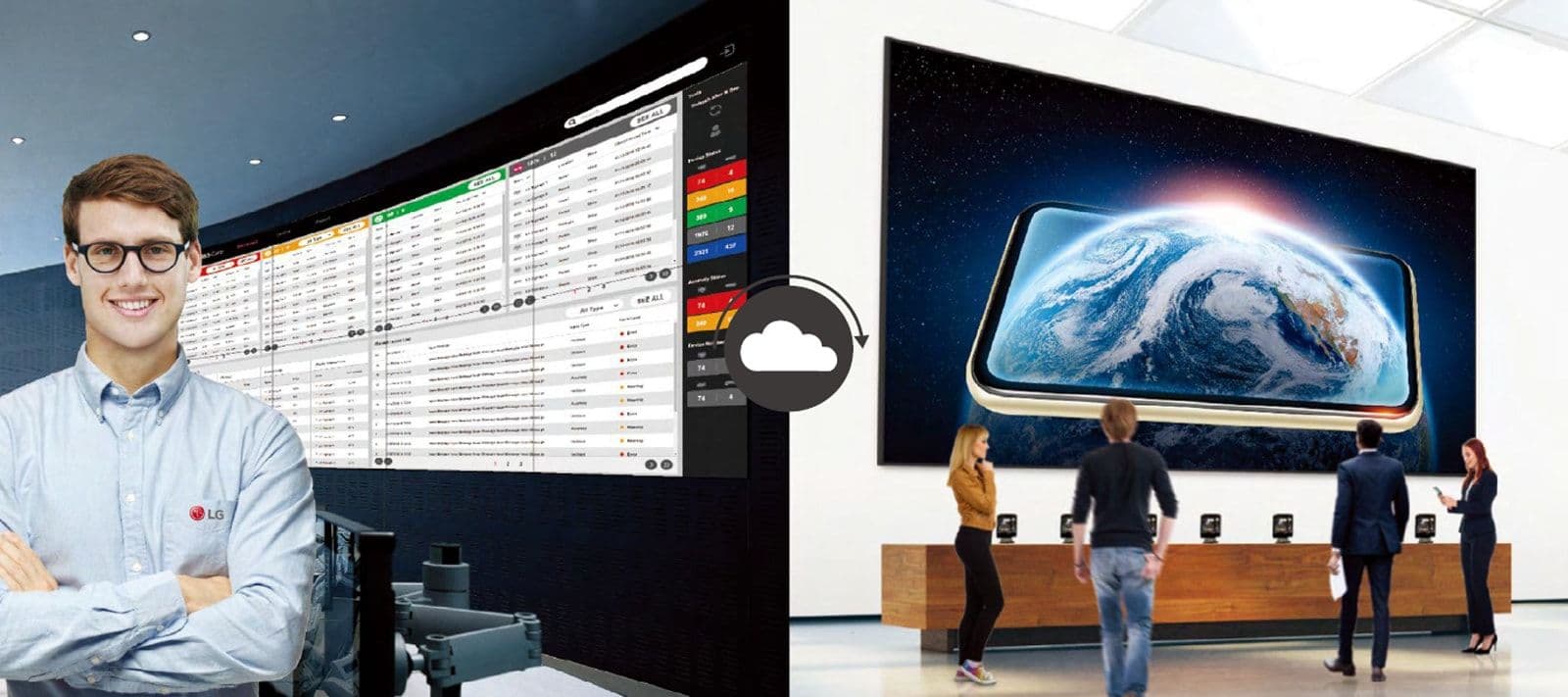

Real-time ConnectedCare Service
Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
Pixel Configuration
Micro
Pixel Pitch (mm)
0.78
Module Resolution (W xH)
192 x 216
Module Dimensions (W xH, mm)
150 x 168.8
Weight per Module (KG)
768 x 432
No. of Modules per Cabinet (W x H)
4 x 2
Cabinet Resolution (W x H)
0.203
Cabinet Dimensions (W × H × D, mm)
600 × 337.5 × 44.9
Cabinet Surface Area (m²)
0.203
Weight per Cabinet (kg/cabinet)
7.6
Weight per Square Meter (kg/m²)
37.5
Physical Pixel Density (pixels/m²)
1,638,400
Flatness of Cabinet (mm)
±0.5
Cabinet Material
Die-casting Aluminum
Service Access
Front and Rear * Module can be accessed only from the front.
Max Brightness (After Calibration, nit)
500 / Peak 1,000
Color Temperature
7,300 K / 3,200~9,300 K (Adjustable by LED Assistant on PC)
Visual Viewing Angle (H×V)
150° × 150°
Brightness Uniformity
≥95%
Color Uniformity
±0.02Cx, Cy
Contrast Ratio
150,000 : 1 @ 10lux
Processing Depth (bit)
20 (HDR10, HDR10 Pro)
Driver-IC Type
Common Cathode
Power Consumption (W/Cabinet, Max.)
110
Power Consumption (W/Cabinet, Avg.)
65
Power Consumption (W/m², Max.)
543
Heat Dissipation (BTU/h/Cabinet, Max.)
375
Heat Dissipation (BTU/h/Cabinet, Avg.)
222
Heat Dissipation (BTU/h/m², Max.)
1,853
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Controller
CSAB-0072
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature
0°C to +40°C
Operating Humidity
10-80% RH
IP Rating (Front / Rear)
IP50 / IP20
Certification
Safety 60950-1, EMC Class B, BS476 Part7 Class2Y (TBD)
Environment
RoHS
