55CT5WN-B

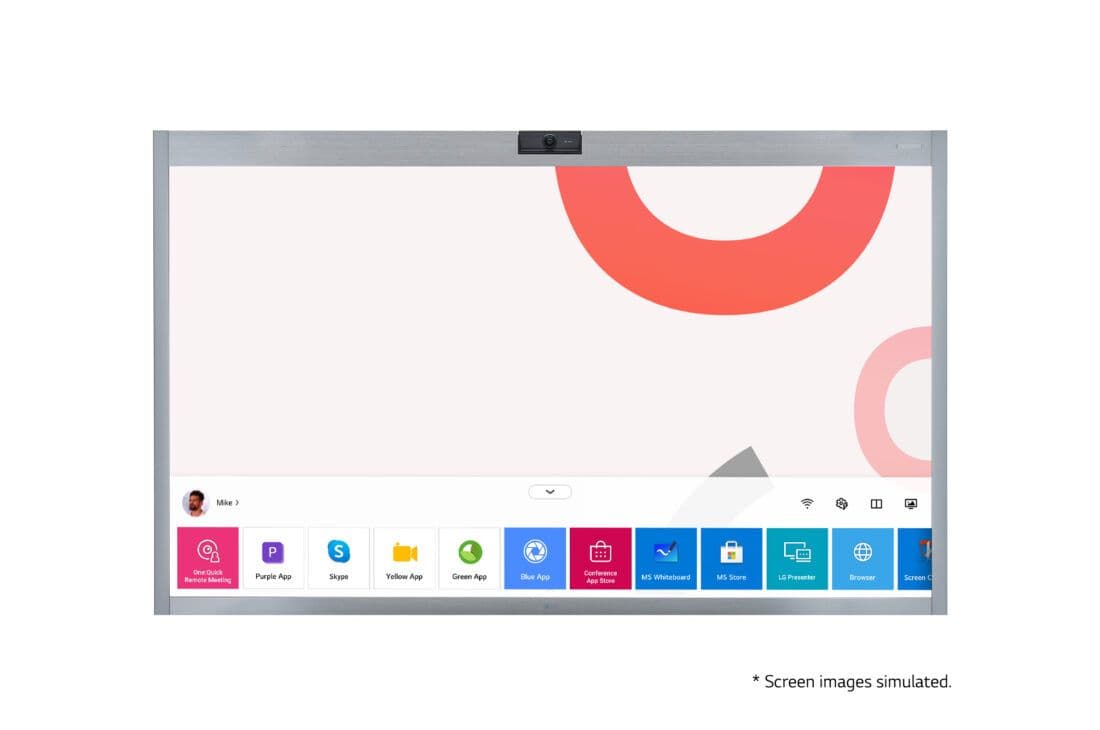

55" LG One:Quick Works
Key Features
- Resolution : 4K Ultra HD (3,840 x 2,160)
- Brightness : 450 nit
- BuIlt-in 4K Camera & Microphone
- Sound (10W + 10W)
- In-Cell Touch (Max. 10 Points)
- Windows 10 IoT Enterprise (Value)
Contact us
GGEAR Commercial
All-in-One Video Conferencing Display for Maximum Productivity

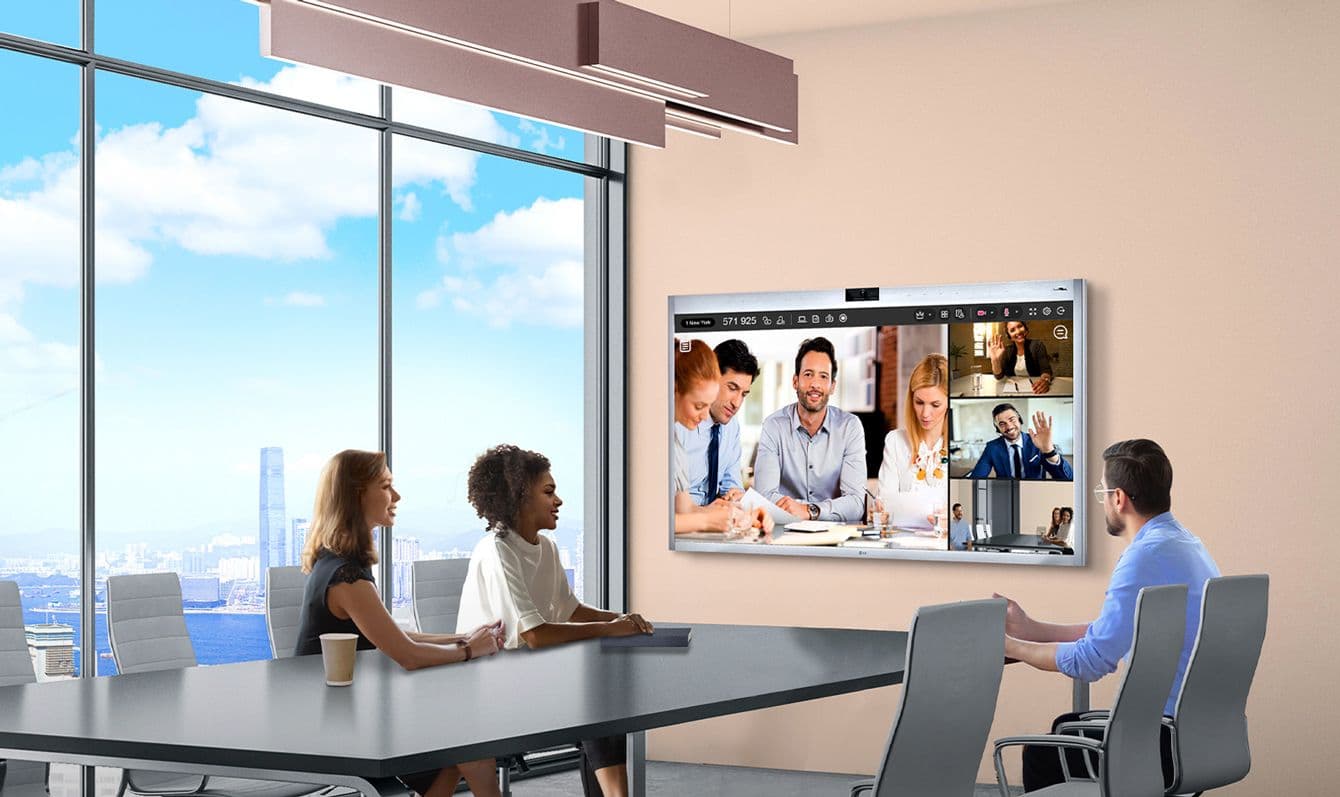

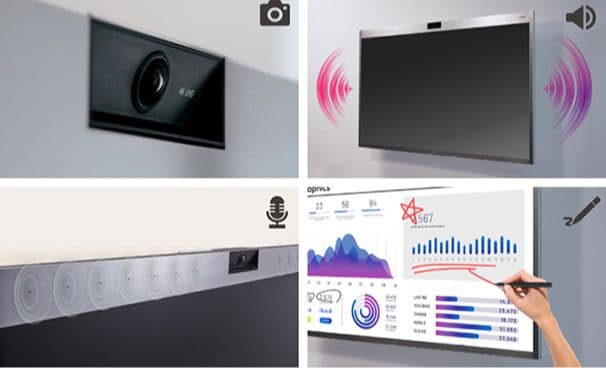

All-in-One Video Conferencing Solution
Video conferencing setup doesn't need to be stressful. This all-in-one solution features a built-in Windows PC, crisp 4K UHD camera, microphone, speaker and a digital whiteboard. Experience clear video and sound qualities in your meetings.
Smart Auto Focusing
Have the camera and mic move to you, not the other way around. One:Quick Works automatically focuses on the speaker and it is effective in clearly capturing voices up to six meters away with minimal background noise, while the 3,840 x 2,160 resolution camera automatically tracks and focuses on the individual speaker.

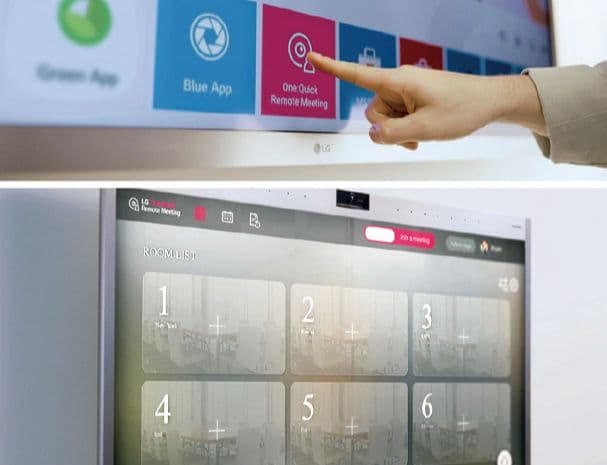

Pre-installed Video Conferencing Application, LG One:Quick Remote Meeting
LG’s One:Quick Remote Meeting works seamlessly with One: Quick Works for users to share documents in various formats, perform real-time interactive drawings and detect who's speaking on the other end automatically.

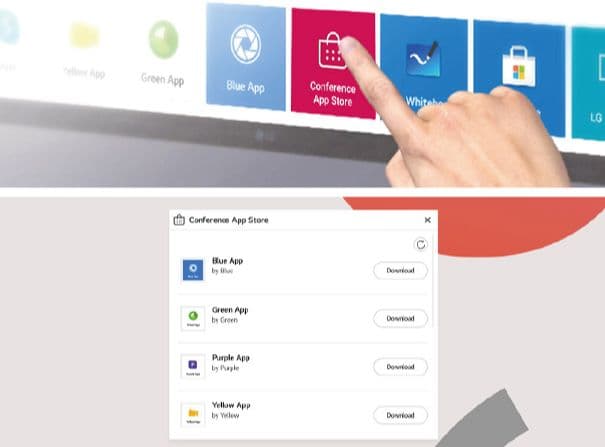

Easy-To-Use Conference App Store
Shortcuts for installing video conferencing and collaboration apps are included to help with user productivity. A true all-in-one video conferencing solution must be able to use a wide variety of video conferencing apps.

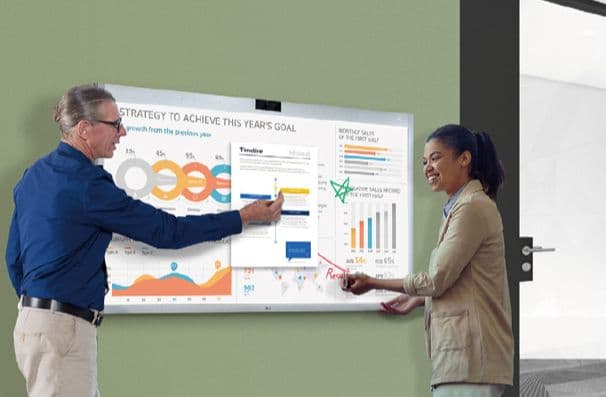

Multi-Touch and Annotation
Equipped with In-cell touch, One:Quick Works turns ideas into reality with 10 points of multi touch. And it conveniently sends files such as notes, writings, drawings and images created in meetings via e-mail.
Voice Recording
Rather than keeping separate meeting minutes, simply record the meeting and share files with participants via e-mail.

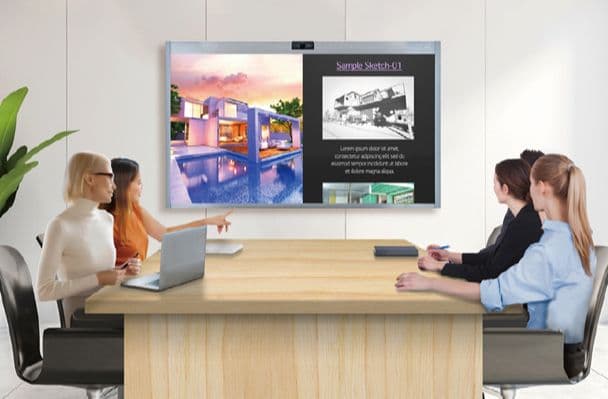

Split View for Multi-Tasking
Share files and organize ideas simultaneously with members in the meeting room.

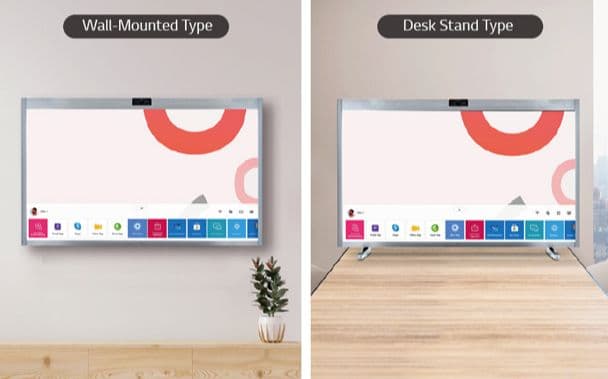

2-Way Installation
The installation method can be adjusted depending on the surrounding environment and the user's specific needs. Able to choose between wall installation for maximum space utilization or desk installation using 2 pole stands.

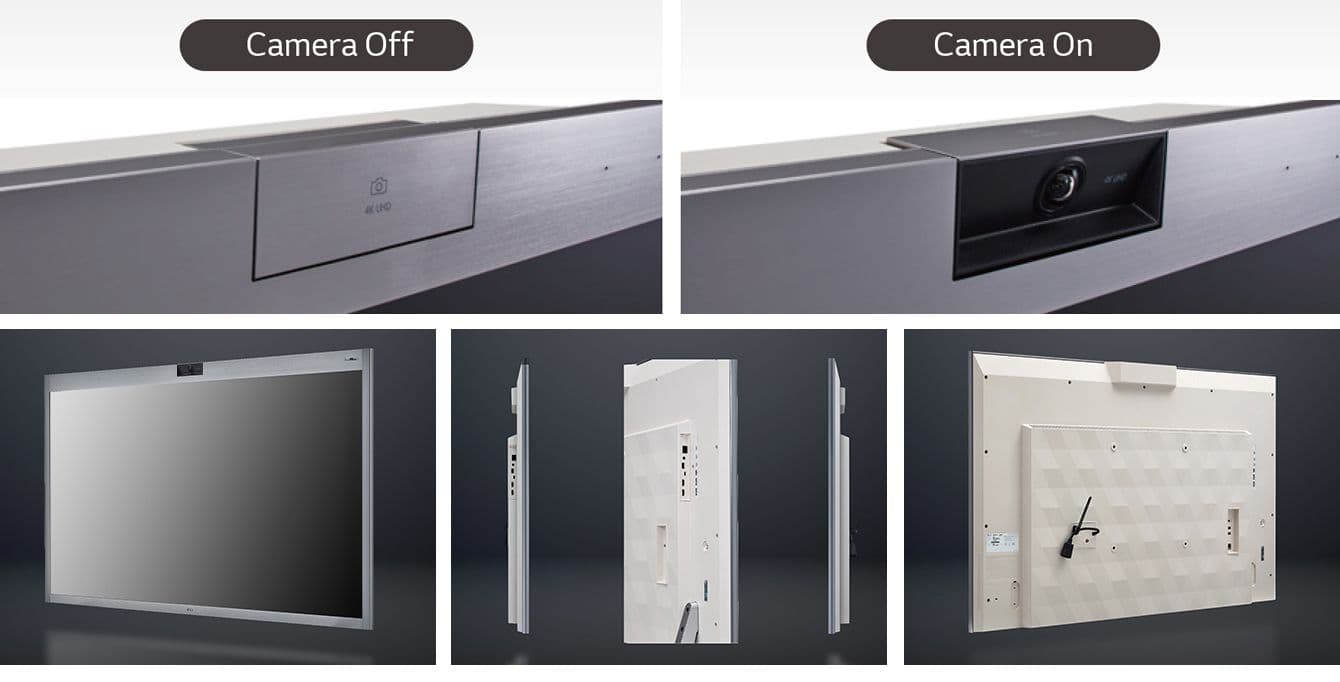

Sleek Design
With an attractive, user-friendly design, the One:Quick Works blends seamlessly with the rest of the workspace. Also brings an elevated aesthetic while providing a practical workspace for all participant.
Screen Size
55"
Panel Technology
U-IPS
Native Resolution
3,840 X 2,160 (4K UHD)
Brightness
450 nit
Contrast Ratio
1,000 : 1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178 × 178
Color Depth
10-bit (D), 1.07 Billion Colors
Response Time
9ms
Portrait / Landscape
No / Yes
Bezel Color
Silver
Bezel Width
57.2 / 26.2 / 26.2 / 28.9 mm
Weight (Head)
26 Kg
Monitor Dimensions (W × H × D)
1,265 × 769.5 × 61.8 mm
Monitor Dimensions with Stand (W × H × D)
1,265 × 815 × 290 mm
VESA™ Standard Mount Interface
300 × 300
CPU
AMD Ryzen Embedded V1605B
Graphics
AMD Radeon Vega
Internal Memory
256 GB (SSD), 8 GB (RAM)
Wi-Fi
802.11ac 2 x 2
Bluetooth
Bluetooth 5.0
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Local Key Operation
Yes (Jog Key)
OS
Windows 10 IoT Enterprise (Value)

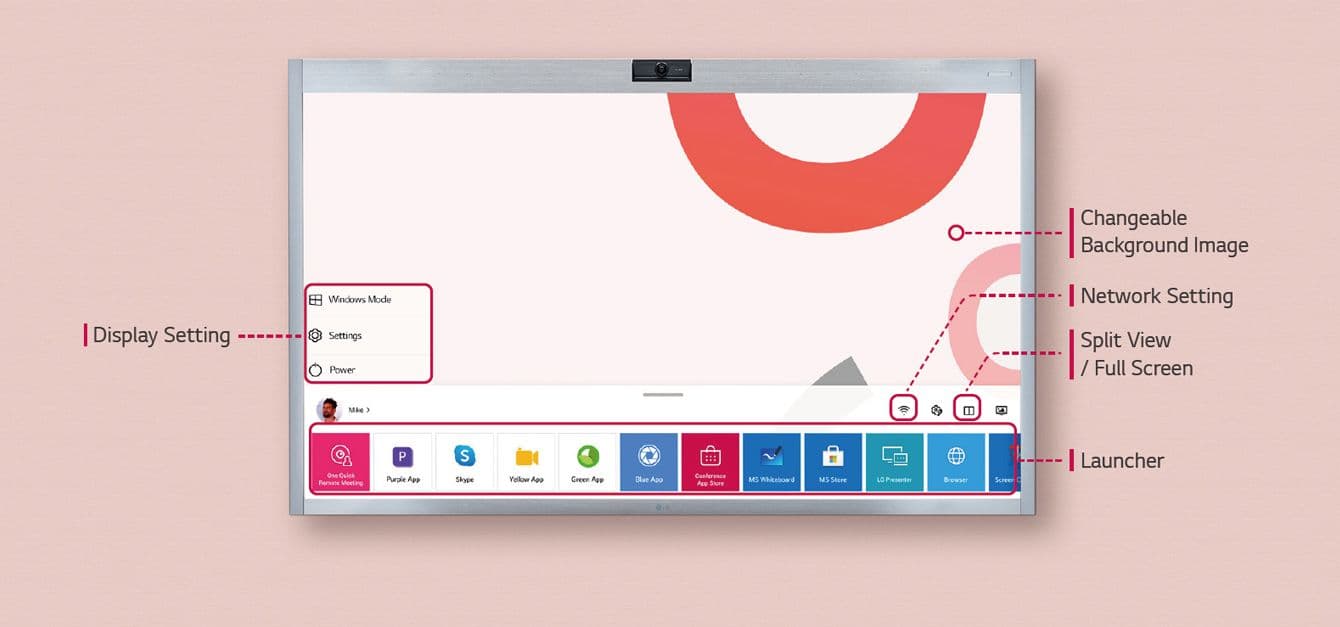

Launcher Bar
Yes
Split View (Full / Half)
Yes
Screen Capture
Yes
Meeting (Voice) Record
Yes
File Sharing
Yes
One:Quick Remote Meeting
Yes
Reader Mode (Bluelight)
Yes
Built-in Apps
Chrome, Skype (Preloaded) / MS Whiteboard (Download Link)
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ./Max.
127 W / 245 W
BTU (British Thermal Unit)
72
Safety
CB / NRTL
EMC
FCC Class "B" / CE
ErP
Yes
Input
HDMI (2), DP, RJ45(LAN) (1), USB3.1 Type A (2), USB Type C (1)
Output
DP Out : USB Type-C (DP ALT MODE)
Speaker
Yes (10 W x 2)
Basic
Remote Controller, Power Cord, Touch Pen, Pen Tip, Manual, Regulation Book, Warranty Card, Installation Guide
Optional
2 Pole Stand (ST-653TW)
Camera Resolution
3,840 X 2,160 (4K UHD)
Field of View (FoV)
120°
Zoom (ePTZ)
4 × Zoom
Video Framing
Yes
Array
10 ea
Beamforming
Yes
Pickup Range
6m
Available Object Size for Touch
Ø8 mm
Reponse Time (PC Win10, based on Whiteboard)
35 mm ↓
Accuracy
3.5 mm ↓
Interface
USB 1.1
Operating System Support
Windows 10 or Higher
Multi Touch Point
Max. 10 Points
