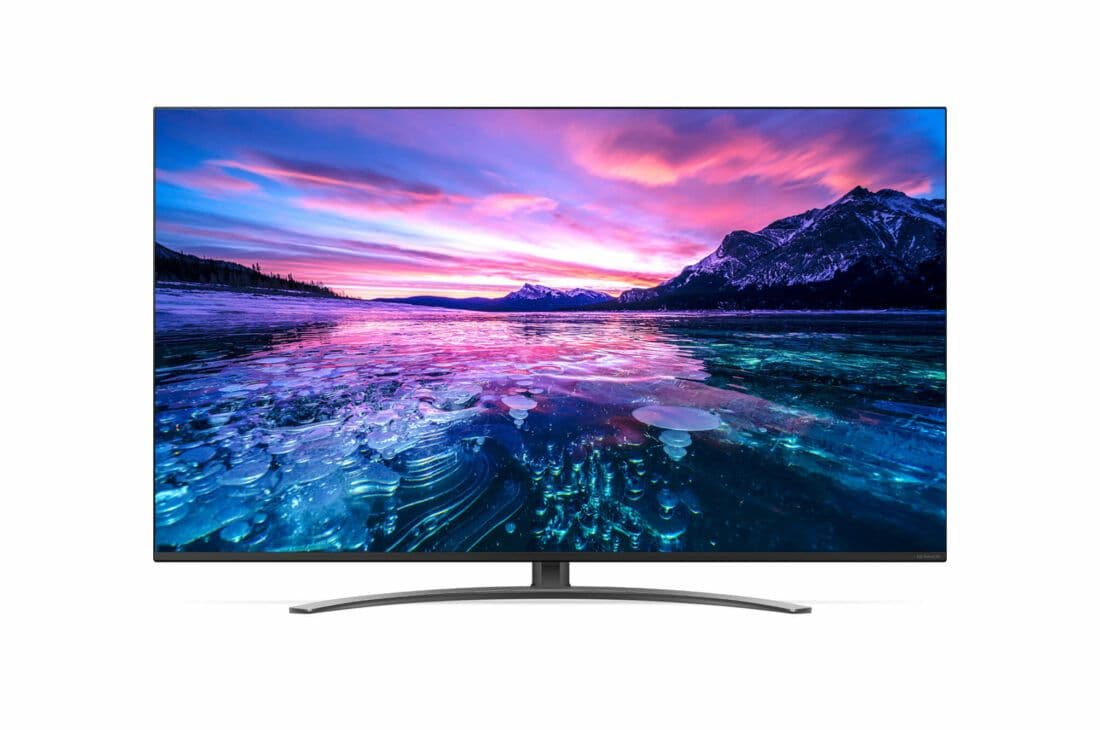

LG 65″ UHD Commercial Smart TV

Share:

65US761H

LG 65″ UHD Commercial Smart TV

Key Features

  • Pro:Centric Hotel Management Solution
  • NanoCell Display
  • Gallery Mode
  • Soft AP with Bridge Mode

Contact us

GGEAR Commercial


4K UHD Hospitality TV with NanoCell Display and Pro:Centric Direct

US761H with NanoCell Display features UHD resolution that creates vivid details and a virtually flawless picture.
And it features Pro:Centric technologies for easy management, configuration and updates on guest room TVs via a centralized management system.

Banner Image

Real 4K Made by Pure Colors

NanoCell TV delivers a broad spectrum of color and lifelike accuracy with advanced NanoCell technology, which makes LG Hotel TV the best ever. Discover the more brilliant and clear visual experience with Real 4K that NanoCell TV delivers.

Banner Image

Nano Bezel Adds Sophisticated Ambiance

With its minimal Nano Bezel, NanoCell is designed to blend into any interior and delivers immersive viewing experience without any interruption.

* The above image is for illustrative purposes only.

Banner Image
More Innovative LG webOS 5.0

More Innovative LG webOS 5.0

Explore the latest LG Smart TV features, and discover TVs that deliver innovative technology, remarkable clarity, and true-to-life colors. Newly added Mood Display & Gallery Mode enable you to utilize the TV as a customized clock and an artwork which perfectly harmonizes with your space and life.



Soft AP

Software-enabled Access Point (Soft AP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling guests to connect their own devices to the Soft AP. It supports Bridge Mode, allowing administrators to manage in-room Soft AP information such as signal level, Soft AP passwords, etc.


* Soft AP should be set in the installation menu after the TV is turned on.

* Smart Mirroring may not be operated at the same time.



Soft AP
Welcome Video / Screen

Welcome Video / Screen

With the capability to display several images, Commercial Lite TVs allow for a greater variation of greeting messages in hotel rooms which make customers feel more welcome and cared for.



Hotel Mode (Public Display Mode)

From channel selection to volume level, you can control the TV settings in business areas. Public Display Mode also enables you to restore default settings, as required, on the TVs.



Hotel Mode (Public Display Mode)
USB Cloning

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display and can be sent to the other displays through a USB plug-in.

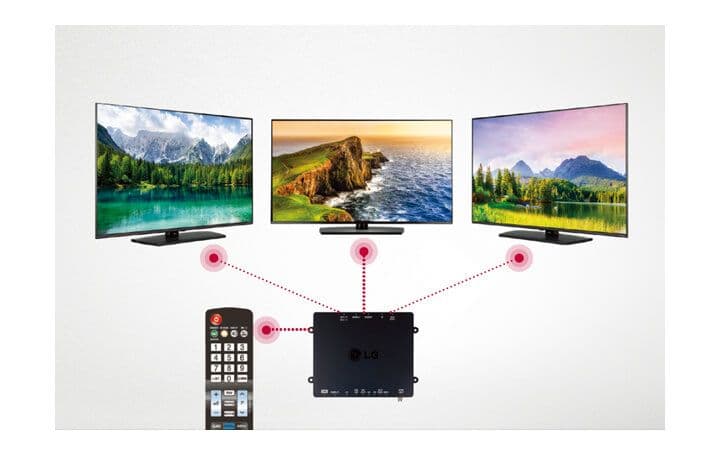

IR Out

Using the interactive set-top box, all LG TVs can be controlled with a single remote control.



IR Out

Display

65"

Resolution

3,840 × 2,160 (UHD)

NanoCell

Yes

HDR 10 Pro / HDR Dolby Vision / HLG

Yes / No / Yes

Audio Output

10 W + 10 W

Speaker System

2.0 ch

LG Sound Sync

Yes (Required Bluetooth)

Digital (Terrestrial, Cable, Satellite)

DVB - T2 / C / S2

Analog (NTSC / SECAM / PAL)

PAL / SECAM

DRM (Verimatrix, SECURE MEDIA)

No

Hospitality

Hotel Mode (Installer Menu), One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext. Variable / Fixed), Instant ON, V-Lan Tag, External Clock Compatibility (LEC-005), Healthcare Headphone Mode, Video Tag (2 Supported, MR)

Smart

webOS 5.0, Gallery Mode, Web Browser, CP App, Magic Remote Compatibility (Ready, MR18HA), Mood Display, Soft AP, WiFi (802.11ac), Screen Share (Miracast), Smart Share (DLNA), Bluetooth Audio Playback, LG Sound Sync / Bluetooth, Voice Recognition (Standalone / Solution), IoT, USB Cloning SI Compatible (TV Link Tuner, RS232C), IR Out (HDMI, RS-232C), Anti-theft System (Kensington Lock)

Set Side

HDMI In (2.0), USB 2 (2.0), CI Slot

Set Rear

HDMI In 2 (HDCP, 2.0), Headphone Out, RF In 2, Digital Audio Out (Optical), RS-232C (D-Sub 9 Pin), Clock Interface (RJ12), RJ45 2 (Ethernet, Aux), External Speaker Out (3.5 mm Phone Jack) 2 (Spk-out 1, 4 W (Stereo, R: 2.0 W, L: 2.0 W, 8Ω) Vol. Control 1))

VESA Compatible

300 × 300 mm

W x H x D / weight (with stand)

1,451 × 910 × 323.7 mm / 25.8 kg

W x H x D / weight (without stand)

1,451 × 840 × 64 mm / 24.1 kg

W x H x D / weight (Shipping)

1,600 × 1,035 × 207 mm / 33.3 kg

Power Consumption (Typ. / Max.)

TBD / TBD

Power Supply (Voltage, Hz)

AC 120 V ~ 50/60 Hz

Standby Power Consumption

0.5 W Under
