GNEB083
Marine Grade LED
Key Features
- Pixel Pitch: 8.33 mm
- Brightness: 6,000 nit
- IP Rating: IP67
- Durability for Rough Environment
- Flexible Configuration and Installation
- High Refresh Rate
Contact us
GGEAR Commercial

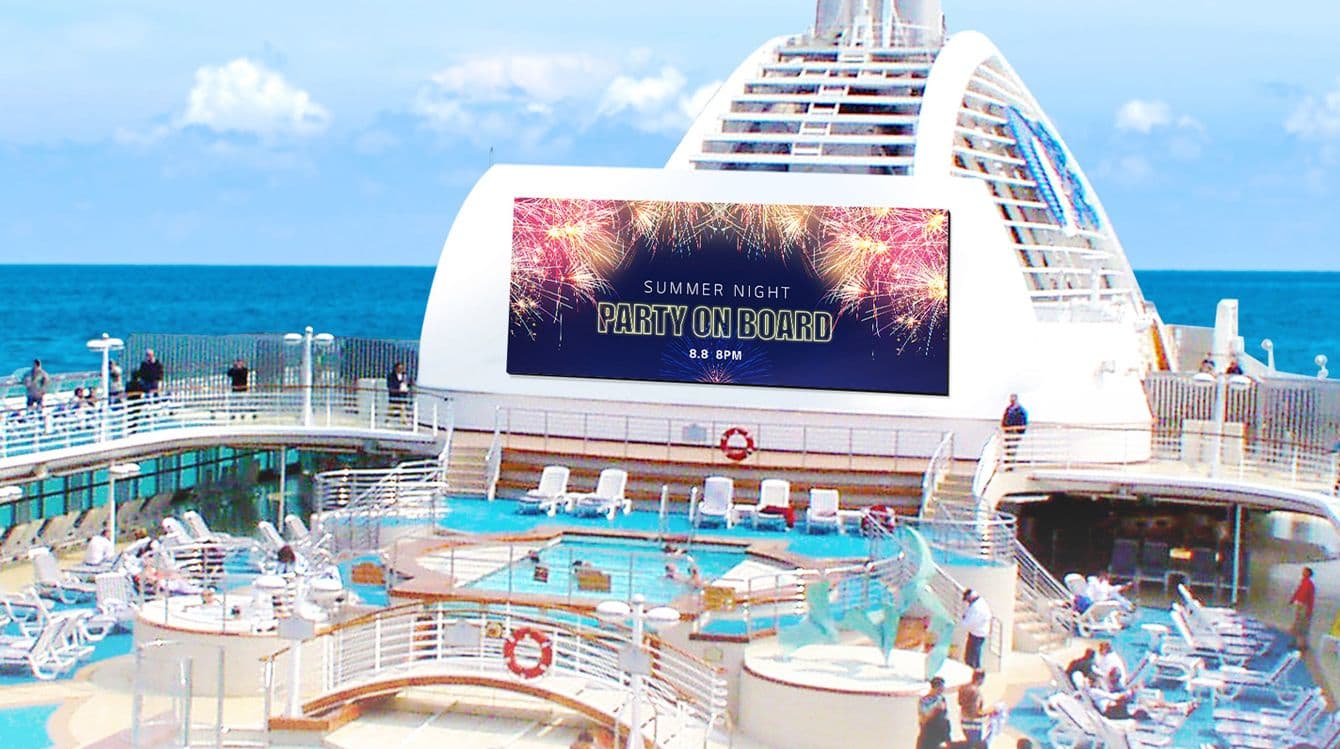

Outdoor LED Display for Cruise Ships

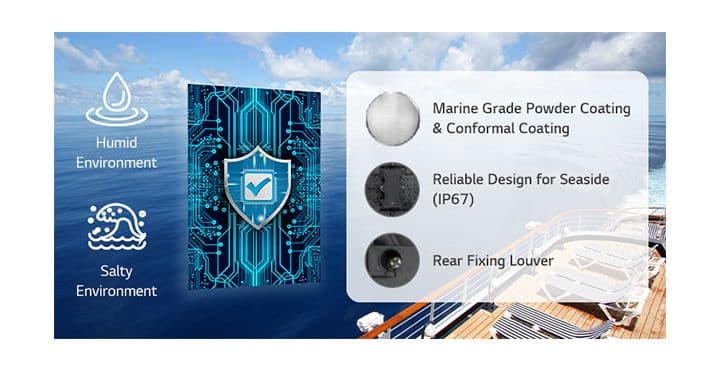

Durability for Rough Environment
GNEB series provides durability with marine-grade powder coating and conformal coating to protect against salinity and corrosion in marine environments and weather conditions. Both the front and rear of the cabinet are IP67-certified and feature reliable designs for seaside, allowing for stable power and data connections protected by outdoor environmental factors such as wet weather and the salinity. The unexposed front screws further lower the risk of corrosion.

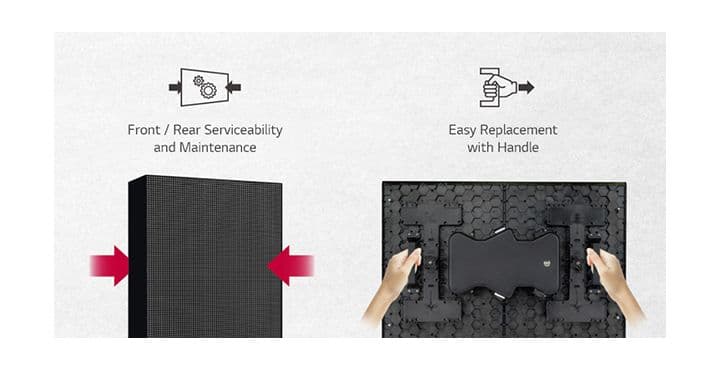

Easy Maintenanace
The product offers both front and rear access, and features a power distribution unit (PDU) of a modular cabinet that can be easily attached or detached, thereby allowing for easy maintenance. A self-contained PSU and receiver card with handles allow quick and easy replacement.
High Refresh Rate
A high refresh rate of 7,680 Hz assures the smooth playback of content. The flicker-free image prevents the black bars that typically occur during video playback, and reduces eye strain and blurred images for viewers.
Flexible Configuration and Installation

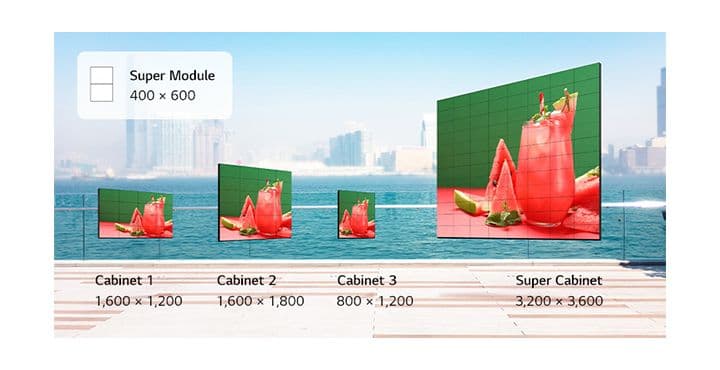

A variety of cabinet sizes are supported for flexible screen configuration and installation. Sizes of up to a 3,200 × 3,600 mm super cabinet are available for more convenient installation.
Compatibility with LG Software Solutions
When connected with LG's CVEA system controller, the GSEG series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
Pixel Pitch (mm)
8.33
Pixel Configuration
Single SMD (-GR) Single SMD (-GN) Single SMD RS3535 (-GS)
Module Resolution (W x H)
48 × 72
Module Dimensions (W x H, mm)
400 × 600
Weight per Module (kg)
8.33
Weight per Square Meter (kg/m²)
34.7
Physical Pixel Density (pixels/m²)
14,400
Flatness of Cabinet
±1.0 mm
Cabinet Material
AI
Service Access
Front or Rear (Select One Only)
Max. Brightness (After Calibration)
6.000
Color Temperature (K)
3,500 - 8,500
Visual Viewing Angle (Horizontal/Vertical)
140 × 130
Contrast Ratio
7,000 : 1
Brightness Uniformity
97 %
Color Uniformity
±0.05 Cx, Cy
Power Consumption (W/Cabinet, Max.)
167
Power Consumption (W/Cabinet, Avg.)
67
Power Consumption (W/m², Max.)
696
Heat Dissipation (BTU/h/Cabinet, Max.)
569
Heat Dissipation (BTU/h/Cabinet, Avg.)
228
Heat Dissipation (BTU/h/㎡, Max.)
2,367
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
7,680
LED Lifetime (Half Brightness)
100,000
Operating Temperature (°C)
-30℃ to +50℃
Operating Humidity
0 ~ 90% RH
IP rating Front / Rear
IP67 / IP67
Certification
CE, FCC, ETL
Environment
RoHS, REACH
Controller
CVEA
90 Degree Corner Cut
O
