86XF3CK
Open Frame
Key Features
- Brightness : 3,300 nits (Typ.)
- Resolution : 3,840 × 2,160 (UHD)
- Temperature Sensor
- Auto Brightness Sensor
- Smart Brightness Compensation
Contact us
GGEAR Commercial
Boost Your Outdoor Advertising with a Large Dual-view Display
Double-sided Screen with Ultra HD Resolution
86XF3CK features a dual-view screen with a UHD resolution which makes the color of images and videos clear. The IPS panel allows users to view screen at various angle.

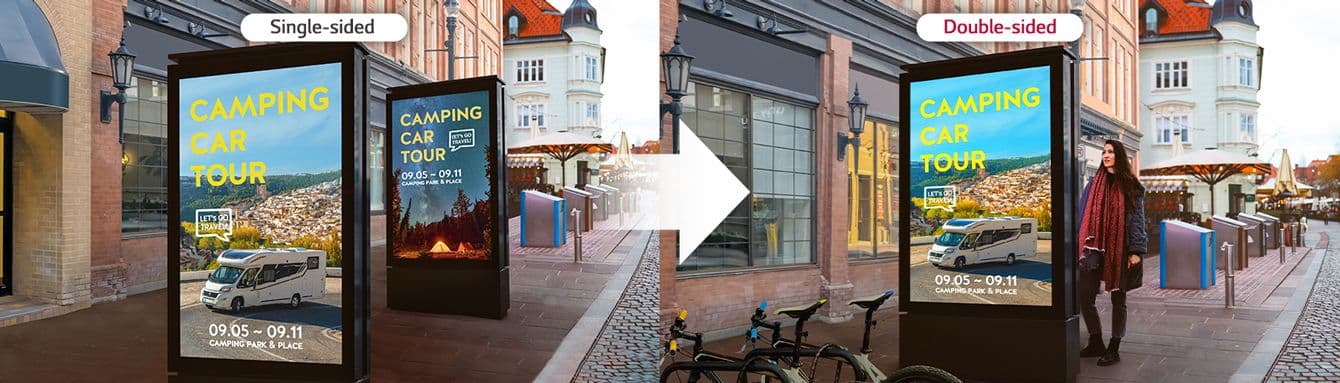

Outdoor Advertisement Utilization
86XF3CK can help save space since it has the advertising impact of installing 2 signages with a single signage. The double-sided display allows the targeting of customers standing on either opposing side, thus increasing space utilization. It can be used as an effective marketing tool especially in narrow spaces such as bus stops or sidewalks where space utilization is important.
The built-in BLU* sensor constantly measures the brightness of the display and automatically compensates for reduced brightness during operation.

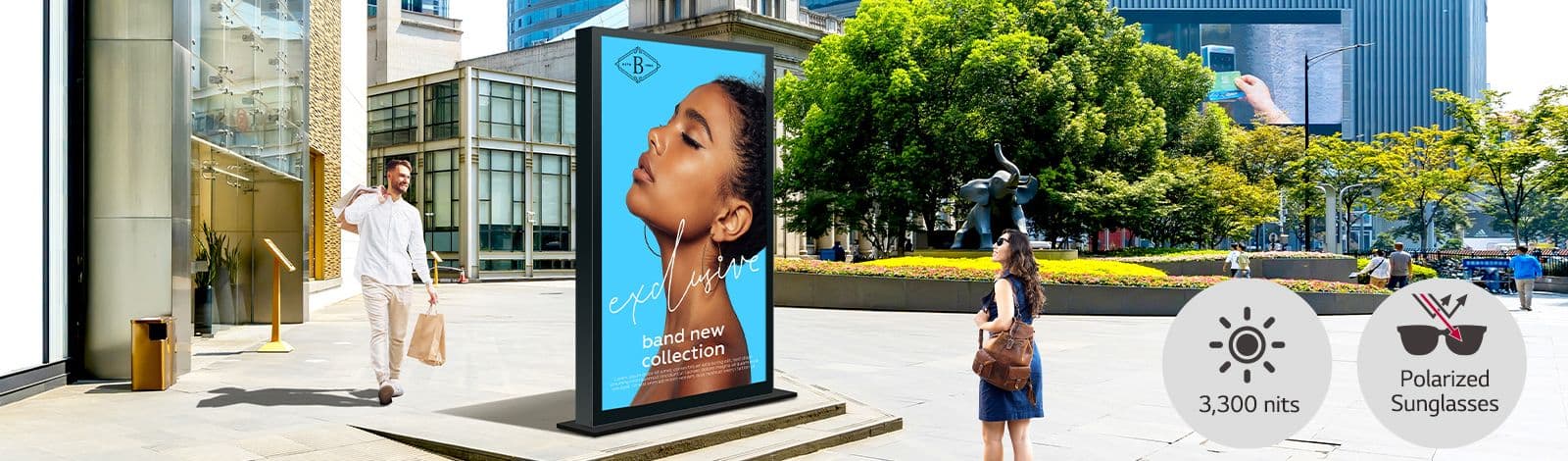

High Visibility Under Strong Sunlight
With outstanding high brightness of 3,300 nits (Typ.), the 86XF3CK outdoor display delivers contents clearly while captivating passersby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.
Open-frame Type Display86XF3CK is an open-frame type high brightness displays to give customers flexibility in exterior of casing such as colors or design.

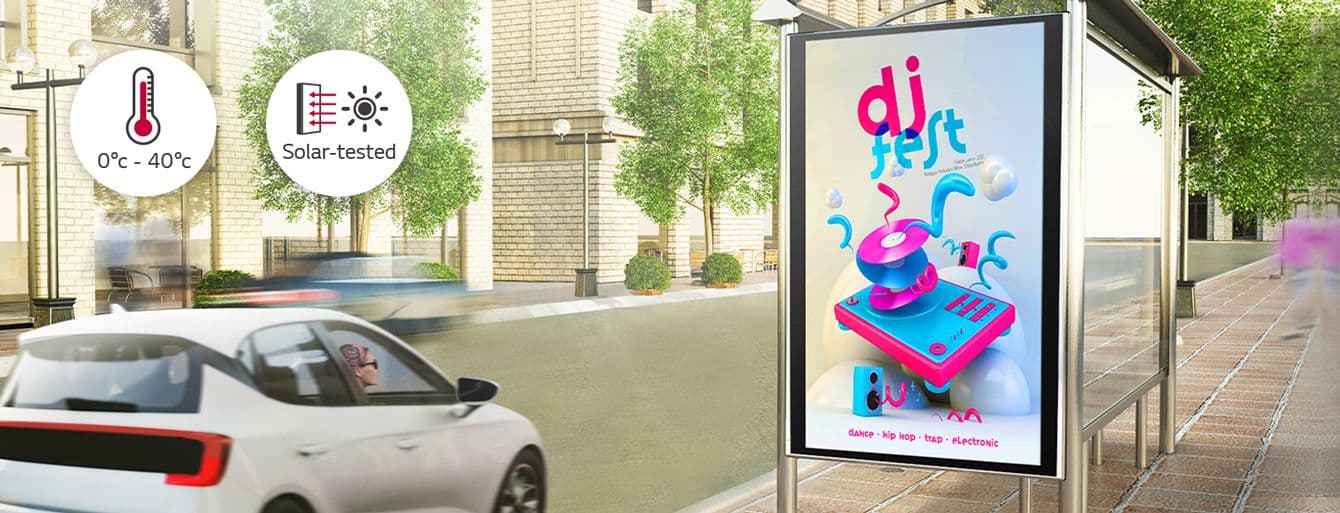

Wide Range of Operating Temperature
The display offers superb reliability under a wide range of operating temperatures, which also goes through LG’s solar test* which causes a lot of thermal energy. So the 86XF3CK requires fewer constraints for outdoor installations** which are usually exposed to strong sunlight and various environmental changes.

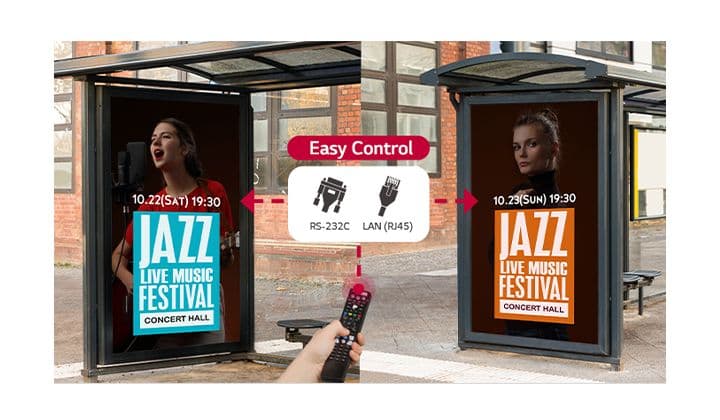

Easy Operation Control (Multi Display Control)
Multiple device controls are available through the RJ45 & RS-232C ports. It means that even double-sided displays can be easily controlled simultaneously with a remote control.

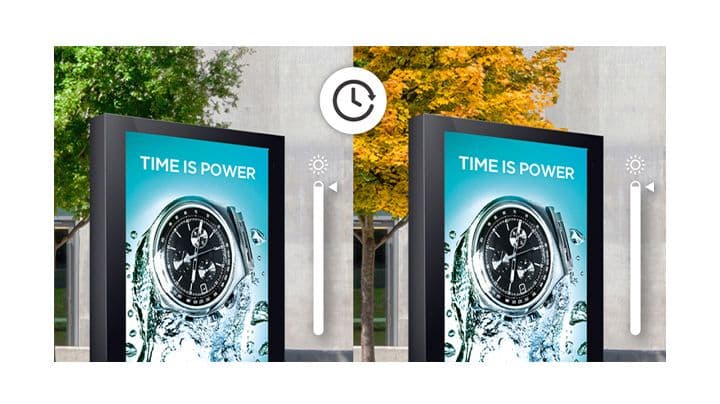

Smart Brightness Compensation
The built-in BLU* sensor frequently measures the brightness of the display and automatically compensates for reduced brightness during operation.

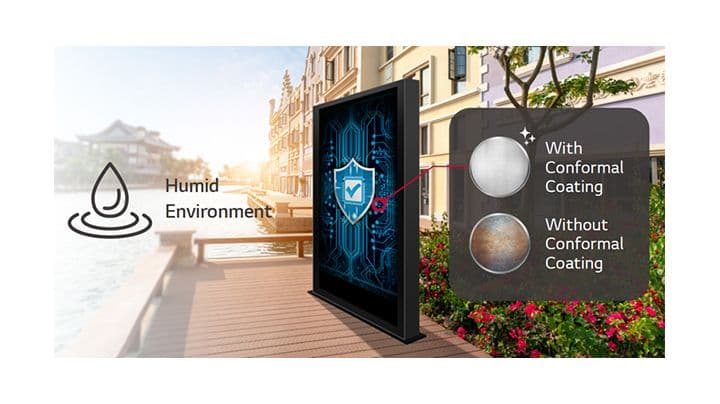

Conformal Coating
Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity..

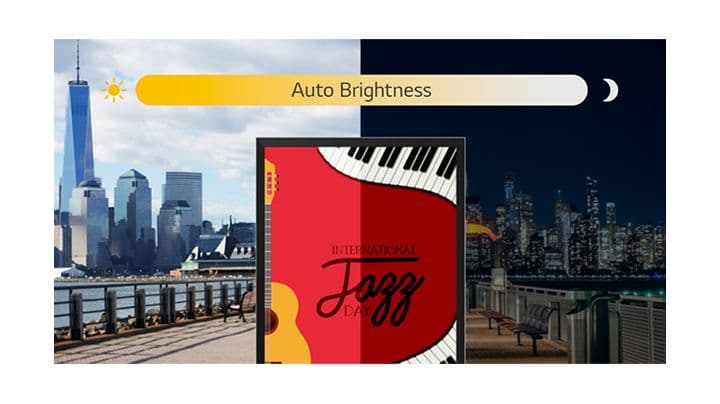

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
Electrical Safety
Circuit breaker inside 86XF3CK minimizes the possibility of product damage by cutting off current when abnormal current is detected.

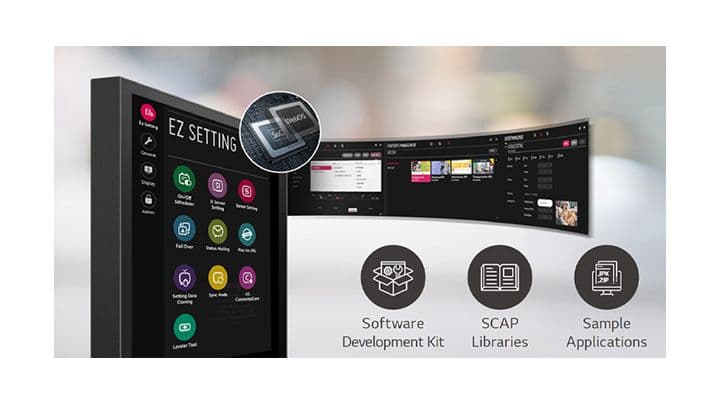

High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on 86XF3CK for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.** This also enables the easy management of doubled-sided sending.

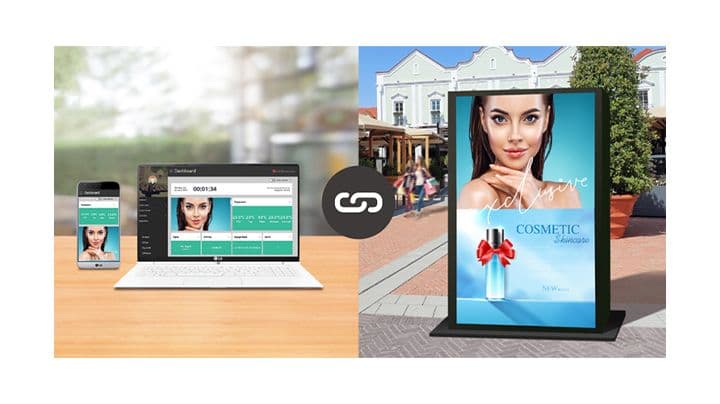

Web Monitoring (Control Manager)
This is a web-based monitoring solution, which provides easy control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network to monitor and control the displays remotely in real-time. Both side of displays can be controlled by multi display control.
Screen Size
86"
Back Light Type
Direct
Native Resolution
3,840 × 2,160 (UHD)
Brightness
3,300 nit
Dynamic CR
500,000 : 1
Viewing Angle (H x V)
178 × 178
Response Time
8 ms (G to G)
Lifetime
50,000 Hrs (Min.)
Portrait / Landscape
Yes / No
Bezel Width
66.4 mm (L/R), 51.95 mm (T), 51.95 mm (B)
Packed Weight
252.5 kg
Weight (Head)
201.8 kg
Monitor Dimensions (W × H × D)
1,202.8 x 2,003 x 229.18 mm
Carton Dimensions (W × H × D)
1,425 x 2,312 x 1,046 mm
Bezel Color
Black
Operation Temperature
0°C to 40°C (with Solar), 0°C to 50°C (without Solar)
Operation Humidity
5% to 100%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
1,450 W (Front) (Full White) / 1,500 W (Back)
Max.
1,950 W (Front) / 1,700 W (Back)
Typ.
383 W (IEC 62087)
BTU (British Thermal Unit)
TBD
DPM
Under 0.5 W
Power offUnder 0.5 W
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes (EU Only)
OSD
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese(Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Arab, Türkiye, Polski
SuperSign CMS, SuperSign Control+, LG ConnectedCare
HDMI (HDCP 2.2) × 2, DP (HDCP 1.4) × 2, RS-232C In (4 Pin Phone Jack) × 2, RJ45 (LAN) In × 1, IR In × 1, USB 2.0 Type A × 2, External Speaker Out (4pin phone jack) × 2), RS232C Out, RJ45(LAN) Out (4), IR Out (Sharing RS232C Out)
Basic
Remote Controller, HDMI Cable (1 ea), USB Cable (2 ea), Manual (IG&EIG), Regulation Book, Phone to RS-232C Gender (1 ea), LAN Extension Cable (2 ea), SMA Cable (2 ea), IR Cable (1 ea), JCD 5P PWR Cable (3 ea), JCD 8P PWR Cable (1 ea), Cord Grip Rubber (5 ea), Screw (6 ea), JCD Corner Bracket (4 ea)
Heat Dissipation
Filter Type
Noise Level TBD
TBD
Conformal Coating (Power Board), Power Protection (Circuit Breaker), Direct Sunlight
HW
Internal Memory (8 GB), Sensor (Temperature Sensor, Auto Brightness Sensor, Pixel Sensor, Current Sensor, BLU Sensor, Humidity Sensor, Acceleration (Gyro) Sensor), FAN (Built-in)
SW
webOS 6.0, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Booting Logo Image, No Signal Image, RS-232C Sync, Local Network Sync, Backlight Sync, Video Tag (4, Max One HDMI Input), Play Via URL, Screen Rotation, External Input Rotation, Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Smart En ergy Saving, PM Mode, Wake on LAN, Network Ready, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom, Brightness Compensation
