75XE3C

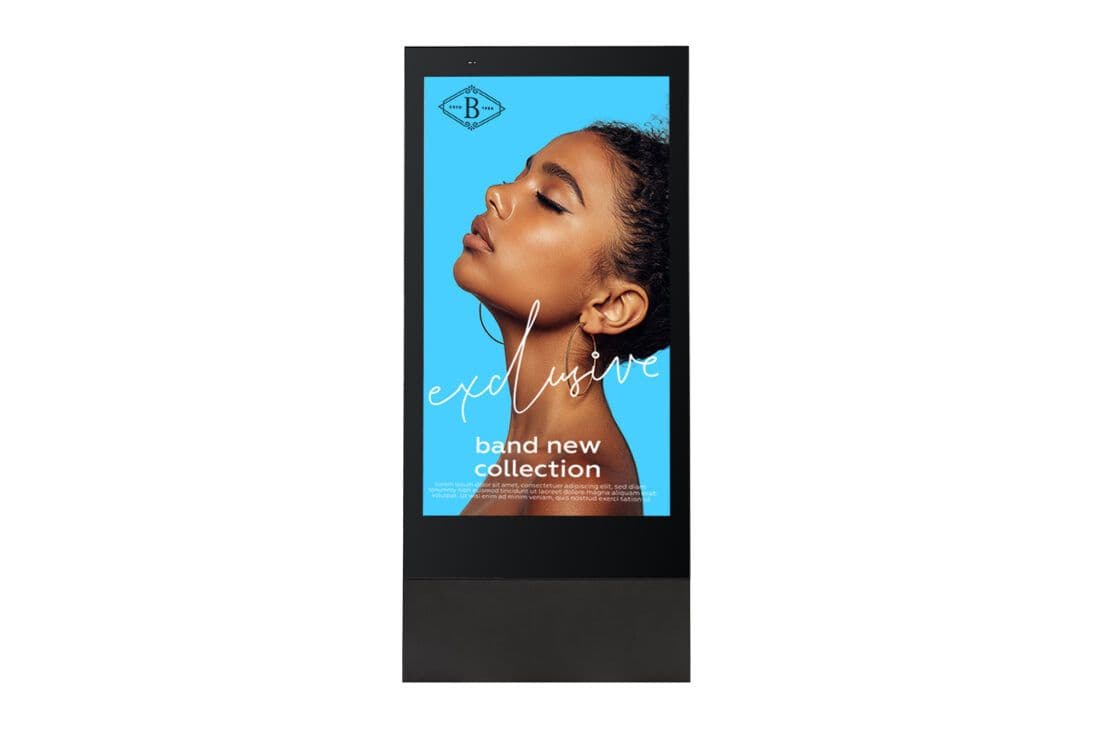

75” Outdoor Signage
Key Features
- Brightness(Typ.) : 3,000 cd/m²
- Operating Temperature : -30°C to 50 °C
- IP56 Design
- Interface : HDMI / DP / DVI / RJ45 / RS232C / SD Card / USB3.0 / External speaker out
Contact us
GGEAR Commercial
Outstanding Visibility with Advanced Reliability

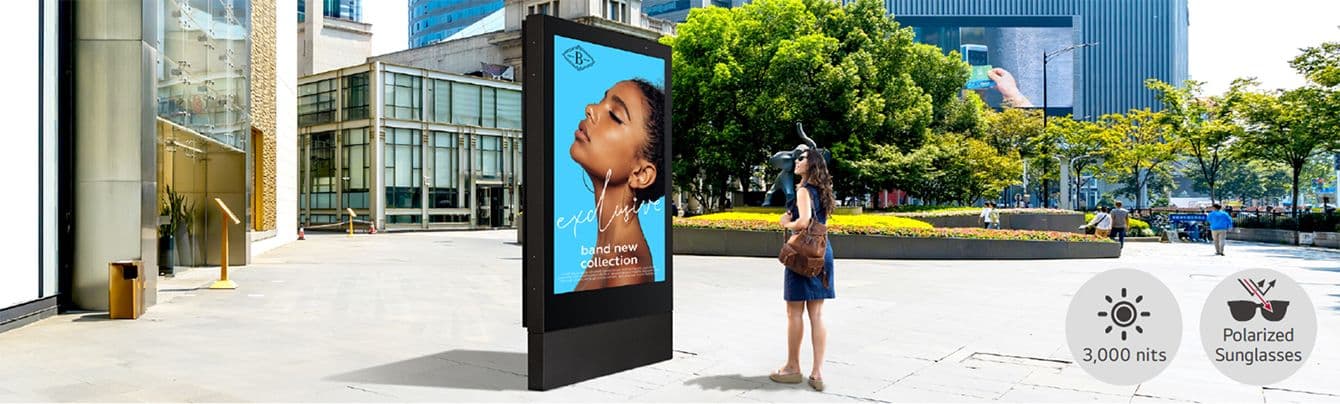

High Visibility Under Strong Sunlight
With outstanding high brightness of 3,000 nits (Typ.), 75XE3C outdoor display delivers contents clearly while captivating passersby, making it the suitable display for outdoor visibility. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

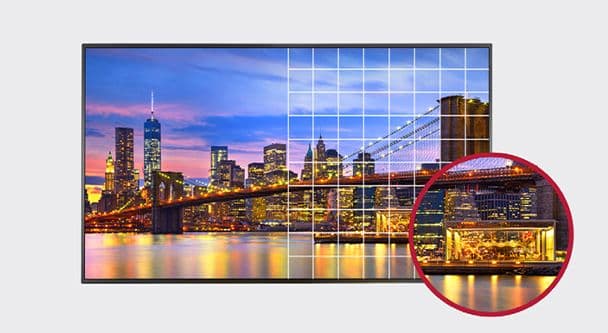

Advanced Local Dimming
The backlighting in specific areas of the screen can be controlled to increase contrast and provide a clearer image.
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

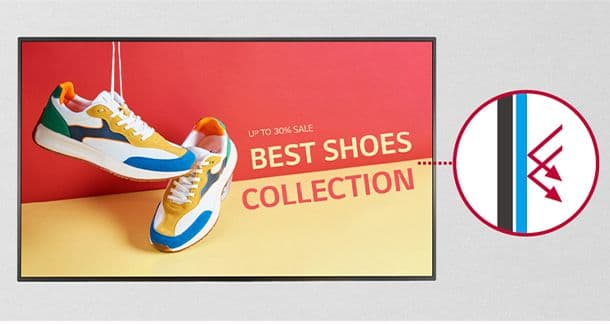

Anti-reflection
Thanks to anti-reflection coating, 75XE3C has low interference between reflection of external light & back light.
Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
Low Power Consumption Using the M+ Panel
The M+ panel can offer high energy efficiency and cost savings as decreasing power consumption by approx.
Conformal Coating
Conformal Coating* protect the circuit board, power board against dust, iron powder, humidity, etc.
Wide Range of Operating Temperature
75XF3C-B can be used under a wide range of operating temperatures from 0°C to +50°C.
Enhanced Thermal Management
Environmentally sealed structure for water-resistant and protection against brake dust. 75XE3C has thermal management solution regarding heat from the LCD, Circuit / Powerboard and Solarloading. Totally self-contained and suitable for outdoor use without air filter.

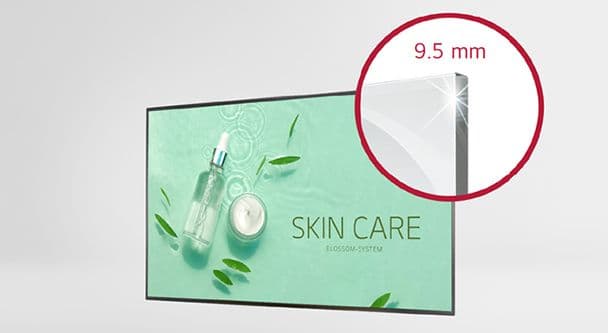

9.5 mm Protective Glass
Designed to protect panel from impacts and vandalism for outdoor use.
webOS Smart Platform
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.
Web Monitoring
The LG Control Manager*, the embedded web monitoring program, allows a variety of parameters to be diagnosed in real time such as temperature, ambient light, and gyro sensors. It can be easily controlled at all times.

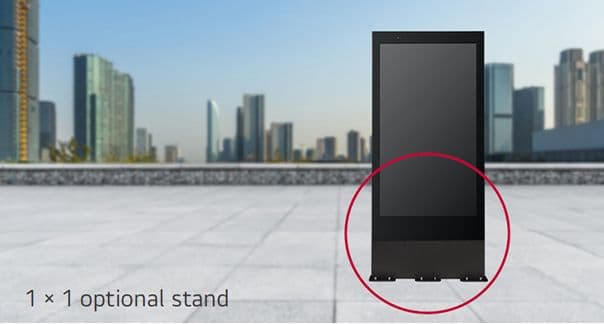

Optional Stand
Optional stand to allow panel to stand freely and facilitate easy cable management.
Screen Size
75" Class (74.52 inch Measured Diagonal)
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 × 2160 (UHD), M+
Pixels (H x V x 3)
M+ (RGBW)
Refresh Ratio
1,200:1
Dynamic CR
500,000:1
Color Gamut
72%
Viewing Angle (H x V)
178x178
Color Depth
1.07 Billon (10 bit)
Response Time
8ms (G to G BW) (Typ.)
Surface Treatment
AGLR (Haze 3%), QWP
Lifetime
50,000 Hrs
Operation Hour
24Hrs
Orientation
Portrait Only
QWP (Quarter Wave Plate)
Yes
Front Glass
9.5 mm (AR, Front Safety Vandal Glass)
Color
Medium Texture Black (Common Color)
Bezel Width
110 mm (Top), 230 mm (Bottom), 73.3 mm (Left/Right)
Monitor Dimension (W x H x D)
1,075.6 × 1,991.6 × 218.9 mm
Weight (Head)
180Kg
Monitor with Optional Stand Dimensions (W x H x D)
1,075.6 × 2,361.6 × 218.9 mm
Weight (Head+Stand)
247Kg
Packing Dimensions (W x H xD)
1,292 × 2,296 × 468 mm
Packed Weight
210Kg
Handle
Option (EYE-Bolt Ready)
Operation Temperature
-30°C to 50°C
Operation Humidity
5% to 100%
Direct Sunlight
Yes
Dust ? Water Proofing
IP56
Power Supply
100-240 V ~, 50/60 Hz
Power Type
Built-in Power
Typ
750W (Full White)
Typ
403W (IEC 62087)
Max
1,000W
DPM
1W
Power Off
0.5W
Safety
UL / cUL /CB
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
No / No
External Media player Attachable
Yes (Available for Media Player Installation Inside Enclosure)
SuperSign
(CMS (CMS 2.5), Control (Link 1.5))
Input
Digital (With HDCP) (HDMI (HDCP 2.2, Available to Connect a Cable through a Hole at the Bottom, or Built-in Media Player), DP (HDCP 1.3, In Case of Built-in Media Player), DVI-D (In Case of Built-in Media Player)), Audio (In Case of Built-in Media Player), External Control (RS-232C (In Case of Built-in Media Player), RJ45), USB 3.0 (Available to Connect a Cable through a Hole at the Bottom, or Built-in Media Player), SD Card (SDHC/Full Size), HDTV Formats (HDMI : 720p, 1080i, 1080p)
Output
Digital (With HDCP) (DP (In Case of Enclosure Video Wall (e.g. QSR 1 × 3))), External Speaker Out (L/R), External Control (RS-232C (in Case of Enclosure Video Wall (e.g. QSR 1 × 3)))
OSD / USB Playback
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues (Europe), Dutch, Czech, Greek, Arabic
Manual
Manual Language : English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Ukrainian, Polish, Arabic, Indonesian, Korean, Turkish, Czech, Slovak, Taiwanese, Danish, Norwegian, Swedish, Finnish, Uzbekistan
ESG
English, French, Italian, German, Spanish, Portugues, Greek, Polish, Czech, Slovak
Control Manager
English
Accessory
Remote Controller, Manual, QSG, Regulation Book, Phone to RS-232C Gender, USB Cable, HDMI Cable, Optional Accessory (Enclosure Stand (ST-750X))
Special Feature
Temperature Sensor (Main, Panel, LCM, PSU), Auto Brightness Sensor, Pixel Sensor (Built-in Pixel Sensor), Cooling FAN (Closed Loop FAN/Open Loop FAN), Tile Mode, Natural Mode, Source Selection (HDMI, DP, DVI, USB, SD Card), Brightness/Contrast/Backlight, ISM Method (Normal, White Wash, Color Wash, User Image, User Video, Orbiter, Inversion, Washing Bar), Advanced (Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass Color, Gamma), Time (Clock, On/Off Time, Auto Off, Automatic Standby), Information (Model/Type, Software Version, Serial Number, IP Address, Homepage), Input Label (PC/DTV), Power on Status (Standby, PWR, LST), Key Operation (IR Operation), DPM Select, DPM Wake Up (Digital : Clock/Clock + Data Selectable), Energy Saving (Auto, Minimum, Medium, Maximum, Screen Off), Smart Energy Saving, Power Indicator On/Off, File Play with USB, Internal Memory 8 GB (System 4 GB + Available 4 GB), USB Cloning (Logo Image Download, Sent to USB, Receive From USB), Contents Scheduling (USB, Internal Memory, SD Card), Daylight Saving Time (Summer Time), Sync Mode (Time Sync, Content Sync), PM Mode (Power Off, Sustain Aspect Ratio, Screen Off, Screen Off Always, Screen Off & Backlight (Outdoor)), Holiday Schedule, Firmware Update (LAN), Local Time Auto Setting, Still Image Diagnosis, HDMI-CEC, Limited Mode (OSD, Settings Locking) (USB, IR, OSD), Wake on LAN, Digital Audio Input, Power on Delay (0-250), Content Rotation (0,90.180,270), OSD Portrait Mode (0,90.180,270), Password Change, Set ID Setup (Manual, Auto), Configuration Setup (USB Auto Playback), Lock Mode (USB, OSD, IR Operation), Fail Over (USB, SD Card, DP, DVI, HDMI, Internal Memory), SuperSign Server Setup (Signage Name, Server IP Setting, Server IP Status), Check Screen (via Pixel Sensor), DP Daisy Chain (DP, HDMI, DVI)
Max Input Resolution
3,840 × 2,160 @ 60 Hz (HDMI, Display Port)
Recommended Resolution
3,840 × 2,160 @ 60 Hz (HDMI, Display Port), 1,920 × 1,080 @ 60 Hz (DVI)
H-Scanning Frequency
30-135 kHz
V-Scanning Frequency
30-60.31 Hz
Pixel Frequency
HDMI-DTV : 594 MHz, HDMI-PC : 297 MHz
Sync Compatability
Digital
Video Input
HDMI, DVI-D, Display Port
Picture mode
Vivid, Standard, APS, Cinema, Sports, Game
Color temperature
Warm50 ~ Cool50
Audio
Balance, Audio Power (20 W (10 W × 2)), Speaker On/Off, Clear Voice II, Virtual Surround Plus, Equalizer, Sound Mode (Standard, News, Music, Cinema, Sports, Game)
