GSCA046
Outdoor LED
Key Features
- Pixel Pitch: 4.63mm
- Brightness: 5,000 cd/m²
- Fast Assembly and Easy Maintenance
- Two Cabinet Options
- IP65 Weatherproof Design
- 90º Corner Option Available
Contact us
GGEAR Commercial

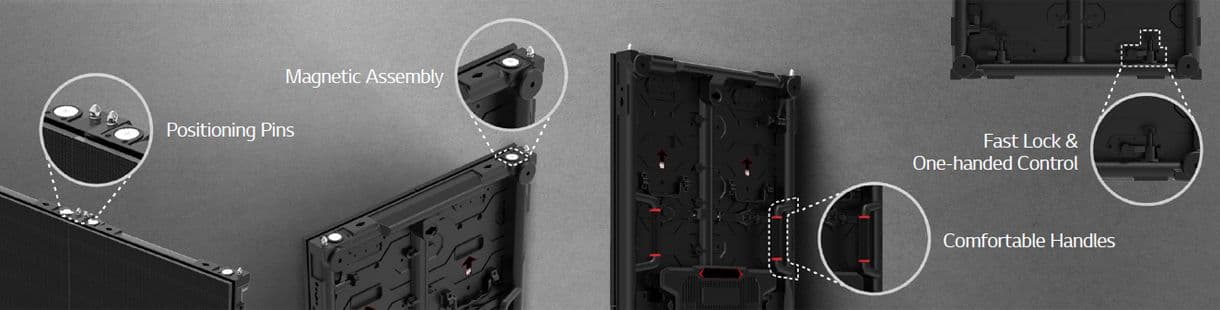

Fast Installation

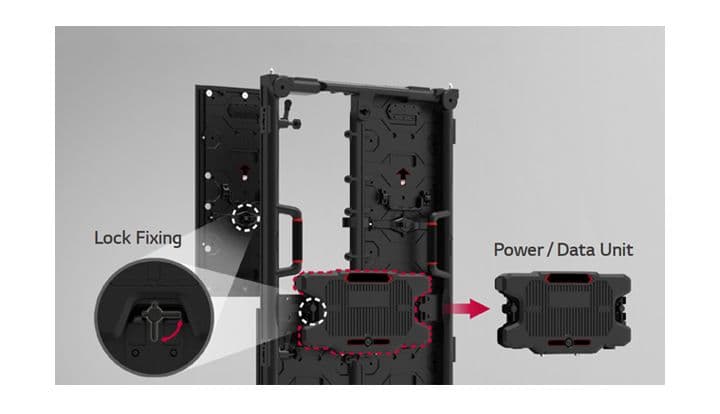

Easy Maintenance
The GSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

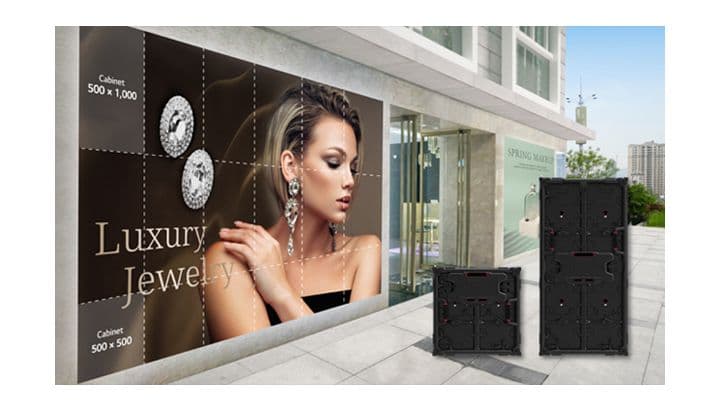

Two Cabinet Options
The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with customer's demands.

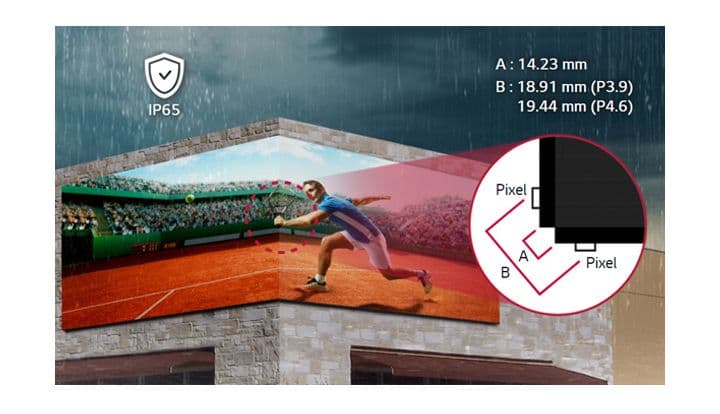

IP Rated Weatherproof & 90° Corner Design
The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option, the GSCA series can deliver flawless content even when installed on the corners.

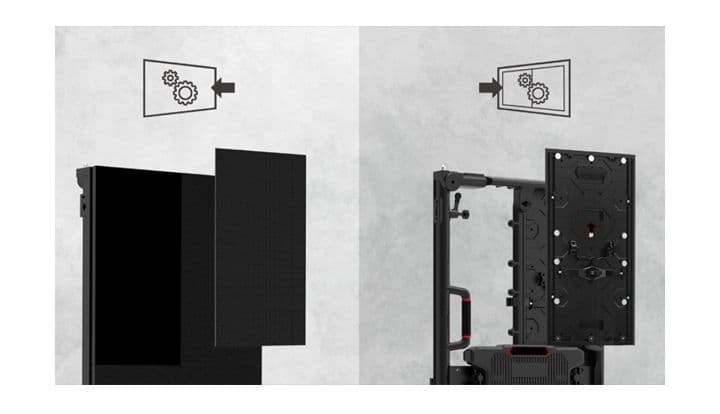

Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.
Pixel Pitch (mm)
4.63
Pixel Configuration
3 in 1 SMD
Module Resolution (W x H)
54 × 108
Module Dimensions (W x H, mm)
250 × 500
Weight per Module (kg)
1.40
Cabinet Resolution (W × H)
108 × 216 / 108 × 108 (Half-sized)
Cabinet Dimensions (W × H × D, mm)
500 × 1,000 × 67.2,500 × 500 × 67.2 (Half-sized)
No. of Modules per Cabinet (W × H)
2 × 2 / 2 × 1 (Half-sized)
Cabinet Surface Area (m²)
0.500 / 0.250 (Half-sized)
Weight per Cabinet (kg/cabinet)
12.7 / 8.1 (Half-sized)
Weight per Square Meter (kg/m²)
25.4 / 32.2 (Half-sized)
Physical Pixel Density (pixels/m²)
46,656
Flatness of Cabinet
±0.3 mm
Cabinet Material
Die-casting Magnesium
Service Access
Front or Rear (One Option Only)
Min. Brightness (After Calibration)
5,000
Color Temperature
3,500 ~ 9,000
Visual Viewing Angle (Horizontal/Vertical)
160 / 135
Brightness Uniformity
97%
Color Uniformity
±0.003CxCy
Contrast Ratio
11,000
Processing Depth (bit)
14
Power Consumption (W/Cabinet, Max.)
300 / 150 (Half-sized)
Power Consumption (W/Cabinet, Avg.)
100 / 50 (Half-sized)
Power Consumption (W/m², Max.)
600
Heat Dissipation (BTU/h/Cabinet, Max.)
1024 / 512
Heat Dissipation (BTU/h/Cabinet, Avg.)
341 / 171
Heat Dissipation (BTU/h/㎡, Max.)
2047
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half Brightness)
100,000
Operating Temperature (°C)
-20℃ to +45℃
Operating Humidity
10-99%RH
IP rating Front / Rear
IP65 / IP65
Certification
CE,FCC,ETL
Environment
RoHS
Controller
LCIN006
