GSED025
Outdoor LED
Key Features
- Pixel Pitch: 2.50 mm
- Brightness: 4,000 nit
- Eye-level Pitch for Outdoor
- Design for Durability and Easy Maintenance
- Front and Rear Serviceability
- IP Rating: IP65
Contact us
GGEAR Commercial
Eye-level Accessible LED

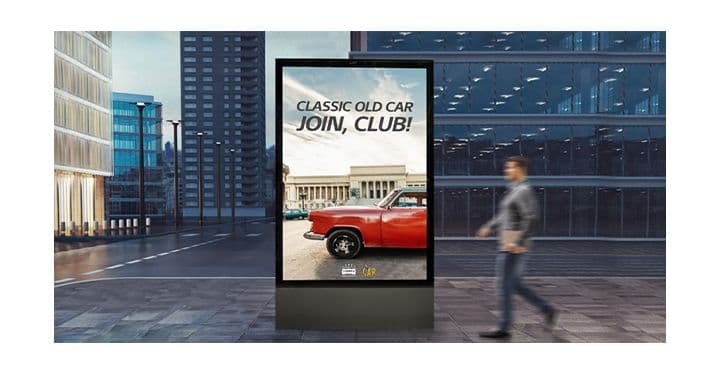

Eye-level Pitch for Outdoor
Unlike the existing large-scale screen that used to be installed high to secure visibility, the GSED series has a lower pixel pitch of 2.5 mm, which allows installment for eye-level accessibility and to accurately display images even on a smaller screen.

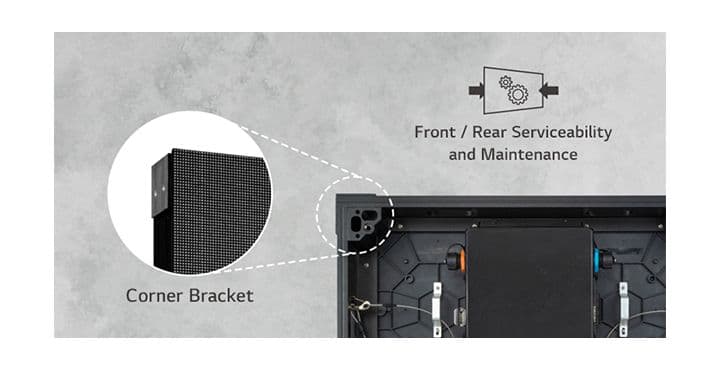

Design for Durability and Easy Maintenance
The GSED series corner brackets provide a solid installation and reduce the risk of twisting. Its accessibility to the front and rear sides allows for easy maintenance for various installation environments.

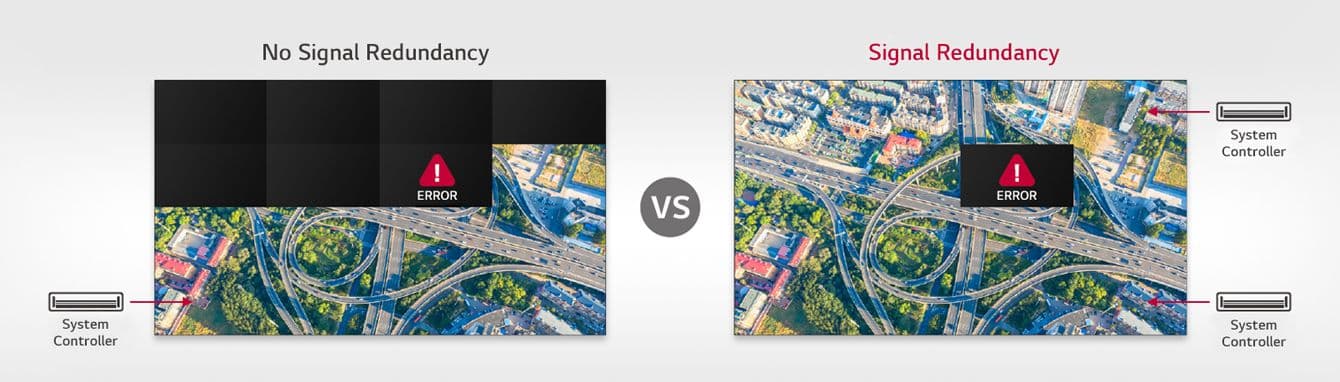

Signal Redundancy Support
The GSED series is designed to support redundancy of signal, providing users with comfort. With an additional system controller, customers can get continuous operation while the dual controllers can reduce screen failures with bi-directional signal input.
Compatibility with LG Software Solutions
When connected with LG's CVBA system controller, the LSBF series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
Pixel Pitch (mm)
2.50
Pixel Configuration
Single SMD
Module Resolution (W x H)
96 × 108
Module Dimensions (W x H, mm)
240 × 270
Weight per Module (kg)
1.05
Cabinet Resolution (W × H)
192 × 216
Cabinet Dimensions (W × H × D, mm)
480 × 540 × 70
No. of Modules per Cabinet (W × H)
2x2
Cabinet Surface Area (m²)
0.26
Weight per Cabinet (kg/cabinet)
8.5
Weight per Square Meter (kg/m²)
32.7
Physical Pixel Density (pixels/m²)
160,000
Flatness of Cabinet
±1.0 mm
Cabinet Material
AI
Visual Viewing Angle (Horizontal/Vertical)
160 / 140
Brightness Uniformity
97%
Color Uniformity
±0.05 Cx, Cy
Contrast Ratio
4,000 : 1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Service Access
Front and Rear
Max. Brightness (After Calibration)
4,000 nit
Color Temperature (K)
3,500-8,500
Power Consumption (W/Cabinet, Max.)
180
Power Consumption (W/Cabinet, Avg.)
72
Power Consumption (W/m², Max.)
694
Heat Dissipation (BTU/h/Cabinet, Max.)
614
Heat Dissipation (BTU/h/Cabinet, Avg.)
246
Heat Dissipation (BTU/h/㎡, Max.)
2,368
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half Brightness)
100,000
Operating Temperature (°C)
-30 to +50
Operating Humidity
0-90% RH
IP rating Front / Rear
IP65
Certification
CE / FCC / ETL
