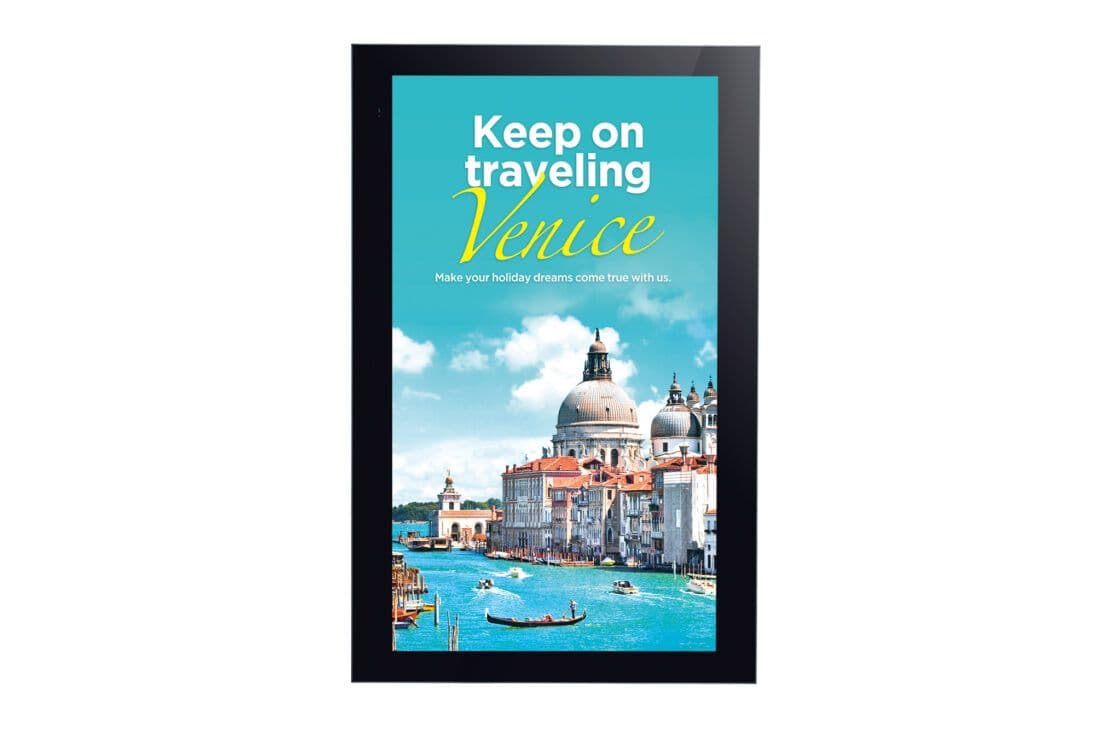

86XE3FS-B
Outdoor Signage
Key Features
- Brightness(Typ.): 400nit (APL 25%, Without Glass)
- Transparency(Typ.) : 38%
- Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
- Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
Contact us
GGEAR Commercial

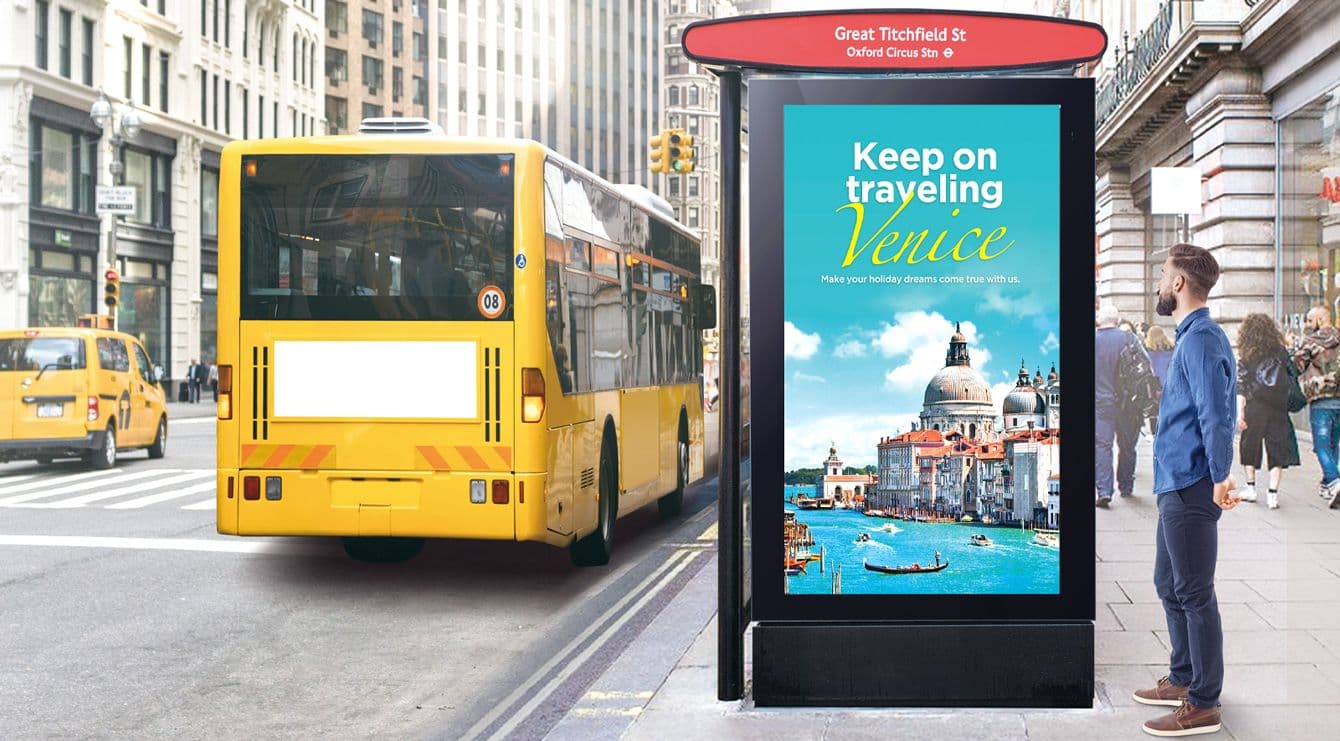

Outstanding Visibility with High Reliability
Boasting a high brightness of 3,000 nits, LG’s outdoor display, 86XE3FS, captures the attention of passersby even under direct sunlight. Carefully designed to withstand a variety of extreme changes in the environment, the display will stably deliver eye-catching content for as long as you need it to.
High Brightness
With outstanding high brightness at 3,000 nits (Typ.), the 86XE3FS outdoor display delivers contents clearly while captivating passersby, making it the ultimate display for outdoor visibility.
Accurate and Vivid Colors
Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

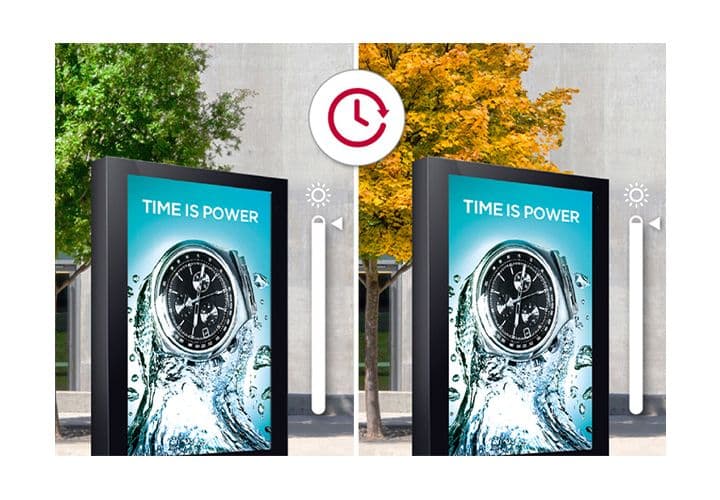

Smart Brightness Compensation
The built-in BLU* sensor constantly measures the brightness of the display and automatically compensates for reduced brightness during operation.

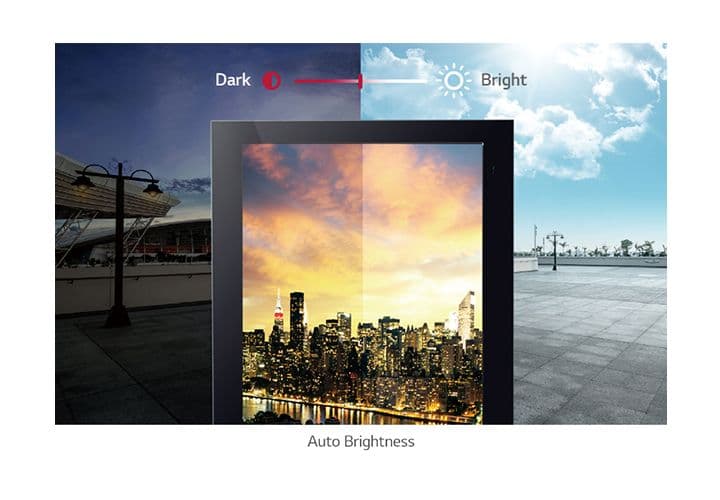

Auto Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

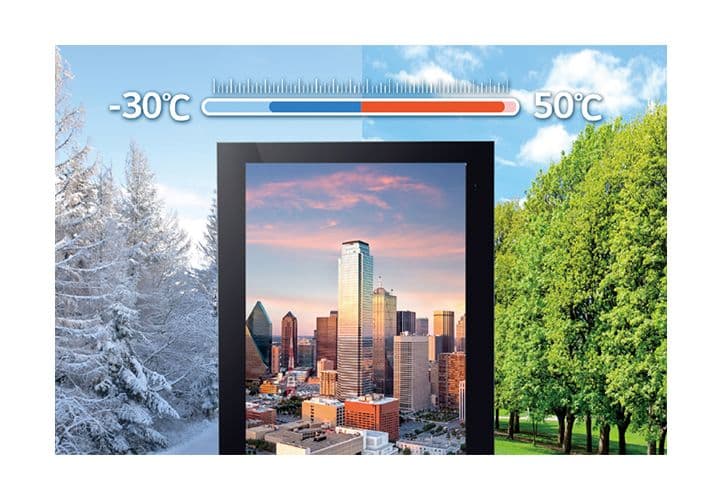

Wide Range of Operating Temperature
The display offers superb reliability under a wide range of operating temperatures, which also goes through LG’s solar-loading test which causes a lot of thermal energy. So the 86XE3FS requires fewer constraints for outdoor installations which are usually exposed to strong direct sunlight and various environmental changes.

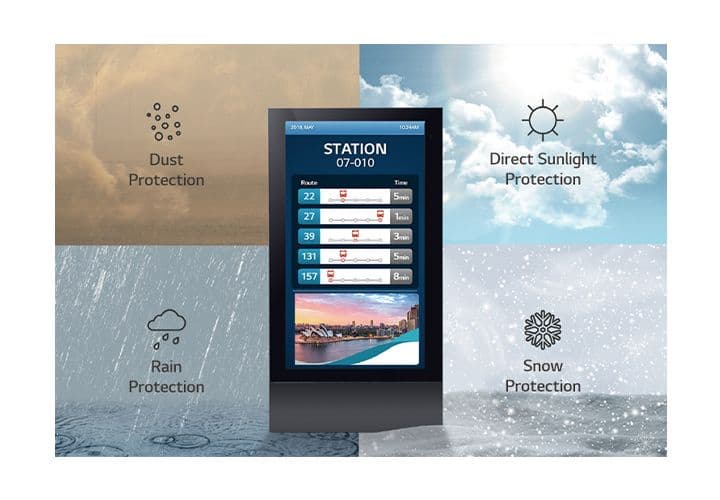

Secured Protection with IP56 Design
The display is sealed with IP56* design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.
Electrical Safety
Circuit breaker is inside ensuring strong protection from overcurrent short circuits, and unwanted voltages. This type of integration establishes preventative solutions for signage’s from having future damages.

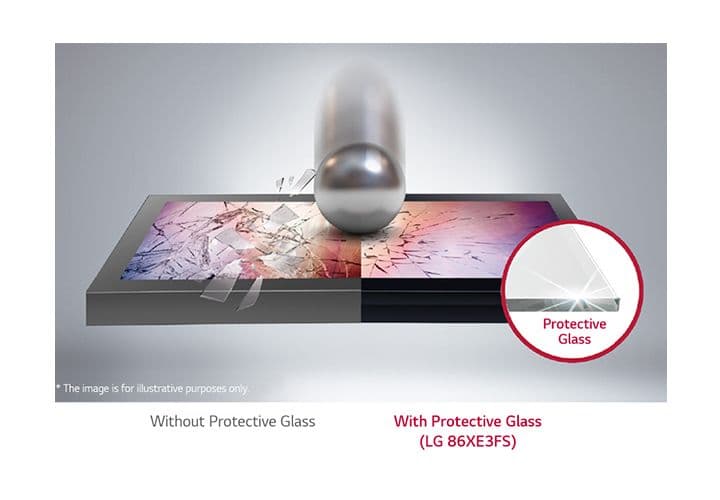

Protective Glass
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts*.

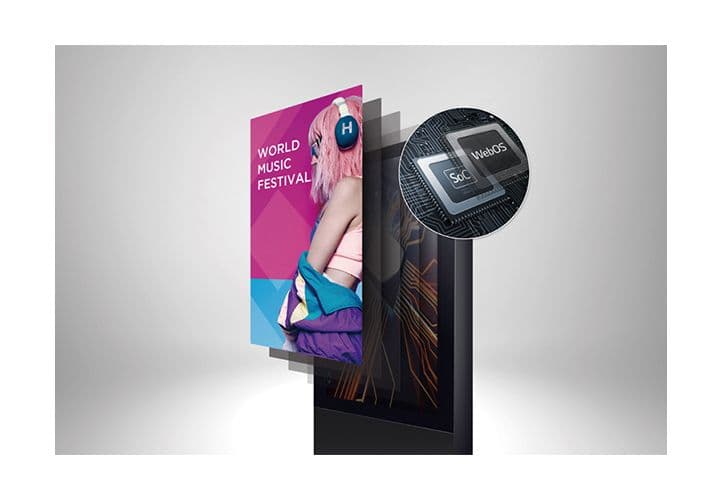

webOS Smart Platform
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.

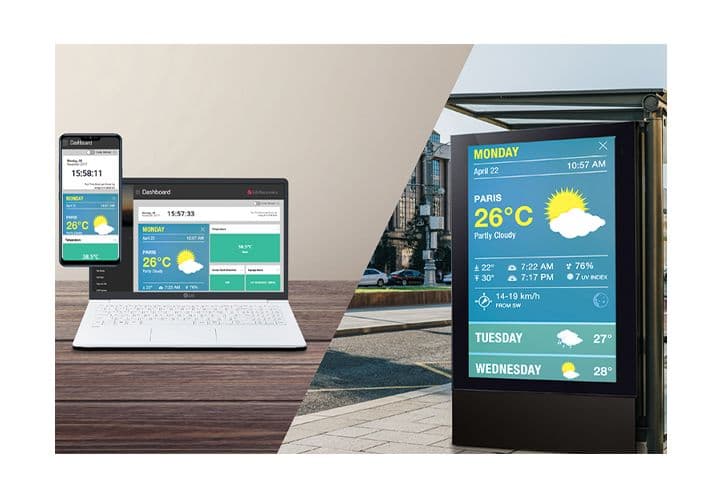

Web Monitoring
The LG Control Manager*, the embedded web monitoring program, allows a variety of parameters to be diagnosed in real time such as temperature, pixel, door, ambient light, and gyro sensors. It can be easily controlled at all times.
Screen Size
86"
Brightness (Min., cd/m²)
2800
Brightness (Typ., cd/m²)
3000
Bezel Width
101 mm (T/B), 135 mm (L/R)
Packed Weight
310 kg
Weight (Head)
276 kg
Monitor Dimensions (W × H × D)
1,338 x 2,100 x 187 mm
Operation Temperature
-30°C to 50°C
Operation Humidity
5% to 100%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
1,450W (Full White)
Max.
1,850 W
Typ.
680W (IEC 62087)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes (EU Only)
OPS type compatible
No
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
External Control
RS232C In/out, RJ45(LAN) In, RJ45(LAN) Out(4), External IR In
Output
External Speaker
Input
HDMI, DP, DVI-D, Audio, USB
Basic
Remote Controller, HDMI Cable, USB Cable, Manual(IG&EIG), Regulation Book, Phone to RS232C Gender, LAN Extension Cable, Cord Grip Rubbers
