LSAA012

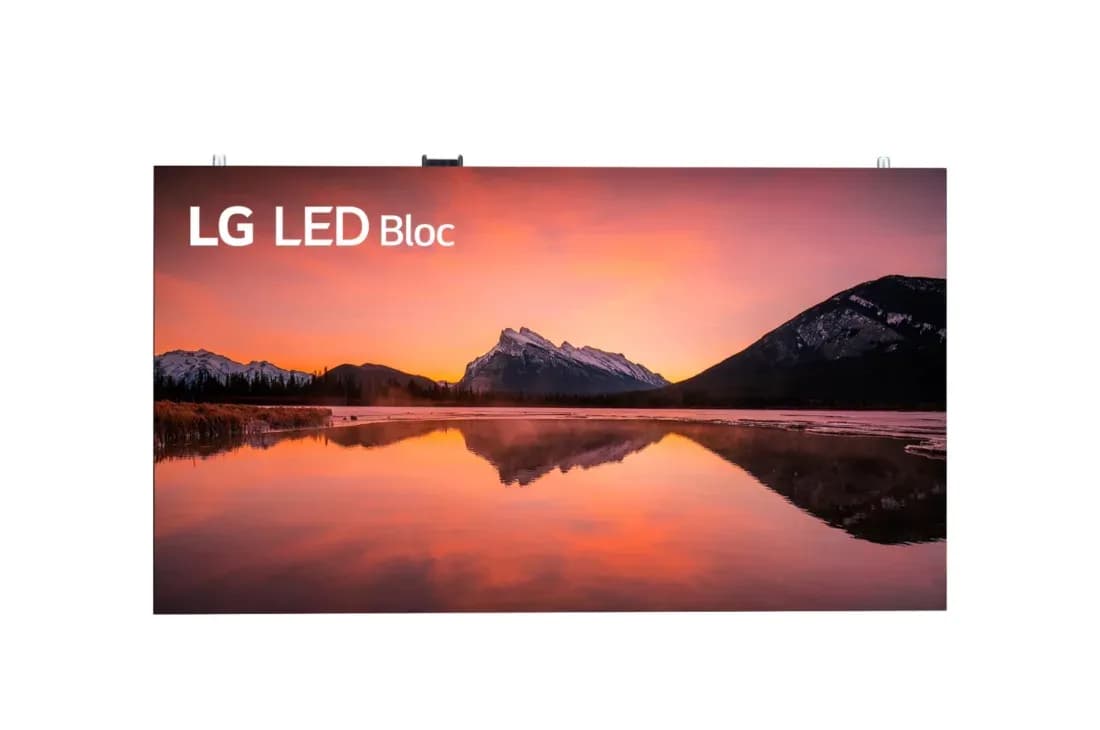

LG LED Bloc
Key Features
- Pixel Pitch: 1.25mm
- Brightness: 600 cd/m²
- Cable-less Signal Transmission & Power Docking
- AI-powered Image Processor
- Real-time ConnectedCare Service
Contact us
GGEAR Commercial

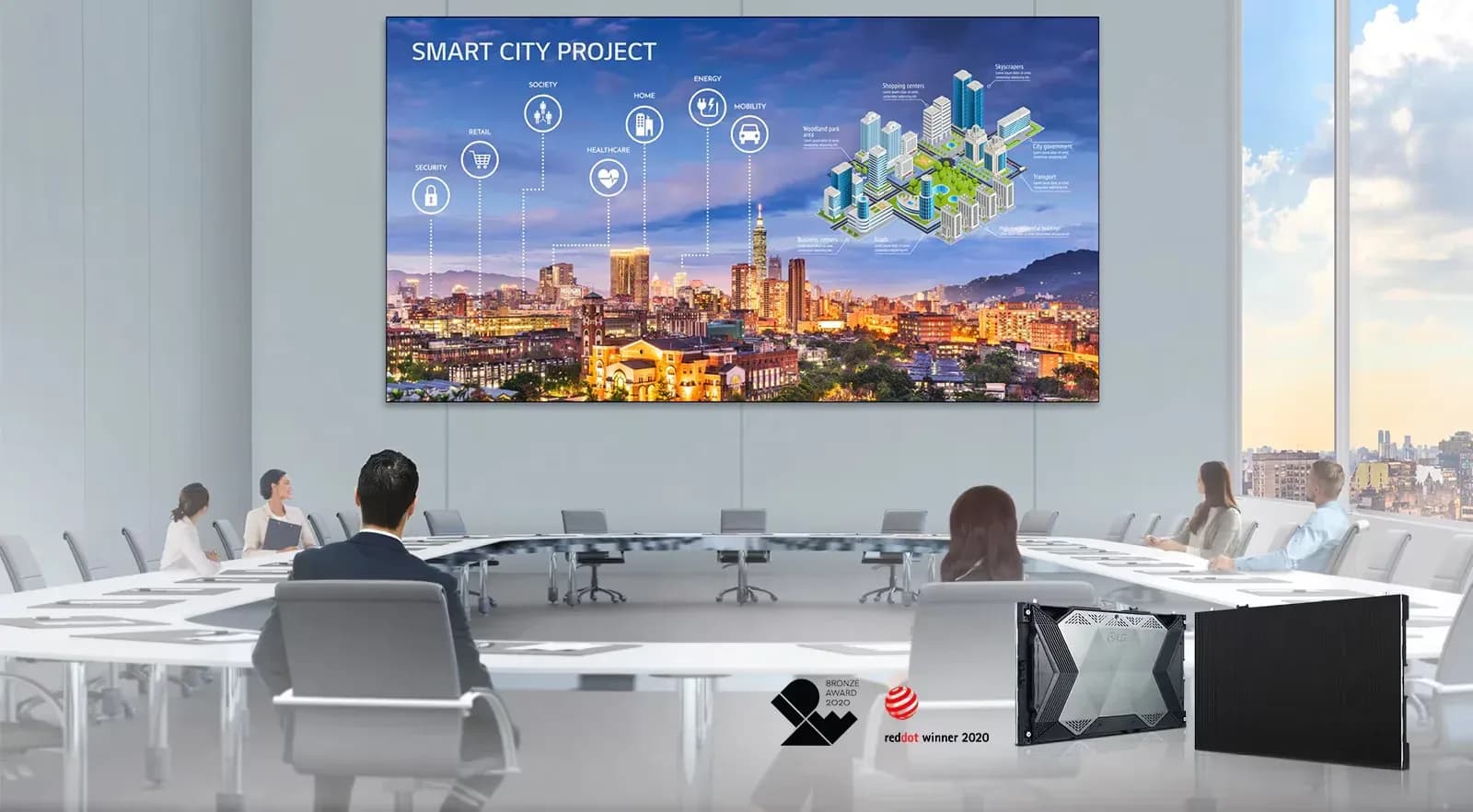

Winner of Design Awards
True Innovation Behind Simplicity
With unrivaled picture quality and optimum cable-less design,Expand the Possibilities of Business Space Itself.

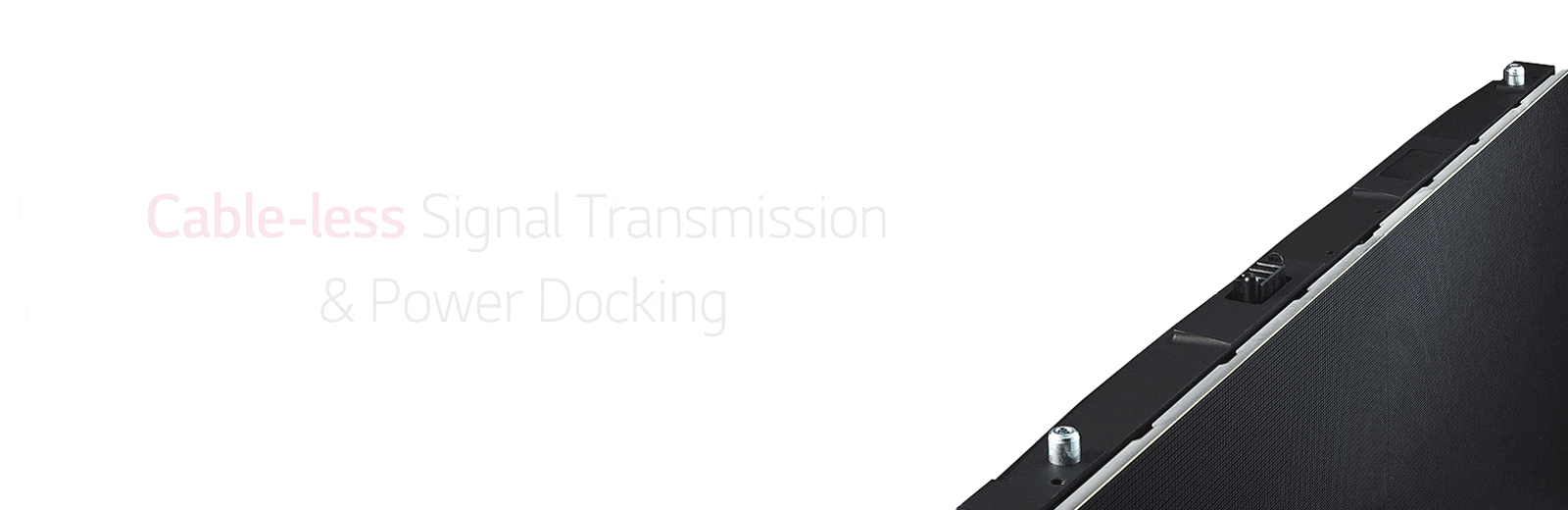

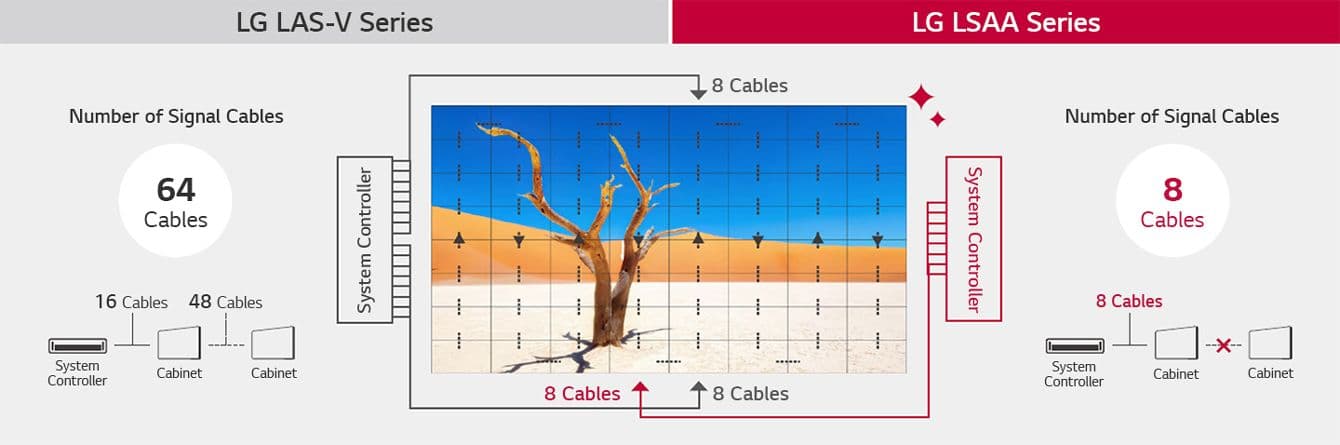

Why “Optimum Cable-less” LED
The LSAA series is the innovative LED signage applying the cableless transmission technology with non connectors*. For up to UHD resolution with the 16:9 ratio, it does not require a cable connection between the cabinets to supply signal & power. Its block assembly design makes the LSAA series easier to be installed than before.
Why “Optimum Cable-less” LED
The LSAA series is the innovative LED signage applying the cableless transmission technology with non connectors*. For up to UHD resolution with the 16:9 ratio, it does not require a cable connection between the cabinets to supply signal & power. Its block assembly design makes the LSAA series easier to be installed than before.
Optimized Image Quality with α 7 Intelligent Processor
The "Alpha 7 Intelligent Processor" applied to the LSAA series recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.
Vivid Color Expression Powered by HDR
With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact.
The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
Dedicated Accessories Available
The screen size can be easily expanded as desired using the dedicated wall mount kits. In addition, LG offers two types of frame kits for cabinet 4 × 4 (108") and 6 × 6 (163").
Easy Remote Control Support
Easy Remote Control Support
Compatibility with AV Conference Systems
Compatibility with AV Conference Systems
EMC Class B Certified
The LG LSAA Series is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments.
Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

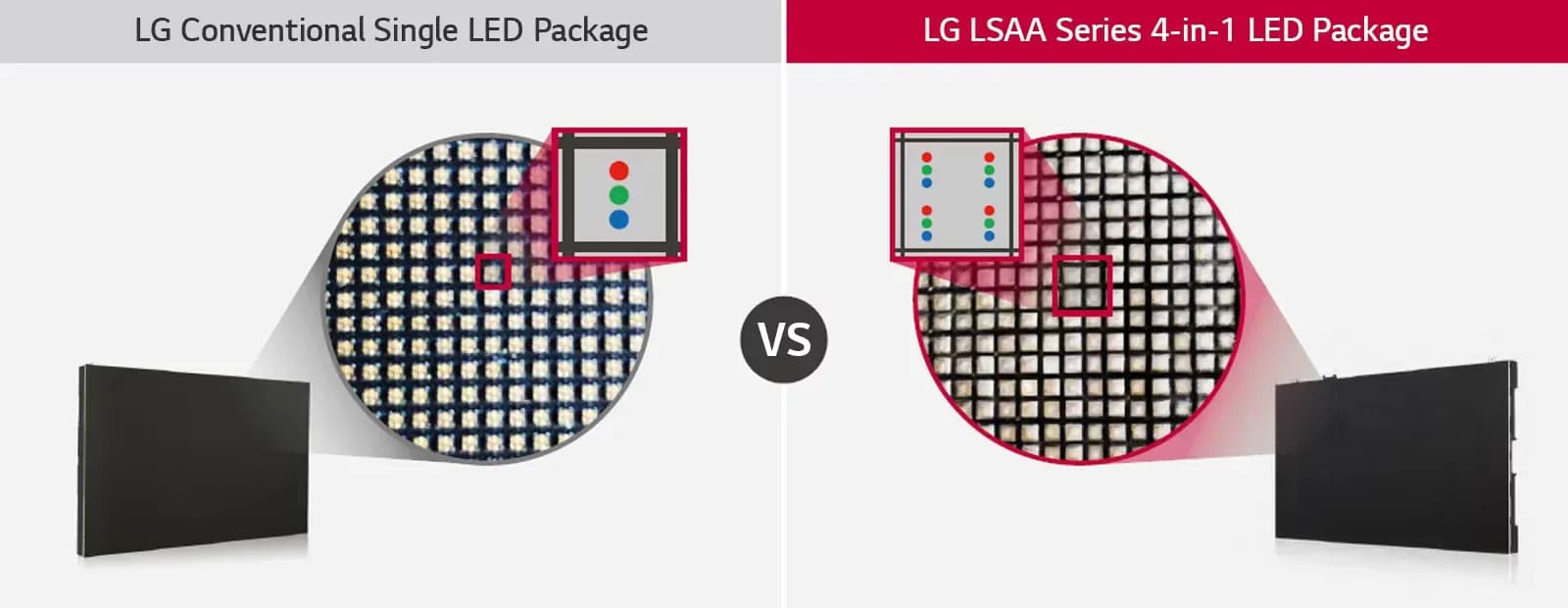

4-in-1 LED Package
By adopting a 4-in-1 LED package in which 4 pixels are combined and integrated into one single LED package, the LSAA series offers better LED module protection. It is more robust to human touch than the conventional LED display.

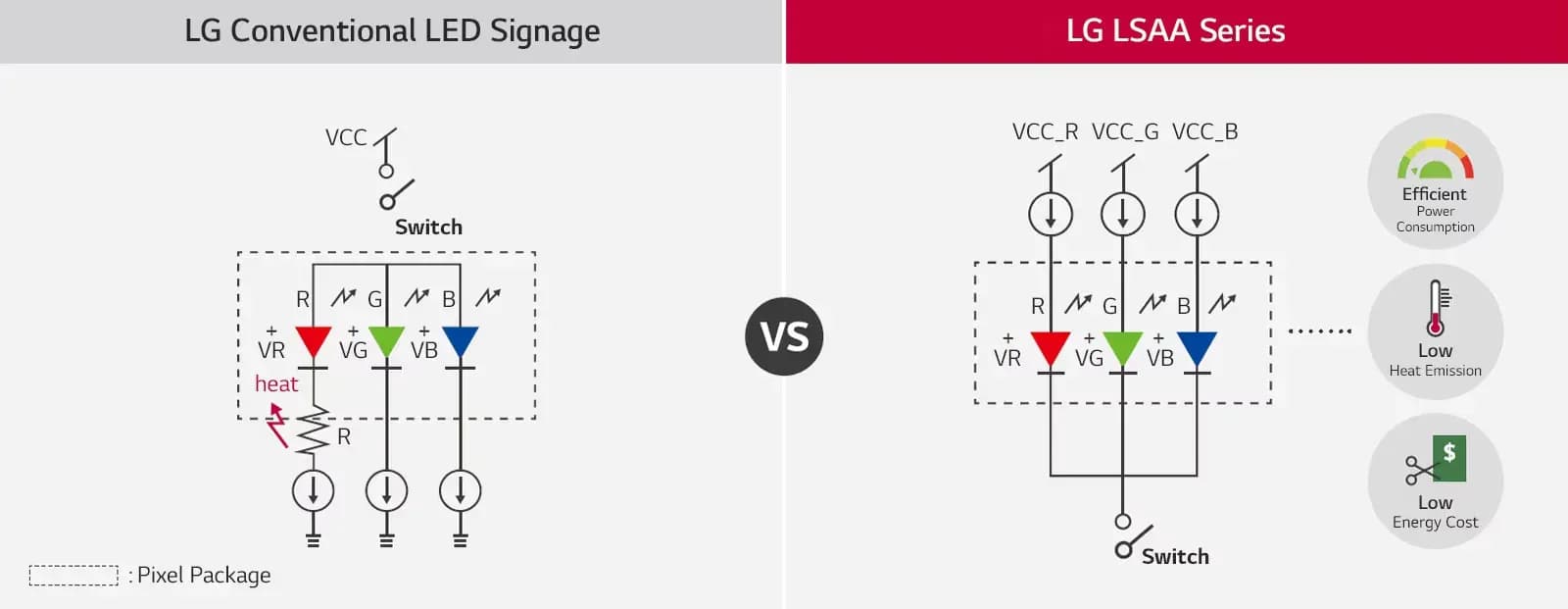

Energy Saving Power System
By applying Common Cathode Drive-IC, LSAA series supplies the right necessary voltage to each R/G/B sub-pixel individually, ensuring efficient power consumption.

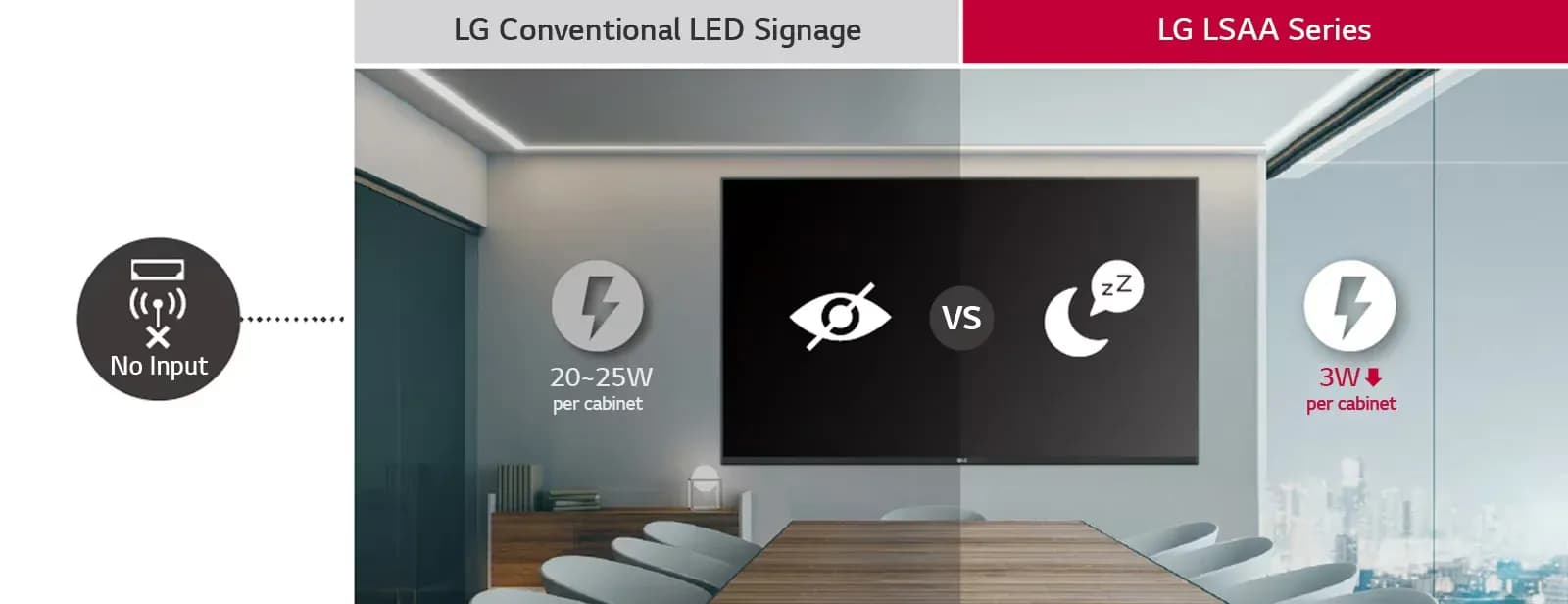

Standby Mode
When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.
Real-time ConnectedCare Service
Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

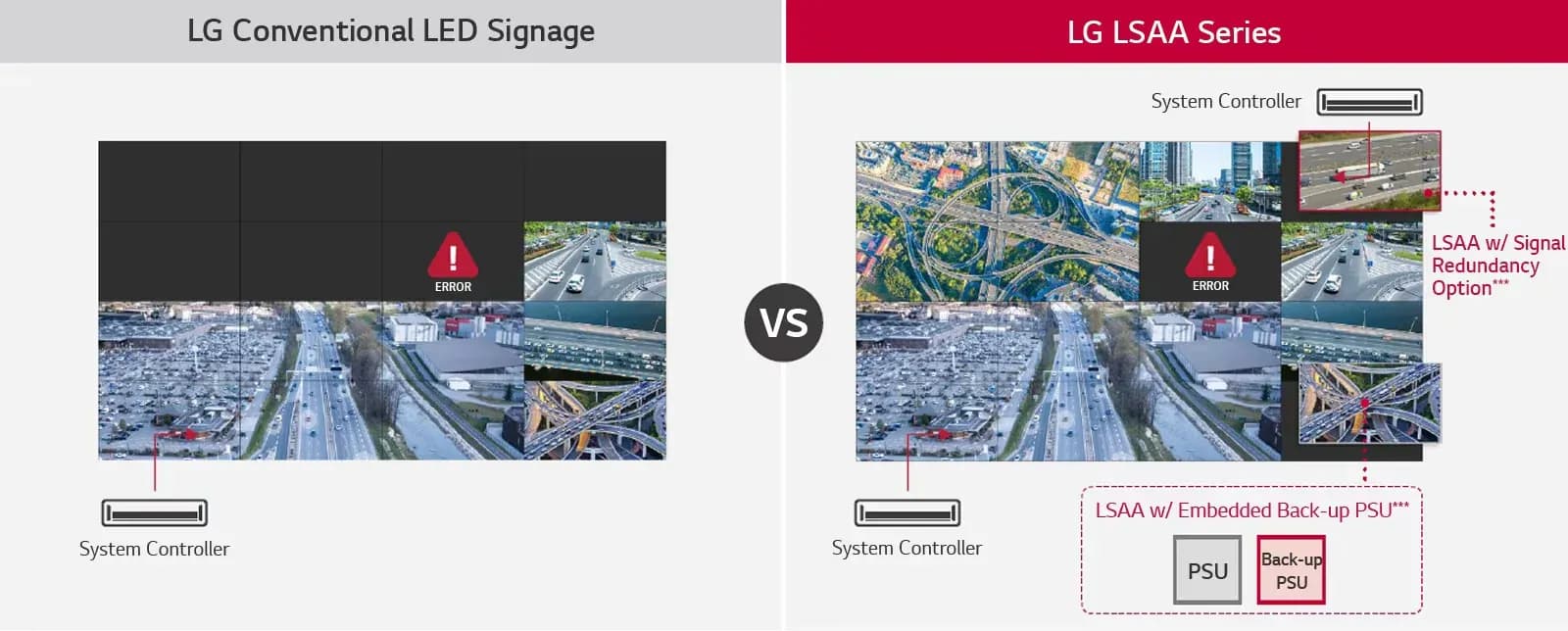

Power / Signal Redundancy Support
The LSAA series is designed to support redundancy of signal and power, providing users with comfort. With optional embedded back-up power supply unit and signal redundancy, customers can assure the continuous operation of the screen without power failure, while the dual controllers minimize screen failure with a bi-directional signal input.
Brightness (After Calibration)
600 nit (Max.) 1,200 nit (Peak)
Color Temperature (Default/Adjustable)
6,500 K / 3,200 ~ 9,300 K ,Adjustable via LED Assistant on PC
Visual Viewing Angle (H×V)
170 × 170
Brightness Uniformity
95%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
5,000 : 1 / 8,000 : 1 (Peak)
Processing Depth (bit)
20 (HDR10, HDR10 Pro), LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
Power Consumption (W/Cabinet, Max.)
MX5/SX5 : 75 & MX6/SX6 : 68
Power Consumption (W/m², Max.)
MX5/SX5 : 370 MX6/SX6 : 332
Power Consumption (W/Cabinet, Avg.)
52
Heat Dissipation (BTU/h/Cabinet, Max.)
MX5/SX5 : 256 MX6/SX6 : 232
Heat Dissipation (BTU/h/Cabinet, Avg.)
177
Heat Dissipation (BTU/h/m², Max.)
MX5/SX5 : 1,263 MX6/SX6 : 1,133
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Half Brightness)
100,000
Operating Temperature
0°C to +40°C
Operating Humidity
10-80% RH
IP Rating Front
IP20
IP Rating Rear
IP20
Certification
Safety 60950-1, EMC Class B, BS476 Part7 Class1
Environment
RoHS
Controller
CSAA-012X5
