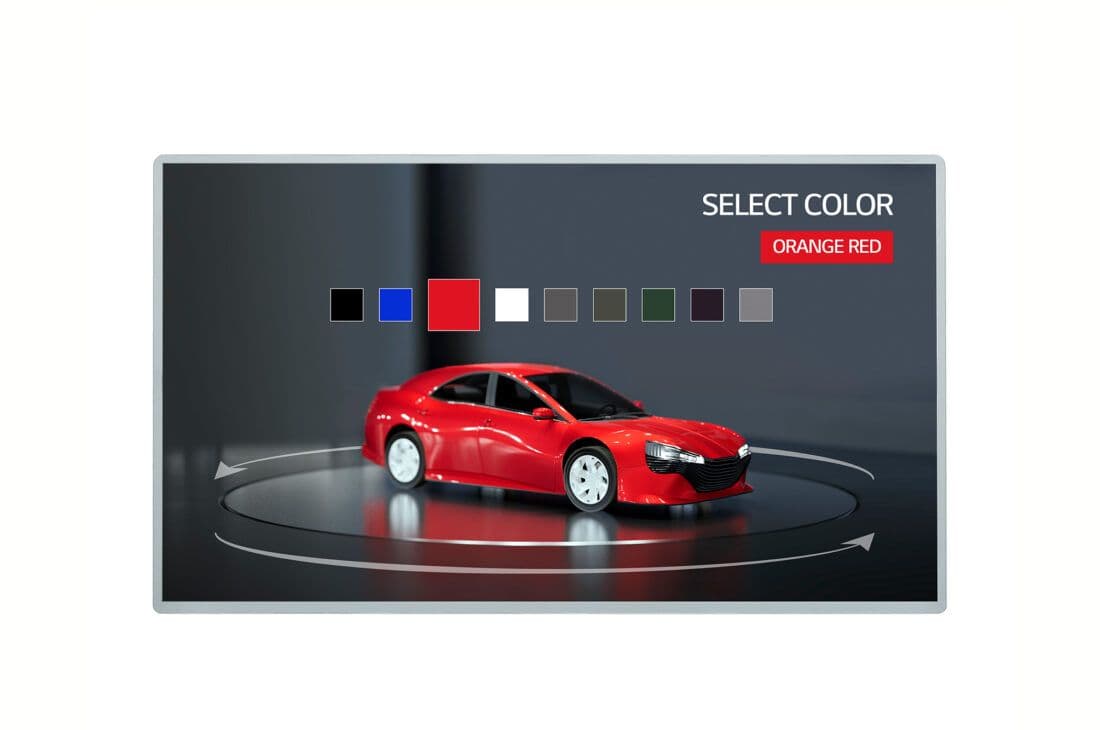

27TNF3K
27" Touch Open Frame
Key Features
- 27" Full HD Touch Display
- Brightness : 300 nit
- Multi-Touch Point : Max. 10 Points
- Interface : HDMI (2) / RS-232C / RJ45 / IR / USB 2.0 Type A / Audio / Touch USB (USB 2.0 Type B)
Contact us
GGEAR Commercial
New In-Cell Touch Open Frame for Optimal Customization

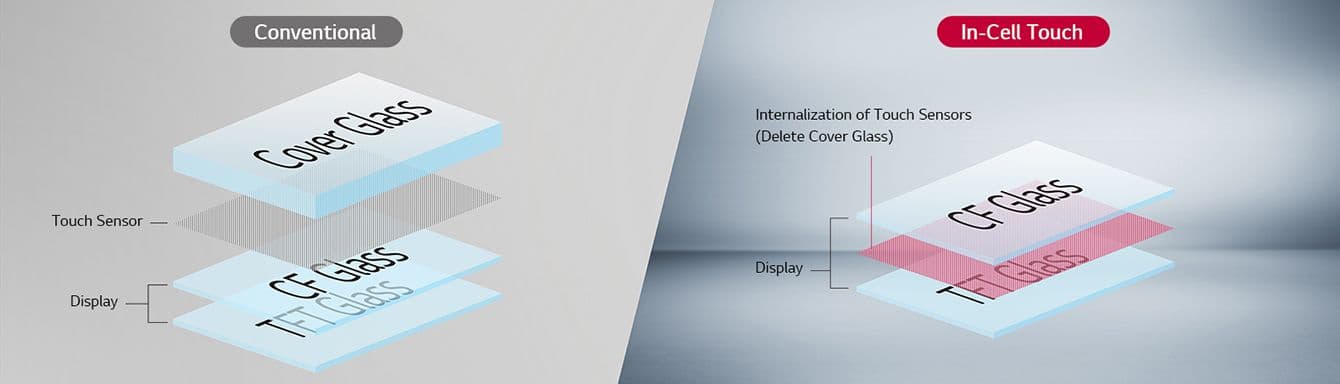

Slim & Light
The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).
Clear Picture Quality
Compared to general touch products, 27TNF3K implements clear picture quality without milk effects caused by additional touch sensor film parts.

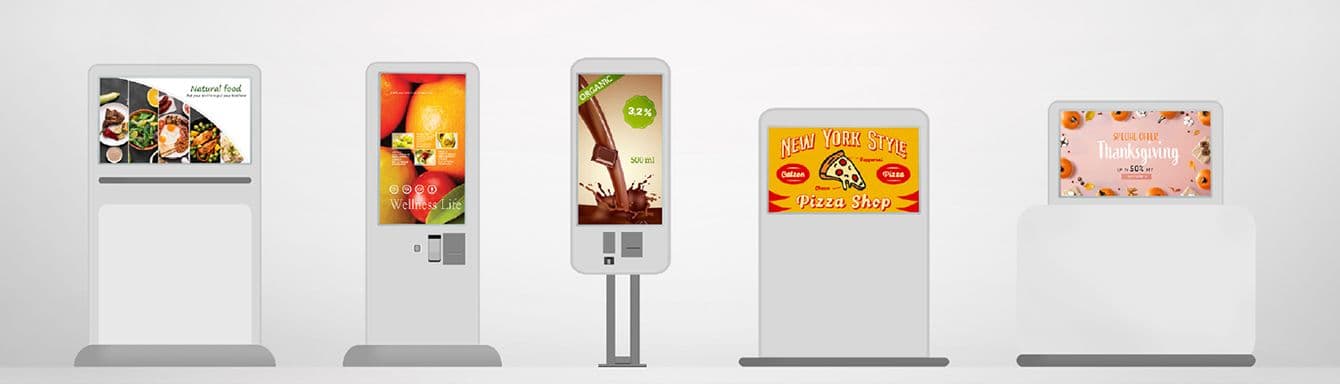

Design Flexibility
By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs

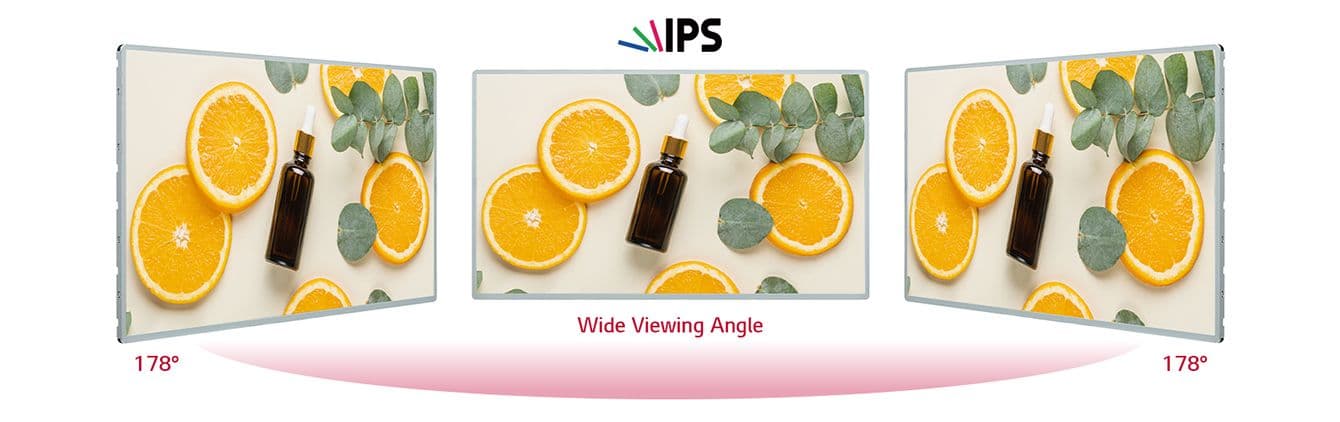

Wide Viewing Angle
IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle
45-degree Tilt (Face up) Installation Possible
When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.
10 Points of Multi-Touch
The 27TNF3K provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

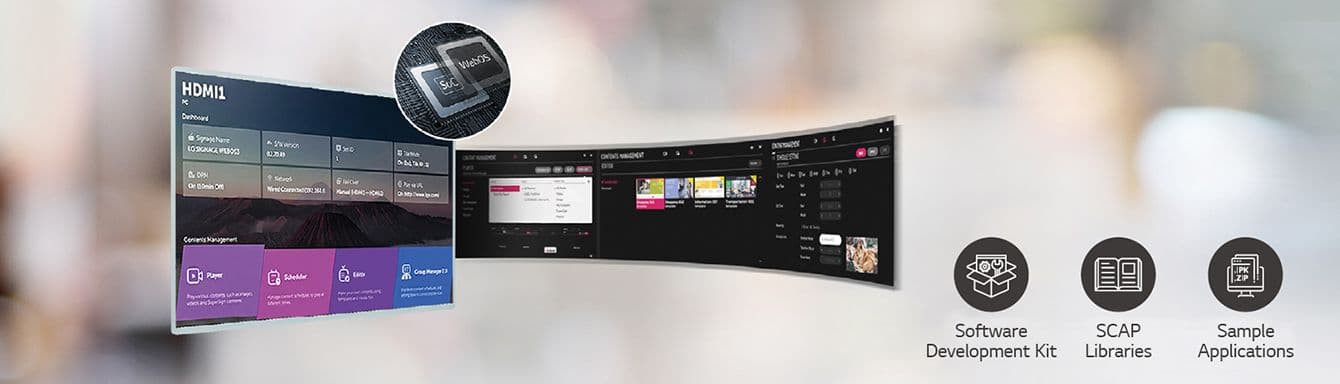

High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC* and web engine, is available on 27TNF3K for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
Screen Size (Inch)
27"
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Refresh Rate
60Hz
Brightness
300 nit
Contrast Ratio
1,000:1
Dynamic CR
No
Color gamut
NTSC 72%
Viewing Angle(H x V)
178 X 178
Color Depth
16.7 Million Colors, 8 bit
Response Time
9 ms (G to G)
Surface Treatment (Haze)
Anti Glare, 3 H (Haze 25%)
Life Time (Min.)
31,000 Hrs
Operation Hours (Hours/Day)
16 / 7
Portait / Landscape
Yes / Yes
Bezel Color
Silver
Bezel Width
7.7 / 7.7 / 7.7 / 9.7 mm
Weight (Head)
4.2 kg
Packed Weight
6.2 kg
Monitor Dimensions (W x H x D)
614.9 × 355.3 × 15.1 mm
Carton Dimensions (W × H × D)
707 × 451 × 171 mm (Box Outer Size)
VESA™ Standard Mount Interface
200 × 100 mm
Key Feature (Hardware)
Internal Memory (8 GB (System 5 GB + Available 2.48 GB)), Sensor (Temperature Sensor, Acceleration (Gyro) Sensor)
webOS ver.
webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Video Tag, Play via URL, Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, webRTC, Pro:Idiom
Operation Temperature
0 °C to 40 °C
Operation Humidity
10% to 80%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
DPM
0.5 W ↓
Power off
0.5 W ↓
Safety
CB / NRTL
EMC
FCC Class "A"/ CE / KC
ErP
Yes
SuperSign CMS
Yes
SuperSign Control / Control+
Yes
LG ConnectedCare
Yes (The availability can differ by region.)
Input
Digital / HDMI (2, HDCP 1.4), RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
Output
Audio Out, Touch USB (USB 2.0 Type B)
OSD
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Arabic, Turkish, Polski
Basic
Power Cord 1.55 M × 1, USB Cable (Type A-Type B) 1.8 M × 1, User Manual, QSG, Remote Controller, RS-232C Gender, IR Receiver
Available Object Size for Touch
Available Object Size for Touch (Ø6 mm↑), Response Time (PC Windows 10 Paintbrush , 90 ms↓), Accuracy (3.5 mm ± 0.5 mm), Interface (USB 2.0), Operating System Support (Windows 10), Multi Touch Point (Max. 10 Points
