Transparent LED Film with High Brightness

Share:

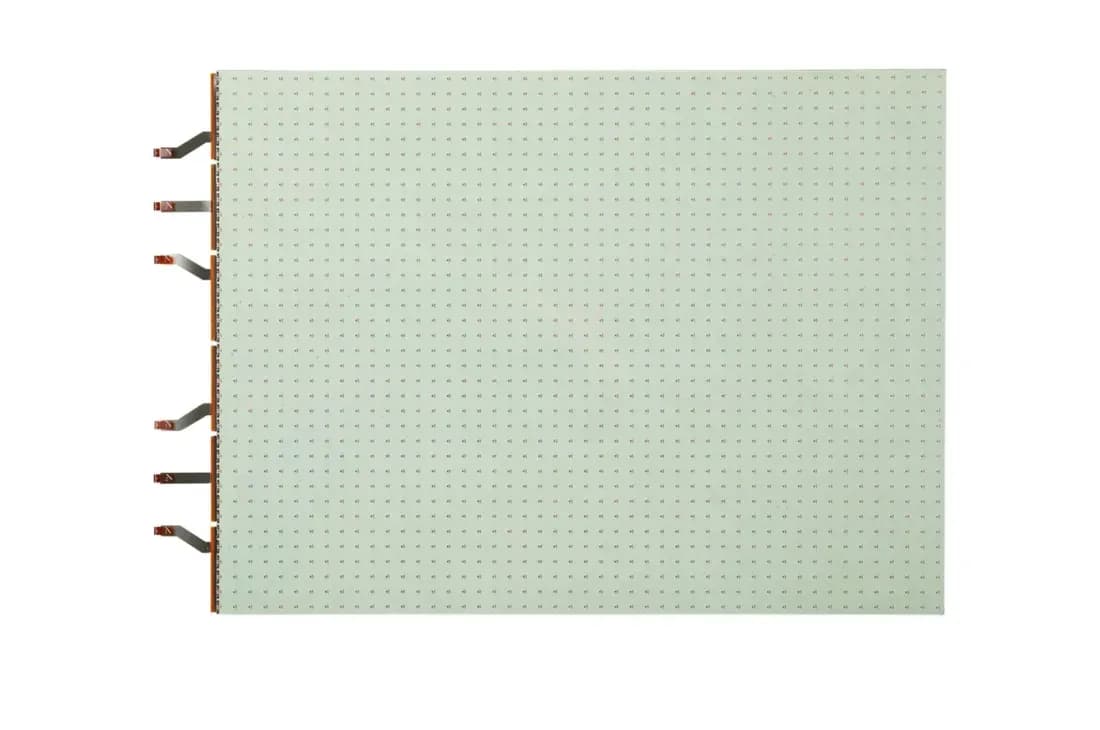

LTAK140-GW

Transparent LED Film with High Brightness

Key Features

  • Pixel Pitch : 13.7 ± 0.2 mm (14)
  • LED Type : R, G, B 3 in 1 Color Package (SMD2020)
  • Brightness : 4,000 nit (Typ.)
  • Transmittance : 53% (Typ.)
  • Curvature (Concave and Convex) : 2,000 R

Contact us

GGEAR Commercial


Your Imaginative Space Discovered by Transparent Displays

Banner Image

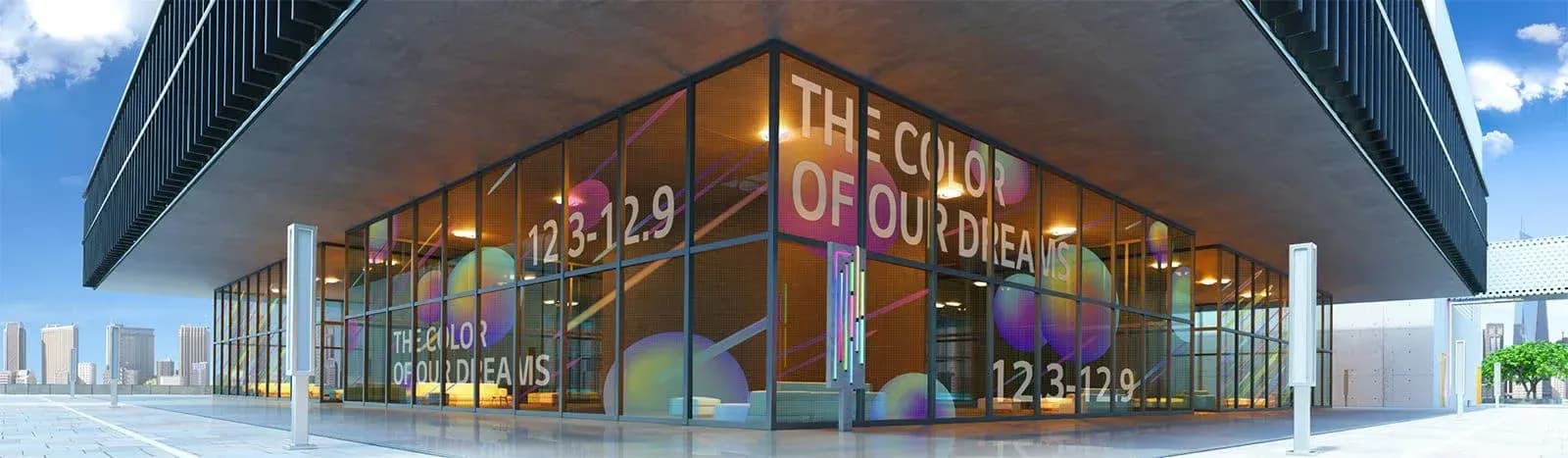

Transformation to a Splendid Atmosphere

Transparent displays with high brightness enable the implementation of media art in space, transforming an ordinary space into a more artistic space, thereby allowing customers to increase the space’s value and arouse interest in it.

Banner Image

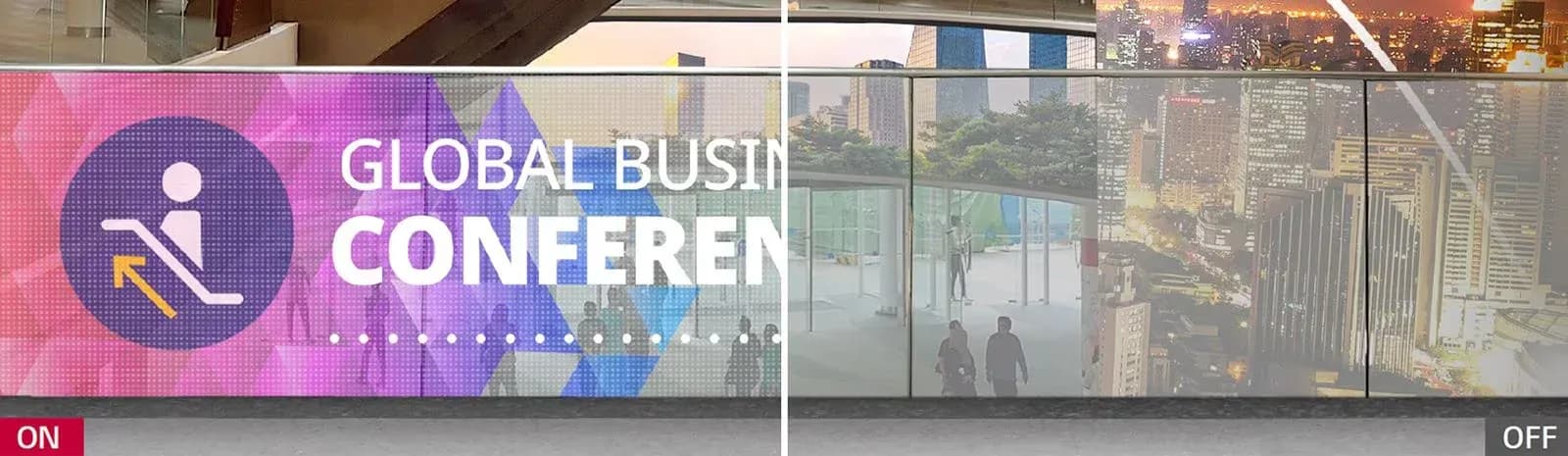

Superb Transparency

The LG Transparent LED film reflects the object behind the product even after the product is attached and turned off. This offers a wide-open view while blending into existing interior design smoothly and delivers various information effectively by attracting the attention of passersby.

Banner Image

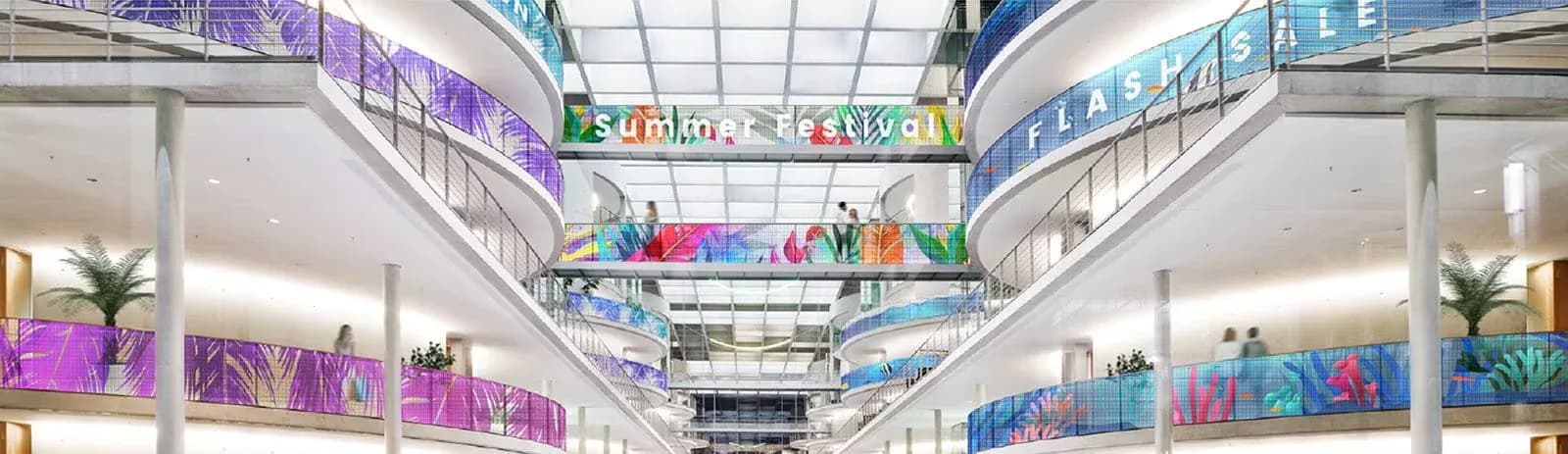

Fitting in with Flats and Curves

The LG Transparent LED film supports curvatures up to 2,000R convex and concave for curved glass or window applications, and offers even surface by durable, transparent layers. This allows a wide range of venues to be redesigned with the LTAK140 as a landmark.

Banner Image

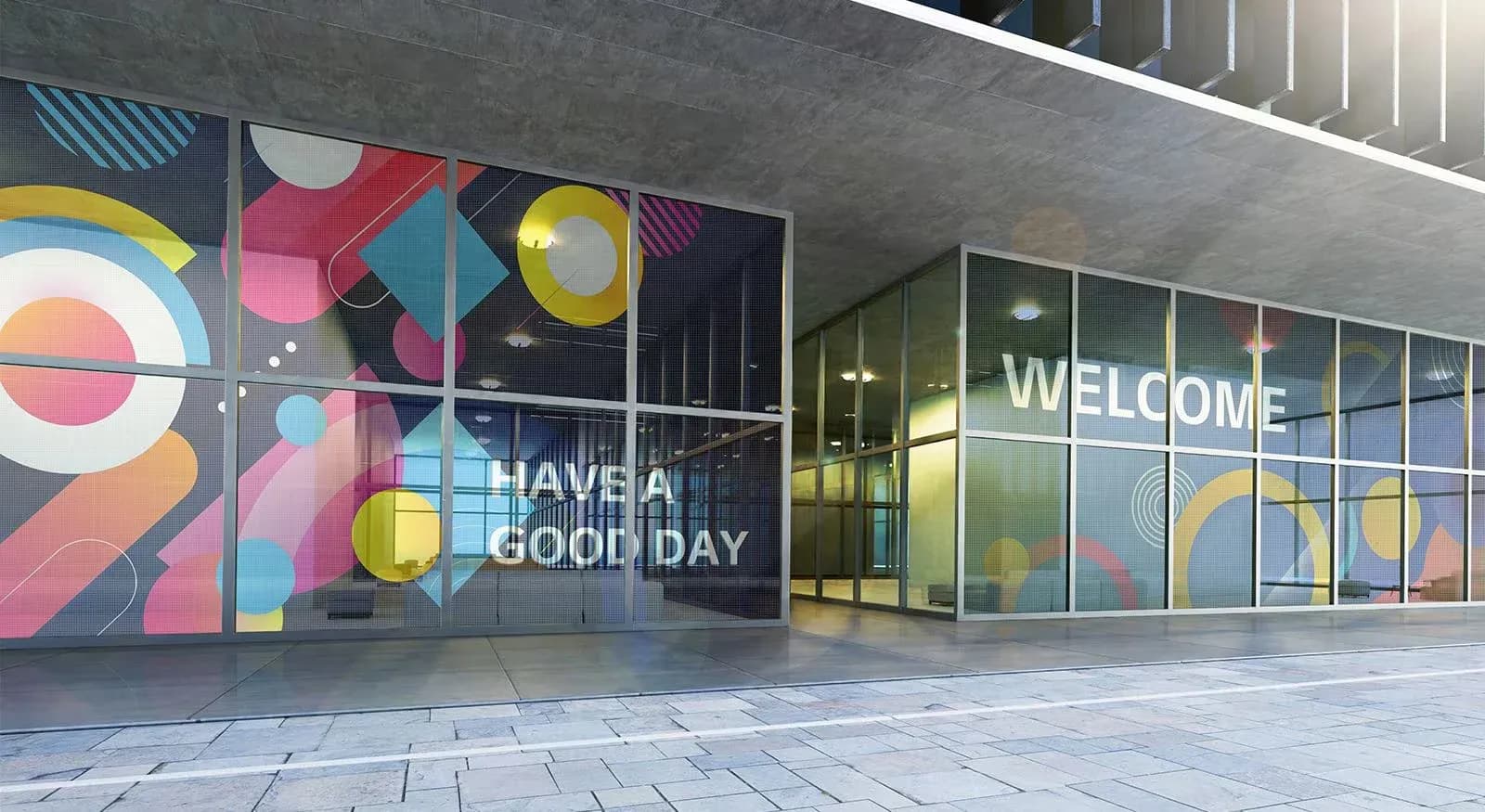

Self-adhesive Film

The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.
Self-adhesive Film

Self-adhesive Film

The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.

Outstanding Expandability and Flexibility

The size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.
Outstanding Expandability and Flexibility

Outstanding Expandability and Flexibility

The size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

Enhanced Brightness and Control

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 4,000nit(cd/m²)* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.
Enhanced Brightness and Control

Enhanced Brightness and Control

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 4,000nit(cd/m²)* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.

webOS Smart Platform

LG webOS is a web-centric platform, making it easier for SIs and developers to build web-based solutions according to various environments. By supporting SCAP and compatibility with HTML, CSS, and JavaScript, you can save time and labor costs.
webOS Smart Platform

webOS Smart Platform

LG webOS is a web-centric platform, making it easier for SIs and developers to build web-based solutions according to various environments. By supporting SCAP and compatibility with HTML, CSS, and JavaScript, you can save time and labor costs.

Control Manager

Through the Control Manager, available on internet-connected devices, you can set, control contents and monitor the status of multiple displays in different locations in real time. Especially for LG Transparent LED film installed on large area, the Control Manager helps you to play and check contents in easier way.
Control Manager

Control Manager

Through the Control Manager, available on internet-connected devices, you can set, control contents and monitor the status of multiple displays in different locations in real time. Especially for LG Transparent LED film installed on large area, the Control Manager helps you to play and check contents in easier way.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
Real-time LG ConnectedCare Service

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

Explore more showroom at LG Digital Connect

Explore more showroom at LG Digital Connect

Explore more showroom at LG Digital Connect

Pixel Pitch

13.7±0.2mm (14)

LED Type

R, G, B 3in1 Color Package (SMD2020)

Resolution

48 x 36

Pixels per Film

1,728

Physical Pixel Density(pixels/㎡)

5,102

Brightness

Typ.4,000nit

Contrast Ratio

≥ 100,000:1

Luminance Uniformity

≥ 70%

Chromaticity Uniformity

Δu’v’≤0.015

Viewing Angle (H x V)

120 x 120

Life Time (Brightness 50%)

50,000 Hrs

Daily Usage

24h / 7days

Transparency

Typ 53%

Operating Temperature

0℃ ~ 45℃ (Instaliling at indoor glass)

Curved Installation

2,000 R (Concave and Convex available on Glass)

Film Trimming

Yes (horizontal direction according to Bezel only)

Color Processing

(9bit) 500/500/500 Level ( R, G, B)

Colors

125,000,000 Colors

Color Chromaticity

Cx: 0.25±0.03, Cy : 0.33±0.03

Dimension (W x H x D)

655 x 492 x 2.9mm (with front & back protection film)

Weight

1kg

Power Consumption

75W per Film

Interface

Input : RGMII

Interface

Output : Differential Serial

Dimension (W x H x D)

69.4 x 492 x 25mm

Weight

0.4Kg

Power Consumption

75W(Transparent panel 1EA + First(1EA) & Common(1EA) Bezel kit)

Accessory

DC Jack Connection cable(1100mm) 1ea, DC Jack Connection cable(240mm) 1ea Screw 2 type, Gasket Rubber 3 type, Cable hole cover 1 type, ESG, Regulation book, Warranty Card

Input

Differential Serial

Output

Differential Serial

Dimension (W x H x D)

51.4 x 492 x 25mm

Weight

0.3Kg

Power Consumption

75W per Film

Accessory

DC Jack Connection cable(240mm) 2ea, Screw 2 type, Gasket Rubber 2 type, Cable hole cover 2 type, ESG, Regulation book, Warranty Card

Resolution

960x540 (1/4 FHD)

Interface

Input : LVDS Output : RJ45 x4EA

Maximum Transmission Length

100m (Cable type: CAT5E, CAT6)

Dimension (W x H x D)

293 x 188.7 x 37mm

Weight

1.5Kg

Temperature Sensor

Yes

Power Consumption

20 W

Accessory

Power cord, LVDS MCX cable, ESG, Regulation book, Warranty Card

Video - Max. Input Resolution

DP : 1920x1080@60Hz HDMI : 1920x1080@60Hz DVI-D : 1920x1080@60Hz

Interface - Digital (w/ HDCP) - HDMI

Input : 1EA

Interface - Digital (w/ HDCP) - DP

Input : 1EA Output : 1EA

Interface - Digital (w/ HDCP) - DVI-D

Input : 1EA

Interface - Comm. Port - RS-232C

Input : 1EA (Phone Jack Type) Output : 1EA (Phone Jack Type)

Interface - Comm. Port - RJ-45

Input : 1EA (without LED indicator) Output : 1EA (without LED indicator)

Interface - Comm. Port - IR Receiver (w/ Light Sensor)

1EA (Phone Jack Type) : Used for installation

Interface - USB3.0

1EA

Interface - LVDS

Output : 1EA

Dimension (W x H x D mm)

293 x193.3 x 40.1mm

Weight (Head, Kg)

1.6kg

Temperature Sensor

Yes

Light Sensor

Yes

Source Selection

HDMI, DVI-D, DP

TPC (Temporal Peak luminance Control)

Yes

Motion Eye Care

Yes

Power Consumption

17W

CMS S/W

Yes (2.9)

Signage365care

Yes (2.7)

Accessory

Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card

Model No.

ACC-LATP1

Dimension (W x H x D)

183*86*28mm

Weight

769g

Input

100~240V, 50~60Hz

Output

19.5V/10.8A (210W)

Color

White

DC output cable

14AWG, 1.5m

Type

L Type

Accessory

Power Cord, Regulation Book

Resolution

480x270 (1/16 FHD)

Maximum Transmission Length

100m (Cable type : CAT5E, CAT6)

Dimension (W x H x D)

333 x186.8 x 40.1mm

Weight

1.8.2Kg

Video - Max. Input Resolution

HDMI : 1920x1080@60Hz

Interface - Digital (w/ HDCP) - HDMI

Input : 1EA

Interface - Comm. Port - RS-232C

Input : 1EA (3.5⌀ headphone jack type) Output : 1EA (3.5⌀ headphone jack type)

Interface - Comm. Port - RJ-45

Input : 1EA Output : 2EA (1EA to connect film with LED Indicator)

Interface - Comm. Port - IR Receiver (w/ Light Sensor)

1EA (Phone Jack Type) : Used for installation

Interface - USB3.0

1EA

Temperature Sensor

Yes

Light Sensor

Yes

TPC (Temporal Peak luminance Control)

Yes

Motion Eye Care

Yes

Power Consumption

30

CMS S/W

Yes (3.0)

Signage365care

Yes (2.7)

Accessory

Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book Warranty Card

Datasheet

Leaflet

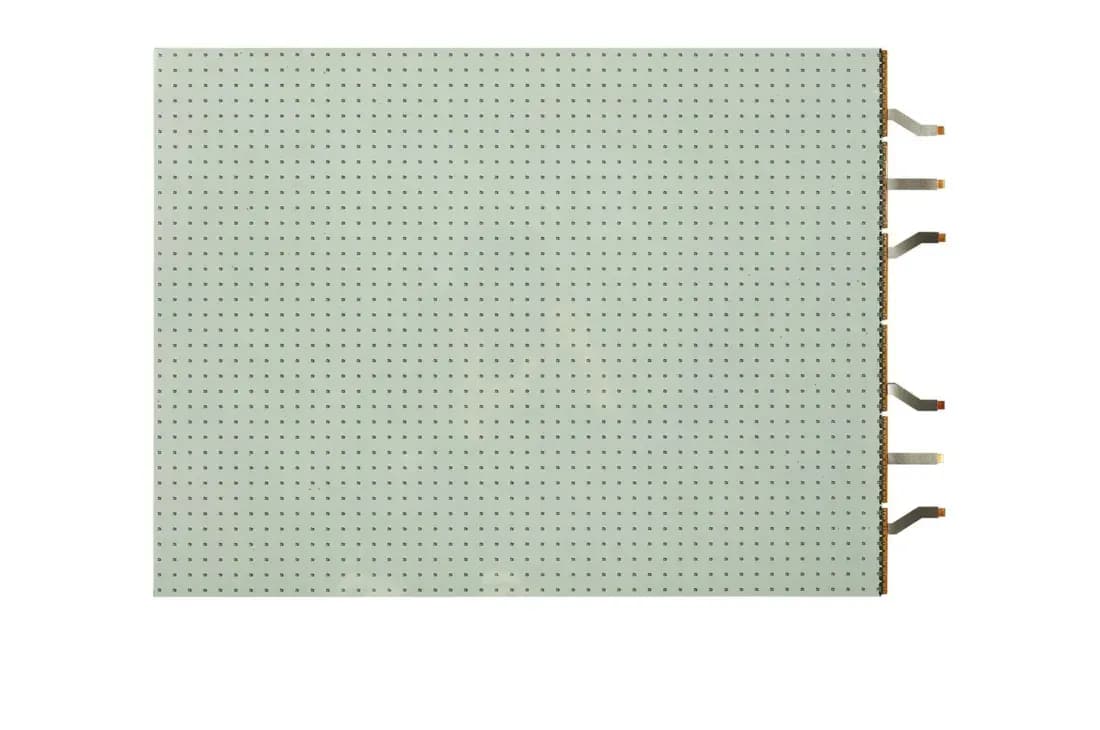

LAT140_Datasheetlow_Transparent-LED-Film_210108
