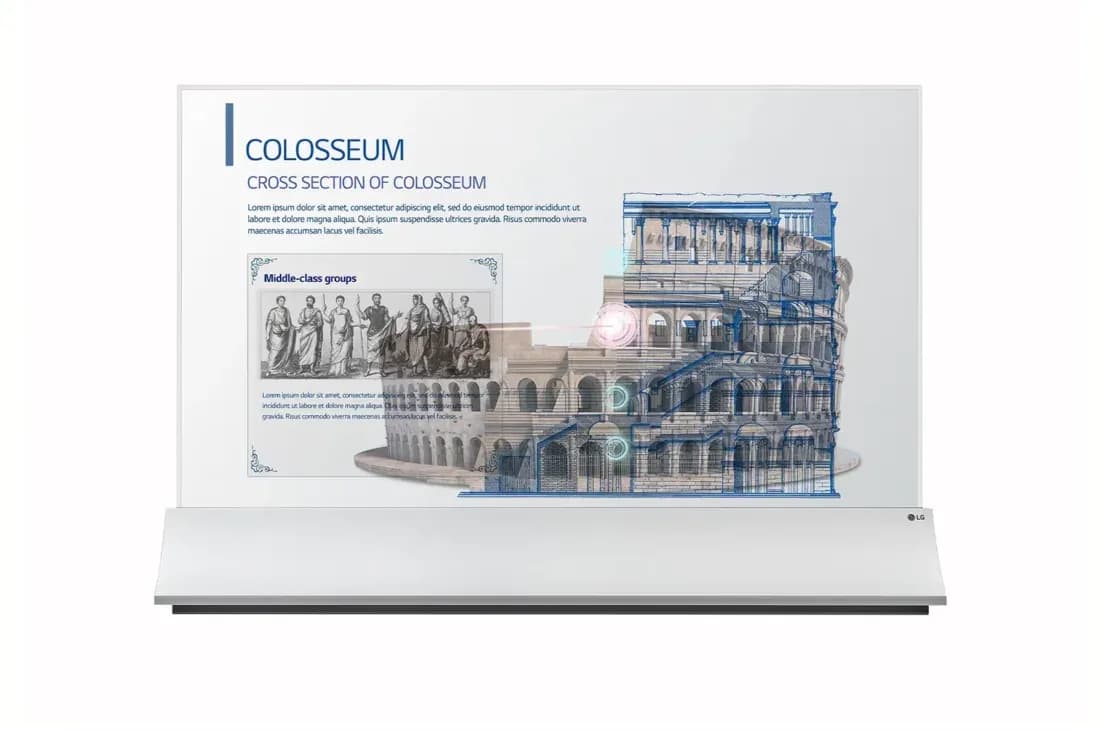

Transparent OLED Signage

Share:

55EW5PG-S

Transparent OLED Signage

Key Features

  • Brightness(Typ.) : 400nit (APL 25%, Without Glass)
  • Transparency(Typ.) : 38%
  • Standalone Design

Contact us

GGEAR Commercial


See the Unseen, LG Transparent OLED

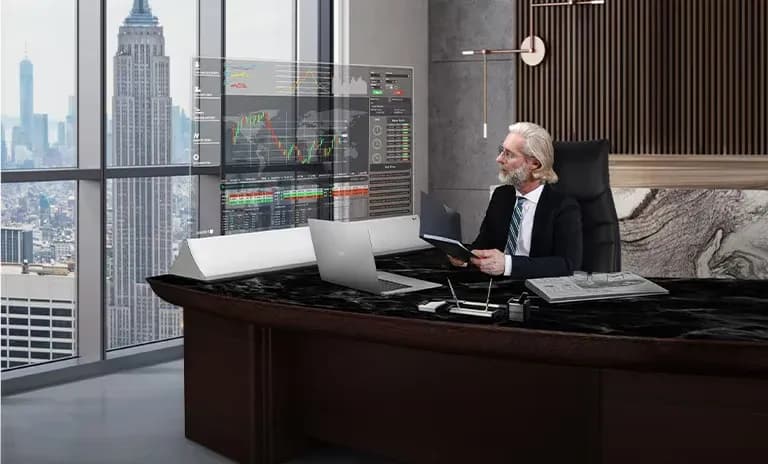

Banner Image

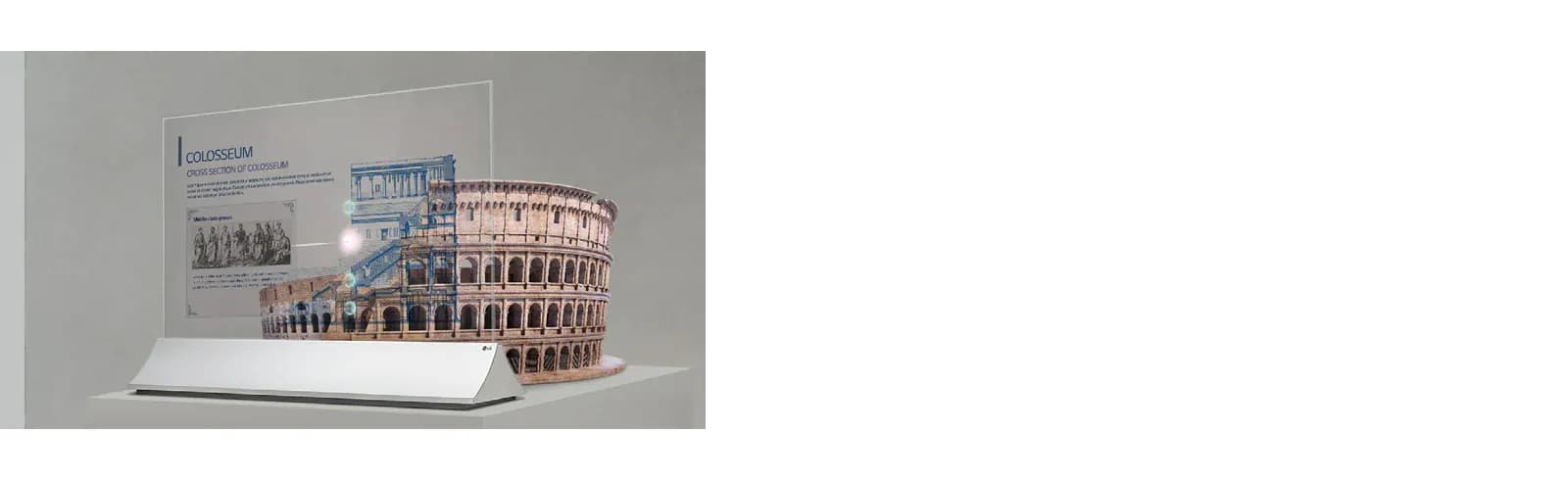

High Transparency

LG’s OLED technology gives the Transparent OLED Signage a slimmer structure without a backlight unit nor a liquid crystal layer, achieving a high transparency of 38%, much higher than conventional LCD transparent displays (10%*). While clearly showing objects behind the screen, it overlays the relevant information right before them.
High Transparency

High Transparency

LG’s OLED technology gives the Transparent OLED Signage a slimmer structure without a backlight unit nor a liquid crystal layer, achieving a high transparency of 38%, much higher than conventional LCD transparent displays (10%*). While clearly showing objects behind the screen, it overlays the relevant information right before them.

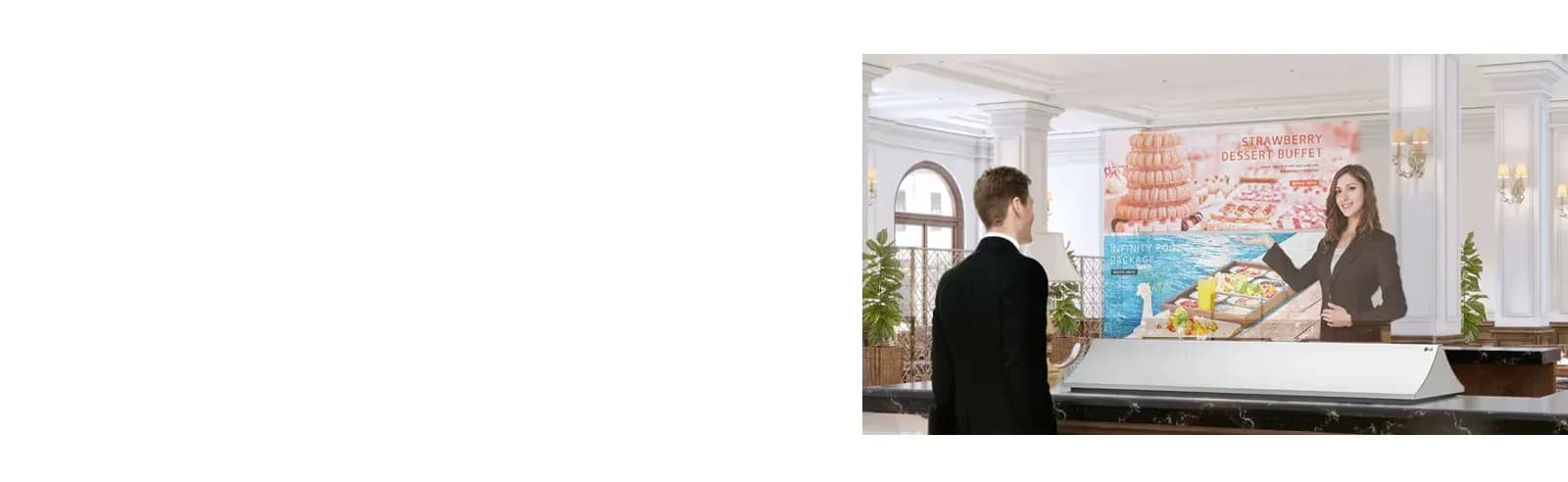

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and a high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
Accurate and Vivid Colors

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and a high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

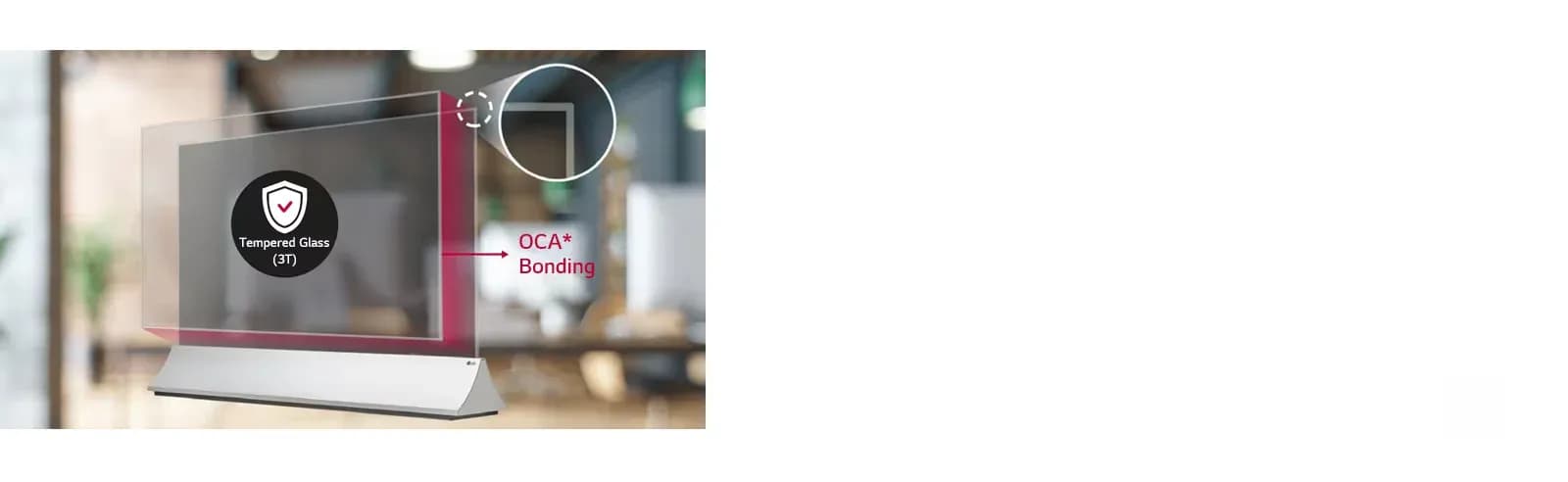

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered glass in front protects the product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.
Protective Tempered Glass

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered glass in front protects the product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

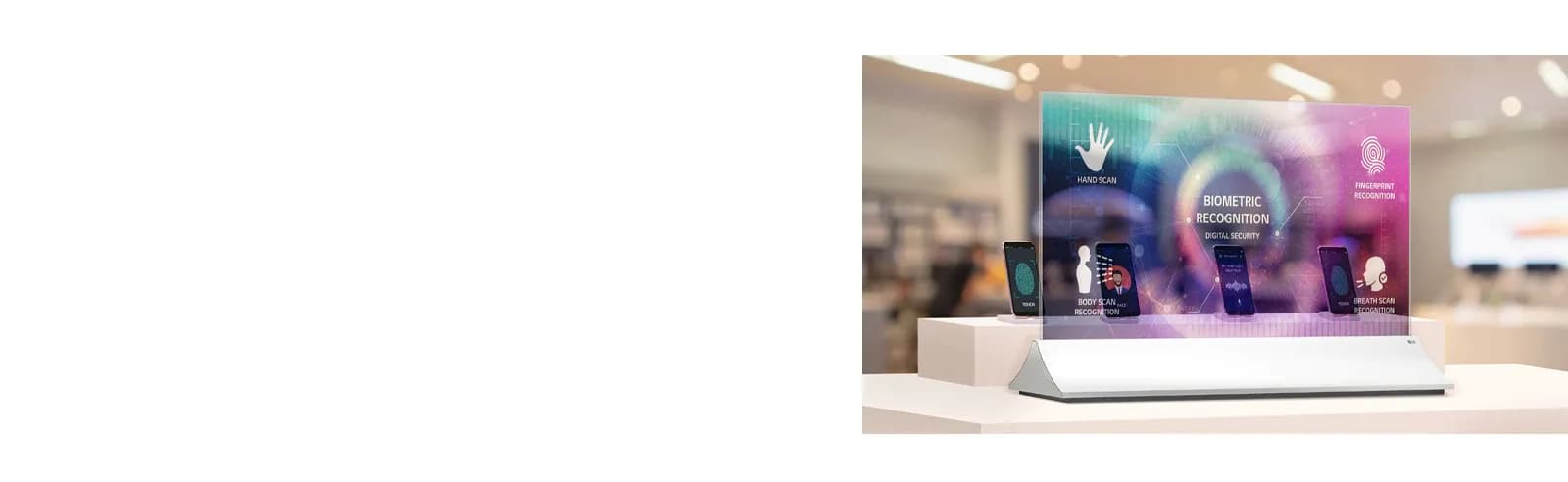

Alluring Design with a Stand

LG's alluring display concept takes a step forward. The transparent OLED with an alluring stand maintains the tone and manner of the design in harmony with its surroundings rather than dominating your space.
Alluring Design with a Stand

Alluring Design with a Stand

LG's alluring display concept takes a step forward. The transparent OLED with an alluring stand maintains the tone and manner of the design in harmony with its surroundings rather than dominating your space.

Screen Size

55"

Panel Technology

OLED

Back Light Type

OLED

Aspect Ratio

16:9

Native Resolution

1920x1080 (FHD)

Refresh Rate

120 Hz

Brightness

150/400nit (APL 100%/25%, Without Glass)

Contrast Ratio

150,000 : 1

Color gamut

BT709 120%

Viewing Angle (H x V)

178 x 178

Color Depth

10bit(R), 1.07Bilion colors

Response Time

1ms (G to G), 8ms (MPRT)

Surface Treatment(Haze)

Hard coating (2H)

Life time

30,000 Hrs (Typ.)

Operation Hours (Hours/Day)

18/7 (Moving Content Only)

Portrait / Landscape

Yes

Input

HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45(LAN), IR IN (No, Internal IR Receiver), USB2.0 Type A (2)

Output

DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45(LAN)

Bezel Color

Transparent

Bezel Width

T/R/L/B : 7.9/7.9/7.9/168.6mm

Weight(Head)

28.3Kg

Packed Weight

36.8Kg (with Pallet = 44.1Kg)

Monitor Dimension(W x H x D)

1256.2 x 856.9 x 242mm

Carton Dimensions(W x H x D) (Box outer size)

1344 x 334 x 965mm (with Pallet = 1370 x 360 x 1100mm)

Protection Glass

Depth 3.0mm, Tempered / Chemical strengthening (Chemical strengthening), Anti-Reflective (Film), Shatter-Proof

HW

Internal Memory 16GB, Temperature Sensor, Local Key Operation

SW

webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting , Pro:Idiom

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC

ErP

Yes

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC

ErP / Energy Star

Yes / No

SuperSign CMS

Yes (v3.0)

SuperSign Control / Control+

Yes (v1.7 / v1.9)

SuperSign WB

Yes (v3.7.15)

SuperSign Media Editor

Yes (v3.7)

Signage 365 Care

Yes (v2.9)

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, HDMI Cable(3M), Cable Holder 2EA
