Transparent OLED Signage

Share:

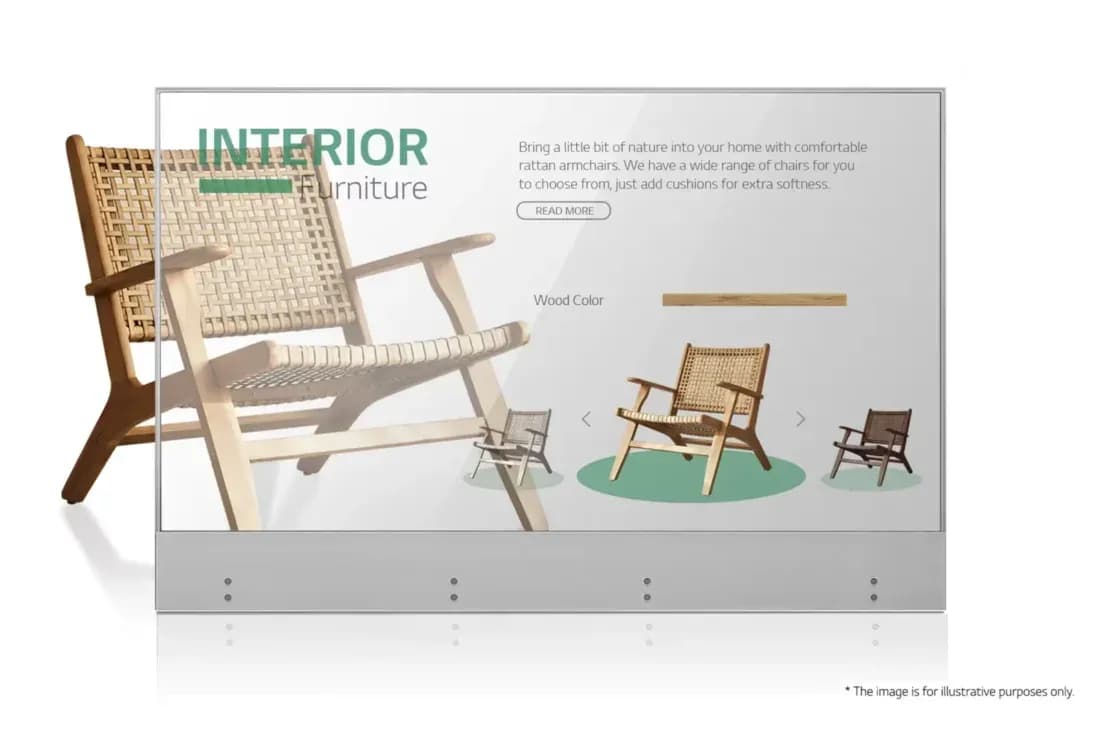

55EW5G-V

Transparent OLED Signage

Key Features

  • Brightness(Typ.): 400nit (APL 25%, Without Glass)
  • Transparency(Typ.) : 38%
  • Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR

Contact us

GGEAR Commercial

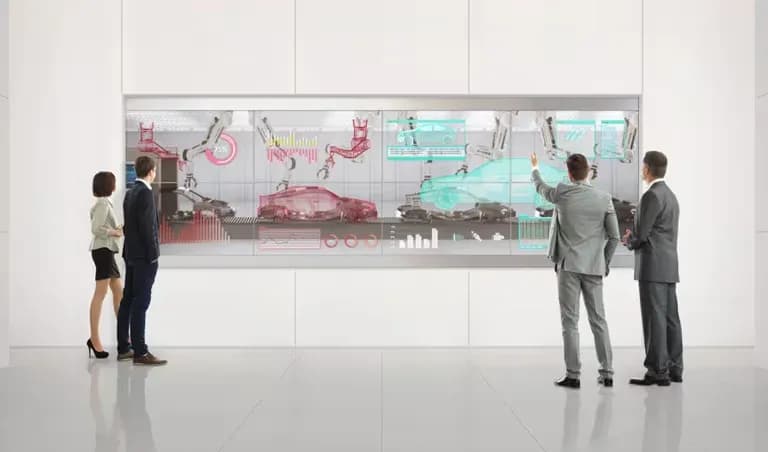

See the unseen, LG Transparent OLED


LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.

Banner Image

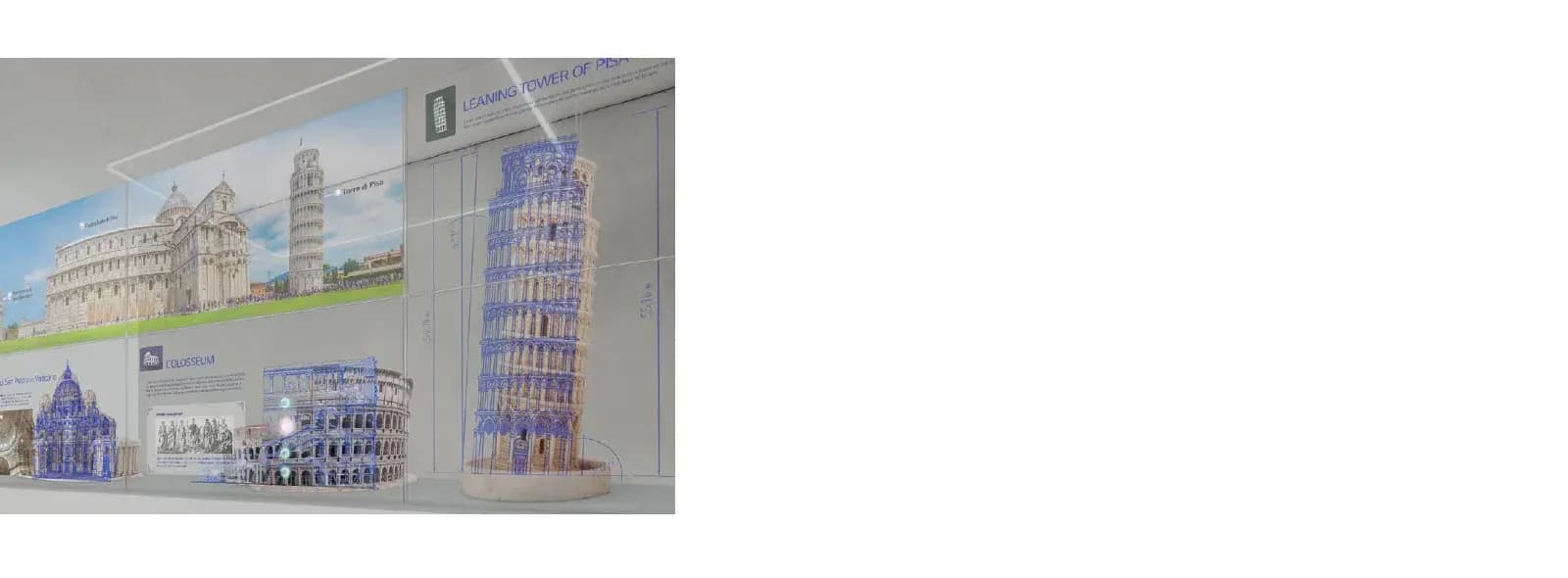

High Transparency

LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38%* much higher than conventional LCD transparent displays (10%**). While clearly showing objects behind the screen, it overlays the relevant information right before them.
High Transparency

High Transparency

LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38%* much higher than conventional LCD transparent displays (10%**). While clearly showing objects behind the screen, it overlays the relevant information right before them.

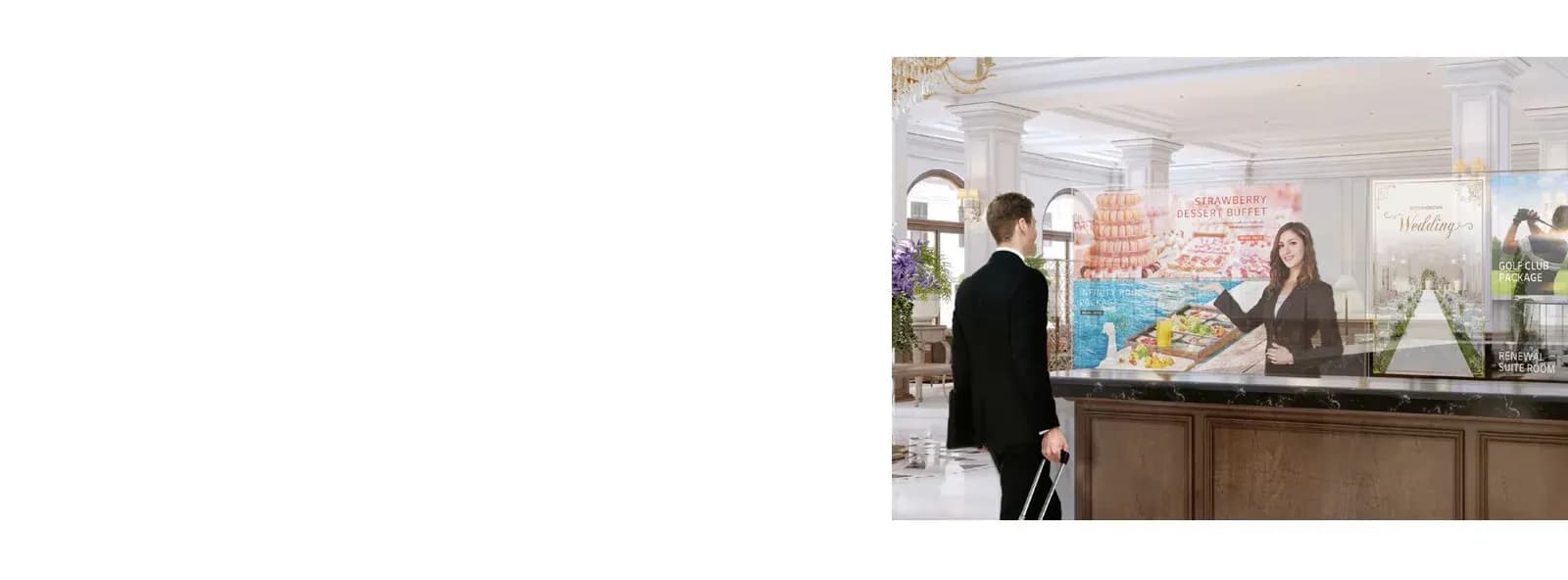

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
Accurate and Vivid Colors

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

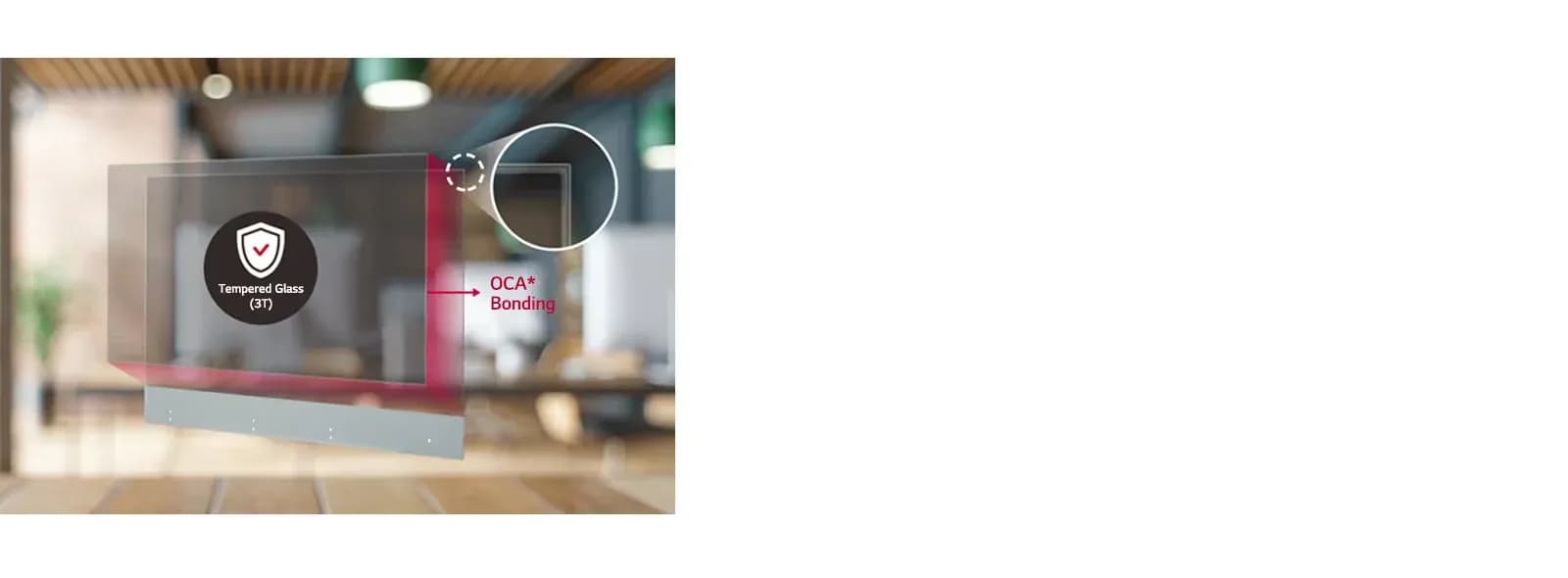

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.
Protective Tempered Glass

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

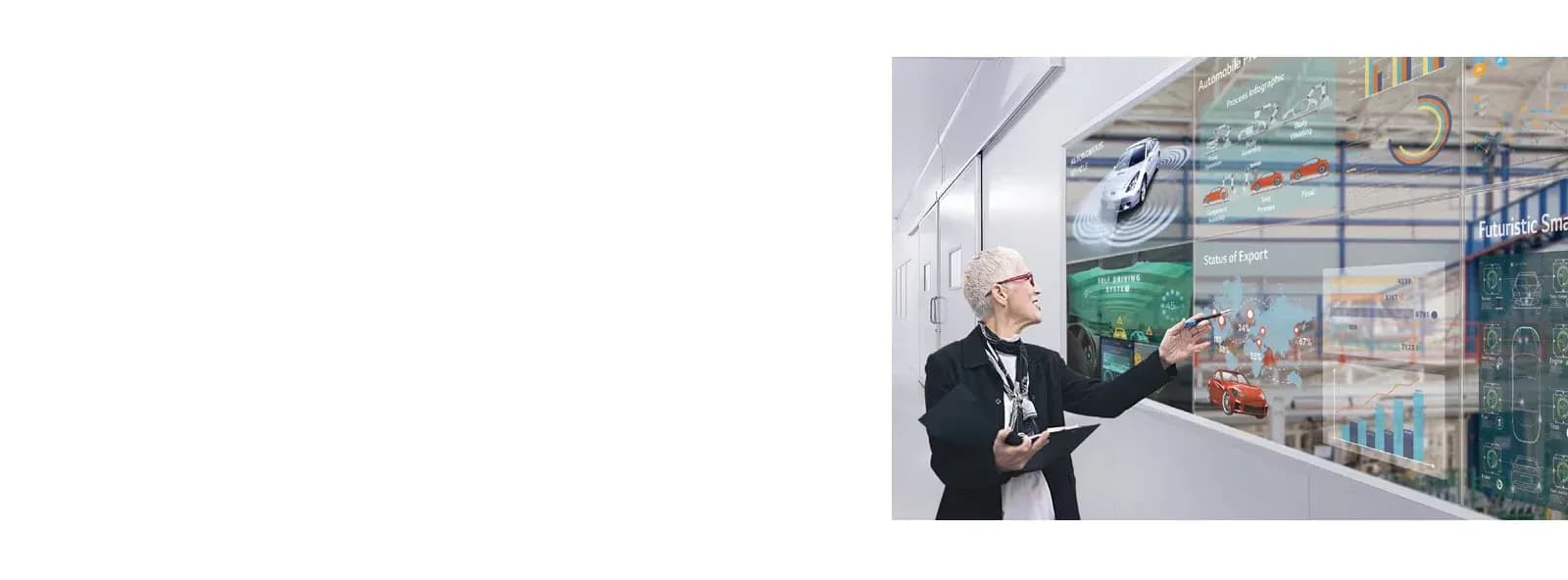

Expandable Design (2×N Tiling)

LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
Expandable Design (2×N Tiling)

Expandable Design (2×N Tiling)

LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

Screen Size

55"

Panel Technology

OLED

Back Light Type

OLED

Aspect Ratio

16:9

Native Resolution

1920x1080 (FHD)

Refresh Rate

120Hz

Brightness

150/400nit (APL 100%/25%)

Contrast Ratio

150,000 : 1

Color gamut

BT709 120%

Viewing Angle(H x V)

178 X 178

Color Depth

10bit(R), 1.07Bilion colors

Response Time

1ms (G to G), 8ms (MPRT)

Surface Treatment(Haze)

Hard coating (2H) Reflectance Typ. 1.2%

Life time

30,000 Hrs (Typ.)

Operation Hours (Hours/Day)

18/7 (Moving Content Only)

Portrait / Landscape

Yes

Input

HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45 (LAN), IR IN (1, External IR Receiver), USB2.0 Type A (2)

Output

DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45 (LAN)

Bezel Color

Black

Bezel Width

T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel)

Bezel Width

T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel)

Bezel Width

T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel)

Bezel Width

T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)

Weight(Head)

5.8Kg (LandScape, Head) 7.0Kg (Portrait, Head) 3.5Kg (Signage Box)

Packed Weight

17.0Kg (LandScape) 17.6Kg (Portrait)

Monitor Dimension(W x H x D)

1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut) 701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut) 1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut) 701.4 x 1219.7 x 12.4mm (Portrait, Head, w/o Pemnut) 413 x 353 x 57.3mm (Signage Box)

Carton Dimensions(W x H x D) (Box outer size)

1360 x 842 x 252mm

HW

Internal Memory 16GB, Temperature Sensor, FAN

SW

webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over,Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom, Scan Inversion

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

Typ.

116W

Max.

318W

BTU (British Thermal Unit)

1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)

DPM

0.5W

Power off

0.5W

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC

ErP / Energy Star

Yes / No

SuperSign CMS

Yes (v3.0)

SuperSign Control / Control+

Yes (v1.7 / v1.9)

SuperSign WB

Yes (v3.7.15)

SuperSign Media Editor

Yes (v3.7)

Signage 365 Care

Yes (v2.9)

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for connection between panel and Sinage box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Tape(4EA for Cabling), Screw(M3xL4.5,30EA / M3xL5.5,50EA / M3x3.5, 10EA), Shield Cover Assy', Tiling Set Fixer 6EA, Flex Bar 2EA

Tilt (Facedown)

Yes
