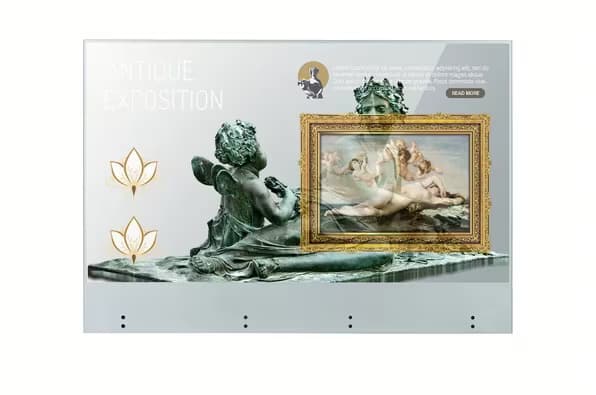

Transparent OLED Touch Signage

Share:

55EW5TK-A

Transparent OLED Touch Signage

Key Features

  • Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
  • Transparency(Typ.) : 33% (Set)
  • Bezel : 7.9 mm (T/B/L), 144.5 mm (B)
  • Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
  • P-Cap Touch, Tempered Front Glass (3T)

Contact us

GGEAR Commercial


Versatile OLED with Accurate Color, Customized to Suit Your Needs

Enhance your workplace with LG’s 65EP5G OLED professional monitor that has been developed to meet a variety of use cases and workflows in content production, post-production and distribution. 65EP5G builds upon the capabilities of LG’s OLED displays recognized by a Technology and Engineering Emmy® award and incorporates additional features and functionality to meet the needs of professionals.

Banner Image

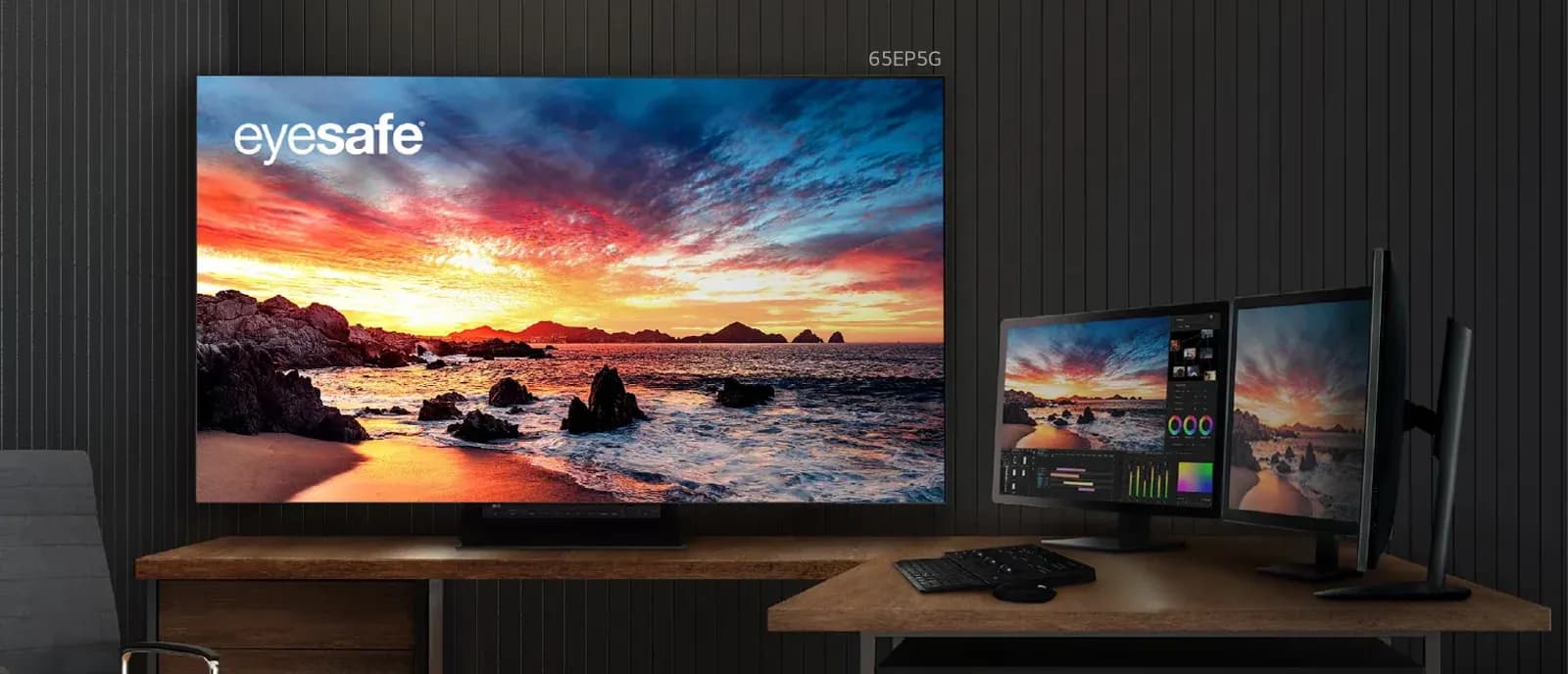

Accurate Color with a Wide OLED Screen

Advanced Calibration functionality allows the display to achieve reference performance for picture quality enabled by LG’s proprietary software (SuperSign for White Balance) and color accuracy & uniformity via CalMAN. It supports programmable hardware 1D & 3D LUTs and multiple color-accurate profiles for rapid transitioning between calibrated modes. On top of that, 65EP5G helps protect colorists' eyes from blue light, as it has been certified to meet EYESAFE standards for quality and safety for the user’s eye health.

Banner Image

Diverse I/O Interfaces

A variety of input interfaces are provided including HDMI and SDI In/Out with BNC, and also it supports SDI over IP via SFP+ case with a SFP module. Also included interface is a Genlock input for use in broadcast and virtual production applications.
Diverse I/O Interfaces

Diverse I/O Interfaces

A variety of input interfaces are provided including HDMI and SDI In/Out with BNC, and also it supports SDI over IP via SFP+ case with a SFP module. Also included interface is a Genlock input for use in broadcast and virtual production applications.

Convenience and Functionality

The control panel provides shortcuts to frequently used functions and profiles featuring different monitor settings and picture quality options. Also, a variety of user selectable on-screen features are available such as Markers, Zoom, Audio Level Meters, and Waveform & Vector Scopes.
Convenience and Functionality

Convenience and Functionality

The control panel provides shortcuts to frequently used functions and profiles featuring different monitor settings and picture quality options. Also, a variety of user selectable on-screen features are available such as Markers, Zoom, Audio Level Meters, and Waveform & Vector Scopes.

Screen Size

65"

Panel Technology

OLED

Native Resolution

3,840 × 2,160 (UHD)

Brightness

950 / 850 / 450 / 175 nit @D65 (APL 3% / 10% / 25% / 100%)

Contrast Ratio

1,850,000:1

Color gamut

DCI-P3 98.5%

Color Depth

1.07 Billion Colors (10 bit)

Operation Hours (Hours/Day)

12/7 (Moving Content Only)

Portrait / Landscape

No / Yes

Input

HDMI (2, (HDCP1.4/2.2, HDMI2.1)), SDI (4, 12G × 4, Single Link : SD / HD / 3G / 6G / 12G, Dual Link : HD / 3G_4K , Quad Link : HD_4K / 3G_4K, Quad View : SD / HD / 3G / 6G / 12G), REF (Black Burst, Tri-Level), USB 2.0 Type A (SW update, & Calibration), Power (AC)

Output

Audio (Head-Phone), SDI (4, Loop-through)

External Control

RS-232C In (Service Only), RJ45 (LAN, 100base-T) In, RJ45 (Remote, GPI 7port) In / Out, SFP In (SFP+, Support Only for The Embrionix's SFP Module), IR In

Bezel Color

Black

Bezel Width

Off Bezel : 2.0 / 2.0 / 2.0 / 2.0 mm (T/R/L/B) On Bezel : 8.7 / 8.9 / 8.9 / 11.6 mm (T/R/L/B)

Weight (Head)

31 kg

Weight (Head+Stand)

35 kg

Packed Weight

45.5 kg

Monitor Dimensions (W × H × D)

1,446.3 × 853.8 × 56.5 mm (w/ Control Box)

Monitor Dimensions with Stand (W × H × D)

1,446.3 × 896.5 × 272 mm

Carton Dimensions (W x H x D) (Box outer size)

1,670 × 200 × 1,108 mm

Handle

Yes

VESATM Standard Mount Interface

300 × 300 mm

SW

webOS 5.0, Multi-screen (PIP, PBP (2))


Color Adjustment (OLED Light, Contrast, Chroma, Sharpness, Tint), Color Temp (VAR / 9300 K / 6500 K / 5400 K / 3200 K / D65 (6504 K) / C (6774 K) / D-Cinema (6302 K)), Over Scan (Zero Scan, Over Scan, Under Scan), Aspect Ratio (Full Wide, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1:1, Original), AFD (Active Format Description) (Yes), Zoom (×2 ~ ×5), HDR / SDR Monitoring (Yes), 3rd Party Cal. SW Compatibility (CalMAN - Including Uniformity Compensation, 9 p / 13 p / 25 p, EBU Grade1) (LG Connect must be on.), Eyesafe Certification (Less than 50% of Blue Light Emission) (Yes), Color Accuracy : DeltaE < 2 (Yes)

Color

Gamut (Native, P3, BT.709, SMPTE-C, BT.2020, EBU, Adobe RGB, NTSC), SDI Color Format (Auto, RGB444, YCbCr444, YCbCr422), R/G/B Gain (-768 ~ 255), Mono/Blue Only, Transfer Matrix, Mastering Peak, EOTF (Auto / User / 1.9 / 2.2 / 2.4 / 2.6 / SDR (Calibration) / ST.2084 PQ / BT.2100 HLG / HDR (Calibration) / Dolby Vision / Dolby Vision (Calibration))

Marker

Marker, Safety Area, Center Marker

Audio

Audio Level Meter (Ch1~16, Selectable), Dolby Atmos (2Ch, Down Mix through Audio Out Port)

GPI

GPI Control (General Purpose Interface)

Video Analysis

Waveform, Vector Scope, Time Code (LTC, VITC), PIP/PBP

Advanced

Profile Load / Save (Profile 1~10), Function Key (Function1~5), Tally, Gen Lock, LG Connect, 3rd Party Control Pad Compatibility (Open API), Remote IP Control App (HTML)

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power Supply

AC 100-240V~, 50/60Hz

Typ.

139W

Max.

470W

BTU (British Thermal Unit)

1,054 BTU/Hr (Typ.), 1,085 BTU/Hr (Max.)

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC

ErP / Energy Star

Yes (EU Only) / No

SuperSign WB

Yes

CalMAN SW Compatibility

Yes

IP Remote Utility

Yes

OSD

English, Korean

Basic

Remote Controller, IG (Installation Guide), Regulation Book
