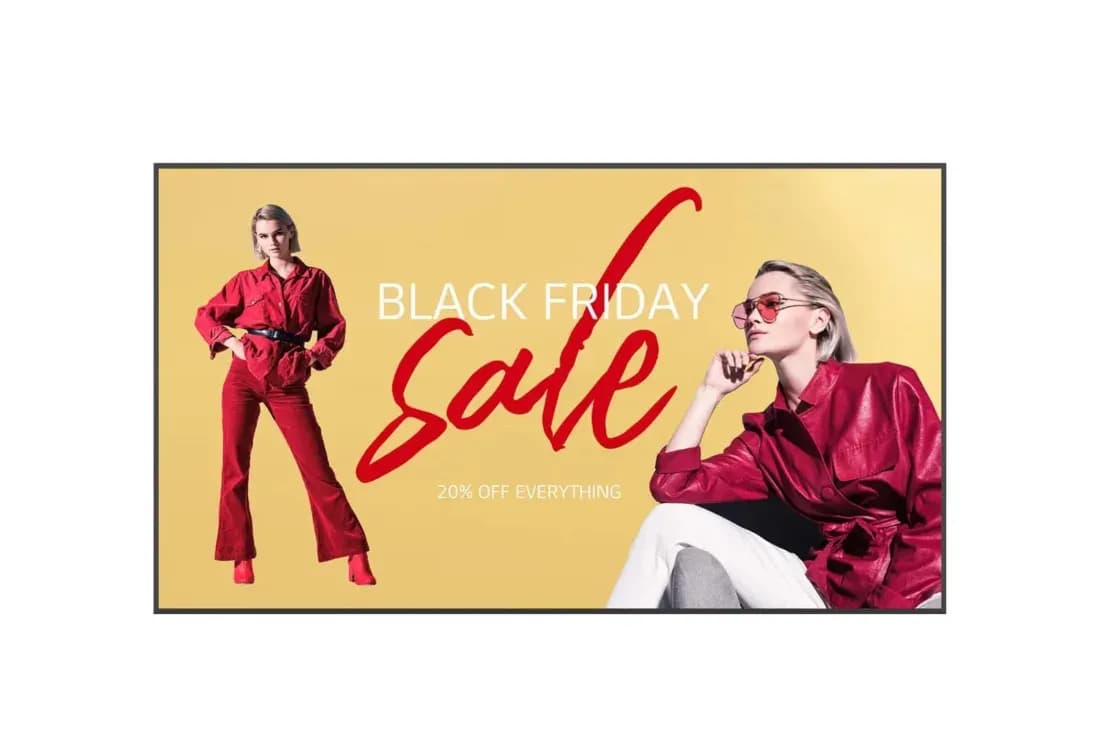

110UM5K
UHD Large Screen Signage Display
Key Features
- Brightness : 500 nit (Typ.)
- Resolution : ULTRA HD (3,840 x 2,160)
- Bezel : 17 mm (Even bezel)
- Built-in Speaker (10 W + 10 W)
- Interface : HDMI(3) / DP / DVI-D / USB 2.0 / RS232C / RJ45 / Audio / IR & Light Sensor
Contact us
GGEAR Commercial
UHD Large Screen Signage Display with LG webOS Platform
Super High Resolution
Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.
Adequate Brightness Level
The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

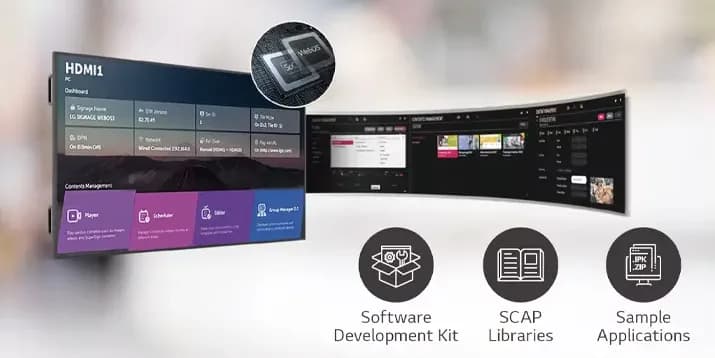

High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

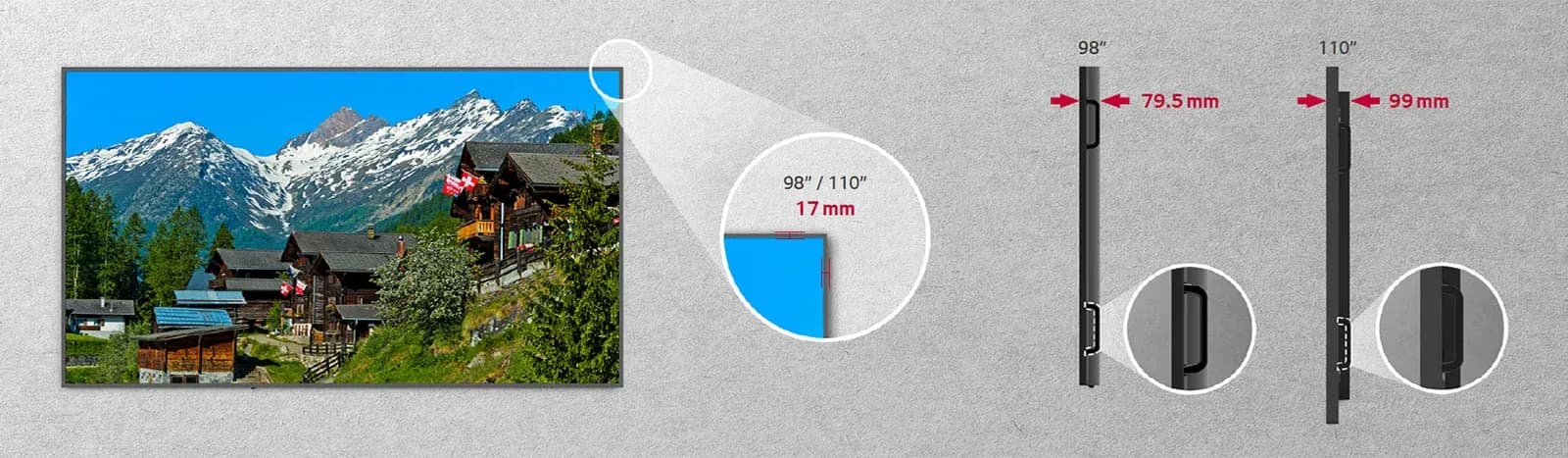

Slim Design
Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices.

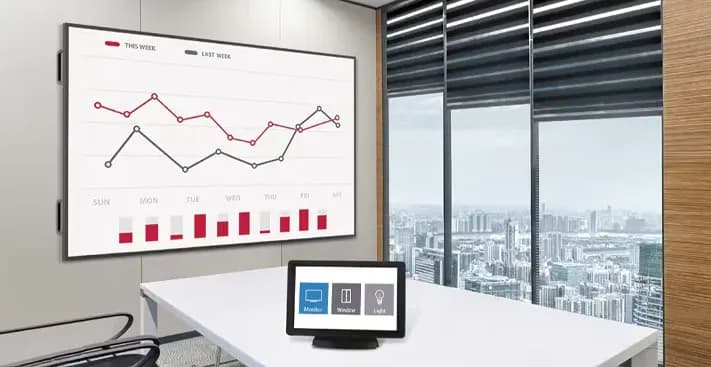

Compatible with AV Control System
The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

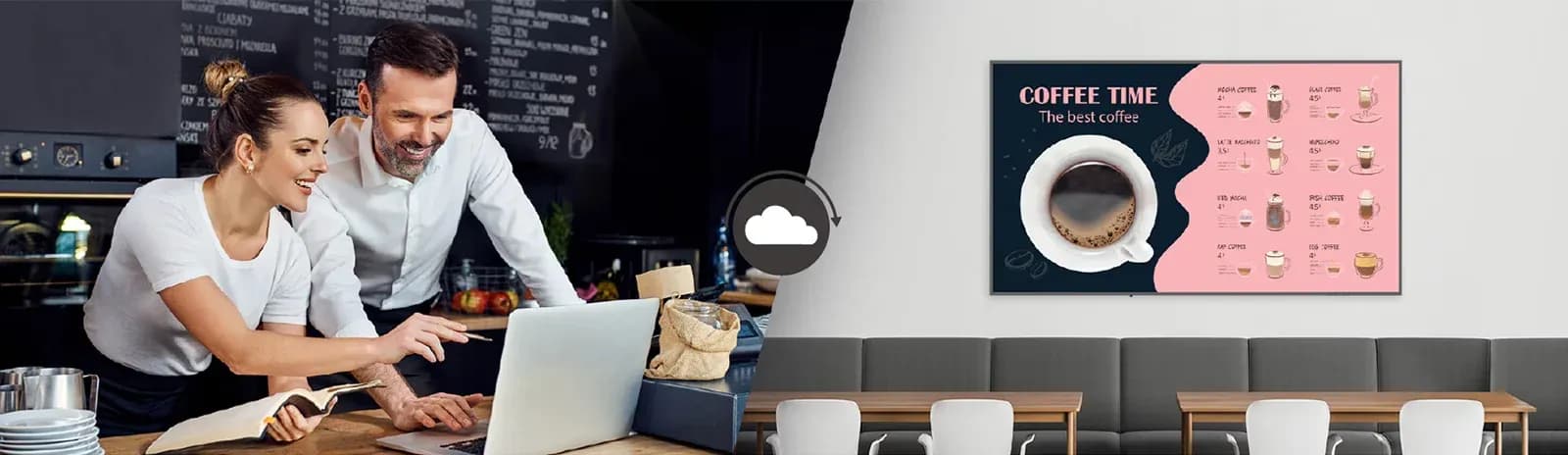

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Screen Size
110"
Panel Technology
ADS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120 Hz
Brightness (Typ.)
500nit (Typ.)
Contrast Ratio
1,200:1
Dynamic CR
1,000,000:1
Color gamut
DCI-P3 88%↑
Viewing Angle (H x V)
178 x 178
Color Depth
8bits + FRC, 1.07Billion colors
Response Time
8ms (G to G)
Surface Treatment(Haze)
1%
Life time
50,000 Hrs (Min.)
Operation Hours (Hours/Day)
16/7
Portrait / Landscape
No / Yes
HDMI IN
O(3) HDMI1/HDMI2 : HDCP 2.2/1.4 HDMI3 : HDCP 1.4
DP IN
Yes (1), HDCP2.2/1.3
DVI-D IN
Yes (1), HDCP2.2/1.3
Audio IN
Yes (1)
RS232C IN
Yes (1), HDCP1.4
RJ45(LAN) IN
Yes (1)
IR IN
Yes (1)
USB IN
USB2.0 Type A (1)
HDMI Out
Yes (1)
Audio Out
Yes (1)
RS232C Out
Yes (1), 4pin Phone-jack
Daisy Chain
Yes (Input HDMI, DP, DVI / Output HDMI)
Bezel Color
Black
Bezel Width
Even bezel: 17mm
Weight (Head)
78Kg
Packed Weight
105Kg
Monitor Dimension (W x H x D)
2198 x 1253 x 79.5mm
Carton Dimensions(W x H x D)
2455 x 1458 x 288mm
Handle
Yes
VESA Standard Mount Interface
1500 x 600
Internal Memory
16GB
Wi-Fi (Built-in)
Yes
Temperature Sensor
yes
Auto Brightness Sensor
Yes
Acceleration (Gyro) Sensor
Yes
Power Indicator
Yes
Local Key Operation
Yes
Speaker (Built-in)
Yes (10W X 2)
OS ver.
webOS 6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail Over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
PIP
Yes
PBP
Yes (4)
Screen Share
Yes
Video Tag
Yes (4)
Play via URL
Yes
Screen Rotation
No
External Input Rotation
No
Gapless Playback
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Cisco Certi.
Yes
Crestron Inside
Yes
Smart Energy Saving
Yes
PM Mode
Yes
Wake on LAN
Yes
Network Ready
Yes
Beacon
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
Operation Temperature
0 °C to 40 °C
Operation Humidity
10%～80%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Power Consumption (Typ.)
440W
Power Consumption (Max.)
570W
Power Consumption (British Thermal Unit)
1501 BTU/Hr(Typ.), 1945 BTU/Hr(Max)
Power Consumption (Smart Energy Saving, ~70%)
308W
Power Consumption (DPM)
0.5W
Power Consumption (Power Off)
0.5W
Safety
CB / NRTL
EMC
FCC Class"A" / CE / KC
ErP / Energy Star
Ys (NewErP) / No
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes
SuperSign Cloud
Yes
Promota
Yes (Not available for EU/CIS)
Mobile CMS
Yes
Connected Care
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic, Polski
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, Regulation Book, Phone to RS232C Gender
