98UH5F-H

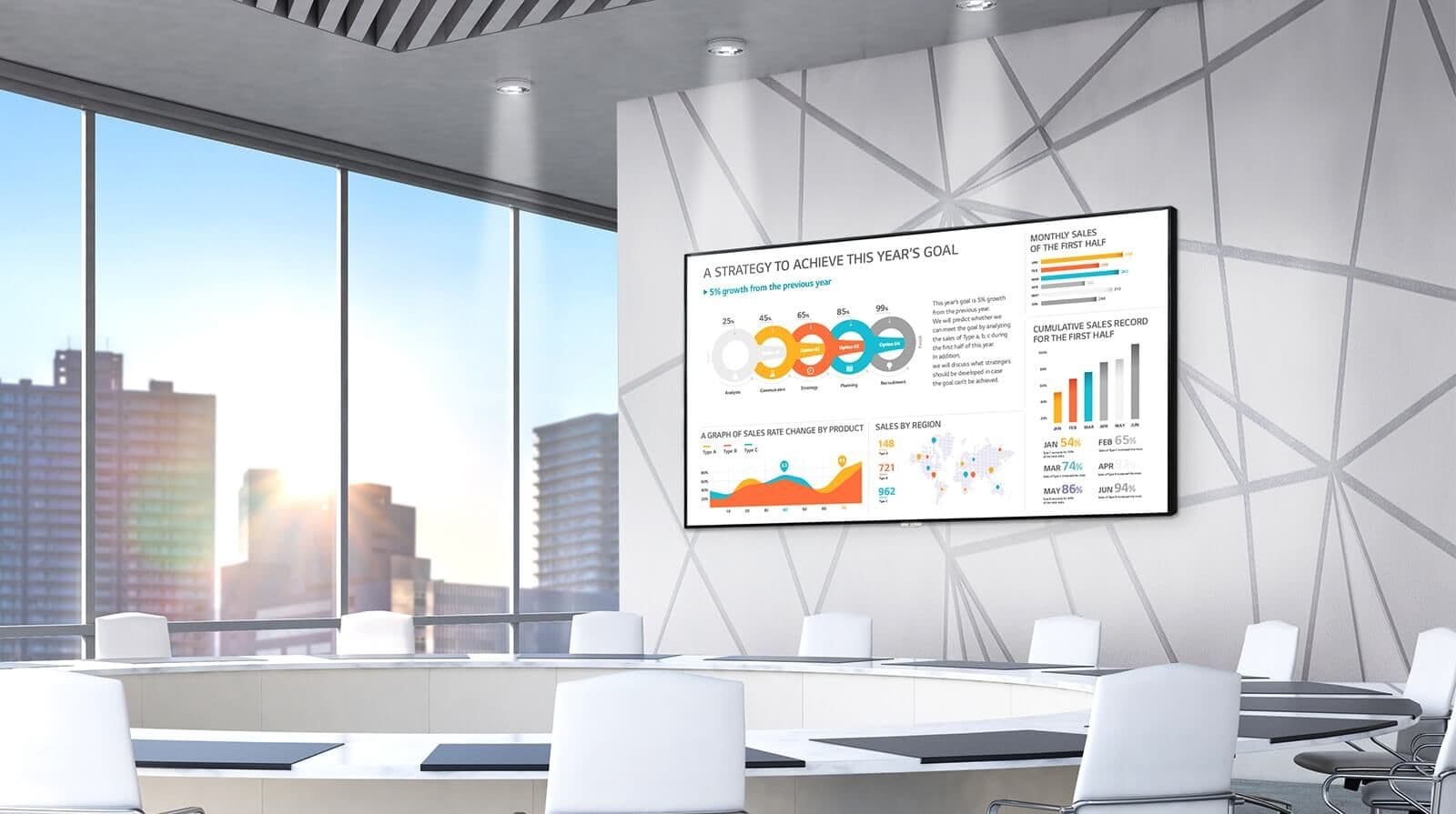

98″ UHD Large Screen Signage UH5F-H Series
Key Features
- Brightness(Typ.) : 500 cd/m²
- Surface Treatment (Haze) : 28%
- Bezel : 14.9 mm (Even)
- Depth : 83.8 mm (without Handle)
- Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker and Detachable Logo
Contact us
GGEAR Commercial

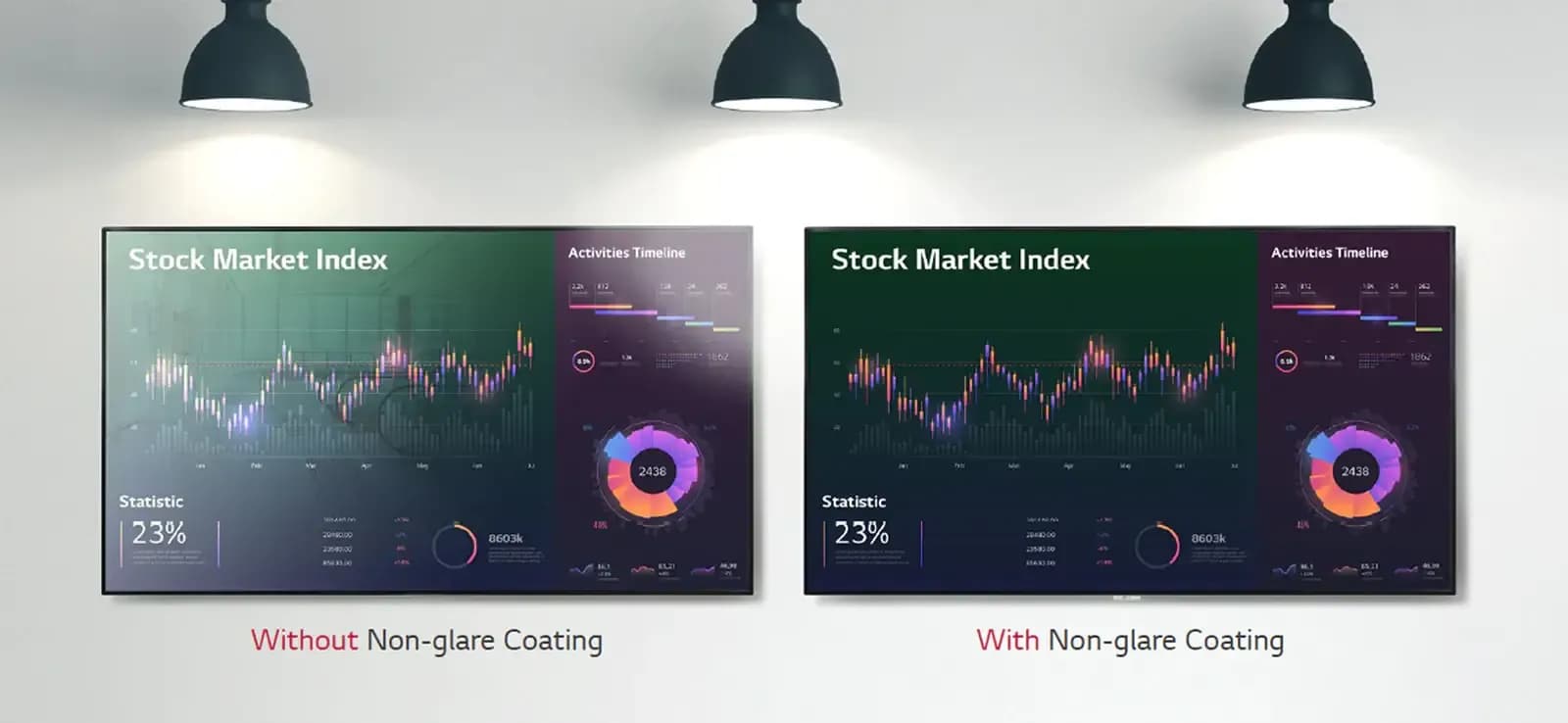

SUPERB PICTURE QUALITY Clear View with Non-glare Coating
Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.
High-Performance with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Compatible with AV Control System
The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatible with Video Conference System
For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
EASY MANAGEMENT Real-time Monitoring & Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Cloud Care Service - Signage365care
The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

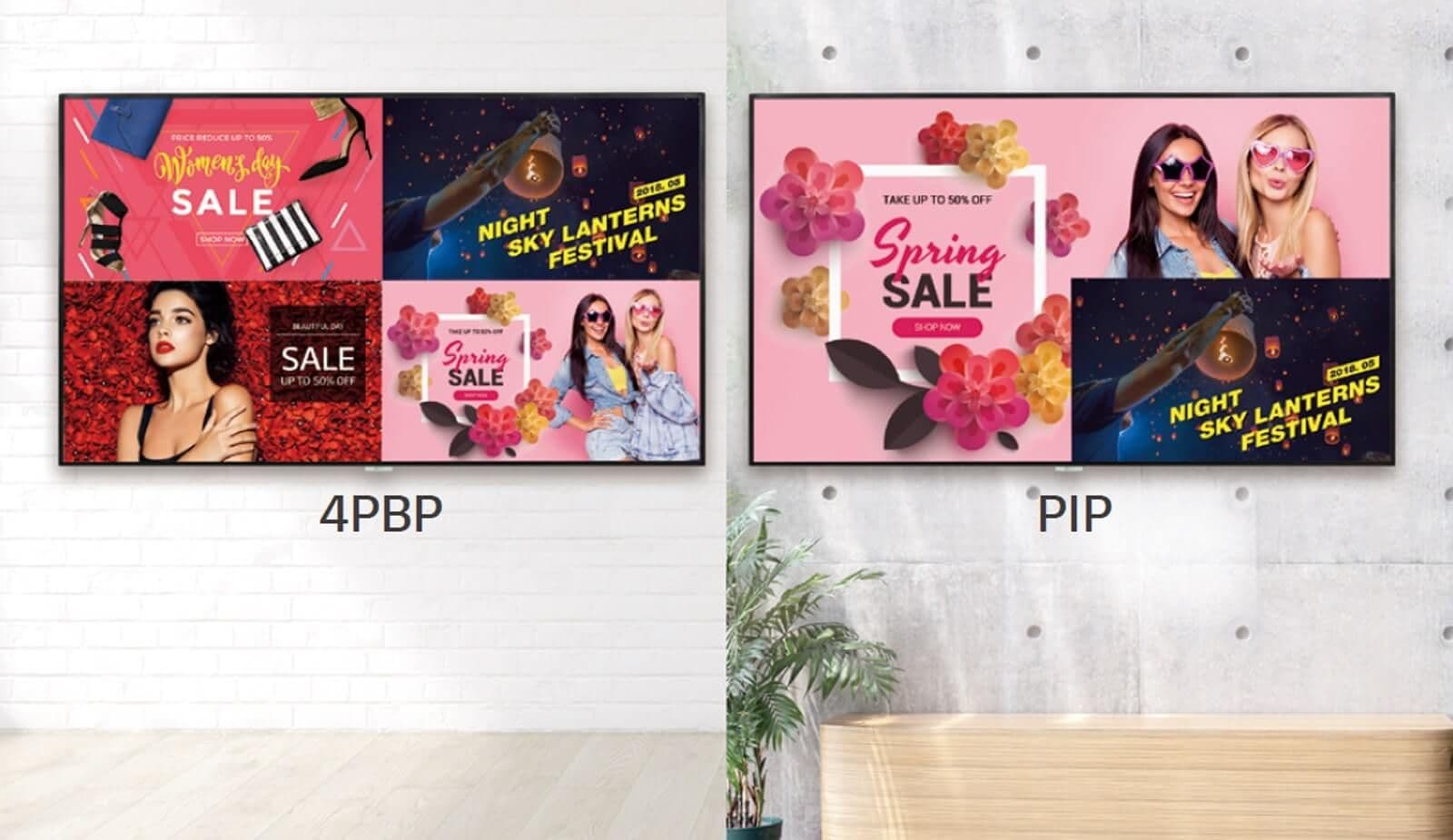

Multiscreen Feature with PBP / PIP
PBP (Picture-By-Picture)features multiple screens in a single display with up to 4 input sources while PIP (Picture-In-Picture) supports playing both a main screen and a subscreen at the same time with various layouts. This gives great flexibility to allocate space for each content source.
USER CONVENIENCE Wireless Access Point
The UH5F-H series operates as a virtual router which can be an wireless access point for mobile devices.
Screen Size
98”
Native Resolution
3,840 x 2,160 (UHD)
Contrast Ratio
1,200:1
Color gamut
NTSC 72%
Color Depth
1.06 Billion Colors (10 bit)
Surface Treatment (Haze)
Haze 28%
Portrait / Landscape
Yes / Yes
Panel Technology
IPS
Brightness (Typ.)
500
Dynamic CR
1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.
Color Depth
178 x 178
Response Time
8ms (G to G)
Operation Hours (Hours / Day)
24 / 7
Input
HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2)
External Control
RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In
Output
DP, Audio
Bezel Color
Black
Weight (Head)
81.1 kg
Handle
Yes
Bezel Width
14.9 mm (Even Bezel)
Monitor Dimension (W × H × D)
2,191.8 × 1,246.8 × 83.8 mm (Without Handle and LG Logo)
VESA™ Standard Mount Interface
800 x 400 mm
Operation Temperature
0℃ to 40℃
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ. / Max.
420 W / 560 W
BTU (British Thermal Unit)
1,433.25 BTU/Hr(Typ.), 1,911 BTU/Hr(Max)
Speaker
Yes
Safety
CB, NRTL
EMC
FCC Class "A" / CE / KC
ErP
Yes
Signage365Care
Yes (The availability can differ by region.)
SuperSign Control / Control+
Yes
SuperSign Media Editor
Yes
SuperSign CMS
Yes
SuperSign WB
Yes
Basic
Remote Controller, Power Cord, QSG, IR / Light Sensor Receiver, DP Cable (1.8 M), Regulation Book, Phone to RS232C Gender, EYE-BOLT
