Wallpaper OLED Signage

Share:

55EJ5K

Wallpaper OLED Signage

Key Features

  • Brightness(Typ.) : 150/400 nit (APL 100% / 25%)
  • Bezel : 5.3 mm (T/B/L), 11.0 mm (B)
  • Interface : HDMI / DP / USB(2) / RS232C / RJ45 / Audio / IR

Contact us

GGEAR Commercial


Artistic Space beyond Display, LG Wallpaper OLED Signage


Banner Image

Absolute Black

Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.
Absolute Black

Absolute Black

Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.

Rich Color

LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.
Rich Color

Rich Color

LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.

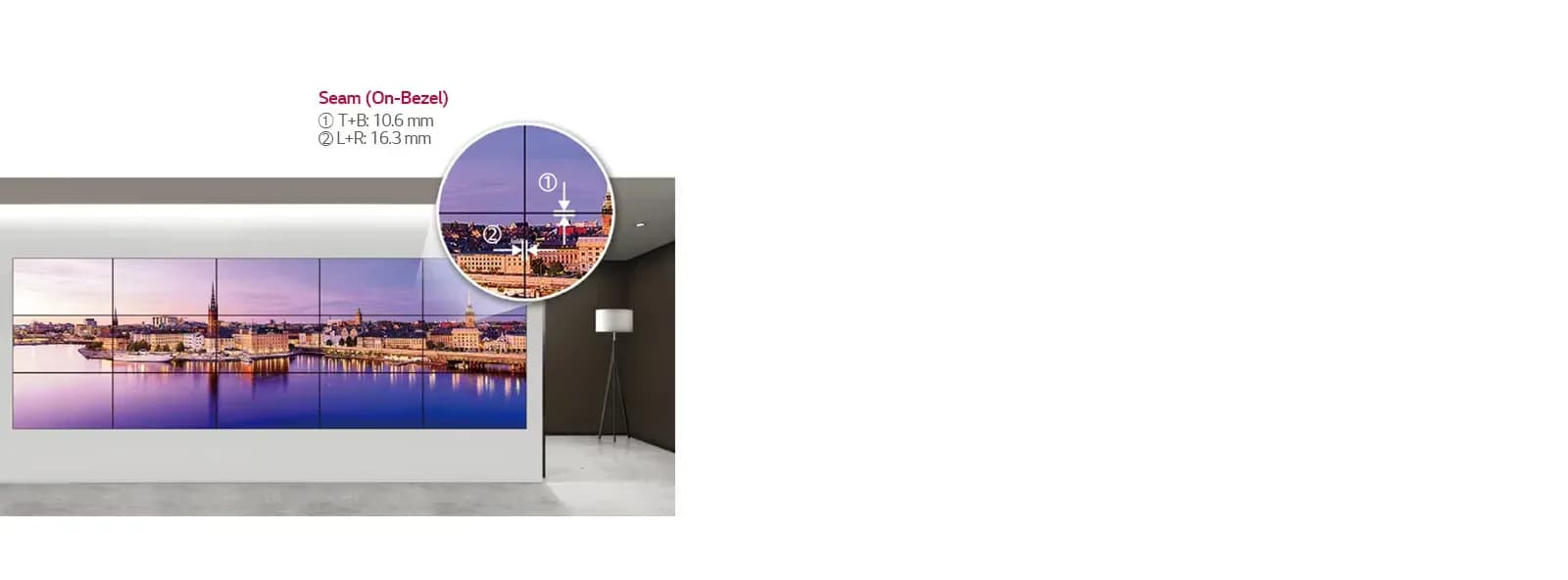

Wallpaper OLED Signage

By tiling up displays horizontally and vertically, the screen size can be as large as users want. Expansive, large screens are more effective at moving viewers by providing an incredibly immersive viewing experience.
Wallpaper OLED Signage

Wallpaper OLED Signage

By tiling up displays horizontally and vertically, the screen size can be as large as users want. Expansive, large screens are more effective at moving viewers by providing an incredibly immersive viewing experience.

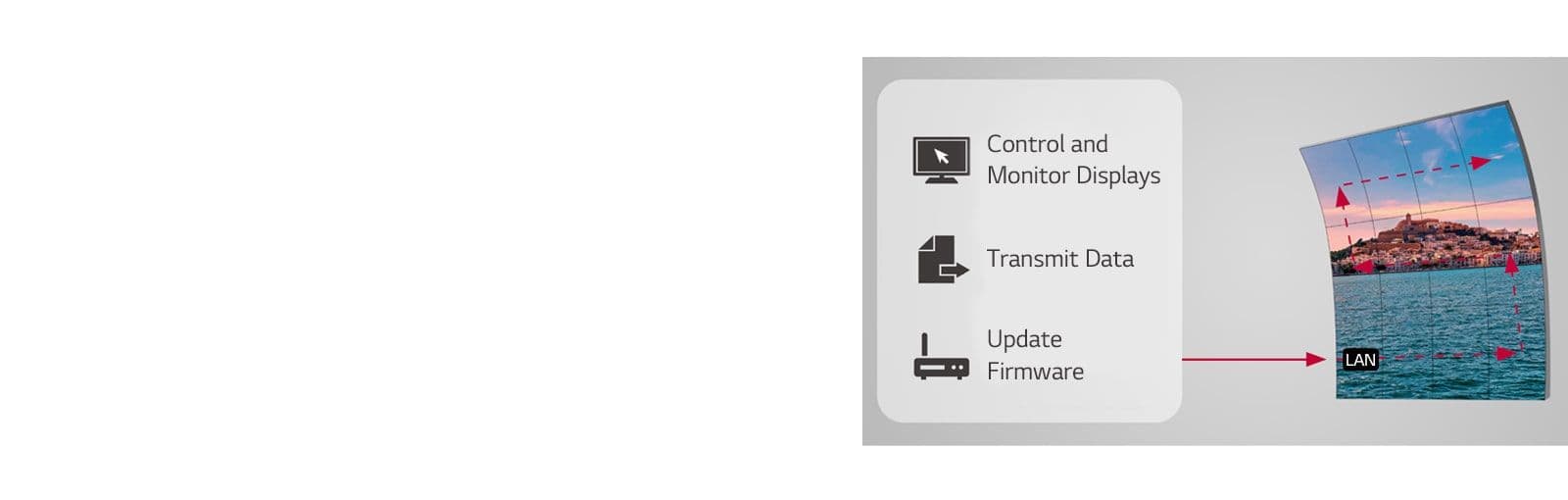

LAN Daisy Chain Management

A LAN daisy chain is supported, allowing you to execute commands to control and monitor the displays and even update their firmware.
LAN Daisy Chain Management

LAN Daisy Chain Management

A LAN daisy chain is supported, allowing you to execute commands to control and monitor the displays and even update their firmware.

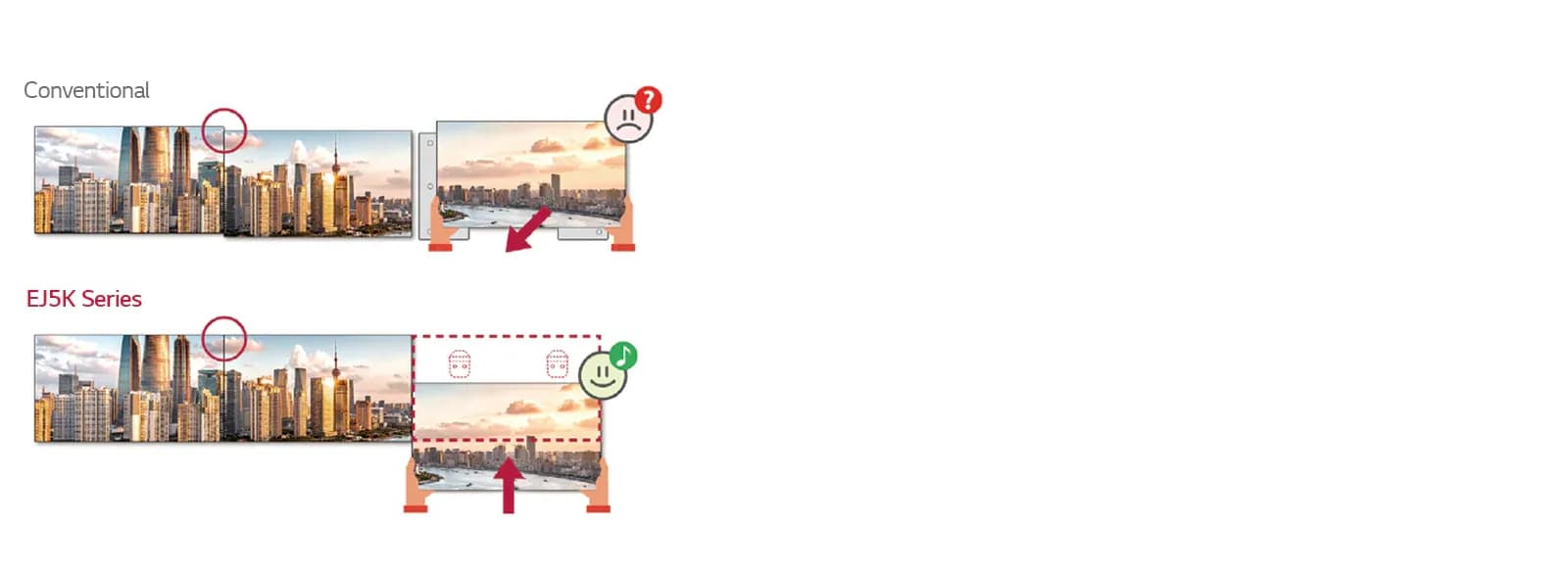

Wall Fixers Optimized for Simple Tiling

The overall installation process of the wallpaper OLED has gotten much easier. Once the dedicated wall fixers are driven into a wall, a display can be easily hung on them. Video wall tiling has become more convenient, thanks to its front installation feature, which departs from the conventional sidesliding method.
Wall Fixers Optimized for Simple Tiling

Wall Fixers Optimized for Simple Tiling

The overall installation process of the wallpaper OLED has gotten much easier. Once the dedicated wall fixers are driven into a wall, a display can be easily hung on them. Video wall tiling has become more convenient, thanks to its front installation feature, which departs from the conventional sidesliding method.

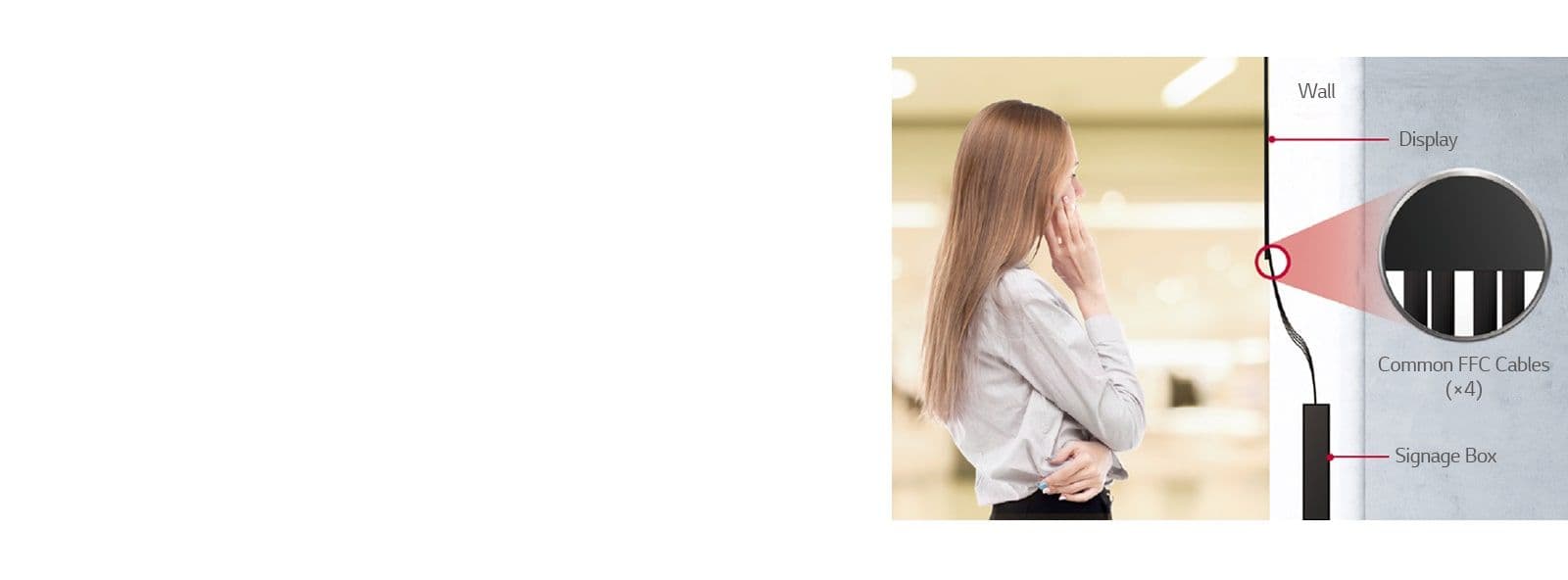

Enhanced Flexibility of Cables

As a result of in-depth consideration of usage scenarios, improvements have been made to the flexibility of common cables connecting the display to the signage box. These new cables are pliable enough to be easily embedded in a wall or other structures.
Enhanced Flexibility of Cables

Enhanced Flexibility of Cables

As a result of in-depth consideration of usage scenarios, improvements have been made to the flexibility of common cables connecting the display to the signage box. These new cables are pliable enough to be easily embedded in a wall or other structures.

Splendid Design

LG’s OLED technology unlocks the new worlds of design flexibility with unbelievably lightweight and slim display. The advantages the OLED display brings are countless from the easier installation to a sleek look.

Banner Image

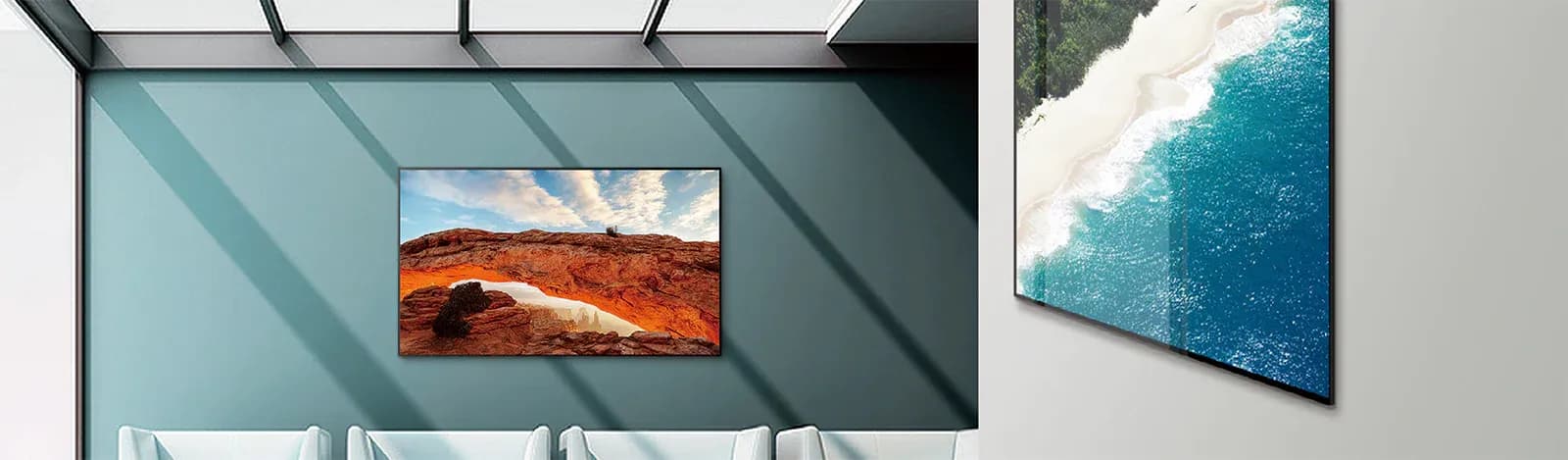

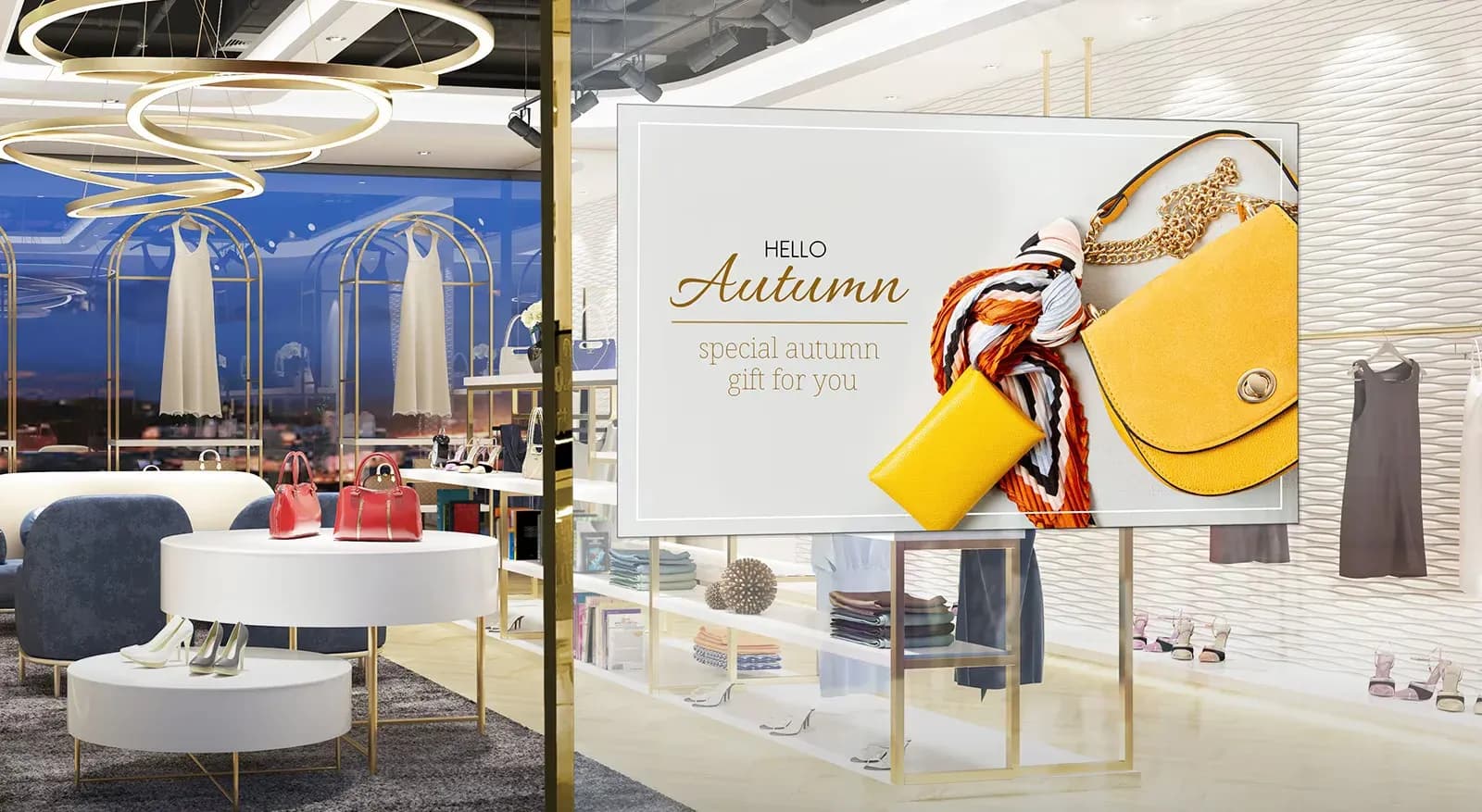

Hide in Plain Sight

The subtle edge of the wallpaper OLED totally blends in with the wall, giving audiences the sensation that content is being played directly within the wall itself. Integrating with and adding to a luxurious interior design, the wallpaper OLED is an effective method for delivering advertisements and information.

Banner Image

Screen Size

55"

Panel Technology

OLED

Back Light Type

OLED

Aspect Ratio

16:9

Native Resolution

1920x1080 (FHD)

Refresh Rate

120Hz

Brightness

150/400nit (APL 100%/25%)

Contrast Ratio

150,000 : 1

Color gamut

BT709 120%

Viewing Angle(H x V)

178 X 178

Color Depth

10bit(R), 1.07Bilion colors

Response Time

1ms (G to G), 8ms (MPRT)

Surface Treatment(Haze)

Hard coating (2H) Reflectance Typ. 1.2%

Life time

30,000 Hrs (Typ.)

Operation Hours (Hours/Day)

18/7 (Moving Content Only)

Portrait / Landscape

Yes

Input

HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45 (LAN), IR IN (1, External IR Receiver), USB2.0 Type A (2)

Output

DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45 (LAN)

Bezel Color

Black

Bezel Width

T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel)

Bezel Width

T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel)

Bezel Width

T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel)

Bezel Width

T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)

Weight(Head)

5.8Kg (LandScape, Head) 7.0Kg (Portrait, Head) 3.5Kg (Signage Box)

Packed Weight

17.0Kg (LandScape) 17.6Kg (Portrait)

Monitor Dimension(W x H x D)

1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut) 701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut) 1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut) 701.4 x 1219.7 x 12.4mm (Portrait, Head, w/o Pemnut) 413 x 353 x 57.3mm (Signage Box)

Carton Dimensions(W x H x D) (Box outer size)

1360 x 842 x 252mm

HW

Internal Memory 16GB, Temperature Sensor, FAN

SW

webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over,Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom, Scan Inversion

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

Typ.

116W

Max.

318W

BTU (British Thermal Unit)

1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)

DPM

0.5W

Power off

0.5W

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC

ErP / Energy Star

Yes / No

SuperSign CMS

Yes (v3.0)

SuperSign Control / Control+

Yes (v1.7 / v1.9)

SuperSign WB

Yes (v3.7.15)

SuperSign Media Editor

Yes (v3.7)

Signage 365 Care

Yes (v2.9)

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for connection between panel and Sinage box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Tape(4EA for Cabling), Screw(M3xL4.5,30EA / M3xL5.5,50EA / M3x3.5, 10EA), Shield Cover Assy', Tiling Set Fixer 6EA, Flex Bar 2EA

Tilt (Facedown)

Yes
