LUXEN
A premium low- and mid-speed gearless elevator with a ride comfort matching high-speed products as well as cost-efficient and eco-friendly features
HYUNDAI Elevator
LUXEN
Key Features
- Classification | Low- and Mid-Speed Elevator (MR)
- Use | Residential, office, educational, commercial buildings, public buildings, hotels, hospitals
- Maximum Travel Height up to 45 stories tall
- Speed 1 ~ 3 m/sec
- Capacity 1,800 kg
- Max Passenger Capacity 24 persons
HYUNDAI Elevator
LUXEN
Highly Efficient Gearless Synchronous Motor
The gearless traction machine with a permanent magnetic synchronous motor provides up to 25% energy savings, compared to the geared traction machine with an induction motor.
Since no gear oil is used, oil change is not required, which makes it effortless and cost-efficient to maintain the elevator.

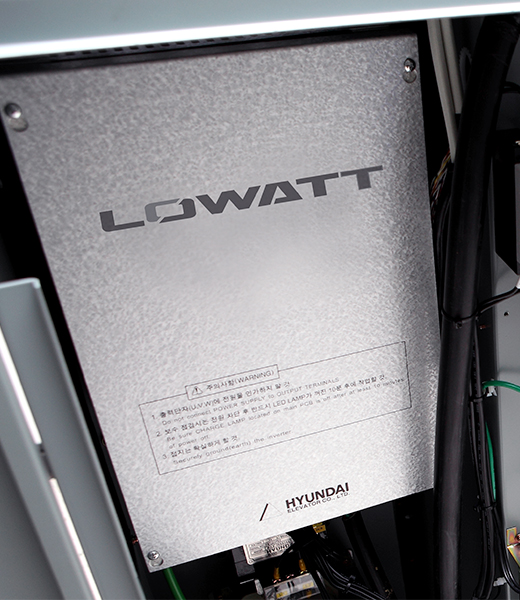

Regenerative Inverter (Optional)
The LUXEN obtained the Class A certification from TÜV SÜD, a German testing and certification institution, in the energy efficiency standard established by Verein Deutscher Ingenieure (VDI), an engineering association of Germany.
The energy generated from elevator operation is recycled, reducing energy consumption by up to 60% (77.5% up in energy efficiency).
Door with Permanent Magnetic Synchronous Motor & Double Brakes
The use of a permanent magnet synchronous motor allows for a more compact structure and smoother opening and closing of the door, thus casing fewer failures.
The use of the double-brake system serves to enhance safety by allowing continuous operation even if a failure should occur in another brake (complying with the European safety standard EN81).
Smart Indicator
An industry’s first, the Smart Indicator displays date, time and other various information on the LCD screen.
Antiviral Handrail
Made of antiviral material, the handrail serves to keep users from harmful virus.
Motion Call Button
Motion call detects people to communicate with an elevator's buttons by moving their hands up and down, ensuring the ultimate in safety and hygiene.
Intelligent Building System (IBS) (card key)
Only those with a card key are allowed to use the elevator.
This contributes to effective security and crime prevention.
