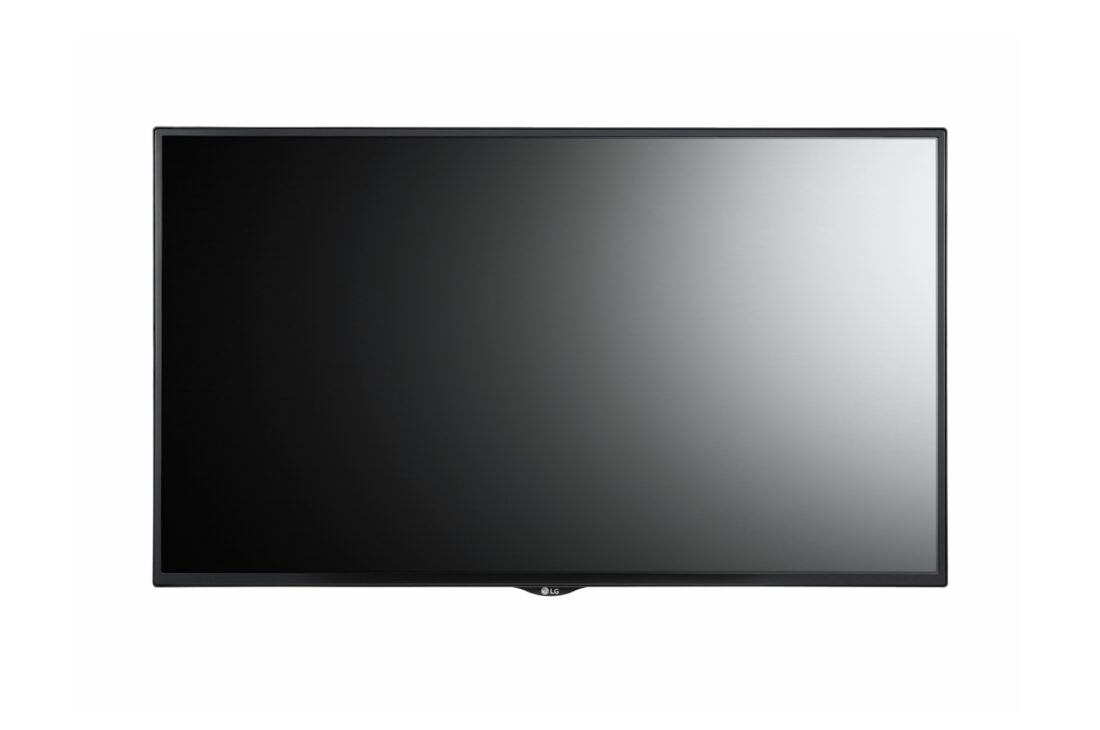

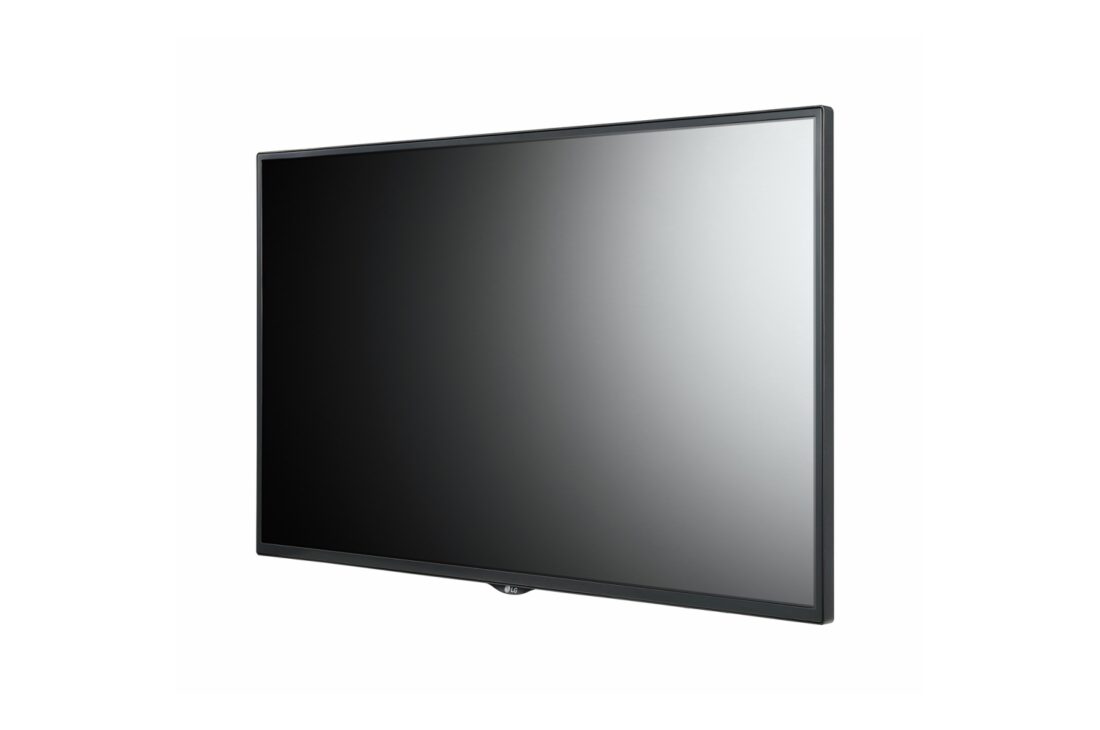

49SE3KE

49″ FHD Standard Signage SE3KE Series

Available capacity: 49HP

Key Features

  • Brightness(Typ.) : 350 cd/m²
  • Bezel : 11.9 mm(T/R/L), 18 mm(B)

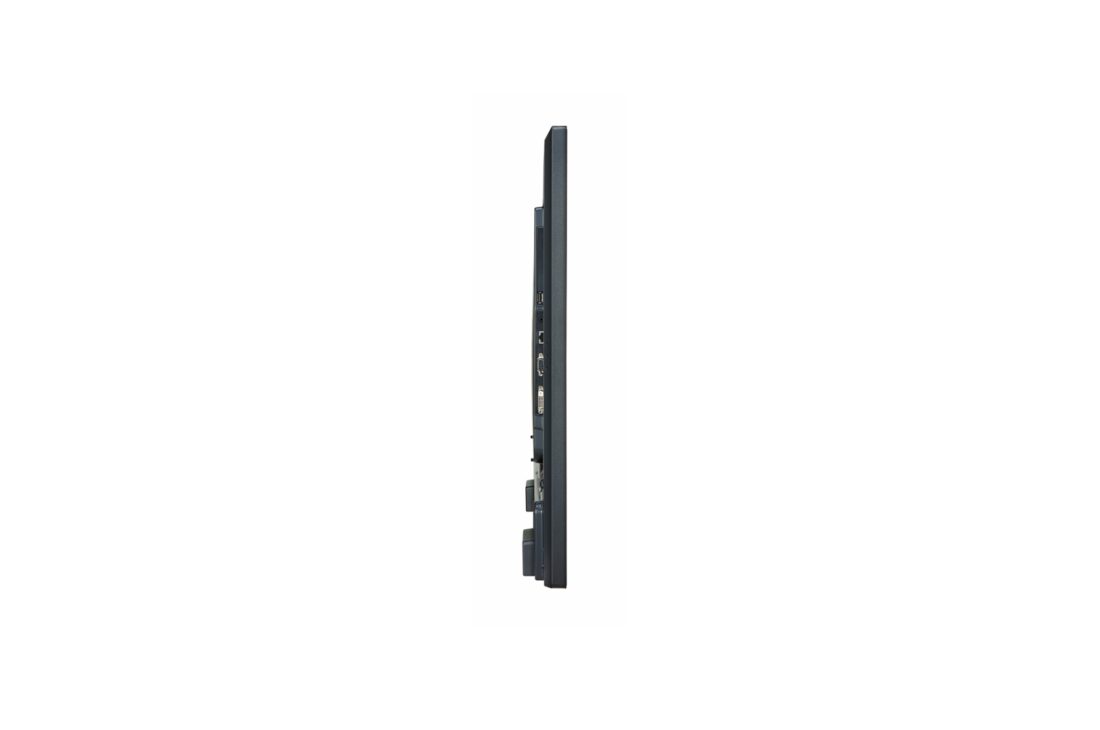

  • Depth : 54 mm

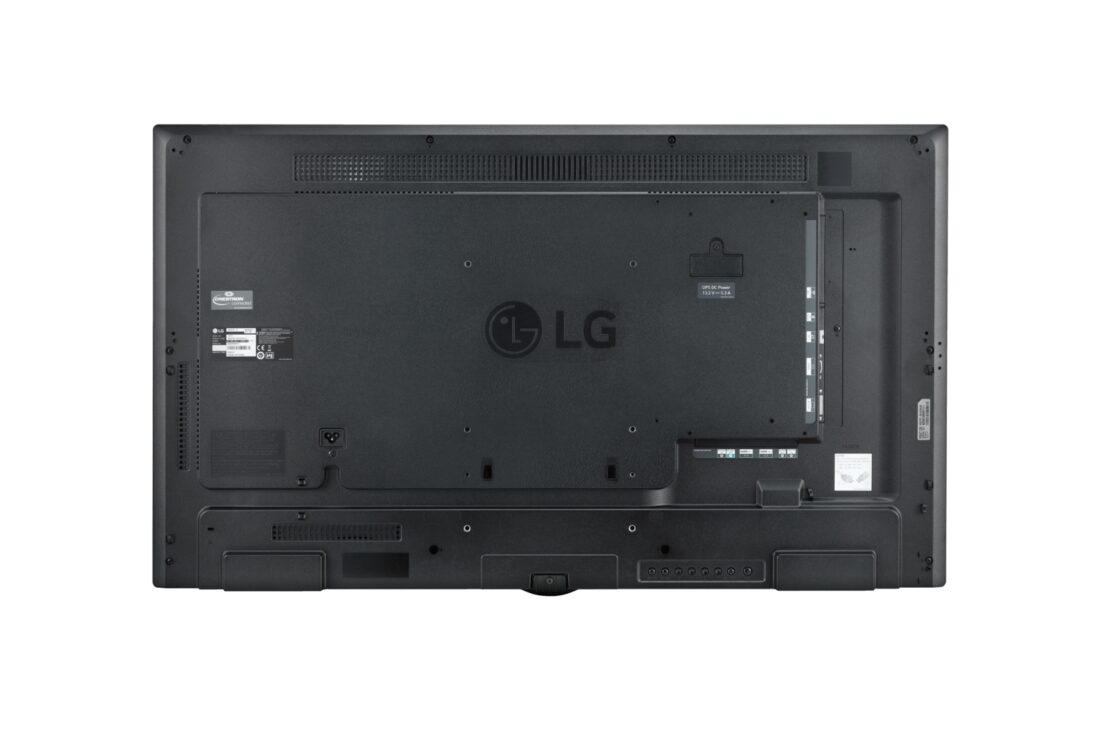

  • Interface : HDMI(2)/ DVI-D/ RGB/ USB/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker(10W×2)

49SE3KE

49″ FHD Standard Signage SE3KE Series
Features
Tech Specs
Resources

Contact us

GGEAR Commercial

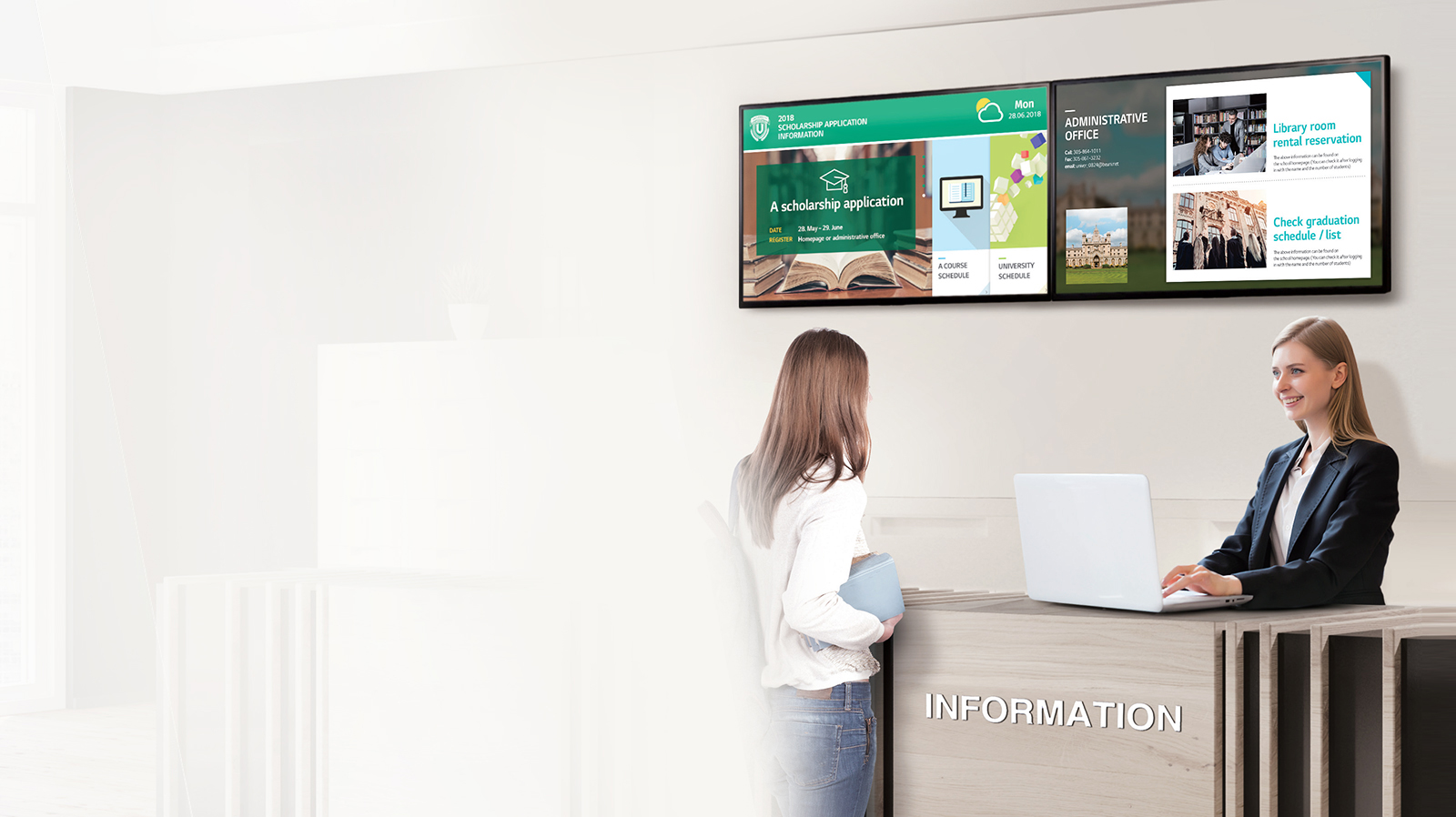

An Essential Way of Delivering Dynamic Content

The SE3KE series satisfies a wide range of display purposes in your business while reducing operational costs with low power consumption. Easy-to-use menus designed for business purposes make for a more convenient and powerful display.

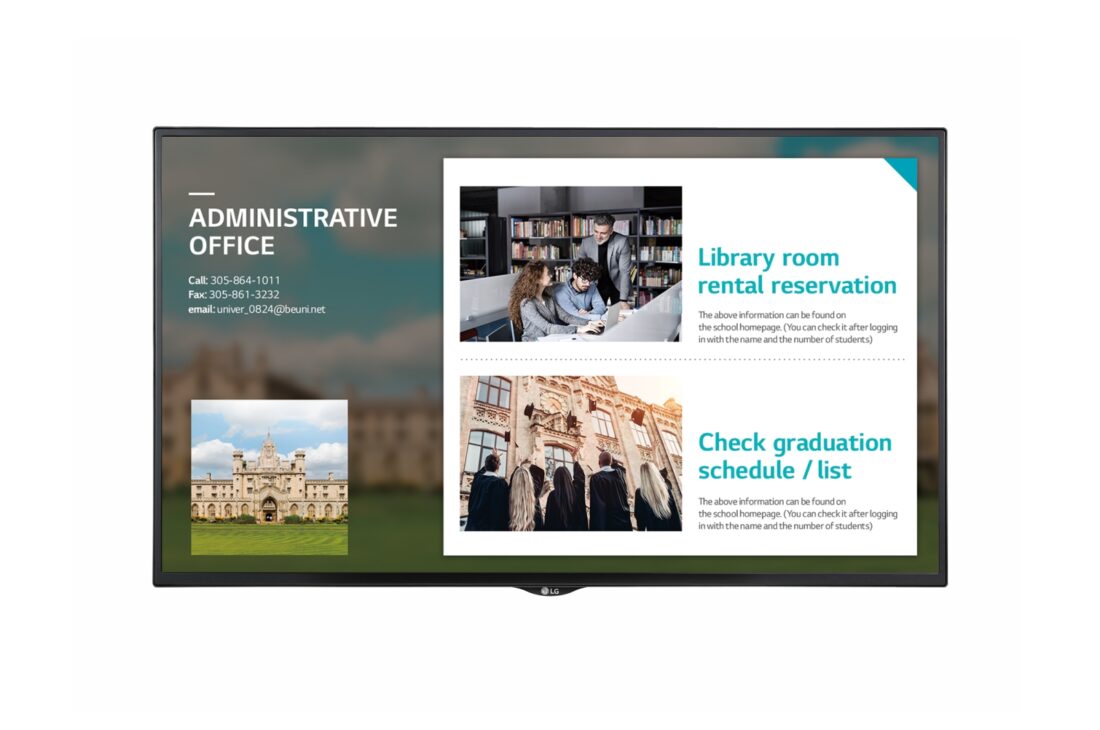

User-Friendly Menu for Digital Signage

With the signage dedicated home menu, users can check key information related to displays at a glance. On the bottom, the content management menu is provided, letting you explore and play available content and set playlists with desired schedules using a remote controller.

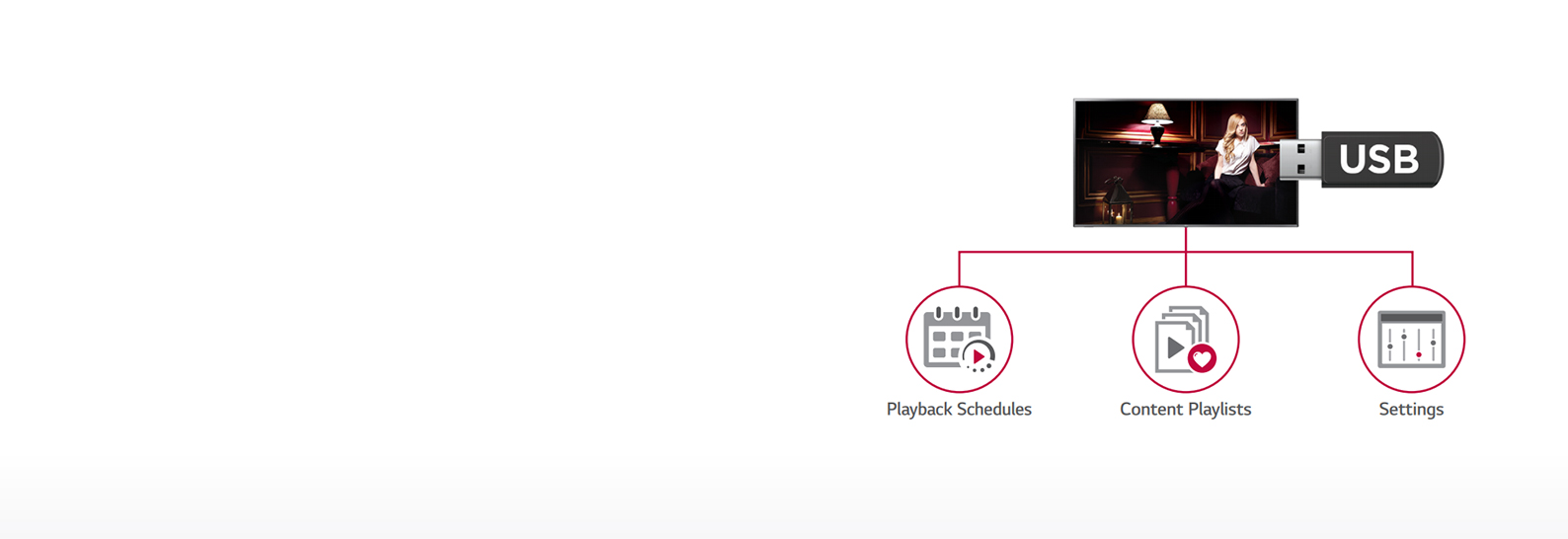

USB Content Scheduling & Data Cloning

USB content scheduling and cloning makes managing multiple displays more efficient for optimal content playback and operation, since users don't have to set up each display one by one. Once users copy data to a USB in one display, it will be easily distributed to others

Efficient Operation

Stand-by Screen Mode
The SE3KE series partially keeps power-on status controllable by network while the screen is turned off, enabling efficient power management.

Scheduled Screen Wash
ISM (Image Sticking Minimization) mode supports users in setting up periods and times to refresh the screen to prevent the occurrence of image sticking.

18/7 Operation
The SE3KE series can be operated for 18 hours a day, which provides users with the flexibility to allocate and operate it in places that are open for long periods of time.

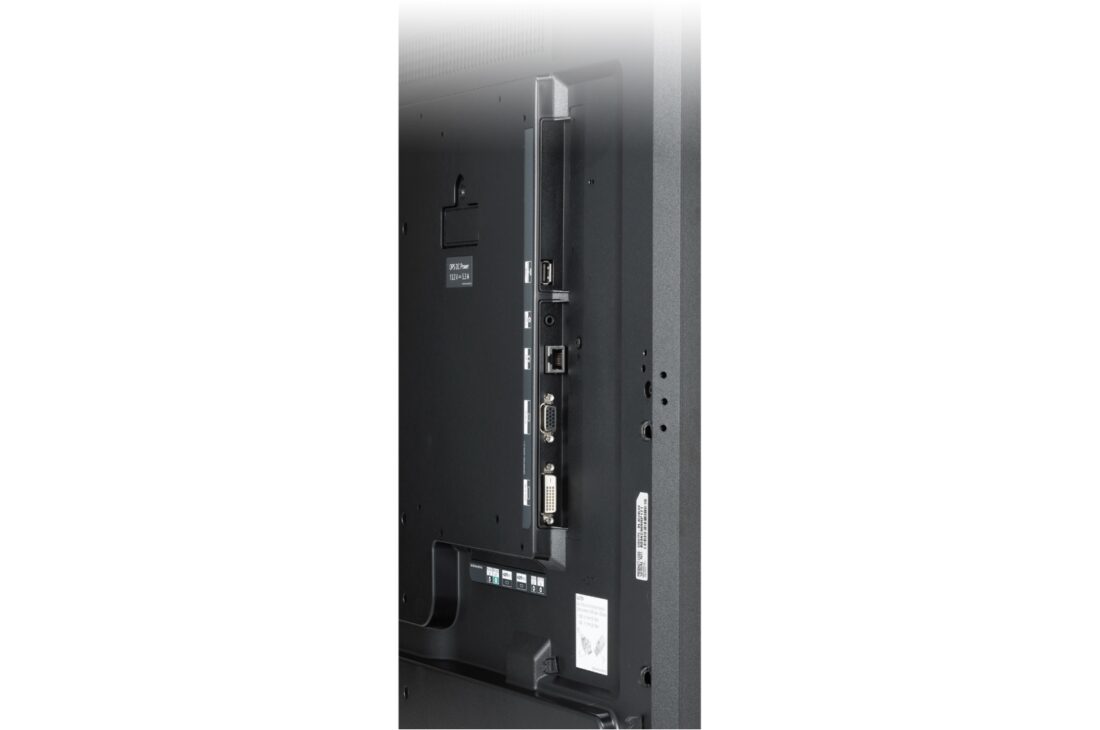

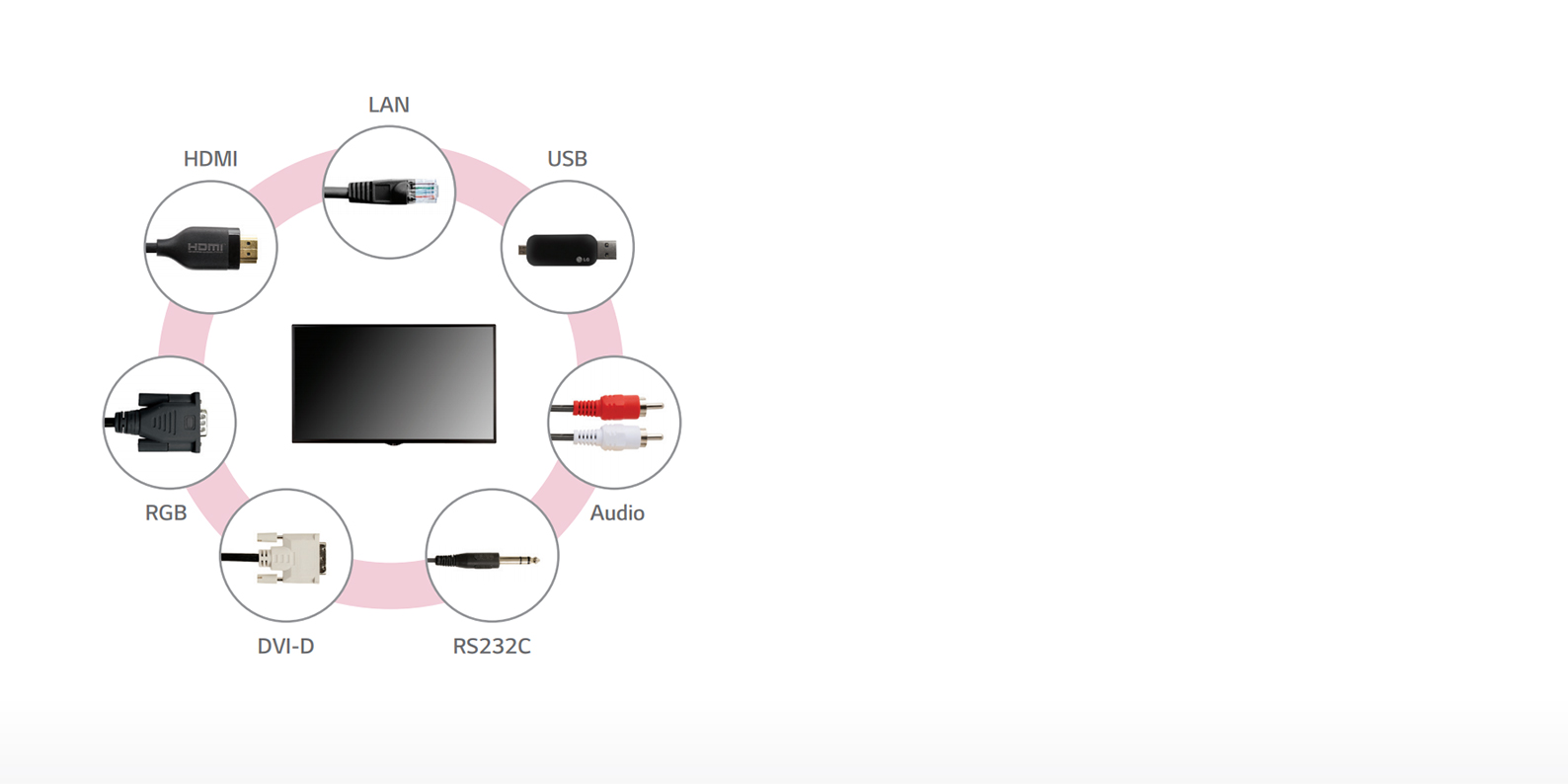

A Wide Range of Interfaces

Thanks to its high compatibility with diverse interfaces, users can select among various input/output sources for optimal content playback and control.

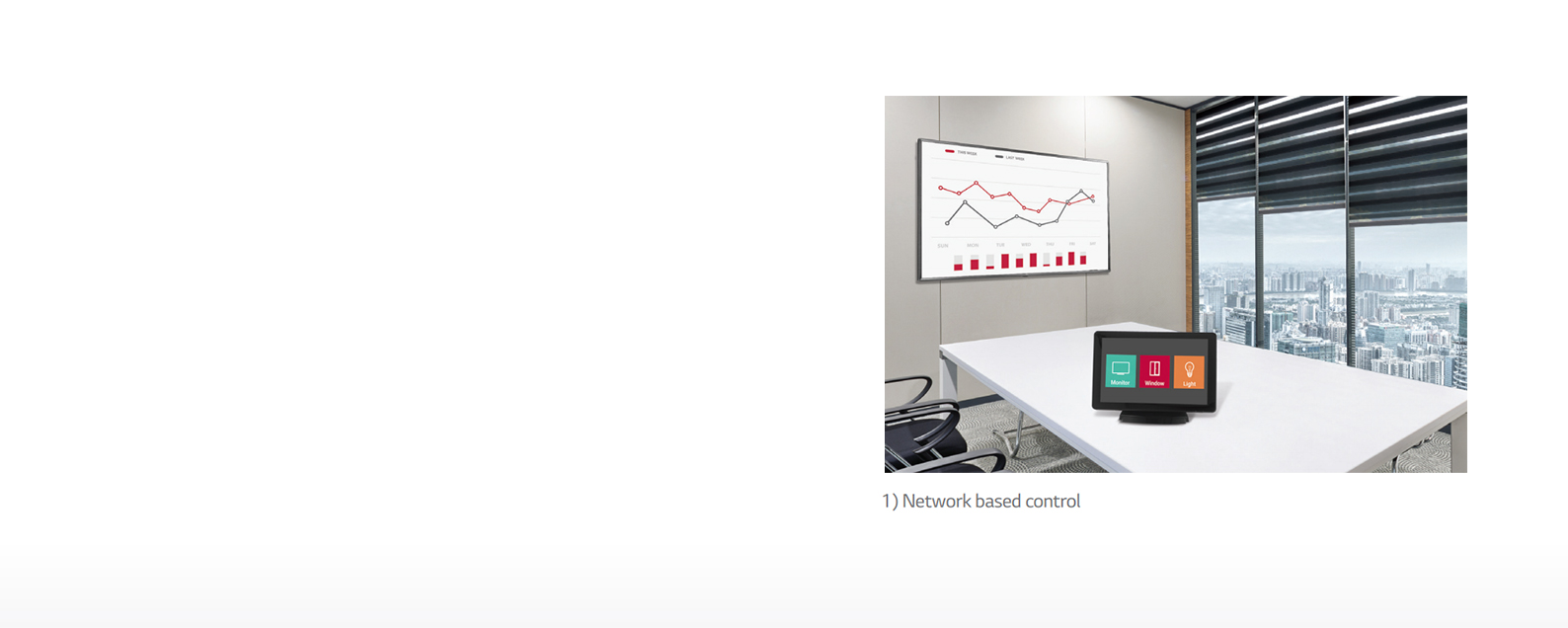

Compatibility with AV Control Systems

The SE3KE series has been certified Crestron ConnectedⓇ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1, boosting business management efficiency.

Detachable Logo & Built-in Speaker

The detachable logo makes it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, offering viewers various multi-media experiences.

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on power board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.

  • Screen Size
    49"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    350
  • Input
    HDMI (2), DVI-D, RGB, Audio, USB
    Output
    Audio (Off/Fixed/Variable)
  • External Control
    RS232C in/out, RJ45 in, IR in
  • Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W × H × D)
    1,102.2 x 638.5 x 54 mm
  • Weight (Head)
    14.3 kg
    Monitor with Optional Stand Dimensions (W x H x D)
    1,102.2 x 696.8 x 219.6 mm
  • Weight (Head+Stand)
    17.6 kg
    Carton Dimensions (W × H × D)
    1,197 x 760 x 166 mm
  • Packed Weight
    17.4 kg
    VESA™ Standard Mount Interface
    300 x 300 mm
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Typ. / Max.
    60 W / 95 W
    Smart Energy Saving
    42 W
  • Speaker
    20 W (10 W x 2)
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 8.0)
  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500 / MP700)
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control / Control+
  • Basic
    Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T49E)

Datasheet


Leaflet
icon
SM5KE_Datasheetlow_LG-Standard-Signage_20051420200810_112335-1.pdf
4.16 MB
Download
