High Brightness
With a great brightness of 3,000 cd/㎡, XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.
- For Business
- B2B Commercial
- Information Display
- Digital signage
- 49″ Digital Signage O...
49XF3E-B

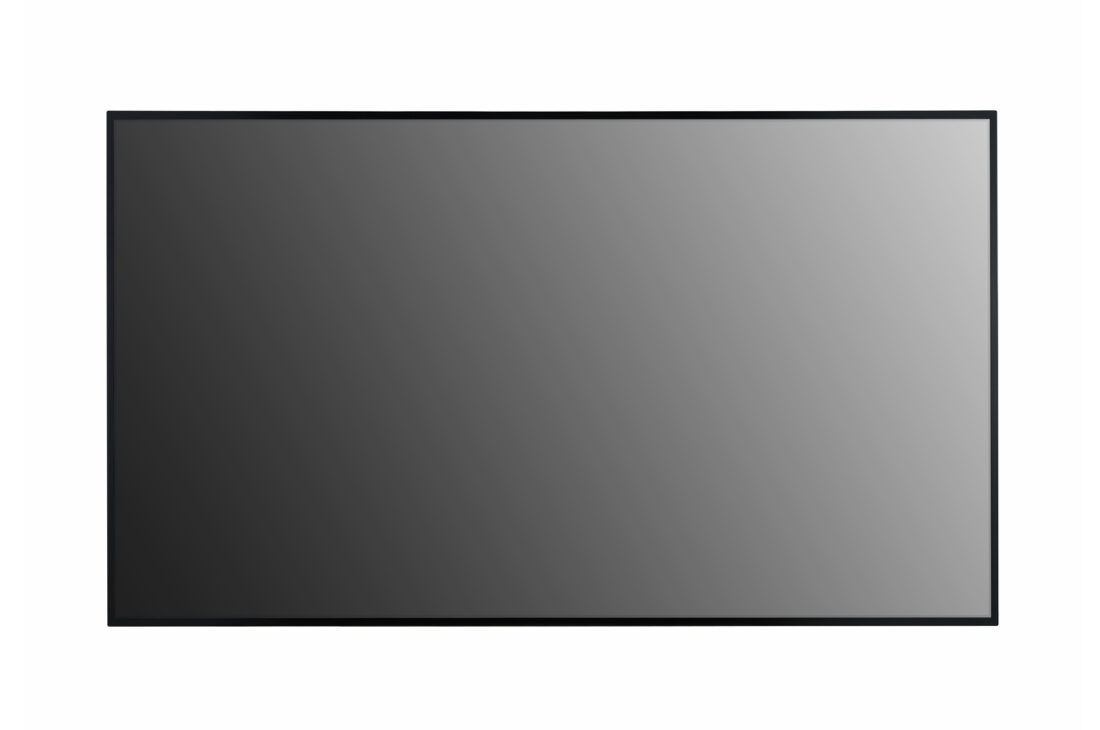

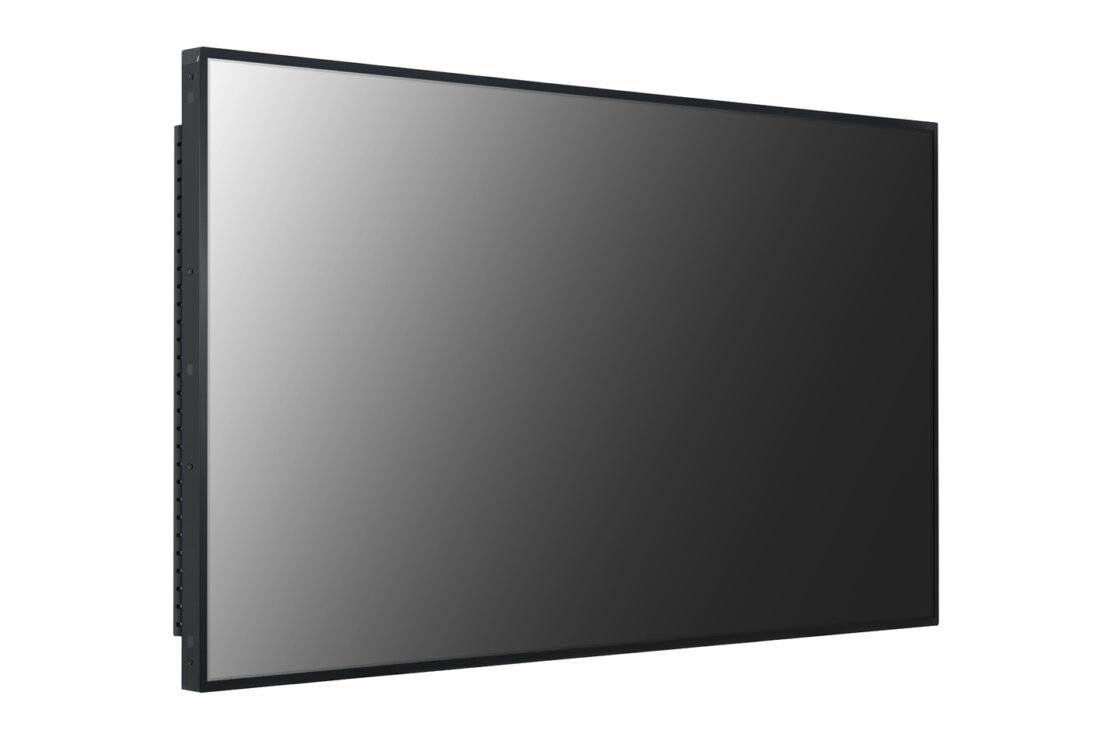

49″ Digital Signage Open Frame XF3E-B Series
Features
Tech Specs
Resources
Contact us
GGEAR Commercial
Visible with Polarized Sunglasses
QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

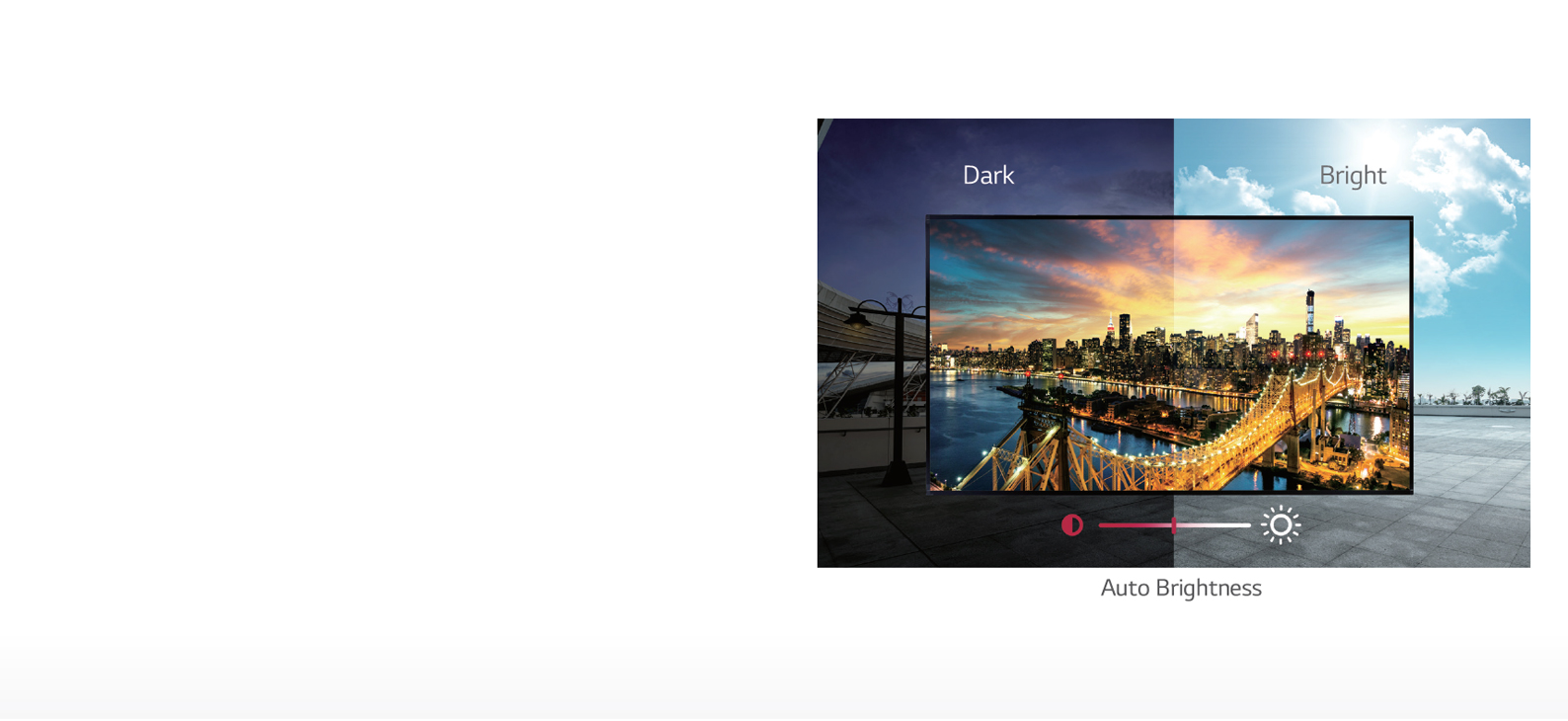

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
High Operating Temperature
Its high reliability under high operating temperatures reduces additional costs for air conditioning system.
Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

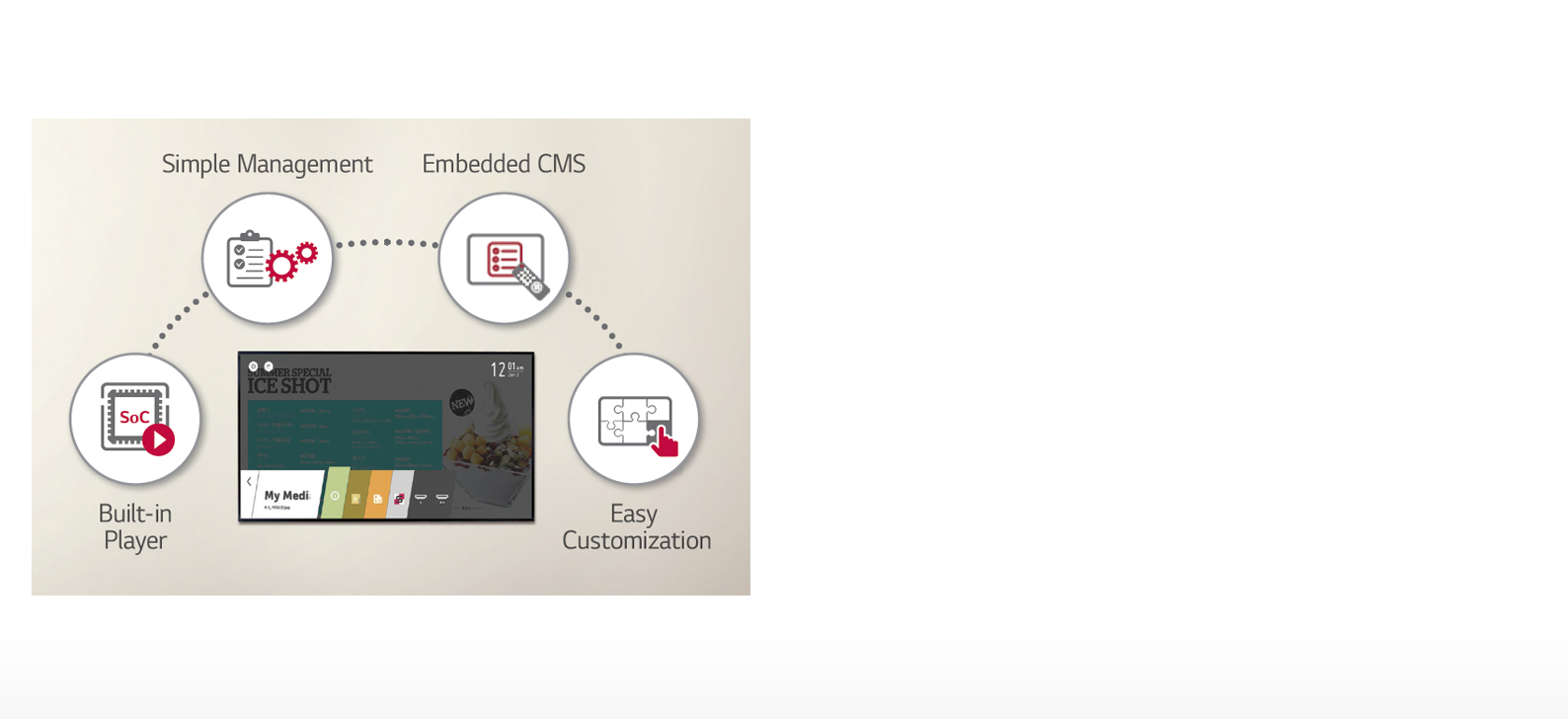

High-Performance with webOS Smart Platform
Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

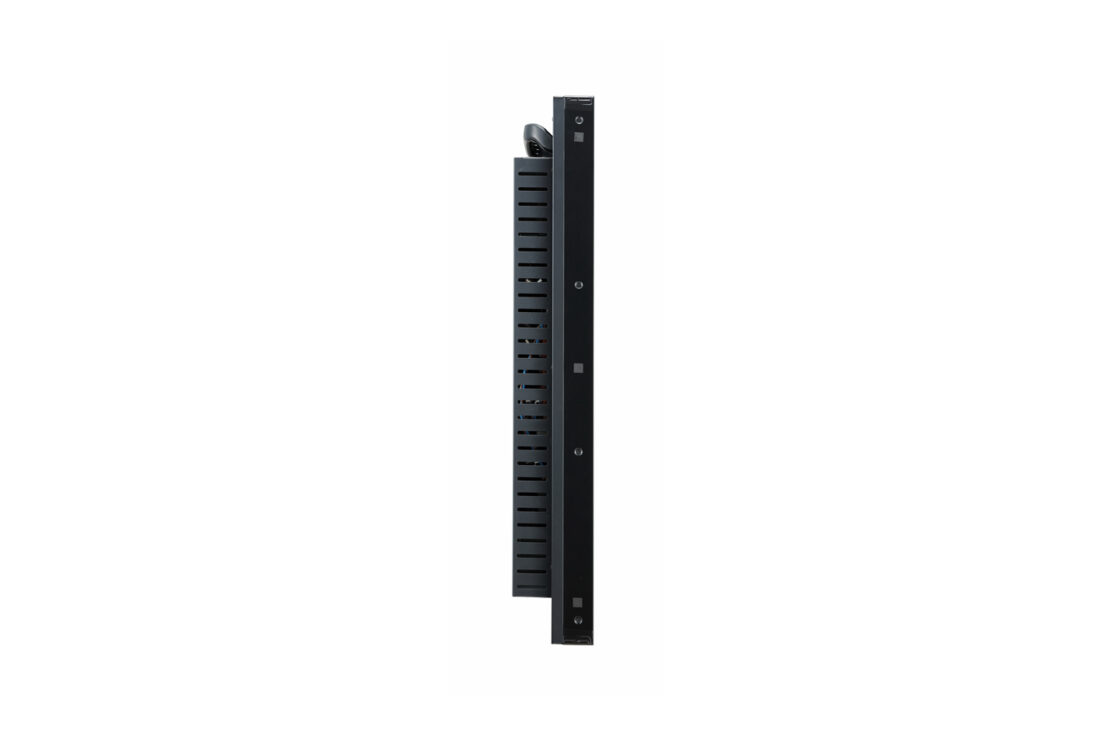

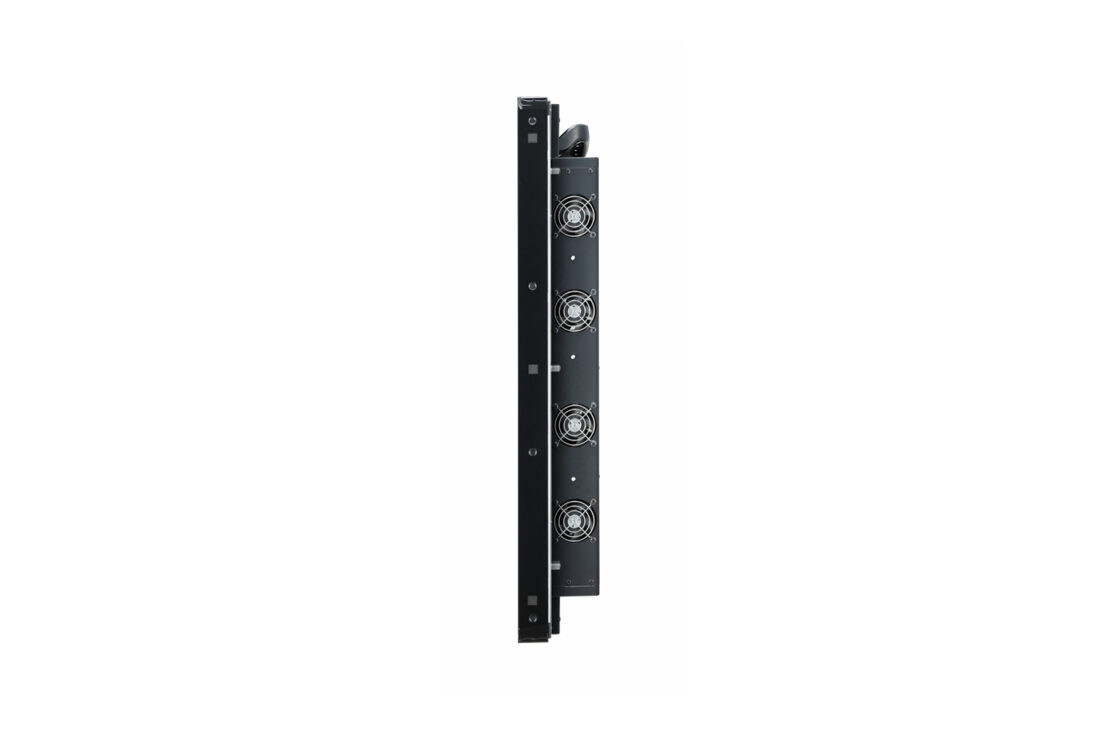

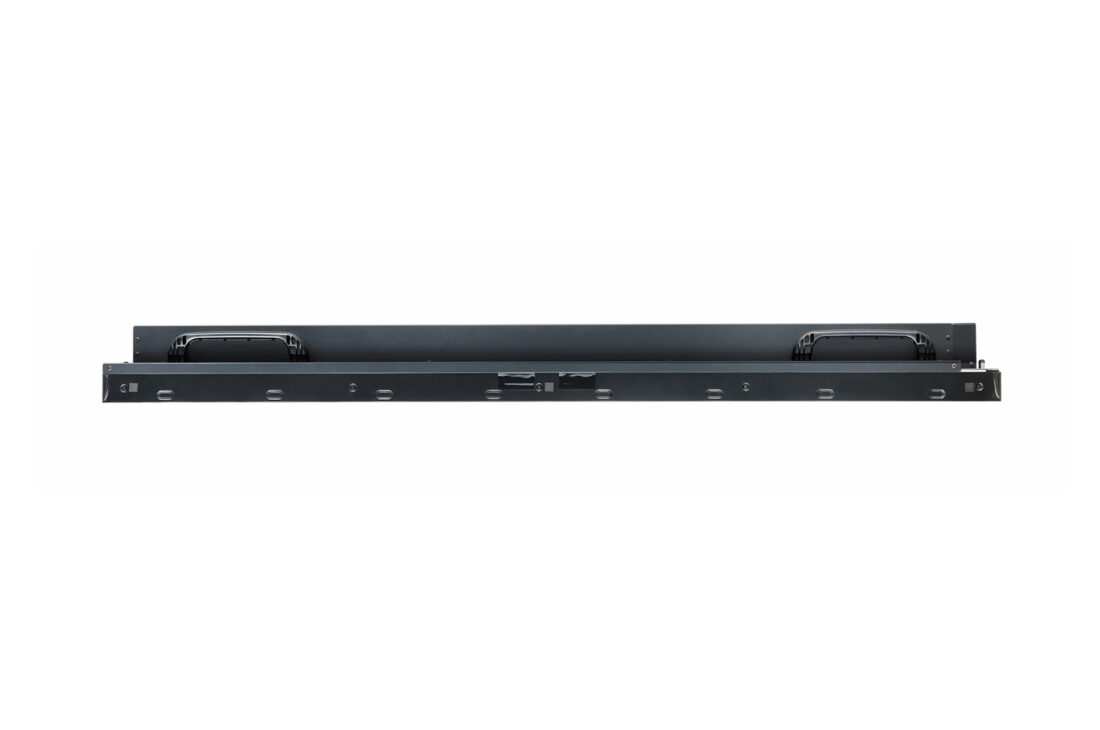

Space Efficiency
The slim depth saves space for installation and makes the enclosure design slimmer.
-
- Screen Size
- 49" (48.50" Measured Diagonal)
- Resolution
- 1,920 x 1,080 (FHD)
-
- Brightness (Typ., cd/m²)
- 3000
-

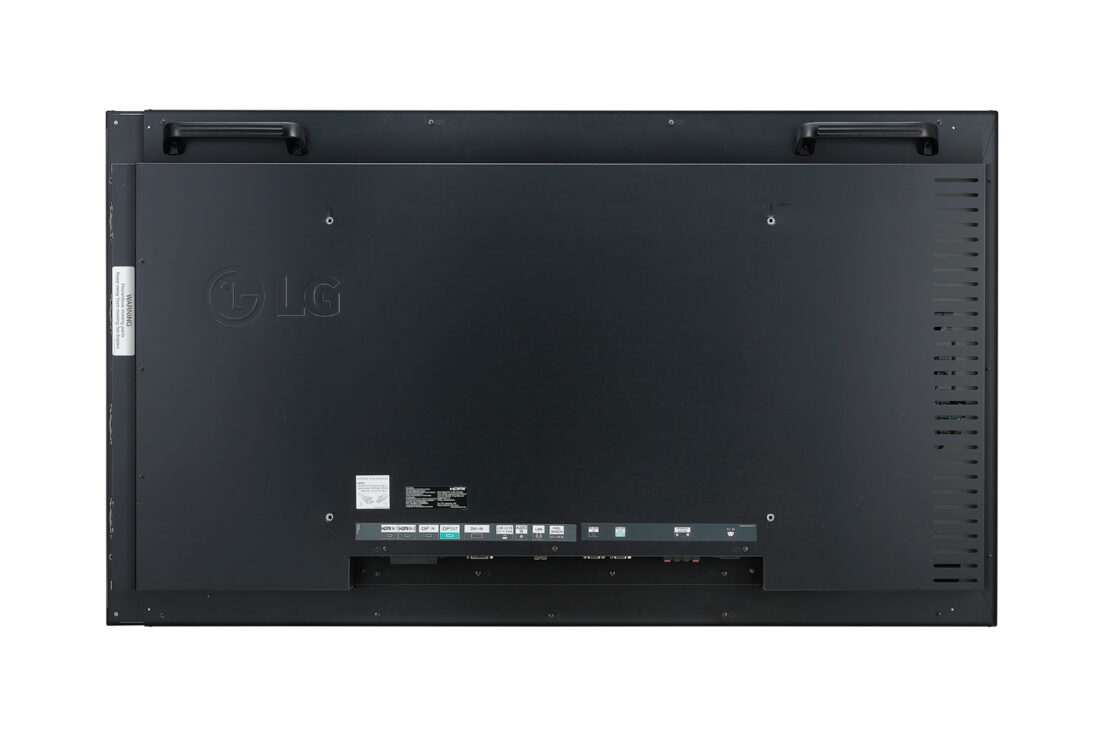

- Input
- HDMI (2), DP, DVI-D, Audio, USB
- Output
- DP, External Speaker
-
- External Control
- RS232C In/Out, RJ45 In, IR Receiver In
-
- Bezel Width
- 9 mm (T/B), 6.5 mm (L/R)
- Monitor Dimension (W x H x D)
- 1,092.7 x 626.4 x 105 mm
-
- Weight (Head)
- 21.5 kg
- Carton Dimensions (W x H x D)
- 1,195 x 196 x 760 mm
-
- Packed Weight
- 26.2 kg
- VESA™ Standard Mount Interface
- 600 x 400 mm
-
- Operation Temperature
- 0℃ to 50℃
- Operation Humidity
- 10 % to 80 %
-
- Power Supply
- 100-240V~, 50/60Hz
- Power Type
- Built-In Power
-
- Typ./Max
- 250 W / 290 W
- Smart Energy Saving
- 95 W
-
- Safety
- IEC 60950-1 / EN 60950-1 / UL 60950-1
- EMC
- FCC Class "A" / CE / KC
-
- ErP / Energy Star
- Yes (EU Only) / No
-
- Content Management Software
- SuperSign CMS
- Control and Monitoring Software
- SuperSign Control+ / Control
-
- Basic
- Remote Controller, Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)
- Optional
- Wi-Fi Dongle (AN-WF500)
Datasheet
Leaflet
XF-Series_75XF3ES-75XF3C-55XF3E-49XF3E-Datasheetlow_LG-Digital-Signage_200506.pdf
3.68 MB
