WP400

webOS Box

Key Features

  • LG webOS 4.0 Smart Signage Platform
  • Ultra HD Video Playback
  • Intuitive UX Dedicated for Digital Signage
  • Embedded CMS
  • Compatibility with LG SuperSign Solution and Signage 365 Care

WP400

webOS Box
Features
Tech Specs
Resources

Contact us

GGEAR Commercial

The User-Friendly Smart Signage Platform

The WP400 webOS box operates webOS 4.0, the enhanced user-friendly LG smart signage platform, and is attached to existing LG digital signages and upgrades them regardless of their original platform. It can execute several tasks at once while providing smooth content playback, and provides an excellent user experience.

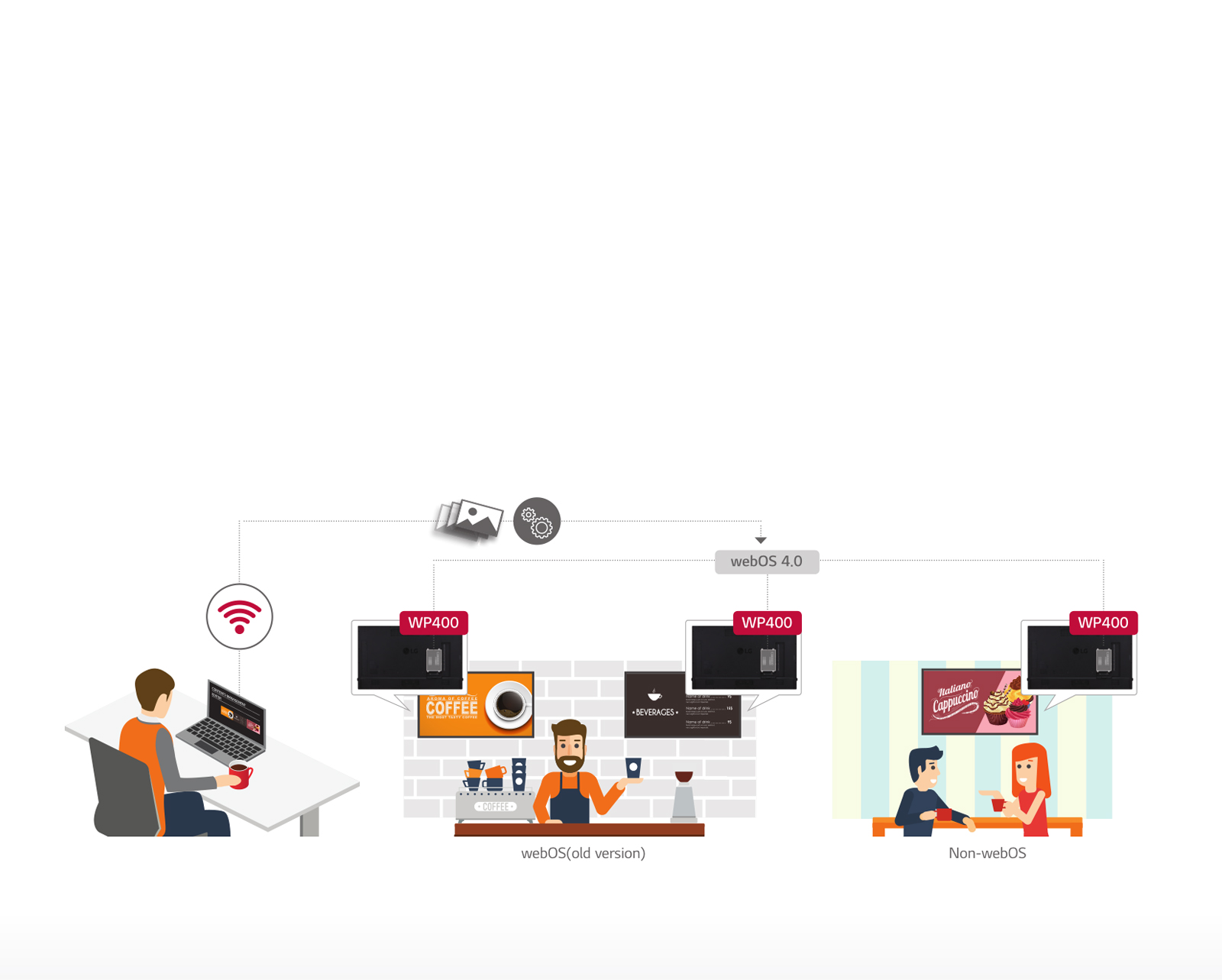

Upgrade to the webOS 4.0 Smart Signage Platform

The WP400 may be applied towards any type of LG digital signages regardless of its platform. The webOS box provides user-friendly smart functions with dedicated menus essential for business use. This way, users are able to easily manage and distribute content or develop web-based applications for multiple signages simultaneously.

UHD Video Playback Supported

The WP400 supports Ultra HD high-quality video playback which delivers true-to-life color details, with four times higher definition than FHD. Only a single webOS box is required for this superior picture quality.

Display Control Capability

Beyond content management, control commands from the WP400 can be sent to LG digital signages through the RS232C cable connection. It allows users to flexibly set up display values such as power, brightness or volume for optimal operation.

All-in-One Home Menu

The WP400 offers a signage-dedicated home menu that shows key information related to signage operation at a glance. A dashboard showing the status of devices, a content management menu, and shortcuts leading to quick settings greatly enhance user convenience.

Embedded Content Management

The embedded CMS(Content Management System) allows users to edit content using internal/external sources and set playlists to play at the desired schedule. Users can easily explore and manage content through the intuitive GUI, using various input devices, from a remote control to a laptop.

Multi Video Tags

Several different videos can be played at the same time using the multi video tags* feature. This gives you greater flexibility to organize and deploy content when various content items need to be delivered simultaneously via web apps.

Multi Screen with PBP/PIP

PBP(Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP(Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.

Compatibility with LG SuperSign Solutions

LG SuperSign is a comprehensive and indispensable software solution for the integrated management of LG digital signages. With SuperSign, content creation and distribution gets easier and centralized monitoring and control becomes simpler, helping your business save time and operate more

Real-Time Remote Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

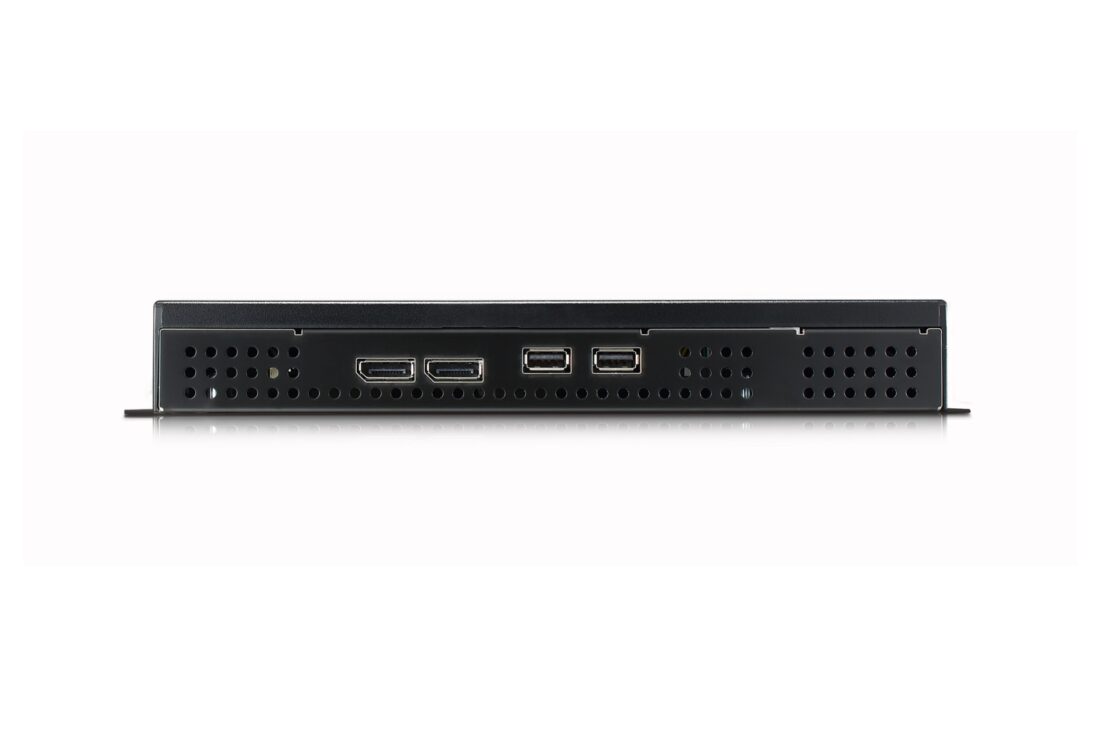

  • Input
    HDMI (2), DP, USB 2.0 (2)
    Output
    HDMI, DP(Daisy chain only)

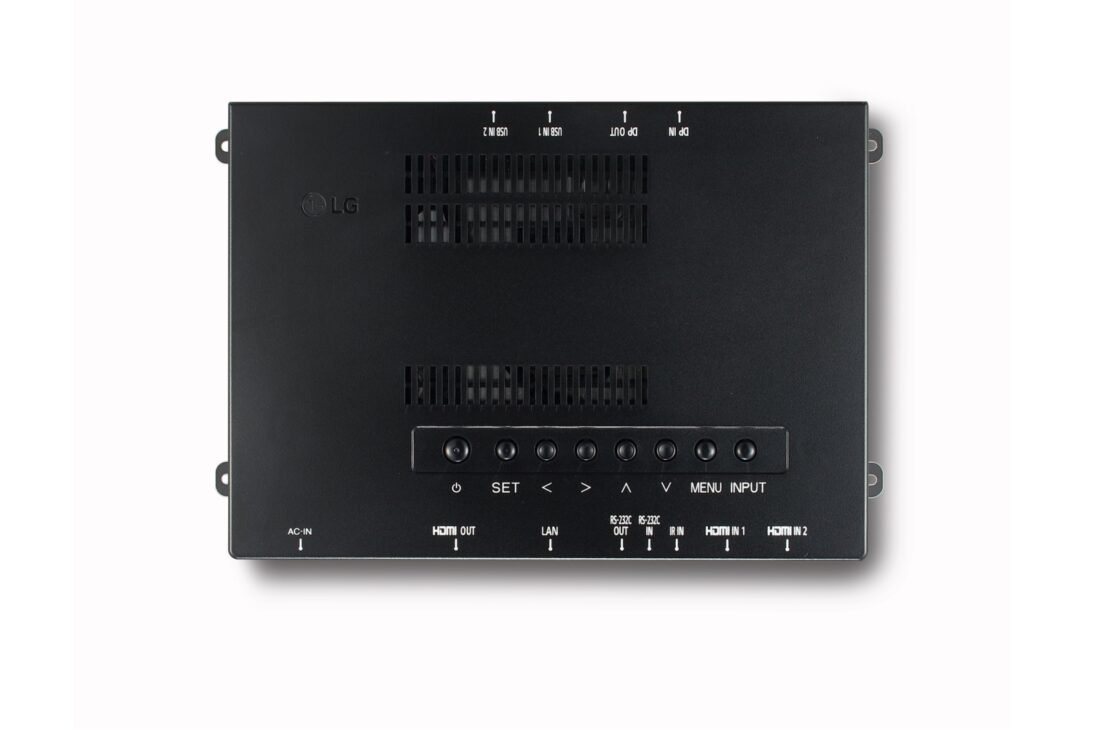

  • External Control
    RS232C in/out, RJ45 in, IR in
  • Player Dimension (W x H x D)
    258 × 36.5 × 186 mm
    Weight
    1.4 kg
  • Carton Dimensions (W × H × D)
    314 x 124 x 359 mm
    Packed Weight
    2.26 kg
  • Key Feature (Hardware)
    Internal Memory 8GB (System 4GB, Available 4GB), Wi-Fi Built-in (ac combo), Thermal Sensor, Power Indicator, Local Key Operation
  • webOS ver.
    webOS 4.0
    Embedded CMS
    USB Auto Playback, Local Contents Scheduling, Group Manager
  • Fail over
    O
    Image Customization
    No Signal
  • Content Sync.
    RS-232C, Local Network
    Multi-screen
    PIP/PBP(4)
  • Screen Share
    O
    Video Tag
    O (2)
  • Play via URL
    O
    OSD Rotation
    O
  • Lock mode
    O (Home Dashboard, USB, OSD, IR Operation, Local Key, WiFi, Screen Share)
    Content Rotation
    O
  • Gapless Playback
    O
    Tile Mode Setting
    O (Max. 15x15)
  • Setting Data Cloning
    O (Network, USB)
    Firmware Update by Network
    O
  • SNMP(ver.2)
    O
    ISM Mode
    (Image Sticking Minimization)
    O
  • Status Mailing
    O
    Power Mgmt.
    DPM, On/Off Schedule, Holiday Schedule, Power on Status, Smart Energy Saving, Wake on LAN, Power on Delay
  • Control Manager
    O
    Daylight Saving Time
    O
  • Beacon
    O
    HDMI-CEC
    O *Compatibility may differ by equipment.
  • SI Server Setting
    O
    webRTC
    O
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Typ./Max
    16 W / 22 W
  • Safety
    CB
    EMC
    CE Class A
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

Datasheet


Leaflet
icon
LG_SPEC-SHEET_WP400_091928_LR20200318_044853.pdf
8.38 MB
Download
