0.44mm Video Wall with Clear & Flawless Vision
The 0.44 mm Even Bezel Video Wall offers seamless view throughout the assembled large screen. Also, it offers clear and vivid picture under any bright circumstances by its non-glare screen.
- For Business
- B2B Commercial
- Information Display
- Digital signage
- LG 55″ Video Wall Sig...
55SVM5F
LG 55″ Video Wall Signage with 0.88mm Bezel
Key Features
- Brightness(Typ.) : 500 cd/m²
- Bezel : 0.44 mm (Even)
- Depth : 86.5 mm
- Surface Treatment: Haze 28%
- Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Smart Calibration
55SVM5F
LG 55″ Video Wall Signage with 0.88mm Bezel
Features
Tech Specs
Resources
Contact us
GGEAR Commercial

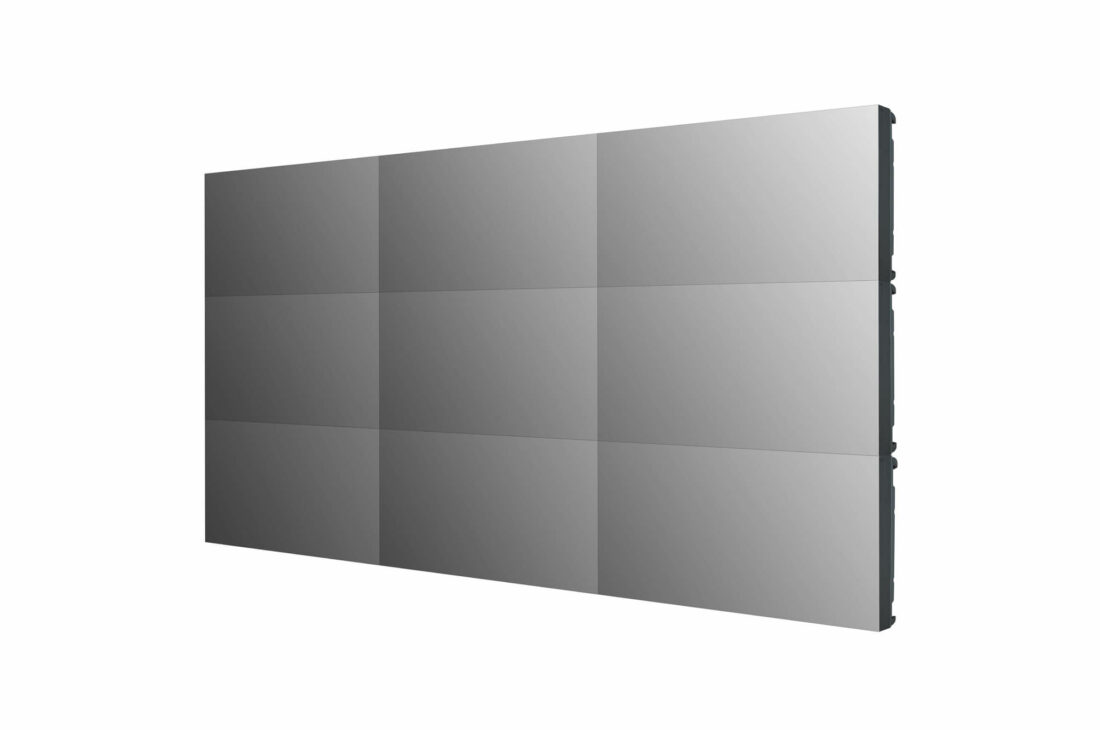

Groundbreaking 0.44mm Even Bezel
The unprecedented razor-thin bezel – 0.44mm EVEN BEZEL and 0.88mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look more actual by depicting a subject without any distortions. Seamlessly assembled on a large video wall screen, the 55SVM5F-H will provide an even more immersive experience for viewers.

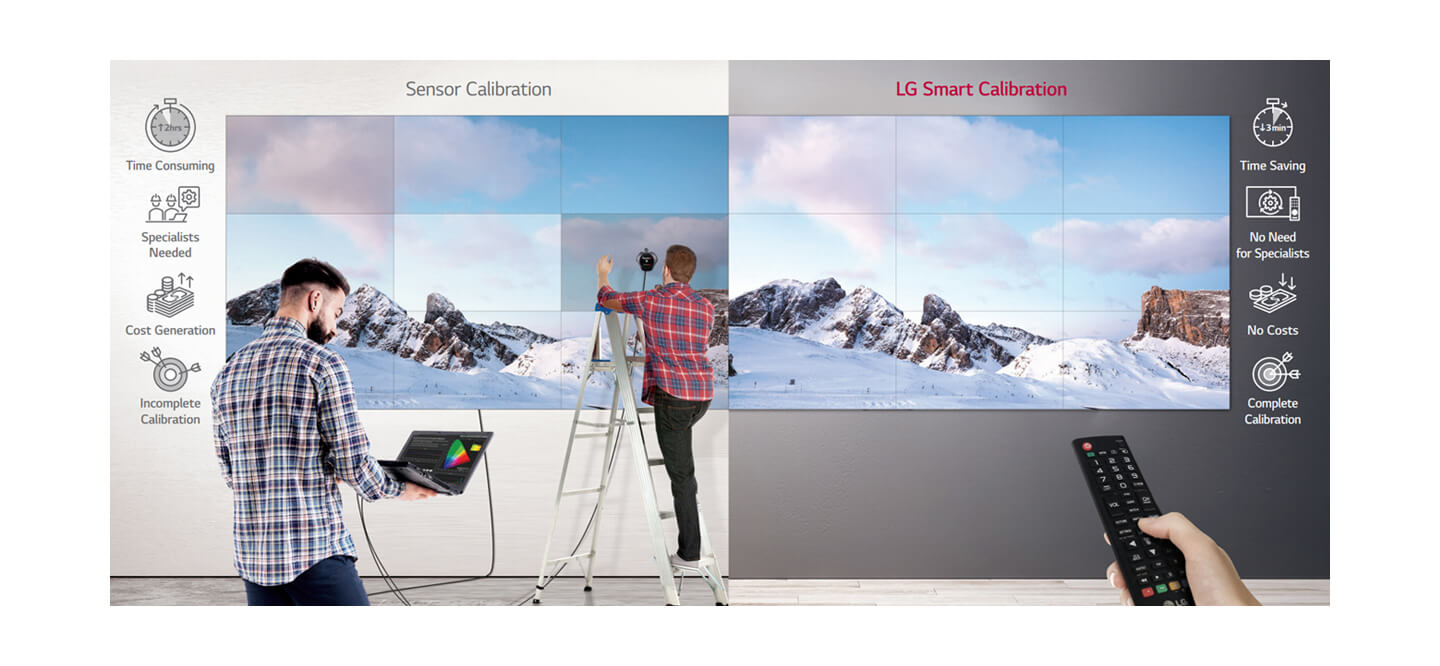

Smart Calibration
Smart Calibration is a solution that enables error-free calibration by dramatically reducing time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences of each individual display but also those of the connected displays, without the need for any additional manual color adjustments.
Clear View with Non-glare Panel
Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The 55SVM5F-H series has resolved such inconveniences by increasing the level of haze to 28％, which enhanced visibility and text readability.

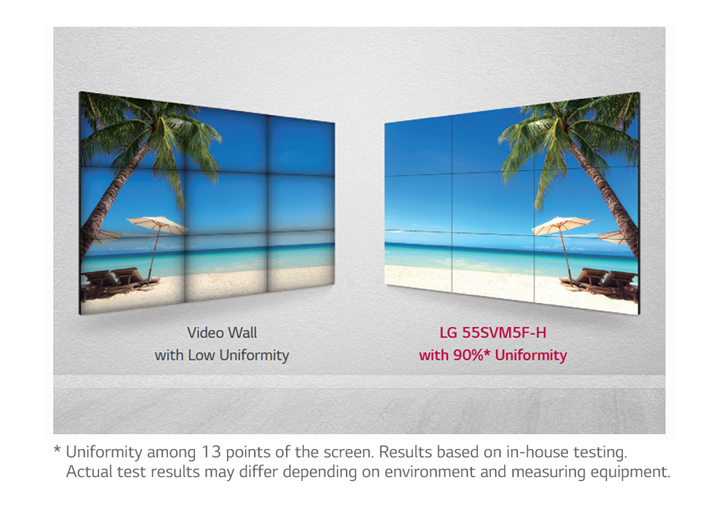

Uniform Color Expression
Poor uniformity around bezel boundaries can produce a dark appearance to corners, which doesn’t look good on a large screen. However, the 55SVM5F-H has enhanced uniformity, including the four corners of the display, to deliver vivid and consistent color throughout the screen.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVM5F-H is superior to that of conventional video walls, allowing it to display vivid colors with no distortion – even in areas that are not suitable for large screens.

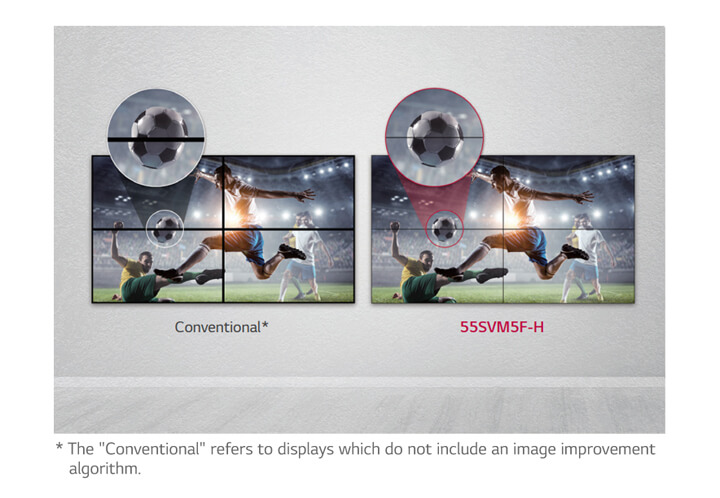

Image Gap Reduction
The 55SVM5F-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

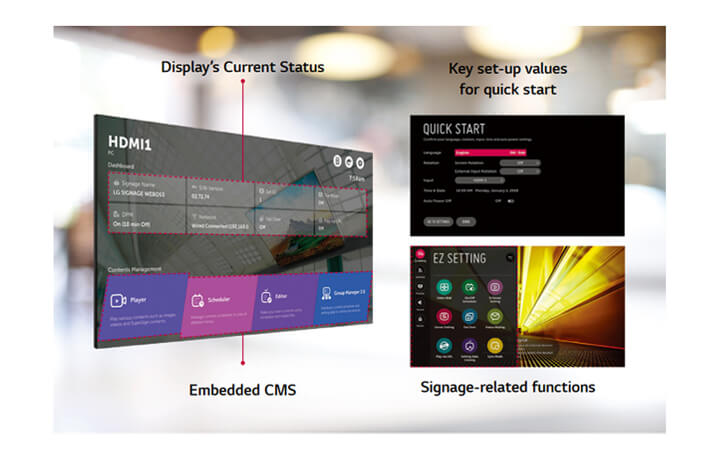

Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies accessibility and groups similar functions together, adopting a more intuitive GUI for ease of use. With this way users can avoid trial-and-error when exploring desired functions and managing displays.
Dedicated GUI for Portrait Orientation
The conventional GUI(Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the 55SVM5F-H, however, consists of a long range menu with bigger font sizes of 9:16 ratio, creating a comfortable and efficient business environment

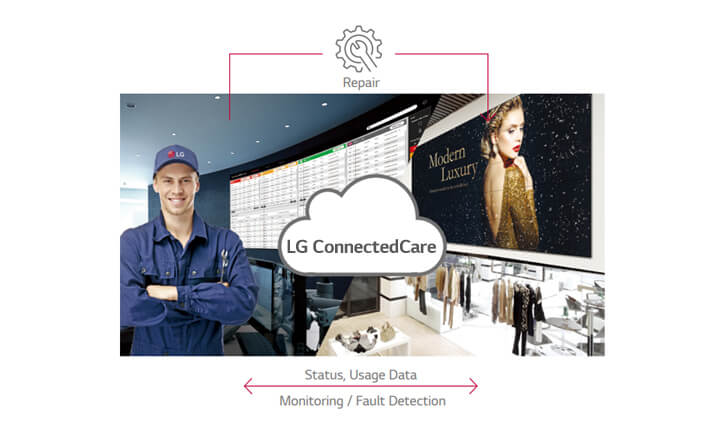

Real-Time Care Service
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.
-
Panel
Panel spec Screen Size 55" Panel Technology IPS Aspect Ratio 16:9 Brightness (Typ., cd/m²) 500 Contrast Ratio 1,100:1 Dynamic CR 500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.) Viewing Angle (H x V) 178 x 178 Response Time 8 ms (G to G) Surface Treatment Haze 28% Life Time (Typ.) 60,000 Hrs Operation Hours 24 Hrs Orientation Portrait & Landscape -
Connectivity
Connectivity spec Input HDMI (2), DP, DVI-D, Audio, USB 2.0 Output DP, Audio External Control RS232C In/out, RJ45 (LAN) In/out, IR In -
Mechanical Specification
Mechanical Specification spec Bezel Color Black Bezel Width 0.44 mm (Even) Weight (Head) 16.8 kg Packed Weight 23.6 kg Monitor Dimension (W × H × D) 1,210.51 x 681.22 x 86.5 mm Carton Dimensions (W × H × D) 1,353 x 855 x 263 mm Handle Yes VESA™ Standard Mount Interface 600 x 400 mm -
Environment Conditions
Environment Conditions spec Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 % -
Power
Power spec Power Supply 100-240V~, 50/60Hz Power Type Built-In Power -
Power Consumption
Power Consumption spec Typ./Max. 200W / 250W Smart Energy Saving 105W -
Certification
Certification spec Safety CB / NRTL EMC FCC Class “A” / CE / KC ErP Yes (EU Only) -
Media Player Compatibility
Media Player Compatibility spec OPS type compatible Yes (Piggyback) -
Software Compatibility
Software Compatibility spec Content Management Software SuperSign CMS Control and Monitoring Software SuperSign Control / Control+ -
Accessory
Accessory spec Basic Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual Optional Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)
