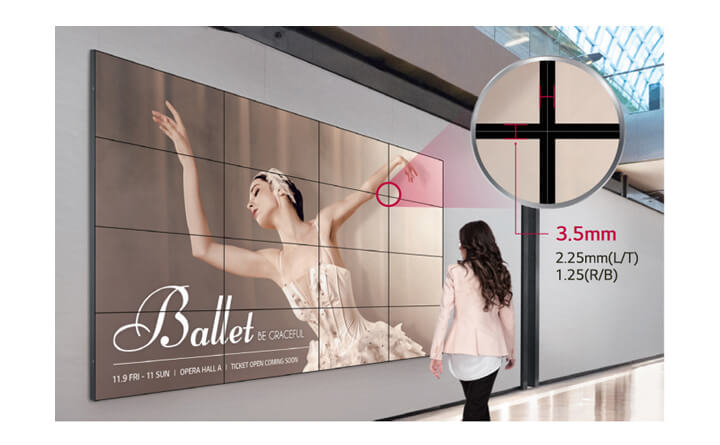

Incredible Immersion with Ultra-Narrow Bezel
The VL7F series provides all-encompassing screen immersion thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its high brightness delivers clear and vivid content even under bright lighting.
- For Business
- B2B Commercial
- Information Display
- Digital signage
- LG 55″ Video Wall Sig...
55VL7F

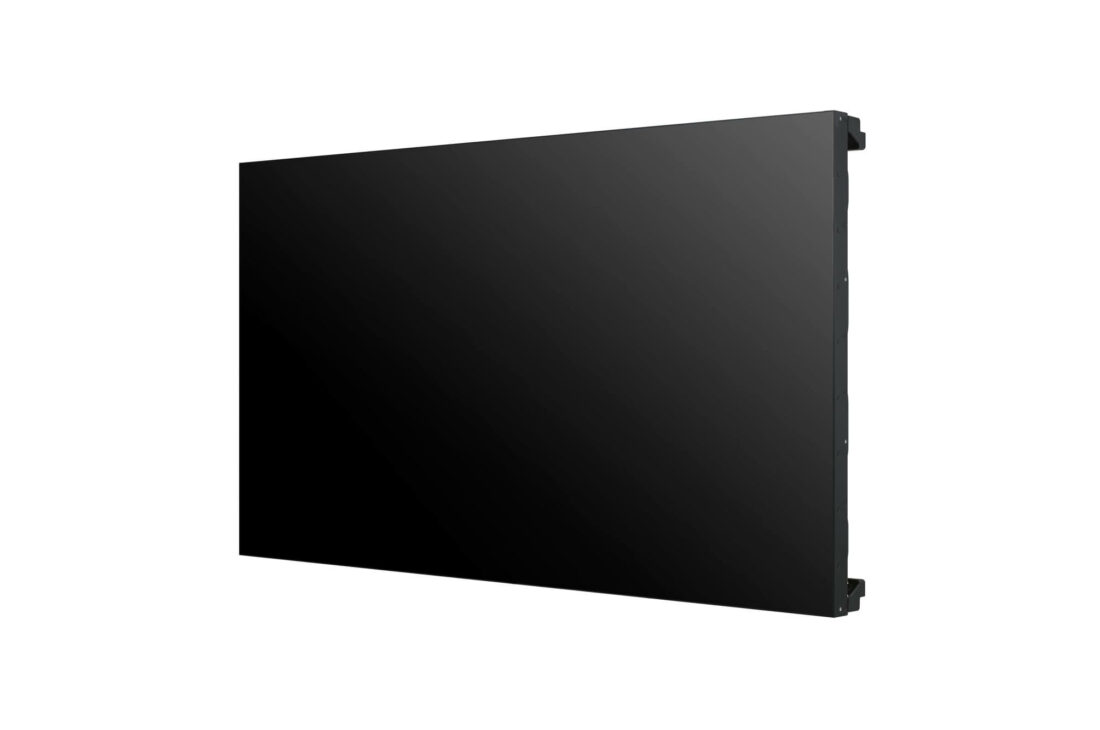

LG 55″ Video Wall Signage with 3.5mm Bezel
Key Features
- Brightness(Typ.) : 700 cd/m²
- Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
- Depth : 93.1 mm
- Interface : HDMI (2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
55VL7F
LG 55″ Video Wall Signage with 3.5mm Bezel
Features
Tech Specs
Resources
Contact us
GGEAR Commercial

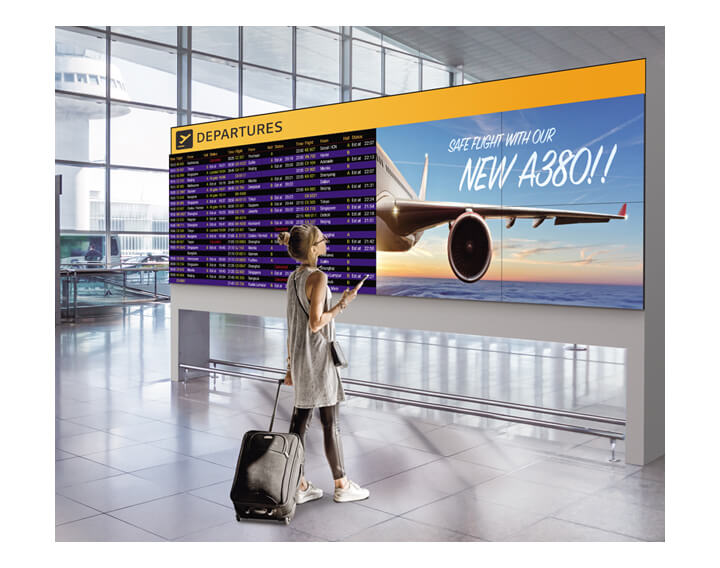

Seamless Large Screens with Ultra-Narrow Bezel
The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.
Image Gap Reduction
The VL7F series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL7F series is high enough to display vivid colors throughout the screen with no distortion.
Wider Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL7F series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL7F series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
User-Friendly Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.

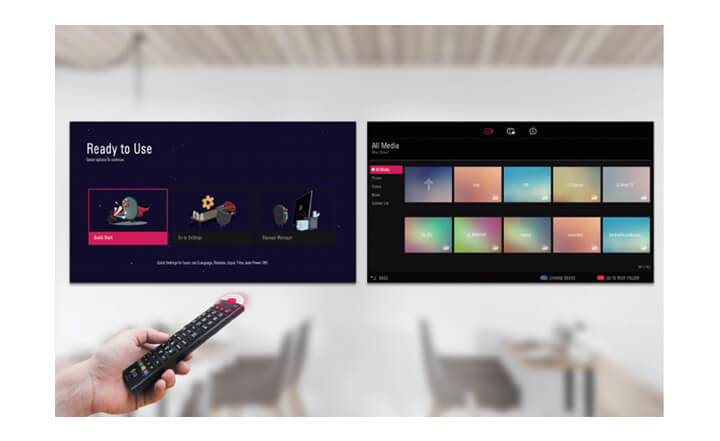

Intuitive GUI
The GUI(Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.
-
Panel
Panel spec Screen Size 55" Panel Technology IPS Aspect Ratio 16 : 9 Brightness (Typ., cd/m²) 700 Contrast Ratio 1,200:1 Dynamic CR 500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.) Viewing Angle (H x V) 178 x 178 Response Time 8 ms (G to G) Surface Treatment 3% Life Time (Typ.) 60,000 Hrs Operation Hours 24 Hrs Orientation Landscape & Portrait -
Connectivity
Connectivity spec Input HDMI(2), DP, DVI-D, Audio, USB Output DP, Audio External Control RS232C In/out, RJ45(LAN) In, IR In -
Mechanical Specification
Mechanical Specification spec Bezel Color Black Bezel Width 2.25 mm (T/L) / 1.25 mm(B/R) Weight (Head) 20.3 kg Packed Weight 33 kg Monitor Dimension (W × H × D) 1,213.4 x 684.2 x 93.1 mm Carton Dimensions (W × H × D) 1,353 x 980 x 263mm Handle Yes VESA™ Standard Mount Interface 600 x 400 mm -
Environment Conditions
Environment Conditions spec Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 % -
Power
Power spec Power Supply 100-240V~, 50/60Hz Power Type Built-In Power -
Power Consumption
Power Consumption spec Typ./Max. 165 W / 195 W Smart Energy Saving 85 W -
Certification
Certification spec Safety CB / NRTL EMC FCC Class "A" / CE / KC ErP Yes (EU Only) -
Media Player Compatibility
Media Player Compatibility spec OPS type compatible No -
Software Compatibility
Software Compatibility spec Content Management Software SuperSign CMS Control and Monitoring Software SuperSign Control/Control+ -
Accessory
Accessory spec Basic Remote Controller, Power Cord, RS232C Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual Optional Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
