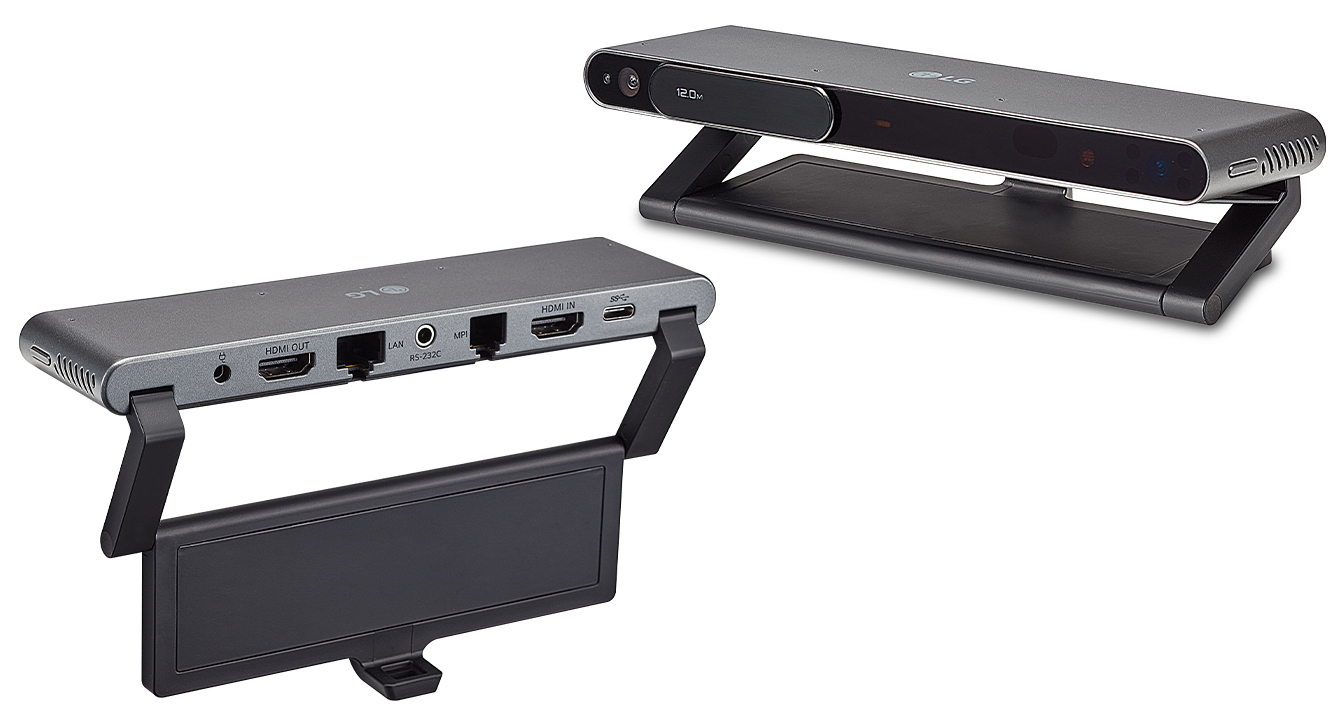

The Award-winning Product Design
LG Smart Cam Pro has won the Red Dot and iF Design Award consecutively, receiving worldwide recognition for its sophisticated design as well as performance.
- For Business
- B2B Commercial
- Information Display
- Commercial TV
- LG Smart Cam Pro
AN-VC22PR

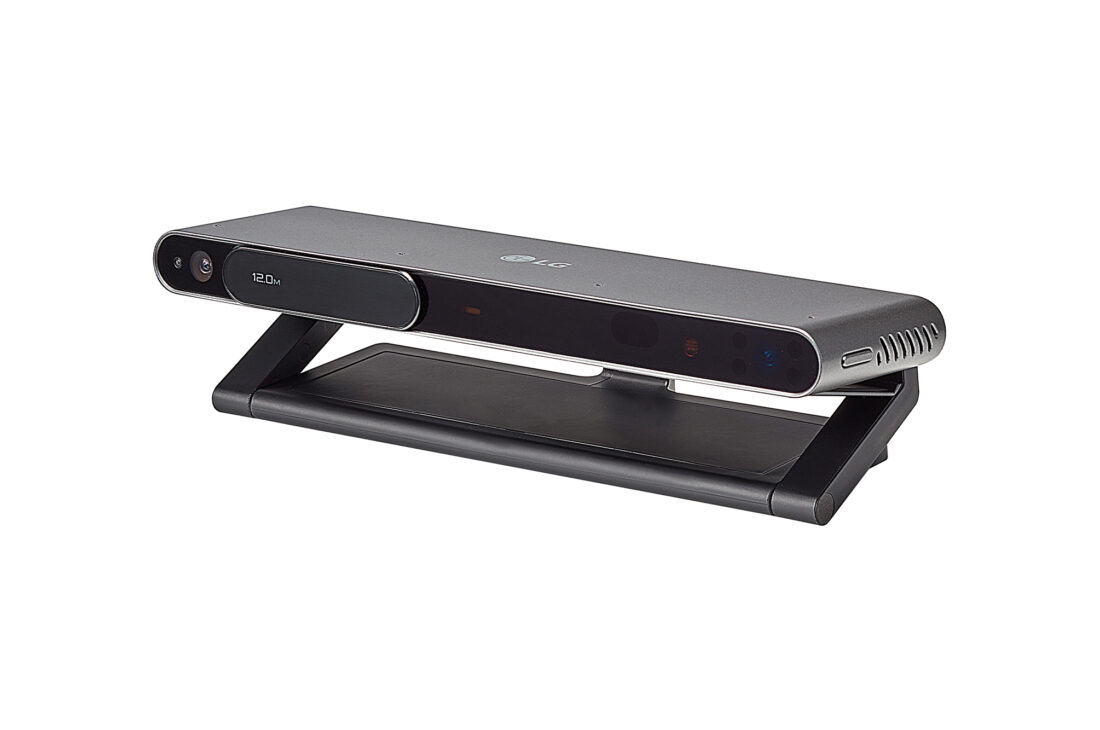

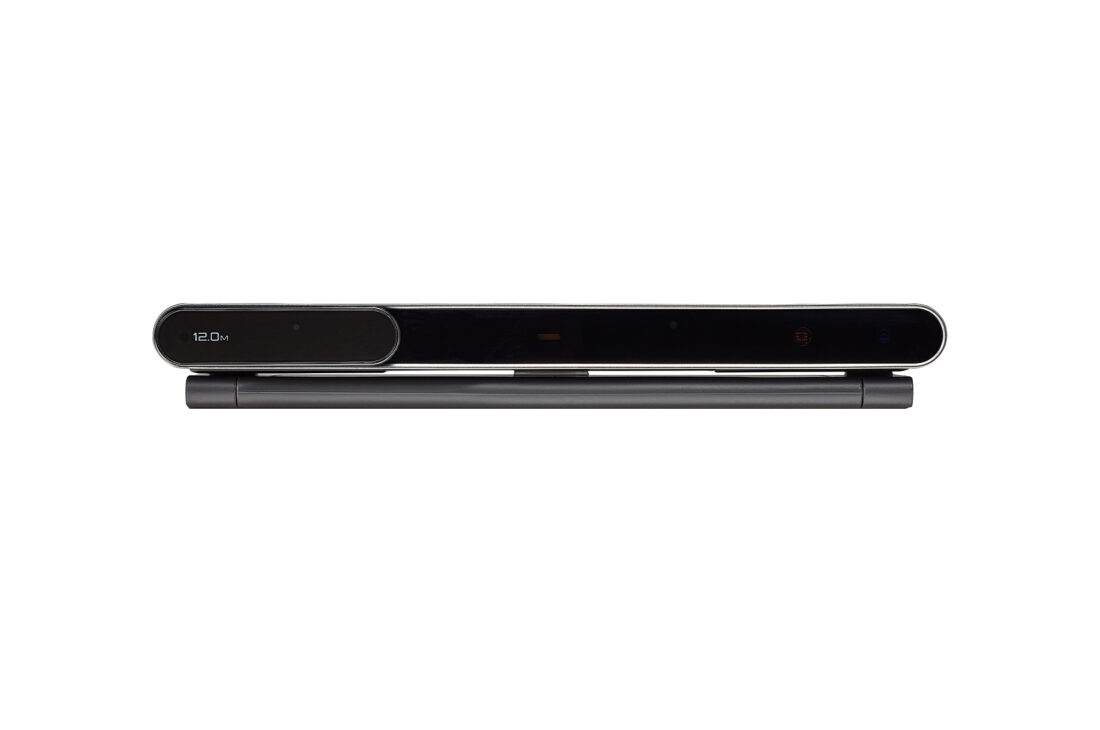

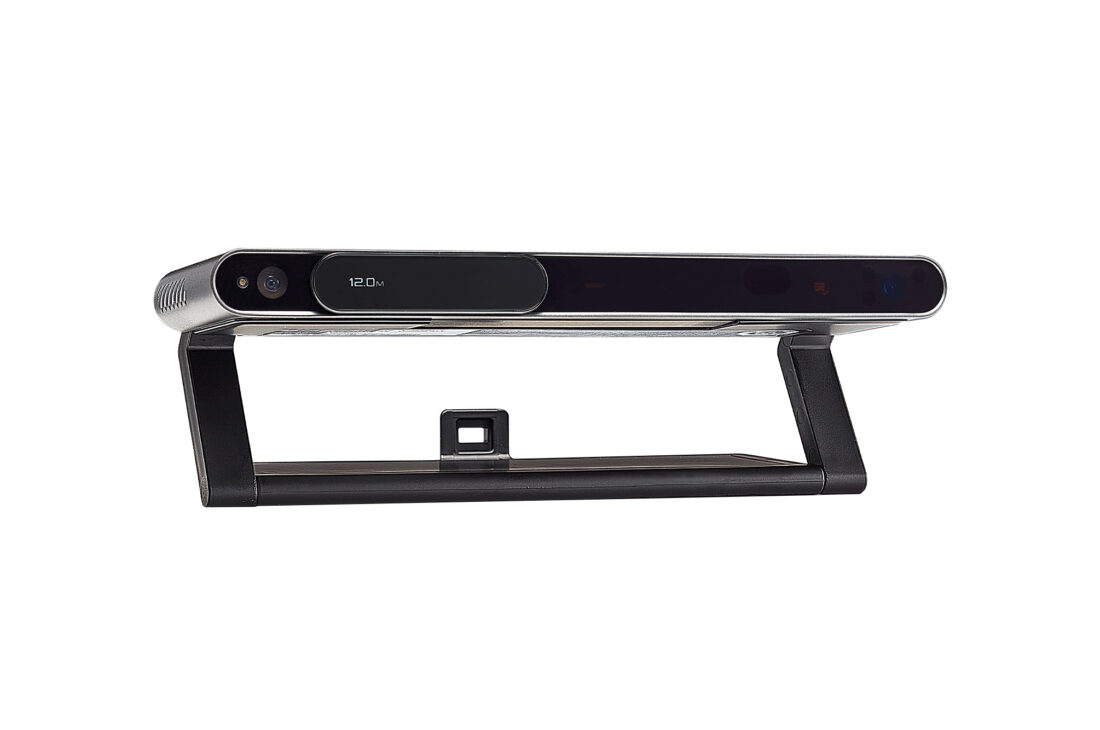

LG Smart Cam Pro
Key Features
- 12 Mega Pixel Camera (Main, Night Vision)
- Digital Zoom (4x), 120º Field of View
- Built-in 4 Mic Array
- Echo Cancellation, Noise Reduction
AN-VC22PR
LG Smart Cam Pro
Features
Tech Specs
Resources

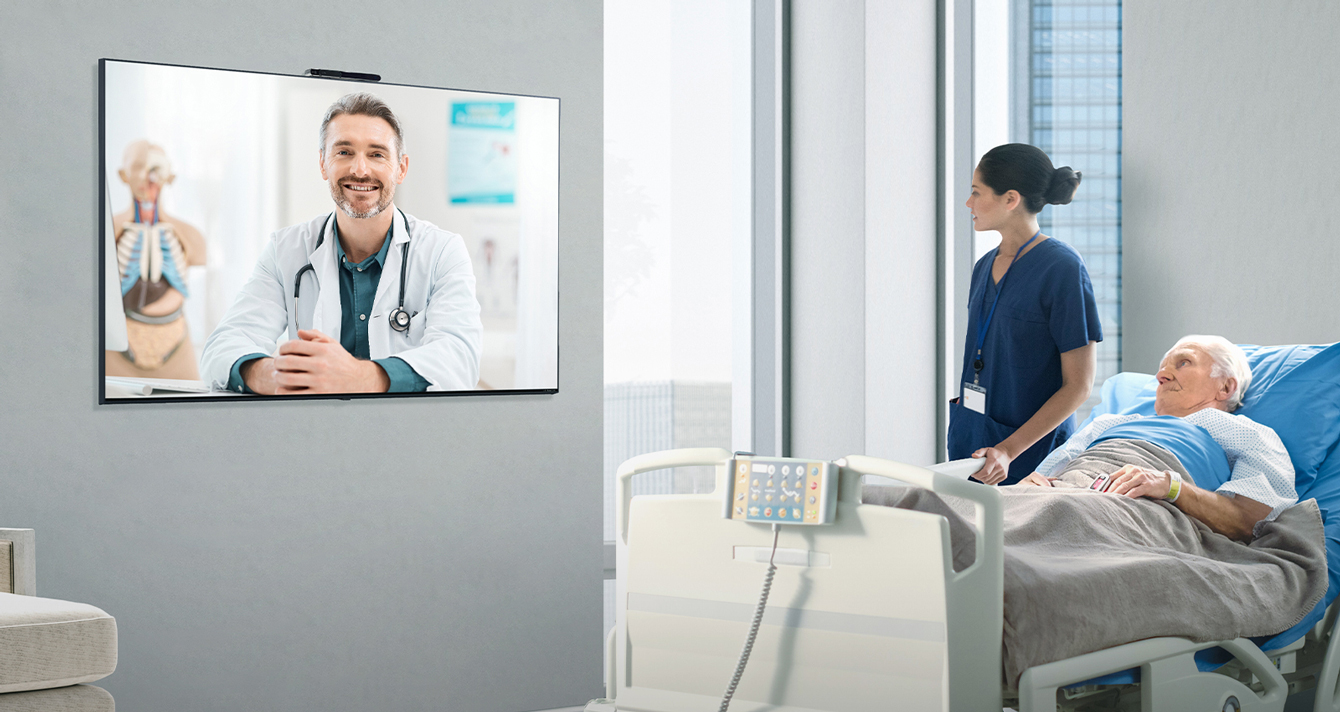

Smart Camera Solution for Effective Visual Communication
* All images in this page are for illustrative purposes only.
* A separate SI solution is required.
Professional Performance,
Sophisticated Design

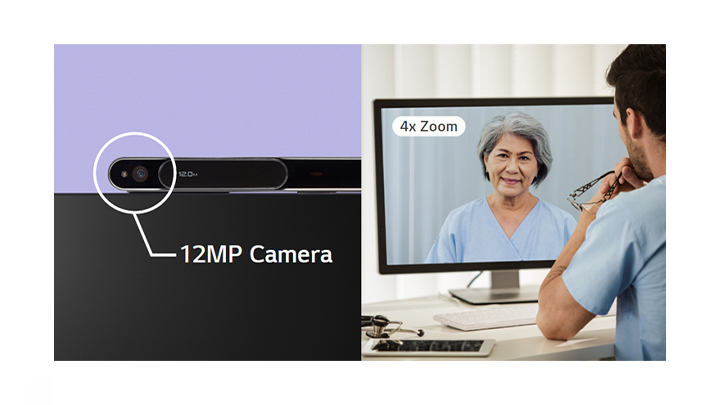

12MP Main Camera
The 12MP (Mega Pixel) camera enables the LG Smart Cam Pro to deliver detailed images and videos clearly. Users can achieve a close focus on faraway subjects through the 4x digital zoom.
12MP Night Vision Camera
A 12MP night vision camera can be used in low light conditions for taking photos and videos even in the middle of the night. Like the main camera, it supports excellent video transmission with a 4x digital zoom.
Excellent Picture Delivery with an HDR Effect
LG Smart Cam Pro uses an HDR effect to bring out more details in backlit environments by brightening ultra-low-light areas.

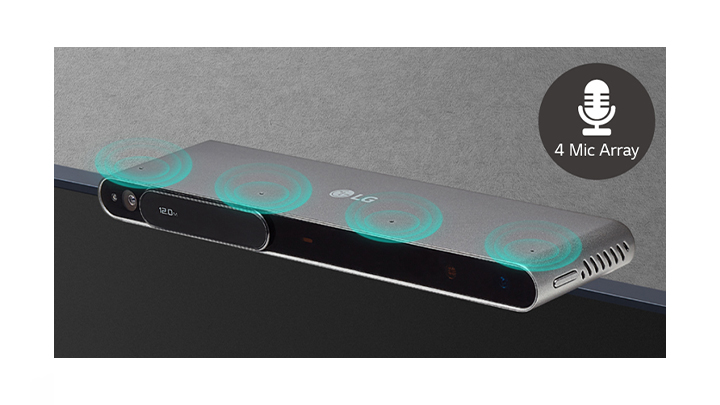

Powerful 4 Mic Array
The 4 Mic Array of LG Smart Cam Pro recognizes sound from different directions and focuses on the main speaker. This enables echo canceling and noise reduction for effective communication.
Good-Scalability

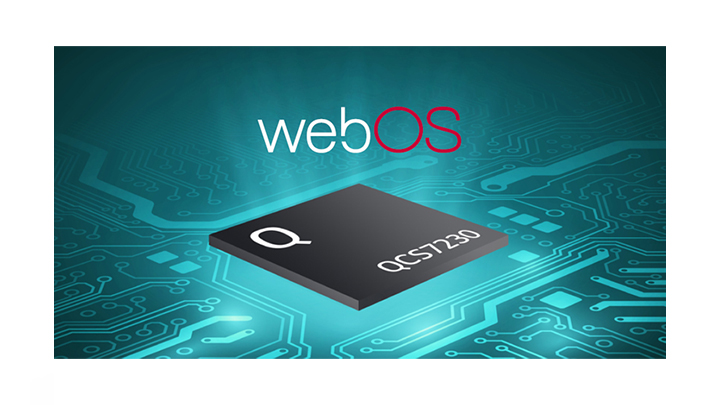

Powered by Qualcomm IoT processor and LG webOS, the high performance camera is easy to operate, and a variety of app types can be easily deployed.

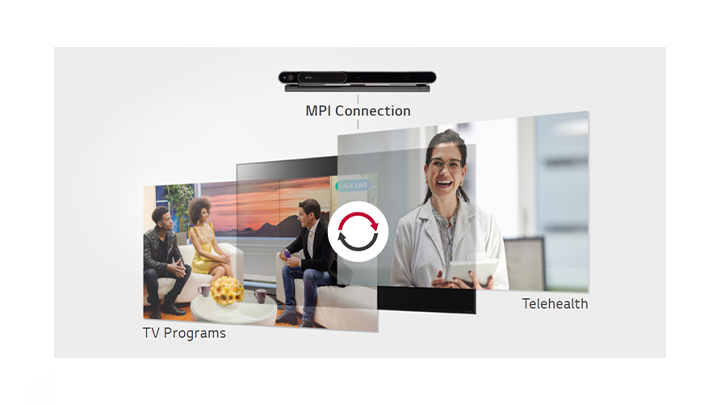

Connection with LG Commercial TVs
Through the MPI port on LG Smart Cam Pro, the manager can control the power or switch the signal of a connected LG commercial TV.
Software
webOS
Fleet Monitoring (Y/N)
Yes
Dimensions (W × H × D, mm)
167 × 13.5 × 44.3
Storage
64 GB
Hours of Use per Day
8 Hours

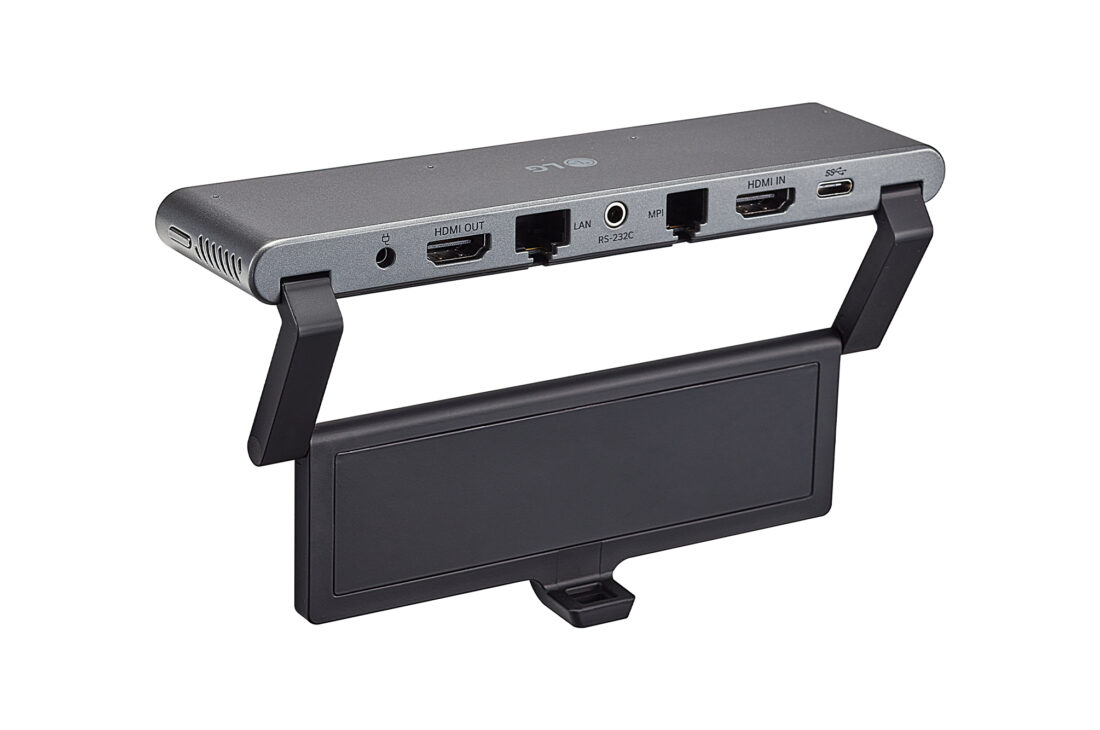

Inputs
HDMI 1.4b, USB 3.1 (Type C)
Outputs
HDMI 1.4b
User Input
Remote Control (In Box)
Control
MPI (RJ12), RS-232C (Phone Jack)
Video Output
HDMI Out (to Client-provided Display)
TV Control Method
MPI, RS-232C TV Control
TV Control Functions
Power On/Off, Input Control, and Volume Control
TV Control – Supported TVs List
LG Commercial TV (with MPI)
TV Control Cable
MPI
Audio Codec
Opus / G.711 PCMA / G.711 PCMU 40~80 Kbps
Audio Algorithms
Echo Cancellation / Noise Reduction
Audio Input
Built-in 4 Mics, USB Mic (Only Aver Camera, Zabra710)
Video Codec Type
H.264 up to HP level 5.1: 2,160p @ 30fps
Compression Algorithms
H.264
Network Interfaces
Wi-Fi 802.11ac 2.4 Ghz / 5 GHz., Ethernet 10/100 Base-T full-duplex (RJ-45)
Transmission Rates, Kbps
Wi-Fi 802.11 a/b/g/n/ac 2.4 Ghz / 5 GHz. 2x2 MU-MIMO up to 867 Mbps
LAN Options
10 / 100
Cabling Provided
1 Ethernet Cable (2 m)
Type
Night Vision Camera
Pixel Resolution
12 MP
Lens
120 FoV
Zoom
4× Digital Zoom
Automatic Iris
Fixed Iris
Night Vision (IR)
Yes (IRPF, IR LED 850 nm 4 ea)
Output Signals
MIPI
Type
RGB Camera
Pixel Resolution
12 MP
Lens
120 FoV
Zoom
4× Digital Zoom
Automatic Iris
Fixed Iris
Night Vision (IR)
No
Output Signals
MIPI
Power
DC Adapter (12 V, 2.5 A) UL62368-1
Compliance with FCC
Yes
