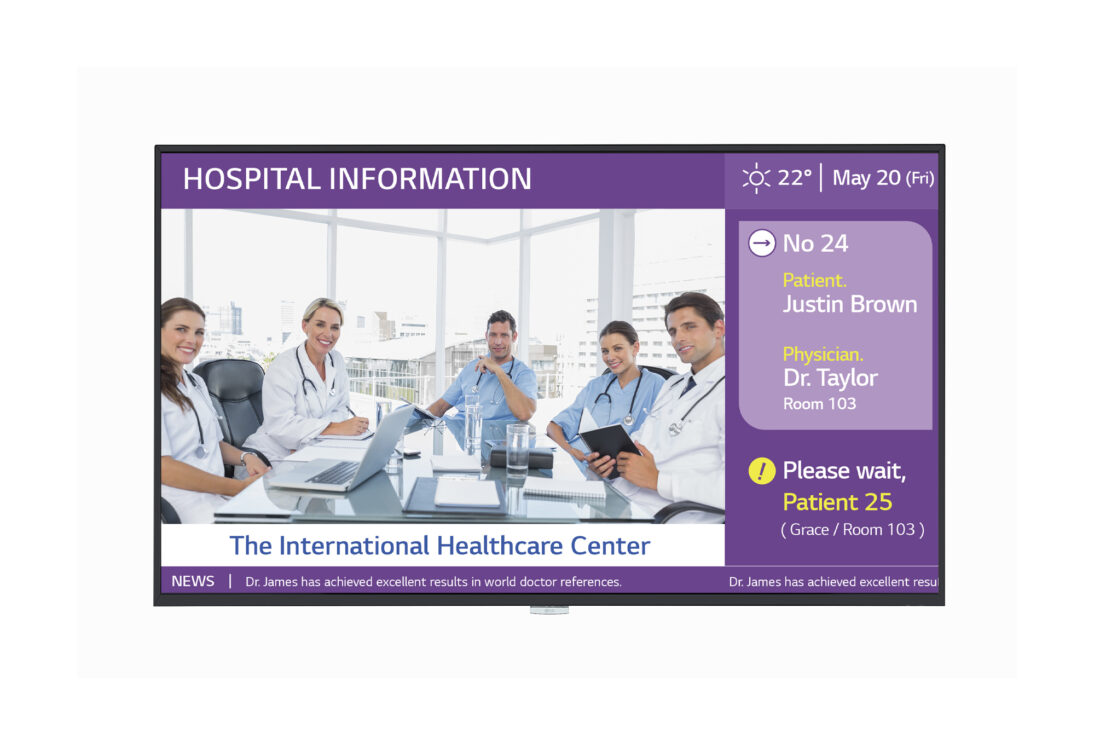

43ML5K
4K UHD Signage
លក្ខណៈពិសេស
លក្ខណៈបច្ចេកទេស
Resources

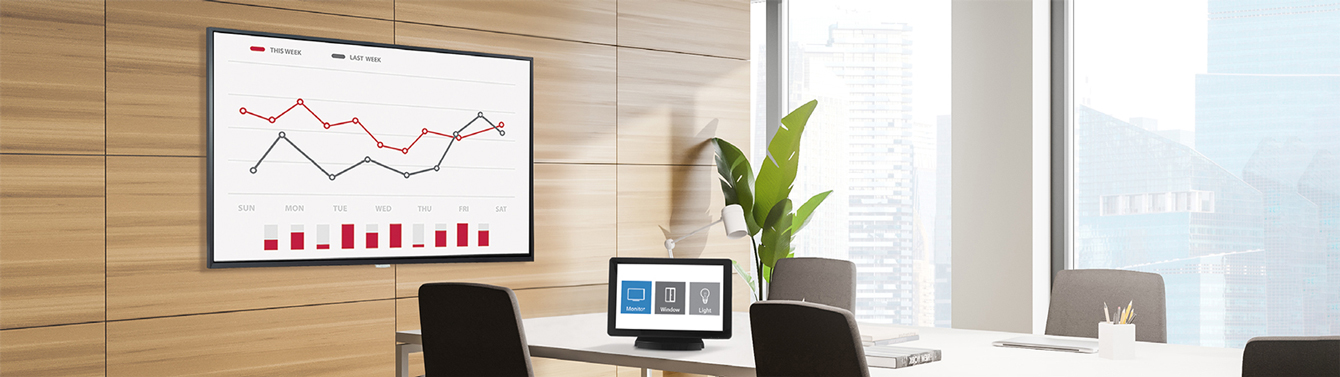

Appropriate Display Brightness

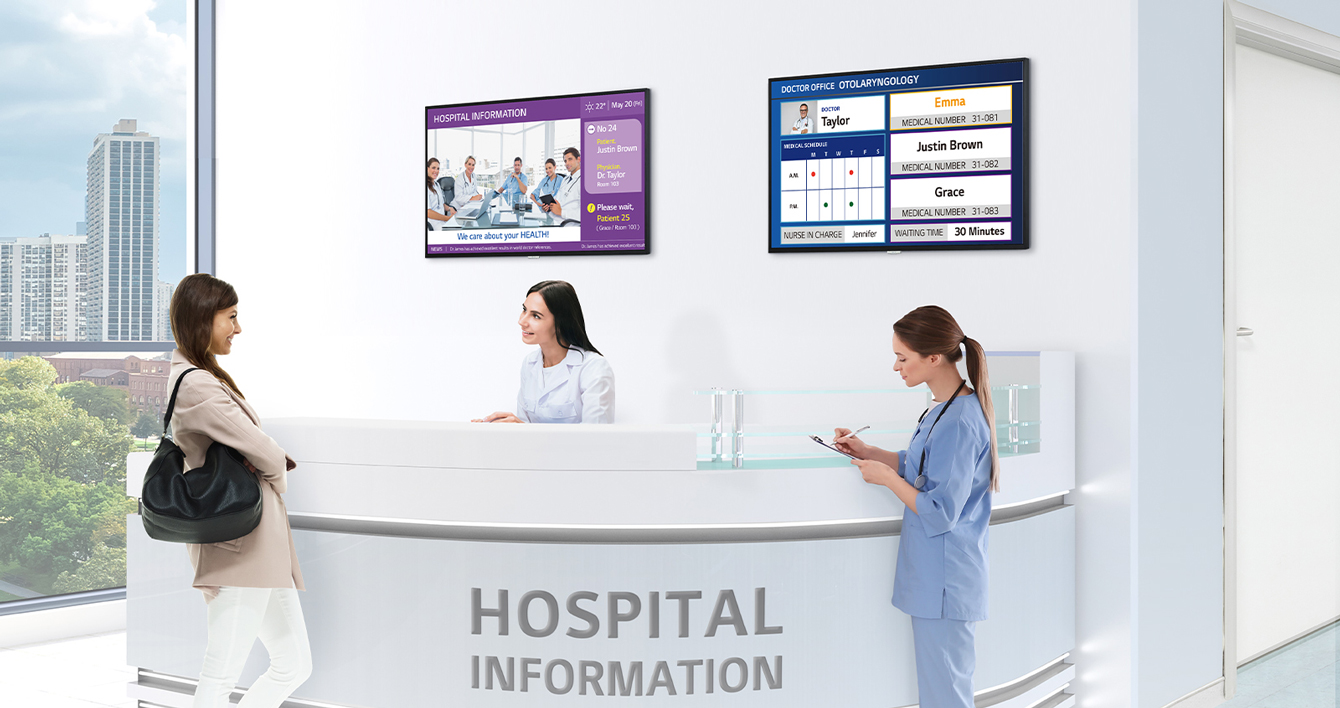

With a recommended brightness for indoor display, the ML5K series clearly delivers content and attracts public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls, etc.

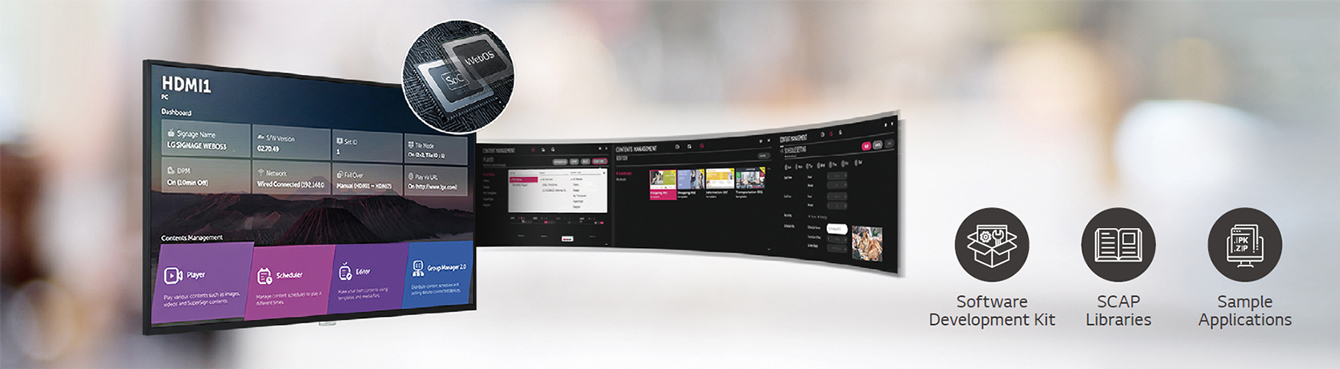

High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

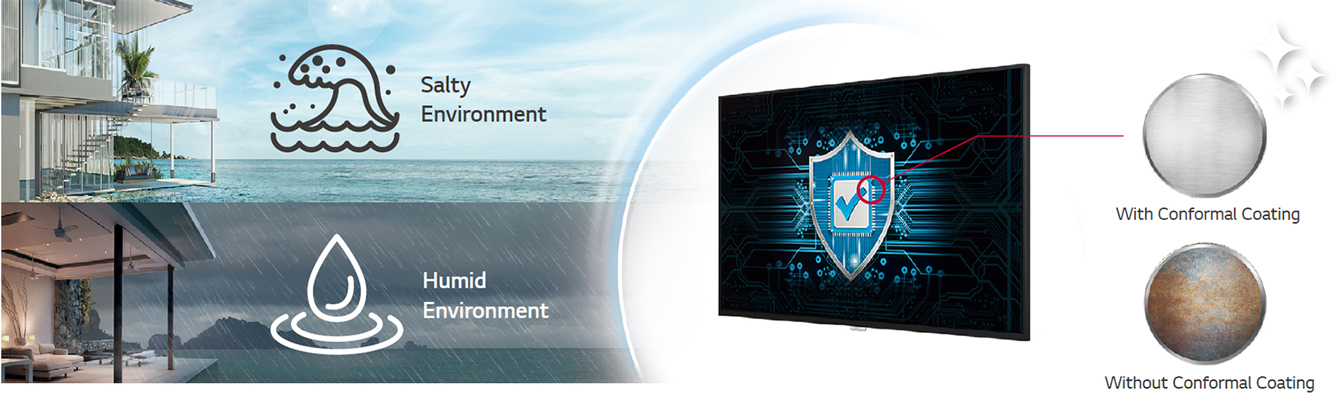

Conformal Coating
In various places the ML5K series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting ML5K series from salt, dust, iron powder, humidity, etc.
Compatible with AV Control System
The ML5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
-
- Screen Size
- 43"
- Panel Technology
- IPS
-
- Back Light Type
- Edge
- Aspect Ratio
- 16 : 9
-
- Native Resolution
- 3840 x 2160 (UHD)
- Refresh Rate
- 60Hz
-
- Brightness
- 500nit (Typ.)
- Contrast Ratio
- 1,200:1
-
- Dynamic CR
- 1,000,000:1
- Color gamut
- BT709 95%
-
- Viewing Angle(H x V)
- 178 X 178
- Color Depth
- 8bits + FRC, 1.07Billion colors
-
- Response Time
- 8ms (G to G)
- Surface Treatment(Haze)
- 25%
-
- Life time
- 50,000Hrs (Min.)
- Operation Hours (Hours/Day)
- 24/7
-
- Portrait / Landscape
- Yes / Yes
-
- Input
- HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)
- Output
- HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
-
- Bezel Color
- Black
- Bezel Width
- T/R/L: 8.4mm, B: 14.4mm
-
- Weight(Head)
- 11.2Kg
- Weight(Head+Stand)
- 11.8Kg
-
- Packed Weight
- 13.7Kg
- Monitor Dimension(W x H x D)
-
962.5 x 568.0 x 39.9mm
(with LG Logo)
-
- Monitor Dimensions with Stand(W x H x D)
- 962.5 x 613.1 x 290.0mm
- Carton Dimensions(W x H x D) (Box outer size)
- 1060.0 x 660.0 x 152.0mm
-
- VESATM Standard Mount Interface
- 200 x 200
-
- HW
- Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation
- SW
- webOS ver. (webOS6.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
-
- Operation Temperature
- 0 °C to 40 °C
- Operation Humidity
- 10 % to 80 %
-
- Power Supply
- AC 100-240V~, 50/60Hz
- Power Type
- Built-In Power
-
- Typ.
- 80W
- Max.
- 120W
-
- BTU (British Thermal Unit)
- 273 BTU/Hr(Typ.), 410 BTU/Hr(Max.)
- Smart Enegy Saving(~70%)
- 56W
-
- DPM
- 0.5W
- Power off
- 0.5W
-
- Speaker
- Yes
-
- Safety
- CB / NRTL
- EMC
- FCC Class "A" / CE / KC
-
- ErP / Energy Star
- NA / Yes
-
- OPS Type Compatible
- Yes
-
- SuperSign CMS
- Yes
- SuperSign Control / Control+
- Yes / Yes
-
- SuperSign WB
- Yes
- Mobile CMS
- Yes
-
- Signage 365 Care
- Yes
-
- OSD
- English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
-
- Basic
- Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
- Optional
- Stand(ST-653T), Wall bracket(LSW240B), OPS Kit(KT-OPSF)
-
- Tilt(Facedown)
- Yes (Max 15º degree, 30ºC temperature, humidity 50%)
- IP Rating
-
IP5X
